Understanding Access Control Cables: Types and Functions Explained

When setting up an access control system, understanding the wiring and cabling requirements is crucial for ensuring seamless functionality and security. This article provides an in-depth look at how each component works within an access control setup, details the types of cables used, and includes real-world scenarios that demonstrate how this knowledge applies to commercial applications. Let’s break down the requirements and simplify each element to make this process clear, whether you’re an installer, facility manager, or business owner.

Understanding Access Control Components

In a standard access control system, four key components interact to control and monitor access through a door:

    • Card Reader: Recognizes authorized users and sends signals to the access control panel to grant access.
    • Request-to-Exit (REX) Device: A button or motion sensor that allows users to exit without triggering an alarm.
    • Door Position Switch (DPS): Monitors if the door is open or closed.
    • Electric Strike or Magnetic Lock: The actual locking mechanism that restricts or allows entry.

Each of these devices has specific wiring and cabling requirements to connect to the access control panel, which acts as the system’s command center.

Detailed Wiring Requirements for Each Component



Card Reader Wiring

    • Function: The card reader reads an RFID or magnetic stripe card and sends this information to the access control panel for validation.
    • Wiring Requirements: Typically, a 6-conductor, 22 AWG cable is used, which provides sufficient conductors for data transmission and power.
    • Key Wires:
        • Power wires for powering the card reader.
        • Data wires (D0 and D1) for transmitting data back to the control panel.
        • Ground and shield wires to protect the signal from interference.

Scenario: In a commercial office, employees swipe their badges at the main entrance card reader, which signals the access panel to verify their access rights before unlocking the door.



Request-to-Exit (REX) Device Wiring

    • Function: The REX device allows individuals to exit a secured area without setting off alarms or requiring card access.
    • Wiring Requirements: Usually, 2-conductor, 18-22 AWG cable suffices since only power and ground wires are needed for most REX buttons or sensors.
    • Key Wires:
        • Power wires to operate the REX button or sensor.
        • Signal wires (often combined with power) to signal the control panel to unlock the door.

Scenario: In a warehouse with restricted access, employees press a REX button to exit secured storage areas. The button sends a signal to unlock the door without needing additional authorization, streamlining the exit process for staff handling large items.



Door Position Switch (DPS) Wiring

    • Function: The DPS monitors whether a door is closed or open, relaying this information to the access control panel.
    • Wiring Requirements: A 2-conductor, 22 AWG cable is often sufficient since it only transmits an open or closed signal to the panel.
    • Key Wires:
        • Signal wires that transmit the door status to the control panel.
        • Ground wires may also be required for some setups.

Scenario: For a pharmaceutical facility, the DPS on sensitive areas like the lab or storage rooms ensures compliance by alerting the security team if a door is left open longer than usual.



Electric Strike Wiring

    • Function: The electric strike locks or unlocks the door when it receives a signal from the access control panel.
    • Wiring Requirements: Often requires 2-conductor, 16-18 AWG cable to support the higher current needed for operation.
    • Key Wires:
        • Power wires to activate the strike when access is granted.
        • Control wires may be used to receive signals from the access panel.

Scenario: In a commercial office with sensitive data, only employees with access cards can unlock the electric strike on server room doors. The strike is triggered only upon successful card verification.

The Role of Composite or “Banana” Cable in Access Control Systems

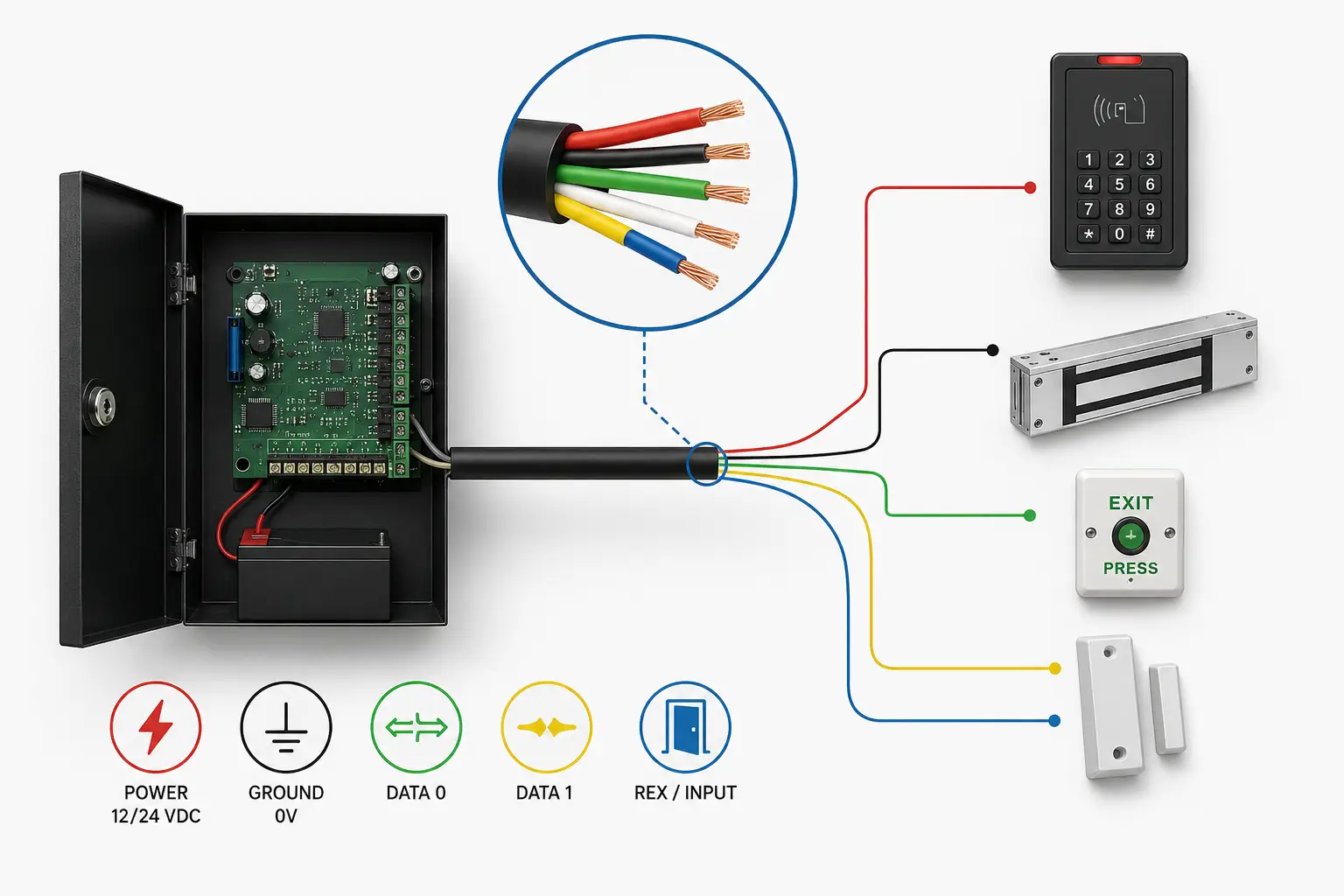

A composite or “banana” cable is a bundled cable that combines several cables (often 2 to 4 types) within a single outer jacket, offering convenience and time-saving during installation. For access control installations, a banana cable with 18/4, 22/6, and 18/2 conductors is common, as it meets the needs of all the devices involved, such as card readers, REX devices, DPS, and electric strikes.

Advantages of Using Composite Cables

    • Easier Installation: Only one cable run per door is required, reducing installation time and labor costs.
    • Reduced Clutter: Composite cables keep wiring organized and neat.
    • Efficient Cable Management: Fewer cables reduce the risk of wiring mistakes and simplify troubleshooting.

Scenario: In a multi-story office building, running individual cables for each access component would clutter cable trays and complicate maintenance. Composite cables streamline the setup, keeping the installation orderly and efficient.

Understanding Power and Data Requirements for Access Control

Access control systems have distinct power and data requirements that vary based on the devices and system scale. Here’s a quick guide:

    • Card Readers: Most card readers operate on 12V DC, with some requiring 24V DC for longer cable runs. Data transmission occurs over the D0 and D1 lines, compatible with Wiegand or RS-485 standards.
    • Electric Strikes: Can run on 12V or 24V DC, with 24V preferred for high-power or longer distances to minimize voltage drop.
    • REX and DPS: Usually low voltage, with 12V DC being standard. Signal lines can run on a simple 2-conductor setup.



Best Practices for Cable Runs and Connections

When installing an access control system, these best practices help ensure optimal performance and durability:

    • Avoid Interference: Run access control cables away from high-voltage or other interference-causing cables.
    • Use Conduit in Exposed Areas: For areas where cables may be exposed to damage, use conduit to protect the wiring.
    • Proper Grounding: Grounding shields for data cables (e.g., 22 AWG for card readers) helps reduce interference, especially in environments with electrical equipment.
    • Labeling and Documentation: Clearly label cables and maintain accurate wiring diagrams. This simplifies maintenance and troubleshooting for future repairs or upgrades.

Scenario: In a medical facility, cables running parallel to power lines may experience interference, potentially disrupting data transmission for card readers. Installing grounded conduit and running cables at 90-degree angles to power lines can significantly reduce these issues.

Simplified Wiring Diagram Table

Here’s how a simplified access control wiring layout would look for a single-door setup with an access control panel and four devices:

Device Cable Type AWG (Gauge) Number of Conductors Purpose
Card Reader Shielded Cable 22 AWG 6 Conductors Power and data transmission to panel
REX Device Unshielded Cable 18-22 AWG 2 Conductors Signals panel for exit request
DPS (Door Position Switch) Unshielded Cable 22 AWG 2 Conductors Reports door status to control panel
Electric Strike Unshielded or Shielded Cable 16-18 AWG 2 Conductors Power delivery to unlock door

This table provides a clear view of the wiring requirements for a single-door access control system setup, ensuring proper selection and installation of cables for optimal functionality.

    1. Card Reader: Connects to the panel using 22 AWG, 6-conductor cable for power and data.
    2. REX Device: Uses 18-22 AWG, 2-conductor cable to signal the control panel for exit.
    3. DPS: Connects with a 22 AWG, 2-conductor cable to inform the control panel of door status.
    4. Electric Strike: Uses 16-18 AWG, 2-conductor cable to receive power and unlock when access is granted.



Real-World Scenario: Installing Access Control in a Commercial Office

Let’s say a corporate office wants to secure their server room with a card reader, REX device, DPS, and electric strike. Here’s a walkthrough of the installation process using the knowledge from this guide:

    1. Selecting the Right Cables: Choose a composite cable that meets all wiring needs for the devices involved.
    2. Setting Up the Power Supply: Ensure a stable 12V or 24V DC power source to the control panel, with separate outputs for each connected device.
    3. Running and Securing Cables: Route cables through conduit where necessary and secure them to avoid tension or wear.
    4. Testing Connectivity: After wiring each device to the panel, test the system to confirm each component functions as expected (e.g., the card reader grants access, DPS accurately detects door position).
    5. Final Checks and Labeling: Double-check connections, label each wire, and record the configuration in a wiring diagram for future maintenance.



Installing an access control system involves carefully selecting and routing cables for each device, ensuring adequate power, and safeguarding data transmission. By following the guidelines outlined here and using composite cables for efficiency, you can create a robust and reliable system tailored to your specific security needs. Proper cable management, adherence to industry standards, and leveraging high-quality materials will not only enhance the performance of your access control system but also simplify future maintenance and upgrades. Investing time and effort in getting the cabling right ensures the seamless operation of your system and the protection of your facility for years to come.
