Running data cables and electrical wiring in the same conduit may look convenient on site, but it can create serious safety, inspection, performance, and maintenance problems.

In Canada, the Canadian Electrical Code, Part I, officially CSA C22.1, is the national base standard for electrical installations. The latest edition is CSA C22.1:24, Canadian Electrical Code, Part I, 26th Edition, published in 2024 by CSA Group. Provinces and territories may adopt it with local amendments. In Ontario, for example, the 2024 Ontario Electrical Safety Code includes the Canadian Electrical Code, Part I, plus Ontario-specific amendments, and became effective May 1, 2025.

For contractors, IT managers, builders, and facility owners, the key point is simple:

Data Cabling, communication, fiber, audio, security, and other low-voltage cabling should normally be installed in separate conduit, separate boxes, and separate pathways from electrical power conductors.

This is not only about signal interference. It is about electrical safety, code compliance, insulation ratings, fire protection, serviceability, and avoiding failed inspections.

Can Data and Electrical Wiring Share the Same Conduit?

In most normal commercial installations, data cables and electrical branch-circuit conductors should not be installed in the same conduit.

This applies to common systems such as:

Cat6 and Cat6A network cabling
Telephone and communication cables
Security camera cables
Access control cabling
Intercom cabling
Audio and paging cables
Control cables
Fiber optic cabling
Low-voltage device cabling

The Canadian Electrical Code separates electrical power wiring from communication and low-voltage systems because they are different types of circuits with different hazards, insulation requirements, and installation methods.

CEC guidance for communication systems includes requirements for raceways, bonding, cable selection, fire spread, plenum spaces, shafts, raised floors, and separation from power conductors. A public Code guide summarizing Section 60 notes that communication cables must maintain separation from other conductors depending on voltage and installation type, and that communication cables should not be placed in boxes, raceways, or fittings containing lighting, power, or Class 1 circuits unless specific separation or system-supply exceptions apply.

The Simple Contractor Rule

For most projects, use this practical rule:

Do not run Cat6, fiber, audio, access control, CCTV, or other low-voltage cables in the same conduit as 120V, 208V, 240V, 347V, or 600V electrical wiring.

Instead:

Use separate conduits.
Use separate junction boxes.
Use separate pull boxes.
Keep clear separation in cable trays.
Cross power at 90 degrees where crossing is unavoidable.
Use listed, approved cable types for the environment.
Follow local authority requirements and inspection rules.

This is the approach most likely to pass inspection, protect the cabling system, and avoid future troubleshooting.

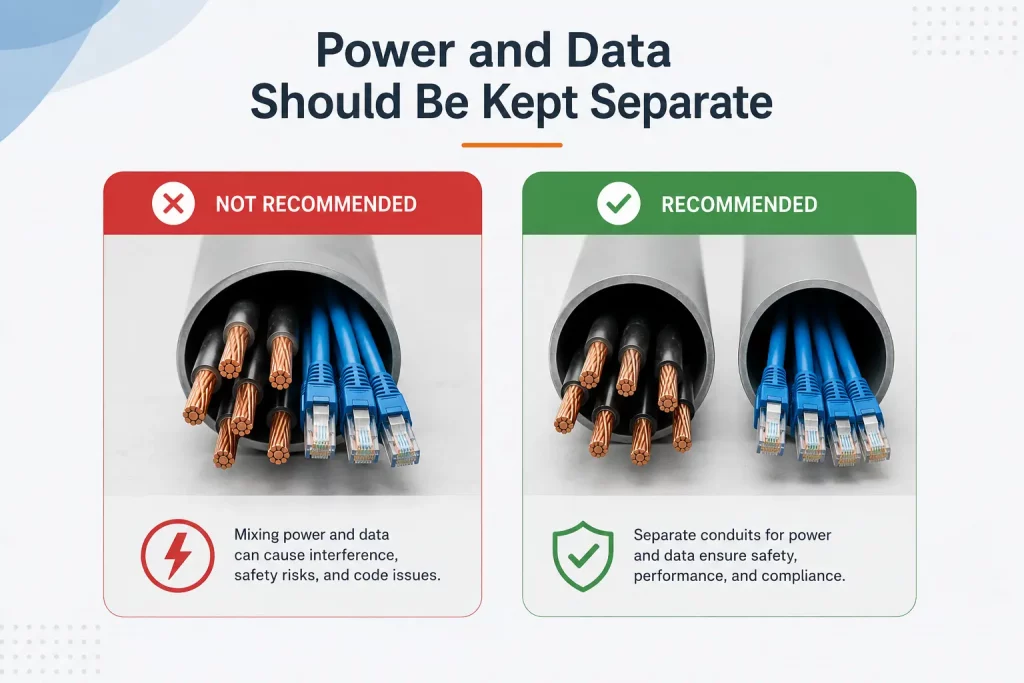

Why Power and Data Should Be Kept Separate

1. Electrical Safety

Electrical power conductors can carry dangerous voltage and current. Data and communication cables are not normally designed to be exposed to the same electrical environment.

If a power conductor is damaged inside a conduit and contacts a data cable, the low-voltage cable can become energized. That creates a shock hazard, a fire hazard, and a risk to connected equipment such as switches, routers, cameras, access control boards, intercoms, and NVRs.

2. Insulation Rating Issues

Power conductors and low-voltage/data cables are not usually rated the same way.

A common Cat6 cable jacket is not intended to sit inside the same raceway as building power conductors unless the installation method is specifically allowed and all applicable insulation, separation, and listing requirements are satisfied.

Section 16 guidance for Class 1 and Class 2 circuits also shows the importance of insulation rating and circuit classification. For Class 1 circuits, conductors of different circuits may be allowed together only when insulated for the maximum voltage present, but power supply conductors are limited unless connected to the same equipment and properly insulated.

3. Signal Interference

Power conductors can induce electromagnetic noise into nearby copper communication cables.

This can affect:

Ethernet performance
Audio quality
Analog camera signals
Intercom systems
Paging systems
Access control readers
Control wiring
RS-485 or other low-voltage communication lines

With modern Ethernet, twisted-pair design helps reduce interference, but it does not make poor pathway design acceptable. Keeping power and data separate is still the correct commercial installation practice.

4. Heat and Cable Derating

Power conductors can generate heat, especially where multiple current-carrying conductors are installed together.

Data cables also have performance limits. For example, PoE and PoE++ applications can add heat inside cable bundles. Mixing systems inside the wrong conduit can create long-term reliability issues and make troubleshooting difficult.

5. Future Maintenance Problems

When power and low-voltage cables share pathways, future service becomes risky.

A low-voltage technician may open a junction box expecting only data cabling and find electrical power conductors inside. An electrician may pull new conductors and damage network cables. A future tenant improvement may become more expensive because the pathways are not cleanly separated.

Good conduit design is not only about today’s installation. It is about safe service for the next 10 to 20 years.

Canadian Electrical Code Sections That Matter

The exact rule application depends on the cable type, voltage, building type, province, and authority having jurisdiction. However, the following CEC areas are especially relevant when designing power and data pathways.

CEC Area	Why It Matters for Data and Electrical Conduit
Section 12: Wiring Methods	Covers raceways, conduit systems, cable installation, support, protection, and wiring methods.
Section 16: Class 1 and Class 2 Circuits	Important for control, low-voltage, limited-energy, and power-limited circuits.
Section 56: Optical Fiber Cables	Applies to fiber optic cable installation requirements.
Section 60: Electrical Communication Systems	Important for communication conductors and cables inside buildings.
Section 10: Grounding and Bonding	Important when metallic raceways, armoured cables, shields, and equipment bonding are involved.
Section 2: General Rules	Includes broad safety, fire spread, and general installation principles.

For Ontario projects, contractors must also consider the Ontario Electrical Safety Code, which is the law in Ontario and includes Ontario-specific amendments to the Canadian Electrical Code.

Common Jobsite Scenarios

Scenario 1: Cat6 and 120V Power in the Same PVC Conduit

Recommended answer: Do not do this.

Cat6 network cable should not be pulled into the same conduit as 120V branch-circuit conductors in a standard commercial installation. Use one conduit for electrical power and another conduit for data.

This avoids code complications, EMI issues, safety hazards, and failed inspections.

Scenario 2: Data Cable and Power in the Same Junction Box

Recommended answer: Avoid it unless a listed barrier or approved divided box is used.

Communication cables should not be placed inside boxes or compartments containing power conductors unless the installation meets the required separation or exception conditions. Section 60 guidance specifically points to separation from lighting, power, and Class 1 circuits unless separated by a suitable partition or where the power conductors solely supply the communication system or remote-control equipment.

Scenario 3: PoE Cable and Regular Data Cable Together

Recommended answer: Usually acceptable when installed as structured cabling, but design for heat and bundle size.

PoE is not the same as 120V electrical power. PoE runs over data cable and is commonly installed with network cabling. However, PoE bundles should still be designed properly, especially for high-power PoE, long runs, large bundles, and warm ceiling spaces.

Scenario 4: Fiber and Electrical in the Same Pathway

Recommended answer: Use separate conduit unless the design is specifically approved.

Non-conductive fiber does not behave like copper data cable, but that does not automatically mean it should be installed with electrical conductors. Armoured or conductive fiber introduces bonding and grounding considerations. The cleanest commercial design is still separate conduit.

Scenario 5: Audio Cable and Electrical in the Same Conduit

Recommended answer: Do not run mic-level, line-level, speaker control, or low-voltage audio cables in the same conduit as power.

Audio is especially sensitive to electrical noise. Even when the system works, you may hear hum, buzz, distortion, or interference. For commercial AV, paging, worship spaces, event halls, factories, and offices, audio pathways should be planned separately from electrical power.

Best Practices for Data and Electrical Separation

1. Use Dedicated Conduits

The best installation is simple:

One conduit system for electrical power
One conduit system for data and communications
Separate boxes and pull points
Proper labeling at both ends

This keeps the installation safe, serviceable, and inspection-friendly.

2. Keep Parallel Runs Separated

Avoid running data cables tightly parallel to electrical conduits for long distances.

Where possible, maintain physical separation between power and communication pathways. The required distance may depend on voltage, cable type, raceway type, shielding, and local authority interpretation.

3. Cross at 90 Degrees

When data and electrical pathways must cross, cross them at a 90-degree angle.

This reduces the length of exposure between the systems and helps reduce noise coupling.

4. Use Metallic Conduit Where Needed

Metal conduit can provide better physical protection and may reduce electromagnetic interference when properly bonded. However, metallic conduit does not automatically permit mixing power and data in the same raceway.

It must still be installed according to the applicable Code requirements.

5. Use Correct Cable Ratings

Choose cable jackets based on the environment:

Riser-rated cable for vertical riser spaces where required
Plenum-rated cable for air-handling spaces where required
Outdoor-rated cable for exterior conduit or wet locations
Armoured cable where mechanical protection is needed
FT-rated communications cable where applicable

A cable that works in an office ceiling may not be suitable for a shaft, plenum, underground duct, exterior conduit, warehouse, or industrial space.

6. Respect Firestopping and Fire Separations

Any cable or conduit passing through a fire-rated wall, floor, or shaft must be properly firestopped.

CEC communication-system guidance also highlights fire spread and plenum-related requirements for cables passing through fire separations, ducts, plenums, and similar spaces.

7. Label Everything

Every conduit, box, cable, and pathway should be clearly labeled.

For structured cabling, label:

MDF end
IDF end
Patch panel port
Faceplate or device end
Camera or AP location
Fiber strand count and destination
Conduit destination

Clear labeling reduces service time and prevents future mistakes.

Recommended Installation Approach for Commercial Projects

For offices, warehouses, schools, retail stores, industrial facilities, and commercial buildings, the best design is:

Electrical Pathways

Dedicated conduit for power
Installed by licensed electrical contractor where required
Proper grounding and bonding
Proper box fill and conduit fill
Proper support and mechanical protection
Inspection by the applicable authority where required

Low-Voltage Pathways

Dedicated conduit, J-hooks, tray, or approved low-voltage pathway
Separate from power wiring
Proper cable rating for the building space
Proper bend radius and pulling tension
Tested and certified after installation
Labeled at both ends
Designed for future expansion

Network Cabling

Cat6 or Cat6A based on bandwidth requirements
Separate pathway from electrical
Maximum permanent link length maintained
Fluke-tested where professional certification is required
Installed away from EMI sources such as motors, transformers, VFDs, fluorescent ballasts, and large power feeders

Fiber Cabling

Separate conduit or innerduct where practical
Proper bend radius
Proper pulling method
LC, SC, or other connector type based on hardware
OM3, OM4, OM5, or OS2 selected based on link distance and transceiver requirements
Tested with light source/power meter or OTDR where required

Quick Rule of Thumb Table

Installation Situation	Best Practice
Cat6 with 120V power in same conduit	Use separate conduit
Data and power in same box	Use separate boxes or approved divider
Fiber and power in same conduit	Use separate conduit unless specifically approved
Audio and electrical in same conduit	Use separate conduit
PoE camera cable with other network cables	Usually acceptable as structured cabling
Data crossing electrical conduit	Cross at 90 degrees
Long parallel data and power runs	Maintain separation
Plenum ceiling space	Use properly rated cable
Fire-rated wall penetration	Firestop correctly
Outdoor conduit	Use wet-location/outdoor-rated cable where required

Why This Matters for Business Owners

Poor separation between data and electrical wiring can create hidden problems.

You may not see the issue on day one. The network may appear to work. Cameras may come online. Access control may function. Speakers may pass audio.

But later, the problems begin:

Random network drops
Camera freezing
Audio hum
Failed cable tests
Inspector correction notices
Equipment damage
Higher service costs
Unsafe maintenance conditions
Expensive rework after ceiling close-in

A proper conduit plan prevents these issues before they become expensive.

Final Recommendation

For Canadian commercial projects, the safest and most professional approach is:

Keep electrical power and low-voltage/data cabling in separate conduit systems.

Use separate boxes, separate pull points, proper cable ratings, correct firestopping, clean labeling, and proper testing.

There are limited Code-based exceptions for specific approved systems, barriers, partitions, or power conductors that solely supply communication equipment. However, those exceptions should not be treated as general permission to mix data and power.

When in doubt, separate the systems and confirm the installation with the local authority having jurisdiction, a licensed electrician, or the project engineer.

A clean separation strategy protects people, equipment, inspections, and long-term network performance.
