Understanding the power requirements of your security camera system is essential for maintaining reliable and efficient operation. An improperly sized power supply can lead to performance issues, while calculating power consumption can help optimize your setup and control energy costs. This guide will walk you through the different types of power supplies, how to calculate power consumption in watts, and best practices for managing power across multiple cameras.

1. 12V DC Power Supply

Most standard security cameras operate on 12V DC power and draw anywhere from 0.2A to 1A, depending on the camera model and features (infrared night vision, motorized zoom, etc.).

Power Calculation Example:
If a camera operates at 12V and draws 0.25A, the power consumption is:

$$\text{Power (Watts)}=\text{Volts}\times \text{Amps}=12V\times 0.25A=3W$$

Thus, this camera consumes 3 watts of power.

2. Power over Ethernet (PoE)

PoE provides both power and data over a single Ethernet cable. The power consumption for PoE cameras depends on the PoE standard used.

Calculating Total Power for Multiple Cameras:
For a system with 16 standard PoE cameras, each consuming 5W, the total power requirement is:

$$5W\times 16cameras=80W$$

3. 24V AC Power Supply

Commonly used for PTZ cameras and large commercial setups, 24V AC systems support higher power loads and longer distances with less voltage drop. Power consumption in these systems can reach up to 20W per camera, especially for high-powered PTZ models with heaters or wipers.

To determine the total power required for your security camera system, follow these steps:

1. Calculate Power per Camera:
   Use the formula:

   Power (W)=Volts×Amps

2. Multiply by the Number of Cameras:
   If each camera consumes 3W, and there are 16 cameras, the total power consumption is:

   3W×16cameras=48W

3. Add a Safety Margin:
   Always plan for 20–30% more capacity to handle peak power usage and future expansions.

   48W÷0.8=60W(recommendedpowersupplycapacity)

Best Practices for Managing Power Consumption

1. Use Centralized Power Distribution Boxes:
   These boxes help manage power more effectively for large installations and reduce cable clutter.

2. Separate Power Supplies for Long and Short Runs:
   Cameras located at different distances may experience varying power drops. Use separate power supplies to ensure stability.

3. Monitor Power Consumption:
   For PoE systems, use managed PoE switches with power monitoring features to ensure each camera receives sufficient power without overloading.

4. Plan for Expansion:
   Always choose a power supply with extra capacity to support future cameras.

Environmental Factors and Power Efficiency

The installation environment plays a significant role in power consumption:

• Outdoor Cameras: Cameras with heaters, fans, and infrared LEDs consume more power, especially in extreme temperatures.
• Indoor Cameras: Typically consume less power but should still be monitored for consistent performance.
• Solar-Powered Systems: In remote areas, combining solar panels with low-power cameras can significantly reduce energy costs.

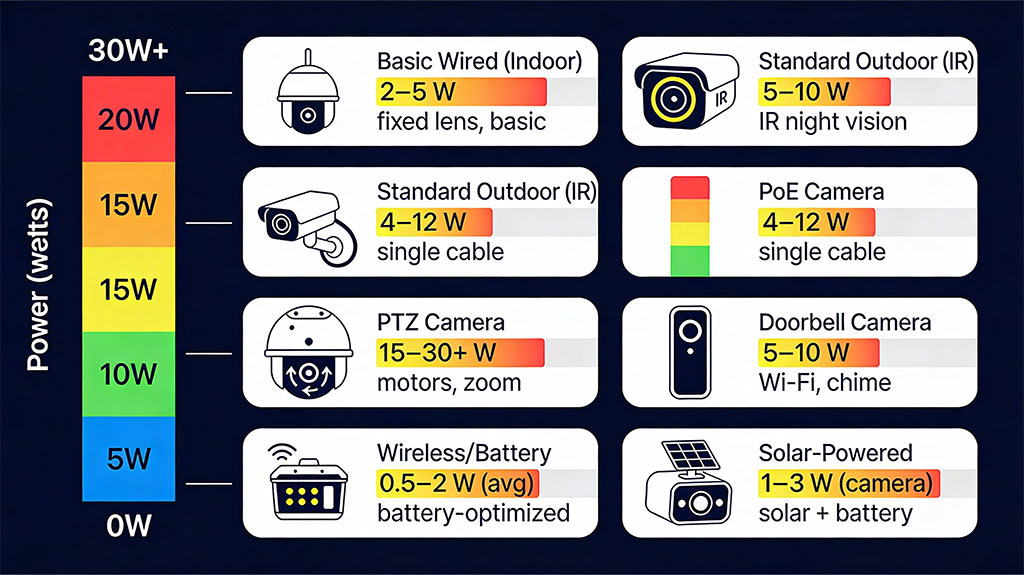

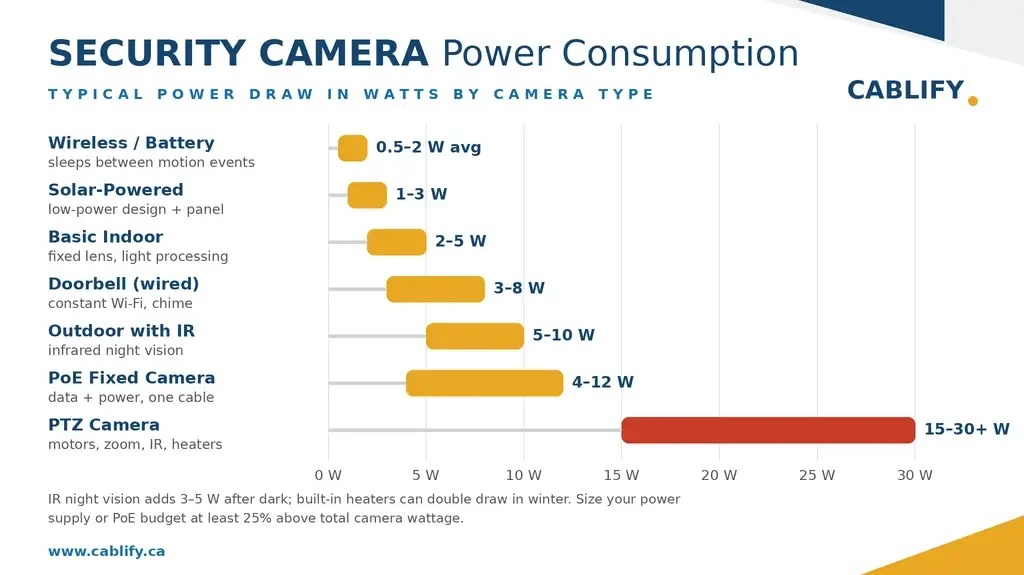

Table: Power Consumption by Camera Type

Choosing the right power supply and understanding power consumption is crucial for maintaining a reliable security camera system. By calculating power requirements, considering environmental factors, and planning for future growth, you can optimize your system’s performance and avoid costly downtime.

Whether you’re setting up a small residential system or a large-scale commercial CCTV installation, proper power management is key to keeping your surveillance system running smoothly and efficiently.
