How Ethernet Cable Shielding Works

Every ethernet cable carries data as differential electrical signals on twisted wire pairs. The twisting itself provides the first line of defence against interference — equal and opposite signals cancel out noise that hits both wires equally. But in high-interference environments, twisting alone isn’t enough. That’s where shielding comes in.

Shielding is a conductive layer — foil, braided wire, or both — placed around the twisted pairs to intercept, absorb, and redirect electromagnetic energy before it can corrupt the signal.

The Two Types of Interference Shielding Addresses

• EMI (Electromagnetic Interference): External noise from motors, generators, fluorescent lighting, HVAC systems, MRI machines, industrial equipment, and radio transmitters. EMI induces voltage in nearby cables, corrupting the signal. Shielding blocks this external noise from reaching the conductors.
• Crosstalk (NEXT/FEXT): Noise that bleeds between pairs within the same cable bundle. At high frequencies (10Gbps+), pair-to-pair crosstalk becomes the dominant performance limiter. Individual pair shielding eliminates this by isolating each pair in its own Faraday cage.

How the Shield Redirects Energy

When an electromagnetic field encounters the shield, three things happen simultaneously: part of the energy is reflected away from the cable, part is absorbed and converted to heat in the conductive layer, and the remainder passes through — attenuated. The effectiveness of this process depends on the shield material, thickness, coverage percentage, and critically, whether the drain wire is properly terminated at both ends.

The Drain Wire

All shielded cables include a drain wire — an uninsulated conductor that runs in contact with the foil shield along the full length of the cable. The drain wire provides the continuous electrical connection needed to ground the shield. Without a properly terminated drain wire, the shield cannot function. In installations where the drain wire is left unconnected at one or both ends, the cable may fail channel certification even though the physical shielding is intact.

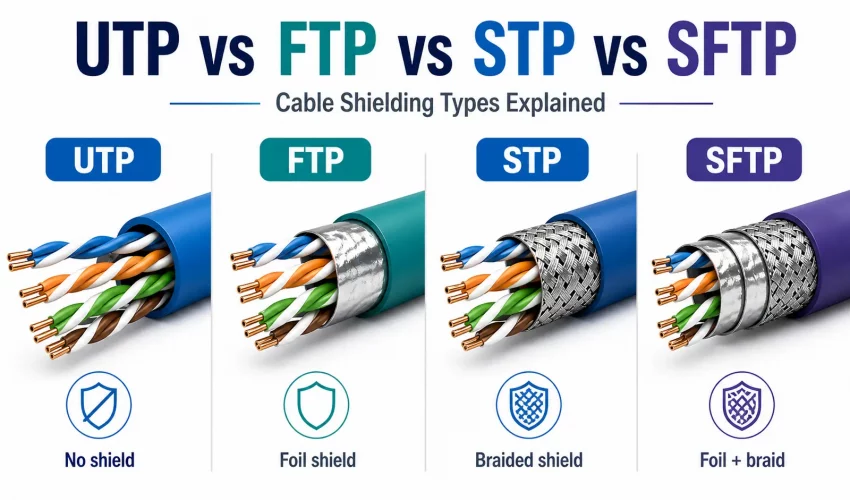

The ISO/IEC 11801 Naming System Explained

The cable shielding naming system is frequently misused in the field. Terms like “STP” and “FTP” are often used interchangeably — incorrectly. The definitive reference is the ISO/IEC 11801 standard, which defines a two-part naming convention that precisely describes the shielding on both the overall cable and the individual pairs.

UTP — Unshielded Twisted Pair (U/UTP)

UTP is the global standard for ethernet cabling in commercial and residential environments. It relies entirely on the physics of twisted pairs — the twist rate varies between pairs within the cable to differentiate their resonant frequencies and minimise crosstalk. No metallic shielding layer is present.

Why UTP Works in Most Buildings

Modern commercial buildings are surprisingly clean electromagnetic environments. Steel framing, concrete structure, and distance from industrial equipment keep ambient EMI levels low enough that UTP’s inherent crosstalk rejection handles the job. The vast majority of corporate office networks, school networks, retail installations, and residential structured cabling use U/UTP Cat6 or Cat6A — and perform perfectly for decades.

UTP Advantages

• Lowest cost per metre — typically 20–40% cheaper than equivalent shielded cable
• Lightest and most flexible — easier to pull through conduit and route in tight spaces
• No grounding infrastructure required — eliminates a significant installation complexity
• No ground loop risk — improper grounding of shielded cable can introduce more noise than it eliminates
• Compatible with all standard RJ45 termination equipment and patch panels
• Easier field termination — no drain wire to manage, less jacket to strip

UTP Limitations

• No protection against external EMI fields — vulnerable near motors, generators, VFDs
• Not suitable for outdoor or direct-burial installation without additional protection
• Cannot be used in environments requiring EMC compliance for sensitive equipment

FTP / F/UTP — Overall Foil Shield

F/UTP (commonly called FTP or ScTP — Screened Twisted Pair) adds a single metallic foil layer wrapped around all four pairs together, beneath the outer jacket. The pairs themselves remain unshielded. A drain wire runs in contact with the foil along the cable’s full length.

What the Overall Foil Protects Against

The foil layer is highly effective at blocking high-frequency EMI — radio frequency interference (RFI) from transmitters, microwave equipment, and other RF sources. It provides moderate protection against lower-frequency EMI from motors and fluorescent lighting. What it does not address is pair-to-pair crosstalk — because the pairs inside the shield remain unshielded relative to each other.

FTP Typical Applications

• Hospital environments with sensitive medical equipment
• Light manufacturing areas where motors run near cable trays
• Environments near large fluorescent or LED driver arrays
• Outdoor runs in conduit where RF ingress is a concern
• Government or military facilities requiring EMC compliance

U/FTP — Individually Foil-Shielded Pairs (often called STP)

U/FTP has no overall shield, but wraps each of the four pairs in its own individual foil layer. This configuration directly targets pair-to-pair crosstalk (NEXT and FEXT) by isolating each pair in its own Faraday cage. It is the dominant configuration for Cat6A 10GbE and higher-performance applications.

Why U/FTP Dominates High-Speed Installations

At 10Gbps (Cat6A) and above, alien crosstalk — interference between cables in adjacent bundles — becomes the primary performance constraint. Individual pair shielding eliminates the internal crosstalk component entirely, allowing the cable to meet channel performance specifications over longer runs and in larger bundles without the aggressive bundle size restrictions imposed on U/UTP Cat6A.

U/FTP Cat6A cables are also typically smaller in diameter than U/UTP Cat6A (which uses a thick inner separator to manage crosstalk), making them significantly easier to pull in congested pathways and more conduit-efficient.

S/FTP & SF/FTP — Braid + Foil (SFTP)

S/FTP combines an overall braided shield with individual foil shielding on each pair. SF/FTP adds an additional overall foil layer beneath the braid. These are the highest-performance shielding configurations, used in severe EMI environments, Cat7, Cat7A, and Cat8 cable specifications.

The Braid Shield Advantage

Where foil shields are thin and effective against high-frequency interference, braided shields add low-frequency EMI rejection, mechanical durability, and significantly higher coverage percentages (typically 85–98% vs. foil’s near-100% for HF but lower LF effectiveness). The combination of braid + per-pair foil delivers attenuation across the full frequency spectrum — from 50Hz power-frequency hum to multi-GHz RF.

When SFTP is Required

• Within or adjacent to MRI suites — the RF pulses and gradient fields are intense enough to corrupt any unshielded cable
• Industrial factory floors with large VFDs (Variable Frequency Drives), CNC machines, or arc welders
• Broadcasting facilities with high-power transmitters in the building
• Military and government secure facilities with strict TEMPEST/EMC requirements
• Cable runs within or adjacent to elevator shafts (strong motor fields)
• Cat7 and Cat8 specifications — both mandate S/FTP or SF/FTP construction by design

The Termination Challenge

SFTP cable requires shielded RJ45 connectors (or GG45/TERA for Cat7/7A) with proper 360° shield termination. Standard unshielded keystones and patch panels cannot be used. The braided drain must be terminated with a full-circumference connection to the connector shell — pigtail grounding (wrapping the drain wire around a pin) reduces shield effectiveness by up to 90% at high frequencies and is a code violation in most jurisdictions.
