Electrical conduit is the backbone of a commercial building’s wiring system. It is the raceway that protects and routes electrical wires and cables. The choice of conduit is not merely a line item on a bill of materials; it is a critical decision impacting installation labor, long-term durability, code compliance, and total project cost. In the realm of metal conduits installation, three types dominate commercial specifications: Electrical Metallic Tubing (EMT), Rigid Metal Conduit (RMC), and Intermediate Metal Conduit (IMC).
Each type serves a distinct purpose. EMT is the lightweight, cost-effective choice for straightforward indoor applications. RMC is the rugged, heavyweight champion for the most demanding environments. IMC strikes a strategic balance between the two, offering RMC-like strength with a lighter weight. This article provides a detailed, technical comparison of EMT vs Rigid vs IMC Conduit to guide electrical engineers, contractors, and facility managers in selecting the optimal solution for their projects.

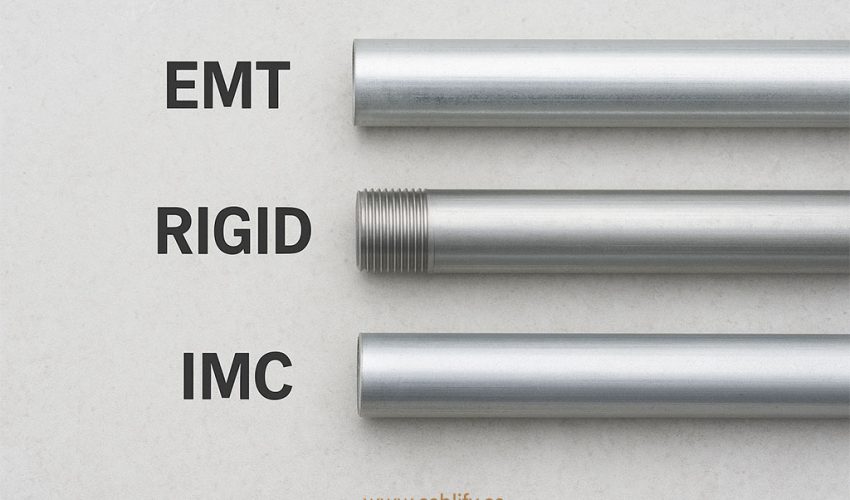

Overview of Each Conduit Type
Understanding the fundamental composition and design intent of each conduit is the first step in making an informed selection.
Electrical Metallic Tubing (EMT)
EMT is a thin-walled, lightweight steel conduit. It is made from coated steel or aluminum and is a mainstay in commercial construction.
-
Material and Coating: Typically made from carbon steel, galvanized with a zinc coating to resist corrosion. Aluminum EMT is also available for highly corrosive environments.
-
Standard Sizes: Common trade sizes range from 1/2-inch to 4-inch.
-
Flexibility: While rigid, its thin walls make it relatively easy to bend with a mechanical conduit bender.
-
NEC Classification: Governed by Article 358 of the National Electrical Code (NEC). It is not threaded. Connections are made with setscrew or compression-type couplings and connectors.
Rigid Metal Conduit (RMC)
RMC is the original, heavy-duty metal conduit. It features the thickest walls of the three types, providing superior physical protection.
-
Material: Made from carbon steel with a hot-dipped galvanized coating. It can also be made of aluminum or red brass for specific corrosive applications.
-
Corrosion Resistance: The thick zinc coating offers excellent corrosion resistance, making it suitable for direct burial and harsh environments.
-
Heavy-Duty Use: Its primary advantage is its immense strength and durability, protecting against severe impact, crushing, and environmental stress.
-
NEC Classification: Defined and governed by NEC Article 344. It has a standardized threading system, allowing it to be used with standard threaded fittings.
Intermediate Metal Conduit (IMC)
IMC was developed as a more efficient alternative to RMC. It offers similar mechanical protection but with a thinner wall and lighter weight.
-
Hybrid Nature: IMC can be thought of as a conduit with a wall thickness intermediate between EMT and RMC. It is stronger than EMT but lighter than RMC.
-
Material and Coating: Made from carbon steel, typically with a hot-dipped galvanized coating similar to RMC.
-
Advantages: It provides a higher strength-to-weight ratio than RMC, leading to material savings and easier handling during installation.
-
NEC Classification: Governed by NEC Article 342. Like RMC, it is threaded.
Key Differences: EMT vs IMC vs RMC
This detailed comparison table provides a direct, at-a-glance analysis of the core differences between these electrical conduit types.
| Feature | Electrical Metallic Tubing (EMT) | Intermediate Metal Conduit (IMC) | Rigid Metal Conduit (RMC) |
|---|---|---|---|
| Material & Coating | Carbon steel, zinc-coated (galvanized) or aluminum. | Carbon steel, hot-dipped galvanized. | Carbon steel, hot-dipped galvanized; also aluminum or red brass. |
| Wall Thickness | Thinnest | Approximately 1/3 thinner than RMC, but thicker than EMT. | Thickest |
| Weight | Lightest | About 30-40% lighter than comparable RMC. | Heaviest |
| Corrosion Resistance | Good for indoor use. Requires additional protection for wet/outdoor. | Excellent. Comparable to RMC for most applications. | Superior. The benchmark for harsh and corrosive environments. |
| Threading | Not threaded. Uses setscrew/compression fittings. | Threaded. Uses standard threaded fittings. | Threaded. Uses standard threaded fittings. |
| Indoor Suitability | Excellent. The standard for commercial indoor walls and ceilings. | Good, but often overkill for simple dry, indoor locations. | Good, but heavy and costly for simple dry, indoor locations. |
| Outdoor Suitability | Suitable with rain-tight fittings; not for severe exposure. | Excellent for general outdoor and wet locations. | Excellent for severe outdoor, direct burial, and corrosive areas. |
| Relative Material Cost | Lowest | Medium (20-30% less than RMC) | Highest |
| Bending | Easy with a hand bender. Tighter bend radius possible. | Requires a heavy-duty bender or threaded elbows. | Requires a heavy-duty bender or threaded elbows. |
| Typical Applications | Office ceilings, partition walls, exposed commercial spaces. | Service masts, outdoor mechanical yards, industrial areas. | Chemical plants, wastewater facilities, severe hazard areas, direct burial. |
Installation and Code Considerations
The National Electrical Code (NEC) provides specific requirements for the installation and use of each conduit type. Adherence to these NEC conduit standards is not optional; it is mandatory for a safe and compliant installation.
EMT and NEC Article 358
EMT is versatile but has clear limitations defined in the code.
-
Use Permissions: EMT is permitted in exposed and concealed locations. It can be used in concrete, in direct contact with the earth only if corrosion-protected and judged suitable for the conditions (NEC 358.10(B)).
-
Use Restrictions: The code explicitly restricts EMT in areas subject to severe physical damage. This is a critical judgment call for the installer and designer. It is also not permitted to support fixtures or other equipment unless specifically listed for such support.
-
Damp and Wet Locations: EMT is permitted in damp locations. For wet locations, the conduit itself is acceptable, but the fittings must be identified for wet locations.
RMC and NEC Article 344
RMC is the “go-anywhere” conduit in the NEC, with very few restrictions.
-
Use Permissions: RMC is permitted in all atmospheric conditions and occupancies. This includes exposed, concealed, underground (direct burial), and in corrosive areas when suitably protected (e.g., galvanized). It can support fixtures and equipment.
-
Hazardous Locations: Due to its robust construction and threaded, sealed joints, RMC is often the default choice for Class I and Class II hazardous locations where the integrity of the raceway is paramount.
-
Grounding: RMC is recognized as an equipment grounding conductor per NEC 250.118(2), provided the couplings are wrench-tight.
IMC and NEC Article 342
IMC shares many of the same permissions as RMC, which is a key reason for its popularity.
-
Use Permissions: IMC is permitted in the same locations as RMC. This includes exposed, concealed, wet locations, direct burial, and corrosive areas.
-
Hazardous Locations: Like RMC, IMC is permitted and commonly used in hazardous locations.
-
Grounding: IMC is also recognized as an equipment grounding conductor per NEC 250.118(3).
When is Each Conduit Preferred by Code?
-
Damp Locations: EMT (with proper fittings), IMC, and RMC are all acceptable.
-
Wet Locations: IMC and RMC are preferred. EMT is acceptable only with wet-location fittings.
-
Areas Subject to Severe Physical Damage: RMC is the unambiguous choice. IMC may be acceptable in some cases, but EMT is explicitly not permitted.
-
Hazardous (Classified) Locations: RMC and IMC are the standard. EMT is generally not used.
-
Direct Burial: RMC and IMC are permitted. EMT is generally not used due to corrosion concerns.
Advantages and Limitations
A clear understanding of the pros and cons of each conduit type is essential for balancing performance with budget.
Electrical Metallic Tubing (EMT)
Advantages:
-
Lowest Material Cost: The most economical option of the three.
-
Lightweight: Easy for installers to handle, leading to faster installation times.
-
Easy to Cut and Bend: Can be cut with a simple hand saw or portable bandsaw and bent with a hand bender.
-
Clean Aesthetic: When installed neatly, it provides a professional, industrial look for exposed ceilings.
Limitations:
-
Low Impact Resistance: Susceptible to denting and damage from physical impact.
-
Not for Severe Physical Damage: Explicitly restricted by NEC in these areas.
-
Corrosion Vulnerability: The thin zinc coating can be compromised, leading to rust in corrosive environments.
-
Separate Grounding Conductor: While it can be used as a ground, many specifications require a separate equipment grounding conductor inside the EMT.
Rigid Metal Conduit (RMC)
Advantages:
-
Maximum Durability: Provides the highest level of mechanical protection against impact, crushing, and stress.
-
Superior Corrosion Resistance: The hot-dipped galvanized coating is thick and robust.
-
Versatile Applications: Suitable for the widest range of environments, including the most severe.
-
Inherent Grounding Path: Its robust construction makes it an excellent equipment grounding conductor.
Limitations:
-
Highest Material Cost: The most expensive conduit option.
-
Heaviest Weight: Difficult to handle, requiring more labor and potentially more support hardware.
-
Labor-Intensive Installation: Threading in the field is time-consuming and requires specialized tools. Pre-fabrication is often preferred.
-
Difficult to Bend: Field bending requires heavy-duty equipment.
Intermediate Metal Conduit (IMC)
Advantages:
-
High Strength-to-Weight Ratio: Offers nearly the strength of RMC at a significantly lower weight.
-
Lower Material Cost than RMC: Provides a cost savings over RMC while meeting many of the same performance criteria.
-
Excellent Corrosion Resistance: Comparable to RMC for most applications.
-
Full NEC Acceptance: Permitted in the same locations as RMC, including hazardous areas.
Limitations:
-
Higher Cost than EMT: More expensive than the lightweight EMT option.
-
Threading Required: Like RMC, it requires threading, which adds labor time compared to EMT.
-
Not as Robust as RMC: While strong, it is not the solution for the absolute most severe physical damage scenarios where RMC is specified.
Commercial Application Examples
The theoretical differences become clear when applied to real-world commercial electrical installation projects.
Office Buildings
-
Primary Conduit: EMT.
-
Justification: The interior of an office building is a dry, controlled environment with a low risk of physical damage. EMT is perfect for routing branch circuit wiring in ceiling plenums and above lay-in ceilings, and for feeding power to wall outlets and lighting. Its low cost and ease of installation over long, straight runs provide significant project savings. IMC or RMC would only be used for the main service entrance or in mechanical/electrical rooms where extra protection is desired.
Warehouses and Distribution Centers
-
Primary Conduit: A mix of EMT and IMC.
-
Justification: In office areas and high ceilings away from operational equipment, EMT is sufficient. However, in the main storage and loading areas, the risk of impact from forklifts, pallets, or stored goods is high. Here, IMC is the preferred choice. It can withstand minor impacts that would crush EMT, and it is approved for the wet conditions that may occur near open dock doors. RMC might be specified for very low-level installations where impact is a near-certainty.
Hospitals and Healthcare Facilities
-
Primary Conduit: A mix of EMT and IMC.
-
Justification: Patient care areas and administrative offices will extensively use EMT for its cleanliness and ease of installation. However, for critical life safety systems, emergency power circuits, and feeders, IMC is often specified for its added durability and reliability. In mechanical rooms, boiler plants, and underground utility tunnels, IMC or even RMC may be used to protect essential services from moisture and physical harm.
Industrial Plants and Manufacturing Facilities
-
Primary Conduit: IMC and RMC.
-
Justification: This is the domain of heavy-duty industrial conduit systems. Chemical exposure, constant vibration, high humidity, and the potential for severe impact from machinery or materials are common. IMC is the workhorse for most general power distribution within the plant. RMC is reserved for the most extreme conditions: areas with highly corrosive processes, direct burial for site lighting, or where the conduit itself is used as a structural support. EMT has very limited use in these environments, perhaps only in control rooms or other “soft” areas.
Cost and Performance Balance: A Life-Cycle View
The initial purchase price is only one component of the total cost of ownership. A savvy project team considers the life-cycle cost.
-
EMT: Low First Cost, Potential Higher Long-Term Risk. EMT wins on initial material and installation labor cost. However, in an environment that is misjudged, the cost of repairing or replacing damaged conduit can quickly erase any initial savings. It is a calculated risk for benign environments.
-
IMC: The Optimal Balance for Many Applications. IMC has a higher first cost than EMT. However, its labor cost is similar to RMC (both require threading), but its material and handling costs are lower. When you factor in its long-term durability and reduced risk of failure, IMC often presents the best life-cycle value for demanding but not extreme commercial and industrial applications.
-
RMC: High First Cost, Justified by Ultimate Performance. RMC is the most expensive option from start to finish. This cost is only justified when the application demands it. In a wastewater treatment plant or a chemical processing facility, the cost of conduit failure—in terms of downtime, repair, or safety hazard—is so high that the premium for RMC is a necessary and wise investment.
The choice is a spectrum: EMT offers the best economic efficiency, IMC offers the best performance efficiency for its cost, and RMC offers uncompromising mechanical efficiency where cost is a secondary concern.
How to Choose the Right Conduit
Selecting the right conduit for your commercial building project is a systematic decision. Follow this guidance to ensure a code-compliant, durable, and cost-effective installation.
-
Assess the Environment First.
-
Dry, Indoor, Low-Impact (Office Ceilings): Choose EMT.
-
Wet, Outdoor, or Moderate-Impact (Warehouses, Service Entrances): Choose IMC.
-
Severe Physical Damage, Highly Corrosive, or Direct Burial (Industrial Plants, Hazardous Areas): Choose RMC.
-
-
Consult the NEC and Local Specifications.
-
Never assume a conduit is allowed. Check the relevant NEC Articles (358 for EMT, 342 for IMC, 344 for RMC) for the specific location.
-
Many large projects have master specifications that pre-select the conduit type for various applications. Always follow these engineered designs.
-
-
Evaluate the Total Cost.
-
Look beyond the price per foot. Factor in the cost of fittings, labor for threading versus using couplings, and required support structures. Consider the long-term maintenance and reliability.
-
-
Prioritize Safety and Durability.
-
When in doubt between EMT and a thicker conduit, err on the side of caution and choose IMC. The minor upfront cost increase is cheap insurance against future failures, outages, or safety hazards.
-
In the final analysis, the EMT vs Rigid vs IMC Conduit decision is not about finding a single “best” product, but about matching the right tool to the job. By understanding their distinct properties and governing codes, you can design and install industrial conduit systems that are safe, compliant, and built to last.
