In modern enterprise networks—spanning data centers, campus LANs, and telecom rooms—the physical layer dictates reliability. Among infrastructure components, fiber optic terminations remain both critical and often misunderstood. Corning Fiber Optical Communications has long set the standard for field-installable connectors, high-density enclosures, and adapter panels. This guide provides a detailed, part-level analysis of key Corning equipment, including the 95-050-99-X UniCam connectors, CCH series enclosures, and LC/SC/ST connector families.

📋 Quick Reference: Key Corning Part Numbers

1. 🔢 Understanding Corning’s Part Number Nomenclature

Enterprise buyers and technicians who decode these numbers can quickly identify the correct component for single-mode vs. multimode, boot type, and polish style.

2. 🔌 Corning UniCam Connectors: 95-050-99-X & 95-050-41-X

UniCam technology eliminates epoxy and polishing, enabling consistent sub-60 second terminations using a precision mechanical splice and cam mechanism.

Technical Specifications

Installation workflow (no epoxy, no polish)

1. Strip cable jacket, strength members, and buffer to expose bare fiber.
2. Cleave fiber using a precision cleaver (e.g., Corning UniCam Cleaver).
3. Insert fiber into pre-polished connector body and actuate cam.
4. Crimp strength member and install boot.

Enterprise note: Ideal for rapid deployment, emergency restoration, and any environment where epoxy mixing is impractical.

3. 🗄️ Corning CCH Hardware: Enclosures & Adapter Panels

Modular rack-mount systems for terminating, splicing, and patching. All CCH enclosures include sliding drawers, bend radius guides, and grounding points.

CCH Enclosures

• CCH-01U (1U) – holds up to 2 panels → 24 LC duplex (48 fibers)
• CCH-02U (2U) – holds up to 4 panels → 48 LC duplex (96 fibers)

Adapter Panels

• CCH-CP06-E4 : 6 LC duplex adapters (12 fibers) – aqua, OM3/OM4
• CCH-CP12-E4 : 12 LC duplex adapters (24 fibers) – aqua, OM3/OM4

For single-mode applications, equivalent panels with blue (UPC) or green (APC) adapters are available (suffixes -E2 or -E9).

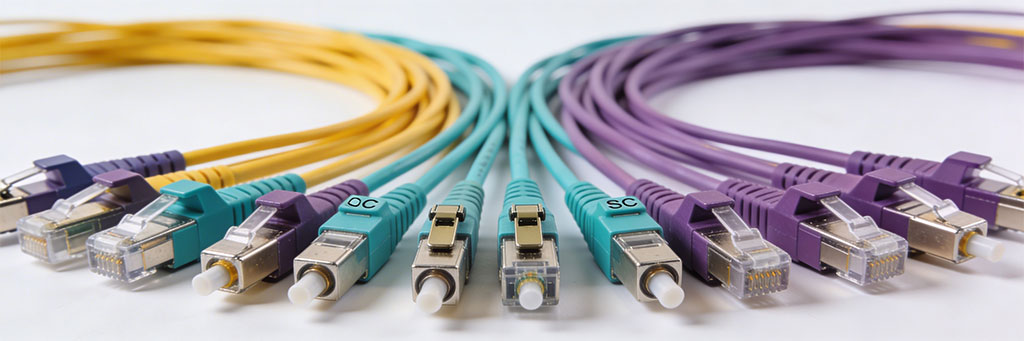

4. 📡 Complete Connector Portfolio: LC, SC, ST

Corning manufactures a full range of standards-compliant connectors for any enterprise scenario.

LC (Lucent Connector)

• UPC (blue) – single-mode, telco/long-haul
• APC (green) – RF video, high back-reflection sensitivity
• Multimode (beige/aqua) – data centers, LAN
• Ceramic ferrule 1.25mm, push-pull, GR-326 qualified

SC Connector

• Square, 2.5mm ferrule, push-pull
• Preferred for GPON, enterprise backbones, FTTx
• APC version (green) for analog video

ST Connector

• Bayonet twist-lock, metal housing, extremely durable
• Common in legacy multimode LANs and test instruments
• TIA-604 compliant (FOCIS 2)

5. 🏢 Enterprise-Grade Applications

6. ✅ Installation Best Practices for Enterprise Networks

• Clean before termination – use a one-click cleaner and inspect with 200x/400x microscope.
• Respect bend radius – dynamic: 20x cable diameter; static: 10x cable diameter.
• Label meticulously – use CCH panel port numbering and maintain digital records.

7. 📜 Compliance and Standards

• Telcordia GR-326 – single-mode connector reliability
• TIA-604 (FOCIS) – intermateability standards
• RoHS, UL 94 V-0 flammability

8. ❓ Frequently Asked Questions (Enterprise)
