Small Business Cisco Switches Guide: PoE, PoE+, Features, Models and Buying Tips

HP — Thu, 28 May 2026 13:30:22 +0000

If you are shopping for a Cisco switch for your small business and the model numbers look like alphabet soup, you are not alone. C1200, C1300, P, FP, 4G, 4X — none of it is obvious unless you already know what you are looking at.

This guide breaks it all down. By the end you will know exactly which Cisco Catalyst model fits your network, why PoE budget matters more than port count, and how to avoid the most common buying mistakes.

What Is a Cisco Small Business Switch?

A managed network switch connects all your wired devices — computers, printers, phones, access points, security cameras, servers and more — and controls how they communicate with each other.

A basic unmanaged switch just passes traffic. A managed Cisco switch gives you control over how that traffic moves, how devices are powered, how networks are separated and how problems are diagnosed. For a business environment, that control matters.

Why Consumer-Grade Switches Fall Short in Business

A cheap unmanaged switch from a big box store works fine for a home network. In a business, it quickly becomes a liability.

A proper business switch needs to support VLANs for network separation, PoE for powering cameras and access points, QoS for voice and video traffic, port-level security, fiber uplinks and proper rack mounting. Without VLANs, your security cameras, guest WiFi, office computers and payment systems all end up on the same flat network. That creates security and performance problems that get expensive to fix later.

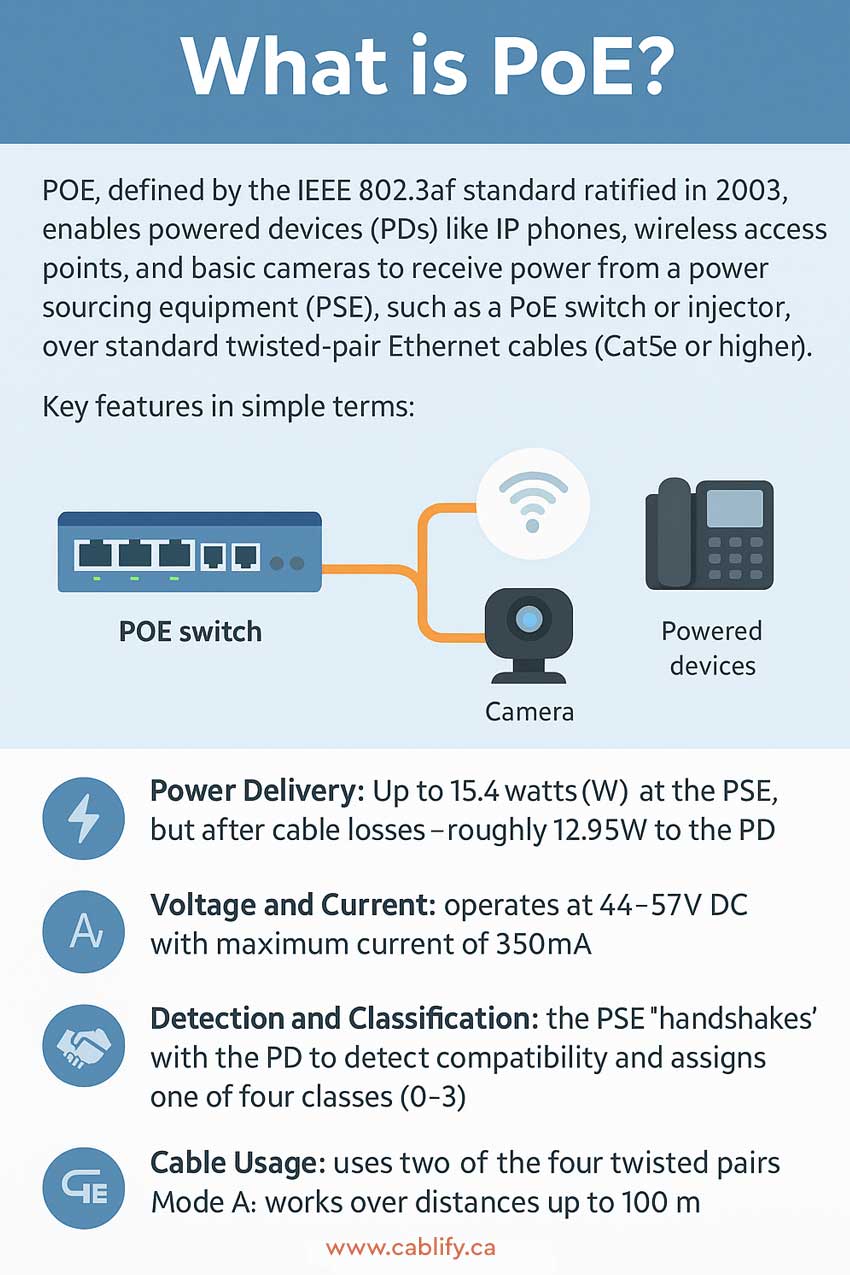

What Is PoE?

PoE stands for Power over Ethernet. It lets a single Cat5e, Cat6 or Cat6A cable carry both data and electrical power to a device. That means no separate power adapter, no electrical outlet needed at the device location.

This is especially useful for devices mounted on ceilings, high on walls or in areas where running power separately would be expensive. Wireless access points, IP security cameras, VoIP phones, intercoms, door access controllers and paging devices all commonly run on PoE.

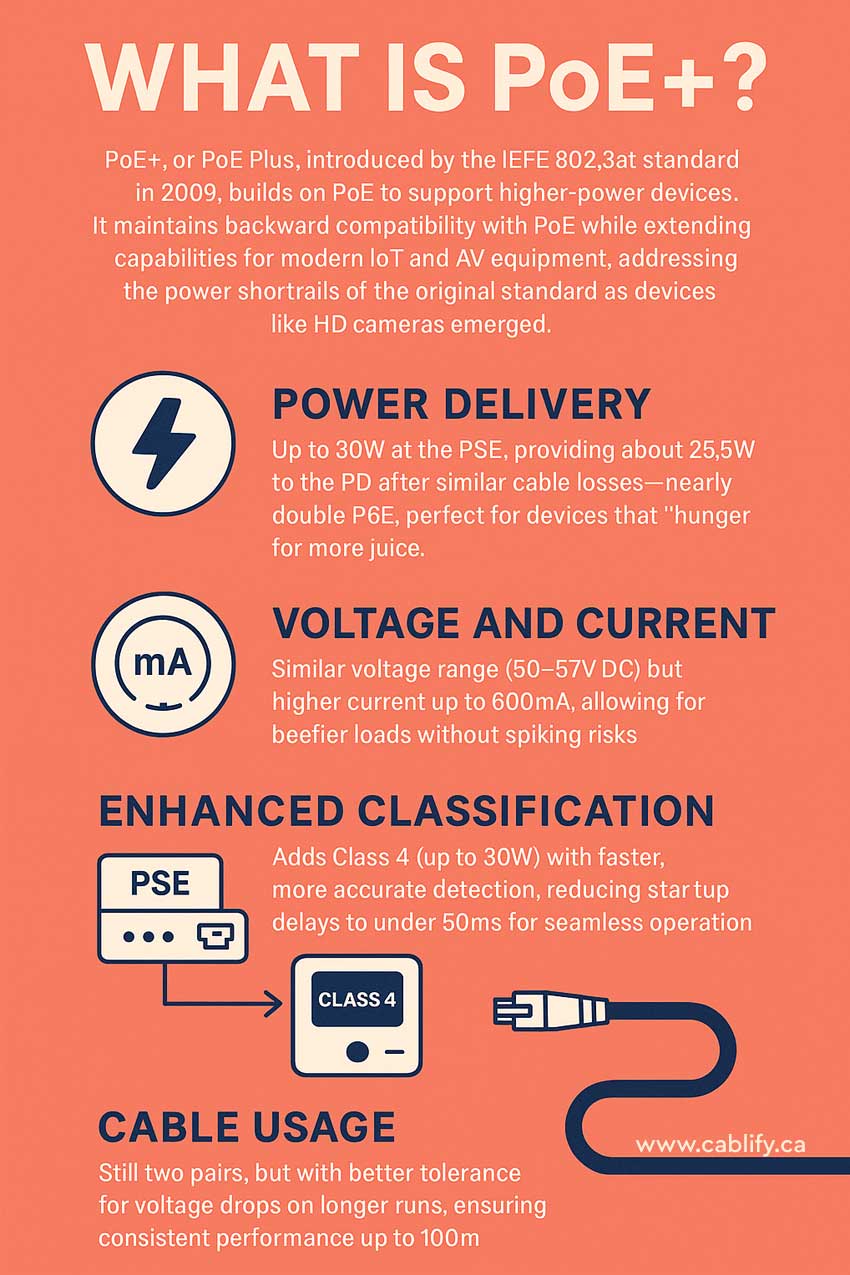

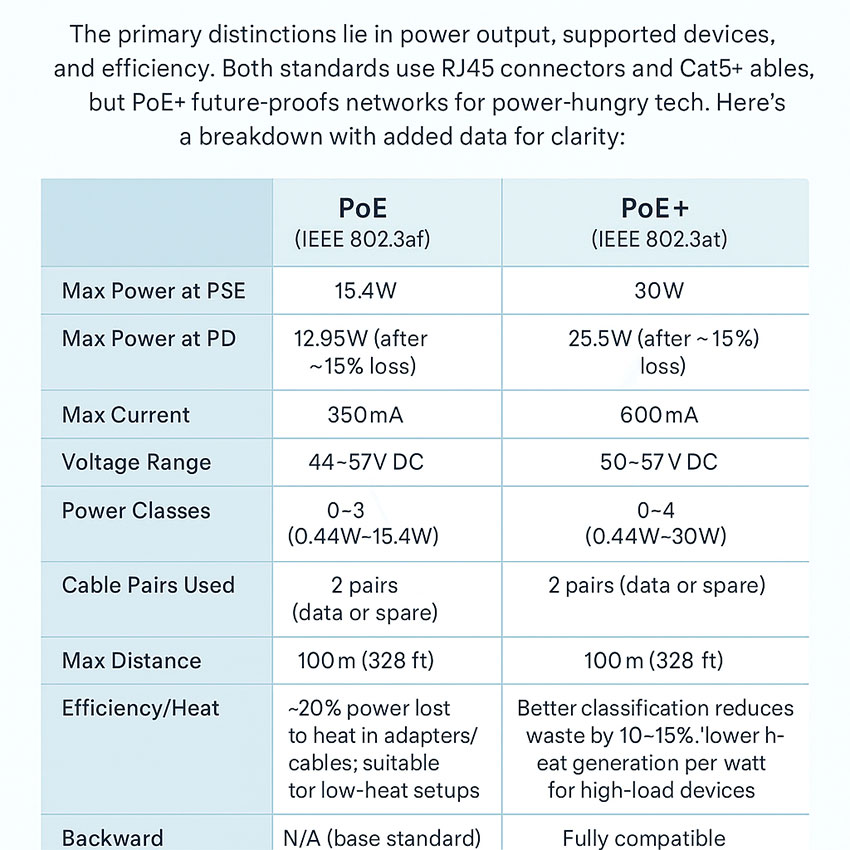

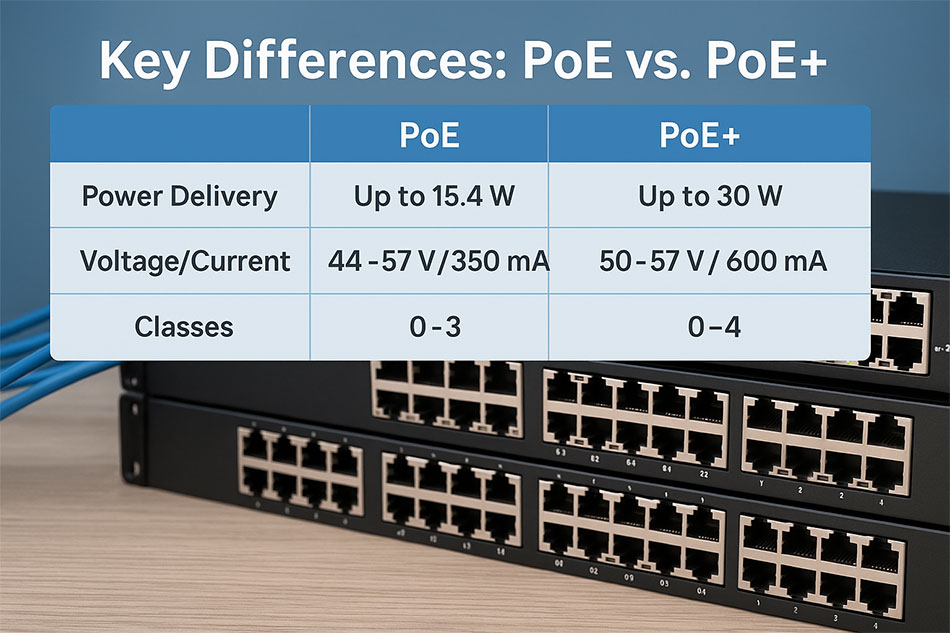

PoE vs PoE+ vs PoE++

Not all PoE is the same. The three main standards differ in how much power they can deliver per port.

Standard	IEEE Name	Max Power Per Port	Common Use
PoE	802.3af	Up to 15.4W	VoIP phones, basic cameras, low-power APs
PoE+	802.3at	Up to 30W	WiFi access points, IP cameras, video phones
PoE++	802.3bt	60W or more	High-power WiFi 7 APs, PTZ cameras, specialty devices

Most Cisco Catalyst 1200 and 1300 PoE models support both PoE and PoE+. For the majority of small business networks, PoE+ is the right choice. It covers wireless access points, cameras, phones and door hardware without needing PoE++ hardware.

PoE Budget Matters More Than Port Count

This is the most common mistake buyers make. They look at port count and stop there.

A 48-port PoE switch can support up to 30W per port, but the total PoE budget — the combined power available across all ports — is a separate limit. A switch with a 375W budget cannot simultaneously power 48 devices at 30W each. That would require 1,440W.

In practice, most devices do not draw maximum power continuously, so 375W is often enough for a moderate deployment. But if you have a lot of cameras, access points or high-power devices, you may need a switch with a larger budget.

Typical Power Draw by Device Type

Device Type	Typical Power Use	Notes
VoIP phone	4W to 8W	Usually low power
Basic IP camera	5W to 10W	Depends on IR/night vision
4K turret camera	7W to 12W	Higher at night with IR active
WiFi 5 access point	8W to 15W	Depends on model
WiFi 6 access point	12W to 20W	Common in offices
WiFi 7 access point	14W to 30W+	Depends on radio design and port speed
PTZ camera	20W to 60W+	May require PoE+ or PoE++
Video phone	10W to 20W	Depends on screen size
Door access controller	8W to 25W	Depends on locks and hardware

Always check the datasheet for the actual device before sizing a switch. Manufacturer specs vary.

Cisco Catalyst 1200 Series

The Catalyst 1200 is Cisco’s entry point for small business managed switching. It is a major step above unmanaged hardware and supports everything most small offices need — Gigabit access ports, PoE+, VLANs, QoS, basic Layer 3 static routing, web-based management and Cisco Business Dashboard support.

It is well suited for small offices, retail stores, clinics, restaurants, schools and small commercial buildings where cost matters and the network is not overly complex.

Cisco Catalyst 1300 Series

The Catalyst 1300 is the more capable option. It offers more advanced Layer 3 features, stronger security options and better scalability for growing networks. The maximum PoE budget on FP models goes up to 740W, which matters in camera-heavy or access point-dense deployments.

It is the better fit for larger offices, multi-department businesses, commercial buildings, warehouses, healthcare networks, and any deployment where you expect growth or need stronger network segmentation.

Cisco Catalyst 1200 vs Catalyst 1300: Quick Comparison

Feature	Cisco Catalyst 1200	Cisco Catalyst 1300
Best For	Small business networks	Growing SMB and branch networks
Management	Web UI, CLI, Cisco Business tools	Web UI, CLI, Cisco Business tools
PoE Support	PoE and PoE+ models available	PoE and PoE+ models available
Max PoE Budget	Up to 375W on selected models	Up to 740W on FP models
Uplinks	1G SFP or 10G SFP+ depending on model	1G SFP or 10G SFP+ depending on model
Layer 3	Static routing	More advanced Layer 3 capability
Security	Business-grade	Stronger advanced security options
Best Buying Reason	Affordable managed Cisco switch	More capable managed switch for growth

How to Read a Cisco Model Number

Once you understand the naming pattern, the model numbers make sense. Here is how to decode them.

Example: C1200-48P-4G

Part	Meaning
C1200	Cisco Catalyst 1200 Series
48	48 copper RJ45 access ports
P	PoE model
4G	4 Gigabit SFP uplink ports

Example: C1300-48P-4X

Part	Meaning
C1300	Cisco Catalyst 1300 Series
48	48 copper RJ45 access ports
P	PoE model
4X	4 x 10G SFP+ uplink ports

Example: C1300-48FP-4X

Part	Meaning
C1300	Cisco Catalyst 1300 Series
48	48 copper RJ45 access ports
FP	Full PoE budget (740W)
4X	4 x 10G SFP+ uplink ports

What “P” Means

“P” in the model name indicates a PoE switch. Models like C1200-48P-4G and C1300-48P-4X support PoE and PoE+ on the copper access ports.

What “FP” Means

“FP” means the switch has a full PoE power budget. A standard P model typically provides 375W total. An FP model brings that up to around 740W. Choose FP when you have many wireless access points, a large camera system, PTZ cameras, high-power WiFi 6 or WiFi 7 APs, or when you want headroom for future device additions.

What “4G” Means

“4G” means four Gigabit SFP uplink ports. These are used for fiber connections between racks, MDFs, IDFs or network rooms. A 4G model is the right choice for a small office or branch location where 1Gbps uplinks are sufficient and traffic volumes are modest.

What “4X” Means

“4X” means four 10G SFP+ uplink ports. This is the better option for commercial buildings, warehouses, multi-switch environments or anywhere you are running a fiber backbone between network closets. For modern deployments with WiFi 6, WiFi 7 or high camera counts, the 4X model is usually the smarter long-term investment.

Popular Cisco Small Business PoE Switch Models

Model	Series	Ports	Uplinks	PoE Budget	Best For
C1200-24P-4G	Catalyst 1200	24	4 x 1G SFP	195W	Small office, phones, light AP/camera use
C1200-24FP-4G	Catalyst 1200	24	4 x 1G SFP	375W	24-port switch with stronger PoE budget
C1200-48P-4G	Catalyst 1200	48	4 x 1G SFP	375W	General 48-port small business PoE
C1200-48P-4X	Catalyst 1200	48	4 x 10G SFP+	375W	48-port switch with 10G uplinks
C1300-24P-4G	Catalyst 1300	24	4 x 1G SFP	195W	Growing office with basic uplinks
C1300-24FP-4G	Catalyst 1300	24	4 x 1G SFP	375W	Stronger 24-port PoE deployment
C1300-48P-4G	Catalyst 1300	48	4 x 1G SFP	375W	48-port business switch with PoE+
C1300-48P-4X	Catalyst 1300	48	4 x 10G SFP+	375W	48-port PoE+ with 10G uplinks
C1300-48FP-4X	Catalyst 1300	48	4 x 10G SFP+	740W	High-density PoE and 10G uplinks

C1200-48P-4G vs C1300-48P-4G

Both are 48-port PoE switches with 1G SFP uplinks and the same 375W PoE budget. The difference is in how capable the switch is as a platform.

Feature	C1200-48P-4G	C1300-48P-4G
Series	Catalyst 1200	Catalyst 1300
Copper Ports	48 x 1G RJ45	48 x 1G RJ45
Uplinks	4 x 1G SFP	4 x 1G SFP
PoE Budget	375W	375W
PoE Standard	PoE / PoE+	PoE / PoE+
Best For	Cost-effective small business network	More advanced growing business network

Choose the C1200-48P-4G if budget is a priority, your network is straightforward and you do not expect significant growth. Choose the C1300-48P-4G if you want a more capable platform, expect to add devices over time, or need stronger segmentation and security features.

C1300-48P-4G vs C1300-48P-4X

Same switch, different uplink speed. The 4X model is worth the upgrade if you have multiple network closets, a fiber backbone between floors or buildings, many cameras or access points, or plan to connect servers and storage. For a single-room network with moderate traffic, the 4G model is fine. For most commercial projects, the 4X uplink is the better long-term choice because the uplink is usually the first bottleneck as the network grows.

Feature	C1300-48P-4G	C1300-48P-4X
Access Ports	48 x 1G RJ45	48 x 1G RJ45
Uplinks	4 x 1G SFP	4 x 10G SFP+
PoE Budget	375W	375W
Fiber Uplink Speed	1Gbps	10Gbps
Future-Proofing	Good	Better

C1300-48P-4X vs C1300-48FP-4X

Same uplinks, different PoE budget. The P model gives you 375W; the FP model gives you 740W. If you are running a large number of PoE devices, or if you want room to expand without replacing the switch, the FP model is the safer investment. The price difference between the two is often modest compared to the cost of swapping hardware later.

Feature	C1300-48P-4X	C1300-48FP-4X
Access Ports	48 x 1G RJ45	48 x 1G RJ45
Uplinks	4 x 10G SFP+	4 x 10G SFP+
PoE Budget	375W	740W
Best For	Normal PoE deployments	High-density PoE deployments
Future Growth	Good	Excellent

PoE Planning Example: Office With Cameras, Phones and Access Points

Here is a worked example for a mid-size office.

Device	Quantity	Watts Each	Total
VoIP phones	20	6W	120W
IP cameras	12	10W	120W
Wireless APs	6	16W	96W
Total	38 devices		336W

A 375W switch technically covers this, but with only 39W of headroom. If the business might add more devices, step up to a 740W FP model. A good rule of thumb is to keep at least 20 percent spare PoE capacity in your design.

PoE Planning Example: Warehouse With Access Points and Cameras

Warehouses typically have higher PoE demand because of longer cable runs, more cameras and wider wireless coverage requirements.

Device	Quantity	Watts Each	Total
Wireless APs	12	18W	216W
IP cameras	24	10W	240W
Phones	4	6W	24W
Door controllers	2	15W	30W
Total	42 devices		510W

A 375W switch does not cover this. You need the 740W FP model. This is a real-world example of why port count alone does not tell the full story.

1G vs 10G Uplinks

Uplinks connect your access switch back to the core, whether that is a firewall, a router, another switch or a server room. A 1G uplink becomes a bottleneck quickly when you have many devices all sending traffic at once.

1G uplinks are generally fine for a small single-office network with basic internet use, a light camera system and moderate WiFi. 10G uplinks make sense for anything with multiple network closets, a fiber backbone, heavy camera traffic, WiFi 6 or WiFi 7 deployments, server connectivity or significant file transfer activity. For most commercial installations, the 4X model is the better foundation.

Can Cisco C1200 and C1300 Switches Power UniFi Access Points?

Yes, in most cases. Cisco C1200 and C1300 PoE+ switches can power the majority of UniFi access points, including WiFi 6 and many WiFi 7 models.

There is one limitation worth knowing. Most C1200 and C1300 access ports are 1Gbps. If a UniFi AP has a 2.5GbE port — like the U7 Long-Range — it will still work and still get PoE power, but the wired uplink will negotiate at 1Gbps rather than 2.5Gbps. For most office and warehouse deployments this is fine. For high-density WiFi 7 networks where you need the full 2.5GbE throughput, you would need a switch with multigig access ports.

Key Features to Look for in a Business Cisco Switch

VLANs

VLANs let you divide one physical switch into multiple logical networks. A typical commercial setup might have separate VLANs for staff computers, guest WiFi, security cameras, VoIP phones, door access systems and network management. This improves security, reduces broadcast traffic and makes troubleshooting much easier.

Quality of Service

QoS lets the switch prioritize time-sensitive traffic like voice calls and video streams over lower-priority traffic like file downloads and backups. Without it, a large backup job can degrade call quality across the whole office.

PoE Monitoring

Managed Cisco switches let you see exactly which ports are drawing PoE power, how much each port is using, and flag devices that are drawing more power than expected. This is particularly useful when troubleshooting cameras or access points that have gone offline.

Port Security and DHCP Snooping

Port security controls which devices are allowed to connect to the network. DHCP snooping prevents rogue DHCP servers from handing out bad IP addresses — a real issue in shared office spaces, clinics and schools. These features are standard on Cisco business switches and worth enabling.

Link Aggregation

Link aggregation combines multiple physical ports into one logical link for more bandwidth or redundancy. Useful for connecting switches together, connecting servers or adding resilience to critical uplinks.

Layer 3 Routing

In many small business networks, the firewall handles all inter-VLAN routing. In larger or more performance-sensitive networks, moving some of that routing to the switch reduces load on the firewall and speeds up internal traffic. The C1300 handles this better than the C1200.

Best Switch by Use Case

Situation	Recommended Option
Small office with phones and computers	24-port PoE+ switch
Office with APs, phones and cameras	48-port PoE+ switch
Warehouse with many APs and cameras	48-port FP PoE+ switch
Multiple IDFs with fiber backbone	4X model with 10G SFP+ uplinks
Budget-conscious small office	Catalyst 1200
Growing business network	Catalyst 1300
High-density PoE deployment	FP model with 740W budget
WiFi 7 with multigig requirement	Consider a multigig switch
Camera-heavy network	10G uplinks recommended
Door access and CCTV network	Managed switch with VLANs and PoE+

Common Buying Mistakes

Buying based only on port count

Ports tell you how many devices can connect. They do not tell you how much PoE power is available. Always check the PoE budget separately.

Ignoring uplink speed

A 1G uplink on a 48-port switch servicing dozens of cameras and access points will become a problem. Size the uplinks for where the network is heading, not just where it is today.

Accidentally buying a non-PoE model

Cisco also sells non-PoE versions of these switches. If your cameras, phones or access points need to be powered over the cable, make sure the model you buy has “P” or “FP” in the name.

Not leaving room for growth

Networks always grow. Buy with 20 to 30 percent more capacity than you need today, both in ports and PoE budget.

Putting everything on a flat network

If cameras, guest WiFi and office computers are all on the same network with no VLANs, you have a security and performance problem. Managed switches solve this — use them properly.

Not checking access point requirements

Some WiFi 7 access points have 2.5GbE ports or need more than 30W to operate at full capacity. A standard PoE+ switch may power the device, but you may not get full performance out of it. Verify AP specs before finalizing the switch.

Questions to Ask Before You Buy

Before selecting a switch, work through these questions. They will help you land on the right model without guesswork.

How many wired devices do I need to connect today?
How many more will I add in the next 2 to 3 years?
How many of those devices need PoE?
What is the total estimated PoE load?
Do I need 24 ports or 48 ports?
Will I connect multiple switches together?
Do I need 1G or 10G uplinks?
Am I installing IP cameras? How many?
Am I installing wireless access points? What generation?
Do any APs have 2.5GbE ports or require PoE++ power?
Do I need VLANs for cameras, guest WiFi or phones?
Will the firewall handle routing between VLANs, or should the switch?
Is the switch going in a rack, on a shelf or in a dedicated network room?
Do I need fanless operation for a quiet environment?
Is there a fiber backbone between floors or buildings?

Final Recommendation

For most small businesses, the Cisco Catalyst 1300 series is the better long-term choice. The C1200 is a solid switch and the right call when budget is tight and the network is simple. But the C1300 gives you a more capable platform for growth, and the price difference is usually modest.

On the model side: if you are powering cameras, access points and phones across 40 or more devices, start with a 48-port PoE+ switch. If your PoE load exceeds 375W or you expect it to, go with an FP model. If you have fiber between network closets or a multi-switch environment, choose 4X uplinks over 4G.

A well-chosen switch handles your current network and gives you room to grow without having to replace hardware in two years.

Cablify is an authorized Cisco supplier and reseller in Canada serving businesses across Toronto, Mississauga and the GTA. If you need help selecting the right switch for your network or want a quote on supply and installation, contact our team or call 1-647-846-1925.

The post Small Business Cisco Switches Guide: PoE, PoE+, Features, Models and Buying Tips appeared first on Cablify.

What Is an MDF and IDF? A Simple Guide to Network Closets

HP — Fri, 22 May 2026 14:57:35 +0000

When a facilities manager sits down with a commercial contractor to plan a new office, network closets almost always come up late in the conversation. By that point, the floor plan is finalised, the ceiling height is locked in, and the janitor’s closet is already allocated to something else. The network room gets whatever space is left over.

That decision — made without much thought, because nobody in the room fully understood what an MDF or IDF actually does — becomes the thing that limits the office network for the next ten years.

This guide explains both terms in plain language, tells you how to determine whether your office needs one or both, and gives you the practical details you need before the contractor pours concrete or the cabling crew shows up.

What Is an MDF?

MDF stands for Main Distribution Frame. In practical terms, it is the primary network room in a building — the place where your internet service provider’s connection enters the building, where your main router and firewall live, and where the core of your network infrastructure is housed.

Think of the MDF as the front door and the heart of the building’s network, combined. Everything connects back to it, either directly or through a chain of secondary closets. Every building that has a structured cabling system has exactly one MDF.

In a small single-floor office, the MDF is often the only network room you have. It might be a proper server room with a 12U rack, a dedicated air conditioning unit, and a UPS, or it might be a locked storage closet with a wall-mount bracket, a small switch, and a cable modem bolted to the wall. The scale varies widely. The function is always the same: this is where the network starts.

Typical equipment found in an MDF:

ISP demarcation point (where the telco hand-off terminates)
Main router and firewall
Core or distribution switch (the highest-capacity switch in the building)
Patch panels connecting to all horizontal cable runs on the same floor
Fiber termination panel for backbone connections to IDFs on other floors
UPS (uninterruptible power supply)
Servers, NAS, or NVR — depending on the setup
Phone system equipment if the office runs a traditional PBX or IP PBX

What Is an IDF?

IDF stands for Intermediate Distribution Frame. It is a secondary network closet that extends the building’s cabling infrastructure to a specific floor, wing, or zone that is too far from the MDF to be served directly by copper cable.

Structured cabling has a hard physical limit: copper cable runs — from the patch panel in a network closet to the wall plate at a workstation — cannot exceed 90 metres under the ANSI/TIA-568 standard. Beyond that distance, signal quality degrades enough to cause connection problems. In a building where any part of the floor is more than 90 metres from the MDF, or where the MDF is on one floor and devices need to be connected on another, you need an IDF.

The IDF does not house the main network equipment. It is a relay point. The MDF sends data over fiber backbone cable to the IDF, and the IDF distributes that connectivity over copper to all the devices in its zone — workstations, phones, access points, cameras, whatever is on that floor.

Typical equipment found in an IDF:

Access switch (connects end devices on that floor)
Patch panel (terminates all horizontal cable runs from that floor’s devices)
Fiber termination panel (terminates the backbone connection back to the MDF)
Small UPS (optional but recommended)

An IDF closet is simpler and smaller than an MDF room. It does not need to house servers or a firewall. Its job is distribution, not processing.

How the MDF and IDF Work Together

The connection between an MDF and its IDFs is called the backbone or vertical cabling. Almost universally in modern commercial buildings, that backbone is fiber optic cable. Fiber can carry data over much longer distances than copper, is immune to interference, and supports much higher bandwidth — which matters because the MDF-to-IDF link carries aggregated traffic from every device on that floor.

A typical flow looks like this: internet enters the building and terminates at the MDF. The router and firewall process and protect that connection. The core switch distributes it to local devices on the MDF’s own floor via copper patch cables, and sends it over fiber to each IDF. At the IDF, the fiber terminates at a patch panel, connects into an access switch, and that switch fans out to all the copper runs on that floor — one cable per device, running to wall plates throughout the office.

The structured cabling standard refers to this as a three-tier model: the main cross-connect (MDF), the horizontal cross-connect (IDF), and the horizontal runs to workstations. You do not need all three tiers in a small office. But understanding the model tells you exactly when you do.

Does Your Office Need an MDF, an IDF, or Both?

The answer depends on two things: floor area and number of floors.

Office Type	What You Typically Need	Notes
Single floor, under 5,000 sq ft	MDF only	All cable runs stay well within 90 metres. One closet handles everything.
Single floor, 5,000 to 15,000 sq ft	MDF, possibly 1 IDF	Depends on floor shape. Long, narrow floors may need a remote IDF even at 5,000 sq ft.
Single floor, over 15,000 sq ft	MDF plus 1 or more IDFs	At this size, parts of the floor almost certainly exceed the 90-metre copper limit.
Multi-floor, any size	MDF on one floor, IDF on each additional floor	Copper cannot run vertically between floors in a standard structured cabling design. Fiber connects floors; copper connects devices.
Multi-building campus	MDF in one building, IDFs in each other building	Underground fiber connects buildings. Each building needs at least one closet.

The 90-metre rule applies to the horizontal run — from patch panel to wall plate. It does not include patch cables at either end, which add up to 10 metres of additional channel budget. If your floor is shaped so that any desk is more than 70 metres from the nearest closet, plan for an IDF.

Physical Requirements: What the Closet Actually Needs

This is where most small office plans fall short. The MDF and IDF are not just cable storage rooms. They are mechanical spaces with specific environmental and physical requirements that, if ignored at the build-out stage, become expensive to retrofit later.

Space

A minimum of 10 feet by 10 feet is the practical standard for a functional MDF room in a small to mid-sized office. Many installations work in less space, but anything under 6 feet in either dimension starts to create problems for equipment access and cable management. For an IDF closet, 5 feet by 5 feet can work for smaller deployments, but 6 by 8 feet gives you the room to actually work inside without removing equipment first.

Temperature and Airflow

Network equipment runs hot. Switches, patch panels, and UPS units all generate heat, and they need that heat removed to operate reliably. The target operating temperature for most network hardware is 18 to 25 degrees Celsius. In an interior closet with no airflow, a fully loaded rack can easily push the ambient temperature past 40 degrees, which shortens equipment lifespan and causes thermal shutdowns.

At minimum, the closet needs a dedicated air supply. For most small office MDFs, a wall-mounted mini-split unit is the practical solution. In a pinch, a well-positioned supply air grille from the building’s HVAC system can work if airflow is sufficient. What does not work is a passive louvered door and hope.

Power

The MDF room needs dedicated electrical circuits, separate from the general office circuit. A minimum of two 20-amp dedicated circuits is the standard starting point for a small office MDF — one for the UPS and active equipment, one as a spare or for lighting and outlet use. Larger deployments with higher-wattage equipment need more.

Do not plug network equipment into the same circuit as office equipment. Power quality issues from printers, coffee machines, and other office loads cause more unexplained network instability than most IT managers ever trace back to the source.

Security

The MDF room should be keyed separately from the rest of the office, with access limited to whoever is responsible for the network. The IDF closets should also be locked. This is not just a security best practice — it is important for troubleshooting. If anyone can walk into the MDF and unplug something, diagnosing a network fault becomes significantly harder.

What to Avoid

Never co-locate a network closet with a janitorial room, a kitchen, a bathroom, or any mechanical equipment. Water, cleaning chemicals, heat from dishwashers or refrigerators, and vibration from HVAC equipment are all damaging to network hardware. If the only available space shares a wall with a washroom, at minimum verify that there are no drain lines in the shared wall and that there is a drip pan above any ceiling-mounted plumbing.

Four Mistakes Small Offices Make with MDF and IDF Planning

1. Choosing the Location Before Checking Cable Distances

The MDF and IDF locations should be chosen based on where they minimise cable run lengths, not based on which room is most convenient to convert. Start with a floor plan, identify the centre of each cable zone, and work outward. A closet placed at one end of a rectangular office floor will almost certainly create cable runs that exceed 90 metres at the far end.

2. Not Planning for Growth

The closet that barely fits your 30-person office today will not fit your 60-person office in three years. Rack space, power capacity, and physical floor space are all easier to plan for than to retrofit. When in doubt, specify more rack units than you currently need, run more circuits than you currently use, and choose a room with enough floor space to add a second rack.

3. Skipping Dedicated Cooling

This is the most common mistake and the one with the highest failure rate. Building HVAC systems are designed for human comfort, not equipment rooms. They cycle off at night and on weekends. Passive ventilation through a louvered door works until the closet has a full switch, a UPS, and a firewall running simultaneously. Then it does not. A dedicated mini-split pays for itself in avoided equipment replacements within a few years.

4. Treating the MDF as an Afterthought in the Build-Out Timeline

Electrical work, conduit installation, and structural changes to accommodate the closet all need to happen before cabling begins. If the MDF room is not defined before the general contractor frames the walls, the cabling crew will show up to a space that cannot support the installation. In a GTA commercial build-out, the network room design should be locked in during the space planning phase — not handed to the IT contractor as a problem to solve after possession.

MDF and IDF Planning Checklist for Office Build-Outs and Moves

Use this before finalising your floor plan with the landlord or contractor.

Item to Confirm	Done?	Notes
Floor plan shows MDF location with cable distance check	☐	No desk should be more than 70m from the nearest closet
IDF locations confirmed for each additional floor or zone	☐	One IDF per floor minimum for multi-storey offices
MDF room minimum 10×10 ft confirmed	☐	Larger is better; plan for future rack addition
Dedicated cooling confirmed for MDF room	☐	Mini-split preferred; HVAC supply with verified CFM as minimum
Minimum 2 x 20A dedicated circuits in MDF room	☐	Separate from general office circuits
MDF and IDF rooms away from water sources	☐	No shared wall with washroom; no overhead plumbing without drip pan
Keyed locks specified for MDF and all IDF closets	☐	Separate key from general office master
Conduit pathway confirmed from MDF to each IDF	☐	Fiber backbone route needs to be clear before walls close
UPS capacity sized for all active equipment	☐	Minimum 10-minute runtime at full load for graceful shutdown

Frequently Asked Questions

What is the difference between an MDF and an IDF?

The MDF is the main network room in a building — it is where the internet connection enters, where the core router and firewall live, and where the network originates. An IDF is a secondary closet that extends the network to a floor or zone that is too far from the MDF to be reached by copper cable directly. Every building has one MDF. Large or multi-floor buildings also have one or more IDFs.

How big does an MDF room need to be?

The practical minimum for a small office MDF is 10 feet by 10 feet. This gives you enough room for a standard 2-post or 4-post rack, cable management on the walls, and space to stand in front of the equipment and work. Smaller spaces can technically work for very limited deployments, but anything under 6 feet in either dimension creates access problems as the installation grows. Size it for where you plan to be in five years, not where you are today.

Do I need an IDF if my office is on a single floor?

Not necessarily. If your office is single-floor and no workstation is more than 90 metres of cable run from the MDF closet, you can serve the entire office from the MDF. Once any part of the floor exceeds that distance, or once the number of devices outgrows what a single patch panel can manage practically, an IDF makes sense. Large open-plan offices on a single floor often need one IDF, even if there is only one floor.

What connects an MDF to an IDF?

Fiber optic cable. Specifically, multi-mode or single-mode fiber depending on the distance and bandwidth requirements. For most commercial office buildings in the GTA, OM4 multi-mode fiber is the standard choice for MDF-to-IDF backbone runs. It supports 40 Gbps and 100 Gbps at distances up to 150 metres and 100 metres respectively, which covers the vast majority of inter-floor and inter-zone runs in a mid-sized building.

Can a server room serve as an MDF?

Yes — and in many small to mid-sized offices, the server room and the MDF are the same room. If the space meets the physical requirements (size, cooling, power, security), combining the server room and MDF is efficient and practical. The main consideration is capacity: servers generate heat and draw significant power, so the shared room needs adequate cooling and electrical capacity to handle both the network equipment and the servers simultaneously.

What should I never put near an MDF or IDF closet?

Anything involving water. Bathrooms, kitchens, janitor closets with floor drains, mechanical rooms with HVAC equipment that could condensate, and any space with overhead plumbing that is not protected by a drip pan. Water and network equipment do not mix, and a water leak that takes out your MDF during a weekend when nobody is in the office is the kind of outage that takes days to recover from.

Planning a GTA Office Build-Out or Move?

Getting the MDF and IDF design right is not complicated, but it does need to happen before the walls go up — not after. The decisions made at the planning stage determine how the network performs for the next decade, how easy it is to troubleshoot, and how much it costs to expand when the office grows.

Cablify designs and installs structured cabling systems for commercial offices, warehouses, and multi-floor buildings across the Greater Toronto Area. We work with facility managers, IT directors, and commercial contractors to get the network room design right at the build-out stage — not as a retrofit after the fact.

If you are planning an office move or build-out and want to talk through MDF and IDF placement before the floor plan is locked, contact us for a free consultation. Getting this right at the start costs nothing extra. Getting it wrong costs significantly more to fix.

Contact Cablify: +1-647-846-1925 | info@cablify.ca | Serving Toronto, Mississauga, Vaughan, and the GTA

MDF vs IDF room- Key differences:

The post What Is an MDF and IDF? A Simple Guide to Network Closets appeared first on Cablify.

How Many Access Points Does a Building Need? WAP Density & Coverage Guide

HP — Mon, 04 May 2026 22:25:54 +0000

Commercial Wi-Fi Planning Guide

How many access points does your building actually need?

The useful answer is not “one AP per floor.” A building needs enough wireless access points to satisfy coverage, capacity, roaming, and building material requirements at the same time. The quick planning range for a normal office is often one commercial AP per 1,500 to 2,500 sq ft, but user density, walls, ceiling height, and Wi-Fi 6/7 performance targets can change that number fast.

1,500-2,500

sq ft per AP in many offices

25-35

active business users per AP

-67

dBm design target for strong data/voice

1/floor

absolute minimum; rarely enough alone

2.5GbE

preferred uplink for many Wi-Fi 6/7 APs

20-30%

PoE power headroom to reserve

CAD

floor plans improve estimate accuracy

Quick Answer: AP Count by Building Type

For a normal commercial building, start with square footage, then validate the count against users and room density. The table below is a practical budgeting guide, not a final RF design. A professional wireless design may increase or decrease the number once wall materials, AP model, channel plan, and mounting locations are reviewed.

Building / Area Type	Budgeting Range	Capacity Range	What Changes the Count	Survey Priority
Standard office	1 AP per 1,500-2,500 sq ft	25-35 active users/AP	Meeting rooms, glass walls, dense desk clusters	Recommended
Open office / co-working	1 AP per 1,200-2,000 sq ft	20-30 active users/AP	High device count, video calls, shared SSIDs	High
Clinic / dental / medical office	1 AP per 1,200-1,800 sq ft	20-30 active users/AP	Small rooms, imaging equipment, roaming tablets	High
Retail / showroom	1 AP per 1,500-2,500 sq ft	25-35 active users/AP	POS reliability, guest Wi-Fi, stock room coverage	Recommended
Restaurant / hospitality	1 AP per 1,000-1,600 sq ft	20-30 active users/AP	Guest density, patios, kitchens, POS terminals	High
Warehouse / industrial	1 AP per 2,500-5,000 sq ft	20-35 active users/AP	Racking, inventory, forklifts, ceiling height	Required
Classroom / training room	1 AP per room or per 700-1,200 sq ft	20-30 active users/AP	Everyone connects at once; video/testing workloads	Required
Event / auditorium	Designed by capacity, not square feet	30-50 users per 5 GHz/6 GHz radio	Channel reuse, client steering, seating density	Required

The Plain-English Formula

Start with coverage APs based on square footage. Then calculate capacity APs based on active users. The real starting count is whichever number is higher, with at least one AP per floor and additional APs for conference rooms, warehouses, patios, clinics, and any area where users complain about slow Wi-Fi today.

Interactive Access Point Count Estimator

Use this calculator for a planning-level estimate before a site visit. It is intentionally conservative for commercial buildings because an under-built Wi-Fi network usually costs more to fix than doing the AP count and cabling plan properly the first time.

Commercial WAP Density Calculator
Estimate access points, cable drops, PoE budget, and switch port planning.

Building type

Total square footage

Number of floors

Peak active users

Wall / obstruction level

Ceiling height

Performance target

AP generation

Estimated Planning Range
This is a pre-sales estimate. Final placement should be confirmed by floor plan review or on-site survey.

8-10

access points

approx. APs per floor

For this profile, coverage and capacity are both important. A professional survey should confirm wall attenuation, AP mounting, and channel reuse.

Effective coverage/AP1,390 sq ft
Cable drops to plan10 Cat6A drops
PoE switch budget286 W+
Recommended uplink2.5GbE AP ports

Coverage

Capacity

Survey need

Calculator Disclaimer

This estimator is for budgeting and early planning. Wi-Fi is radio, not plumbing: two buildings with the same square footage can need different AP counts because concrete, glass, metal shelving, 6 GHz coverage, neighbouring networks, and user density all change the design.

Why Square Footage Is Only the First Step

Square footage tells you how much area must be covered. It does not tell you how hard that area is to cover or how many people will share the same radios. A 10,000 sq ft empty office and a 10,000 sq ft clinic with exam rooms, imaging equipment, tablets, guest Wi-Fi, and roaming staff are not the same wireless problem.

Coverage

Can a device hear a strong enough signal everywhere users work, scan, pay, call, or move?

Capacity

Can the APs support the number of active clients and applications in each area?

Roaming

Can devices move between APs without sticking to a weak AP or dropping calls?

Interference

Are APs, neighbours, Bluetooth, machinery, or bad channel plans adding airtime noise?

Mounting

Can APs be ceiling-mounted or aimed from useful locations without blocked signal paths?

Infrastructure

Do you have Cat6/Cat6A drops, PoE budget, switch ports, and uplinks where APs belong?

The most common mistake is counting APs by area only. That can work in a small, low-density office, but it fails in conference rooms, healthcare spaces, warehouses, schools, hotels, and retail environments where users cluster into specific zones.

WAP Coverage Area per AP

Manufacturers often publish idealized coverage numbers. For example, current UniFi indoor APs such as U6 Pro and U7 Pro list coverage around 1,500 sq ft, while certain outdoor directional models publish much larger coverage figures. Those specs are useful, but a commercial design should treat them as a reference point, not a guarantee.

Planning Scenario	Usable Coverage/AP	Why It Changes	Planning Note
Open office, light walls	1,800-2,500 sq ft	Few obstructions and normal ceilings	Still check conference rooms separately.
Typical office with rooms	1,200-2,000 sq ft	Drywall, glass, furniture, and users	Best starting range for most commercial quotes.
Clinic / dense small rooms	900-1,600 sq ft	More walls per square foot	Plan for roaming tablets and reliable voice/data.
Warehouse with clear aisles	2,500-5,000 sq ft	Large open volume but high mounting and racking	Aisle layout matters more than total area.
Classroom / training room	700-1,200 sq ft	Many users active at the same time	Capacity usually controls count.
Concrete / block / metal-heavy areas	500-1,200 sq ft	High attenuation and reflection	Survey before committing to AP locations.

Commercial Rule of Thumb

If you need one safe budgeting number for an office before seeing the floor plan, use one AP per 1,500 sq ft. If the space is open and low-density, the final design may need fewer. If it has many rooms, high ceilings, voice/roaming requirements, or heavy user density, it may need more.

User Density and Capacity Planning

Every access point has a maximum client count, but that number is not the same as a good design target. An AP may technically associate hundreds of devices, but performance depends on active clients, airtime, channel width, radio band, client quality, and the applications people are using.

10-20

Light use

Small office, browsing, email, occasional calls.

25-35

Normal business

Good target for offices with meetings and cloud apps.

20-30

Voice / POS / tablets

Use fewer clients per AP when roaming quality matters.

30-50

High-density radio

Used carefully in auditoriums and training rooms with RF design.

For offices, a practical target is often 25 to 35 active users per AP. For classrooms, restaurants, clinics, POS environments, and video-heavy workplaces, use a lower number. For auditoriums and events, capacity is usually planned per 5 GHz or 6 GHz radio, not simply per AP.

Important Distinction

Do not size the Wi-Fi network by “maximum clients supported” on a datasheet. Size it by active users, application load, target signal quality, and channel plan. A network that lets 200 clients connect to one AP can still feel unusable if those clients are fighting for the same airtime.

Multi-Floor Buildings and Roaming

Wi-Fi does not stop cleanly at the ceiling. In multi-floor buildings, APs can interfere through floors while still failing to provide reliable coverage where users actually need it. That is why multi-floor design should not be handled by placing one powerful AP in the middle and hoping it covers everything.

Multi-Floor Issue	What Goes Wrong	Better Design Approach
AP directly above AP	Same-channel interference can stack vertically	Offset AP placement between floors where possible.
One AP expected to cover two floors	Signal may be weak, inconsistent, or blocked by slab/decking	Plan each floor as its own coverage area.
Stairwells and elevators	Clients may cling to a weak AP during movement	Design roaming overlap intentionally, especially for voice/tablets.
Too much transmit power	Clients hear too many APs and roaming decisions get worse	Use correct AP count plus controlled power, not maximum power.

As a baseline, plan at least one AP per floor. Then calculate each floor by square footage and by room type. A 3-floor office with 18,000 total sq ft is not “six APs somewhere.” It is three separate RF environments that need their own AP placement, cable routes, PoE switch planning, and roaming overlap.

Warehouses, Clinics, Retail, and Schools

Commercial wireless design gets more specific when the building is not a simple office. These environments often need a professional survey because the highest-risk areas are exactly where the business depends on Wi-Fi most.

Environment	Primary Wi-Fi Risk	AP Planning Guidance	Lead Driver
Warehouse	Metal racking, high ceilings, forklifts, aisle shadows	Design by aisle coverage and scanner locations, not only square footage.	RF survey
Clinic / dental office	Many small rooms and roaming staff devices	Use tighter AP spacing and validate signal in exam rooms.	Reliability
Retail	POS, guest Wi-Fi, back office, stock room gaps	Separate business/POS and guest needs; confirm checkout coverage.	POS uptime
Restaurant	Dense guests, patios, kitchen interference	Plan indoor, patio, POS, and back-of-house zones separately.	Guest load
School / training	Many clients active at once	Capacity plan by room occupancy and channel reuse.	Density
Hotel / multi-suite	Many walls and repeated room layouts	Use floor plan modeling and controlled low-power AP placement.	Roaming

Cabling, PoE, and Switch Requirements

The AP count is only half of the installation plan. Every ceiling AP needs a cable pathway, a certified copper drop, PoE power, and a switch port. For new commercial installations, Cat6A is the cleanest long-term choice because it supports 1G, 2.5G, 5G, and 10G paths over the full building lifecycle.

Wi-Fi AP Type	Typical Port Need	Typical PoE Class	Cabling Recommendation	Why It Matters
Wi-Fi 5 / basic Wi-Fi 6	1GbE	PoE or PoE+	Cat6 minimum	Works for many low-density offices.
Wi-Fi 6 / 6E business AP	1GbE or 2.5GbE	PoE+	Cat6A preferred	Avoids uplink bottlenecks and re-cabling later.
Wi-Fi 7 AP	2.5GbE	PoE+	Cat6A preferred	Many current Wi-Fi 7 APs ship with 2.5GbE ports.
High-performance Wi-Fi 7 / XG AP	5GbE / 10GbE	PoE++	Cat6A or fiber-backed design	Useful for high-density or high-throughput spaces.

Installation Recommendation

For every planned AP, budget one dedicated Cat6A cable drop, one PoE switch port, and 20-30% PoE power headroom. If the AP model has a 2.5GbE or 10GbE uplink, make sure the switch and cable plant support that speed before installation day.

When You Need a Professional Site Survey

The estimator is useful for pre-sales planning, but some buildings should not be designed from square footage alone. A professional survey turns “we probably need 9 APs” into a real plan: where each AP goes, how it will be cabled, what switch power is needed, and whether coverage/capacity will meet the business requirement.

Floor Plan Review

Confirm square footage, rooms, ceilings, walls, and high-use zones.

Coverage Model

Estimate AP count and likely mounting locations before cabling.

On-Site Validation

Check signal, noise, wall attenuation, and interference conditions.

Cabling Plan

Map cable paths, IDF/MDF locations, PoE switches, and access constraints.

Install + Test

Mount APs, certify drops, configure radios, and verify business areas.

Get a site survey if any of these apply:

You have a warehouse, clinic, school, restaurant, hotel, event space, or multi-floor office.
You are installing Wi-Fi 6E or Wi-Fi 7 and want to use 6 GHz coverage reliably.
You have conference rooms, training rooms, dense work areas, POS terminals, roaming tablets, or warehouse scanners.
Your existing Wi-Fi shows dead zones, sticky clients, random drops, slow meetings, or poor roaming.
You need new cable pathways, new PoE switches, Cat6A cabling, or IDF/MDF changes.

The Sales-Critical Answer

If someone asks, “How many APs do we need?” the professional answer is: we can estimate it from square footage and users, but we should confirm it with your floor plan and a site survey before installing cable or buying hardware. That is the difference between a guess and a commercial wireless design.

Frequently Asked Questions

How many access points do I need for 10,000 sq ft?

For a typical commercial office, 10,000 sq ft usually needs about 5 to 8 access points. Open low-density space may need fewer, while clinics, multi-room offices, training areas, restaurants, and heavy-wall buildings may need more. Always validate by user count, wall materials, floors, and site survey.

How many access points per 1,000 sq ft?

A practical office planning range is 0.4 to 0.7 APs per 1,000 sq ft, or roughly one AP per 1,500 to 2,500 sq ft. Dense rooms, concrete walls, high ceilings, and voice or POS requirements can push the count closer to one AP per 1,000 to 1,500 sq ft.

How many users can one wireless access point support?

For planning, use about 25 to 35 active business users per AP in normal offices. Use a lower target for voice, POS, tablets, clinics, and classrooms. Datasheet maximum client counts are association limits, not ideal performance targets.

Can one access point cover an entire floor?

Sometimes, but it is rarely the right commercial design. One AP may cover a small open floor, but it may not provide enough capacity, roaming overlap, conference room performance, or reliable signal through walls. Most commercial floors need multiple APs placed where users actually work.

Do Wi-Fi 6 and Wi-Fi 7 reduce the number of APs needed?

Not automatically. Wi-Fi 6 and Wi-Fi 7 can improve efficiency and throughput, but they do not remove walls, interference, or user density. In 6 GHz designs, coverage can actually require tighter AP spacing because higher-frequency signals have less wall penetration than 2.4 GHz.

Should access points be mounted on the ceiling or wall?

Ceiling mounting is usually best for indoor commercial APs because it gives more even coverage across work areas. Wall mounting can work for some AP models, hotel rooms, outdoor areas, and warehouses, but the AP antenna pattern and mounting instructions should be checked before installation.

What cable should be run to wireless access points?

For new commercial AP cabling, Cat6A is the best long-term choice. It supports 1G, 2.5G, 5G, and 10G Ethernet at full channel distance when installed correctly. Cat6 can work for many APs, but Cat6A gives more headroom for Wi-Fi 6E, Wi-Fi 7, and future multi-gigabit access points.

When is a wireless site survey required?

A wireless site survey is strongly recommended for warehouses, clinics, multi-floor offices, schools, hotels, restaurants, event spaces, and any building with existing Wi-Fi complaints. It is also recommended before major Wi-Fi 6E or Wi-Fi 7 deployments because 6 GHz coverage and multi-gig uplinks need more careful planning.

Related Cablify Resources

Technical References

Cablify Technical Team

Commercial Wireless, Cat6A, and Low-Voltage Cabling Specialists

Cablify designs and installs commercial network cabling, fiber optic, CCTV, access control, and wireless access point infrastructure across Toronto, Mississauga, Brampton, and the Greater Toronto Area. Our team supports AP placement, PoE switch planning, Cat6A cabling, site surveys, and installation for business Wi-Fi environments.

The post How Many Access Points Does a Building Need? WAP Density & Coverage Guide appeared first on Cablify.

2.5GbE, 5GbE & Multi-Gigabit Ethernet Explained

HP — Mon, 04 May 2026 13:14:21 +0000

Standard Ethernet

2.5G

NBASE-T / 2.5GBASE-T

NBASE-T / 5GBASE-T

10G

10GBASE-T

What Is Multi-Gigabit Ethernet?

Multi-Gigabit Ethernet is the collective name for the 2.5Gbps and 5Gbps Ethernet speed tiers that sit between standard Gigabit (1G) and 10 Gigabit (10G). For two decades, commercial Ethernet jumped directly from 1Gbps to 10Gbps — with nothing in between. Multi-Gigabit fills that gap.

The reason these intermediate speeds exist is practical: the jump from 1G to 10G requires expensive new switches, new cables in many cases, and entirely new network cards. For the majority of commercial environments — and nearly all SMB deployments — 10G is significantly more than needed. 2.5G delivers 2.5 times the throughput of standard Gigabit for a fraction of the cost of a 10G upgrade.

Why Now?

Multi-Gigabit has existed as a standard since 2016, but it entered mainstream purchasing in 2023–2025 as multi-gig switch prices dropped from $400+ per port to under $50 per port for unmanaged 2.5G switches. The catalyst is Wi-Fi 6 and Wi-Fi 6E access points, which now routinely aggregate more throughput than a 1G uplink can carry.

The NBASE-T Standard Explained

Multi-Gigabit Ethernet runs on the NBASE-T specification — originally developed by a consortium of Cisco, Aquantia, and others before being ratified by IEEE in 2016 as IEEE 802.3bz. The “N” in NBASE-T stands for the speeds it covers: 2.5GBASE-T and 5GBASE-T.

The critical engineering achievement of NBASE-T is that it achieves 2.5Gbps and 5Gbps throughput over the same Cat5e and Cat6 cabling infrastructure already installed in the world’s commercial buildings. It does this by using advanced DSP (digital signal processing) and forward error correction — the same techniques that allowed Gigabit Ethernet to run over Cat5e when Cat5e was originally spec’d for 100Mbps.

Speed	IEEE Standard	Marketing Name	Year Ratified	Min Cable	Max Distance
100 Mbps	802.3u	Fast Ethernet	1995	Cat5	100m
1 Gbps	802.3ab	Gigabit Ethernet	1999	Cat5e	100m
2.5 Gbps	802.3bz	2.5GBASE-T / NBASE-T	2016	Cat5e	100m
5 Gbps	802.3bz	5GBASE-T / NBASE-T	2016	Cat6	100m
10 Gbps	802.3an	10GBASE-T	2006	Cat6A	100m

Key Distinction

NBASE-T (2.5G / 5G) and 10GBASE-T are different standards. 10GBASE-T requires Cat6A for the full 100m channel. NBASE-T achieves 2.5G over Cat5e and 5G over Cat6 at full 100m distance — making it a true in-place upgrade for legacy cabling plants.

Speed Tiers: 1G vs 2.5G vs 5G vs 10G Compared

All four speeds run over twisted-pair copper, connect with the same RJ-45 plug, and use the same physical port form factor on switches. The difference is purely in what the electronics inside negotiate.

Relative throughput (1G = baseline)

1 Gbps

Baseline — standard today

2.5 Gbps

2.5× faster

Wi-Fi 6 AP uplink sweet spot

5 Gbps

5× faster

Wi-Fi 6E / 7 AP uplink

10 Gbps

10× faster — server / spine

Core / server links

Spec	1G (Gigabit)	2.5G (NBASE-T)	5G (NBASE-T)	10G
Throughput	1,000 Mbps	2,500 Mbps	5,000 Mbps	10,000 Mbps
Real-world file transfer	~112 MB/s	~280 MB/s	~560 MB/s	~1,120 MB/s
Min cable (100m)	Cat5e	Cat5e	Cat6	Cat6A
Backward compatible?	—	Yes — auto-negotiates to 1G	Yes — negotiates to 2.5G / 1G	Yes — all lower speeds
Switch cost per port (2026)	$5–15	$30–60	$40–80	$80–200+
NIC cost (2026)	Built-in on all PCs	$20–45	$35–70	$60–150
Typical use case	Workstations, phones, cameras	Wi-Fi 6 AP uplinks, NAS	Wi-Fi 6E AP uplinks, high-perf NAS	Servers, core switches, storage

Why 2.5GbE Exists: The Wi-Fi 6 Uplink Bottleneck

The single most important driver of multi-gigabit adoption in commercial buildings is the mismatch between Wi-Fi 6 access point throughput and 1G uplink capacity.

A modern enterprise Wi-Fi 6 access point — such as the Cisco Catalyst 9124, Aruba AP-635, or Ubiquiti U6-Pro — aggregates 2.4Gbps to 4.8Gbps of combined radio throughput across its bands. Yet the vast majority of these APs connect to the network through a single Ethernet port. If that port is limited to 1Gbps, you’ve installed a $500 access point and capped it at 40% of its potential throughput on day one.

The Bottleneck Problem
Wi-Fi AP throughput vs. Ethernet uplink capacity

Wi-Fi 5 (802.11ac)

867 Mbps

Max aggregate. 1G uplink is sufficient. No bottleneck.

Wi-Fi 6 (802.11ax)

2.4 Gbps

Max aggregate. 1G uplink is a bottleneck. Needs 2.5G.

Wi-Fi 6E / 7

4.8–9.6 Gbps

Max aggregate. Needs 5G or 10G uplink.

Design Rule of Thumb

For Wi-Fi 6 APs: provision a 2.5G uplink per access point. For Wi-Fi 6E or Wi-Fi 7 APs with a 6GHz radio: provision a 5G uplink. Always check the AP’s datasheet for its uplink port rating before designing switch infrastructure.

Cable Compatibility: Does Cat5e / Cat6 Support 2.5GbE?

This is the question that matters most for retrofit installations. The short answer: yes — with important caveats.

2.5GBASE-T on Existing Cable

Cat5e (installed 2000–2010): Officially supports 2.5GBASE-T to 100m per IEEE 802.3bz. Real-world performance depends on installation quality. A well-installed Cat5e run will typically pass. Degraded or older runs may auto-negotiate down to 1G.
Cat6: Comfortably supports 2.5GBASE-T. Cat6’s improved crosstalk specs and tighter twist rates give it more margin than Cat5e at 2.5G speeds.
Cat6A: Fully supports 2.5G, 5G, and 10G. If running new cable, Cat6A eliminates every speed question for the next 20 years.

5GBASE-T on Existing Cable

Cat5e: Not supported at 100m. Cat5e lacks the bandwidth headroom for 5G at full channel length.
Cat6: Supports 5GBASE-T to 100m per IEEE 802.3bz. Well-installed Cat6 runs will pass channel certification at 5G speeds.
Cat6A: Fully supports 5G to 100m with significant margin remaining.

Cable Type	Bandwidth	Max Speed at 100m	2.5G Support	5G Support	10G Support
Cat5e	100 MHz	2.5 Gbps	Yes ✓	No ✗	No ✗
Cat6	250 MHz	5 Gbps	Yes ✓	Yes ✓	≤55m only
Cat6A	500 MHz	10 Gbps	Yes ✓	Yes ✓	Yes ✓
Cat8	2,000 MHz	40 Gbps (≤30m)	Yes ✓	Yes ✓	Yes ✓

Important: Auto-Negotiation

NBASE-T devices auto-negotiate — they test the link and settle on the highest speed the cable reliably supports. A Cat5e link that can’t maintain 2.5G falls back to 1G automatically. You won’t break anything by trying. For any new installation, always run Cat6A — it eliminates every speed limitation for the full building lifecycle. See our cable speeds comparison guide.

2.5GbE vs 5GbE vs 10GbE: Which Do You Need?

Device / Use Case	Bandwidth Required	Recommended Speed	Min Cable
VoIP phone, IP camera, IoT sensor	<100 Mbps	1G	Cat5e
Workstation (standard office)	100–500 Mbps	1G	Cat5e/Cat6
Wi-Fi 5 (802.11ac) AP uplink	Up to 867 Mbps	1G	Cat5e
Wi-Fi 6 (802.11ax) AP uplink	Up to 2.4 Gbps	2.5G	Cat5e/Cat6
Power user workstation / creative pro	500 Mbps–2 Gbps	2.5G	Cat5e/Cat6
NAS / shared media storage (SMB)	1–4 Gbps	2.5G or 5G	Cat6
Wi-Fi 6E (802.11ax 6GHz) AP uplink	Up to 4.8 Gbps	5G	Cat6
Wi-Fi 7 (802.11be) AP uplink	Up to 9.6 Gbps	10G	Cat6A
Server uplink to core switch	10+ Gbps	10G+	Cat6A / Fiber

Multi-Gigabit Switch Landscape in 2026

Until 2022, multi-gigabit switches were enterprise-only products costing $200–400 per port. The market has fundamentally changed.

Unmanaged 2.5G Switches (Home / Small Office)

Brands like TP-Link, Netgear, and TRENDnet now sell 5–8 port unmanaged 2.5G switches for $80–150 total. These are plug-and-play, require no configuration, and work identically to a Gigabit switch but at 2.5G speeds.

Managed 2.5G / Multi-Gig Switches (SMB / Commercial)

Managed multi-gig switches in the 8–24 port range now start around $300–800. Ubiquiti UniFi, TP-Link Omada, and Netgear ProAV M4350 series all include 2.5G or mixed 2.5G/10G port configurations with VLAN, QoS, and PoE support.

Enterprise Multi-Gig (Cisco / Aruba / Juniper)

Enterprise multi-gig switches from Cisco Catalyst 9200/9300 series, Aruba 6200/6300, and Juniper EX4100 support NBASE-T on every access port — critical for large-scale Wi-Fi 6/6E AP deployments in offices, schools, and healthcare facilities.

Price Trajectory

In 2022, a 2.5G port cost roughly 8–10× a 1G port. In 2026, that ratio has compressed to 3–4×. By 2026–2027, analysts project 2.5G ports will be 1.5–2× the cost of 1G — at which point multi-gig simply becomes the new default for commercial deployments, just as Gigabit replaced Fast Ethernet in the early 2000s.

Real-World Use Cases

Commercial Office — Wi-Fi 6 Deployment

A 4-floor office building installs Wi-Fi 6 APs (Aruba AP-635) at 4 APs per floor, 16 total. Each AP has a 2.5G PoE uplink port. The structured cabling is Cat6 installed in 2015. Rather than re-cabling for 10G, the network team replaces each IDF’s 1G switches with 24-port 2.5G PoE+ managed switches. Total cable re-use: 100%. Investment: ~$1,200 per IDF vs. $4,000+ for a 10G infrastructure change.

SMB with Network-Attached Storage

A 20-person creative agency runs a Synology NAS for shared video project storage. Installing a small 2.5G switch and 2.5G NICs in the 5 primary editing workstations boosts NAS transfer rates from 112 MB/s to 280 MB/s — roughly matching the read/write throughput of modern NVMe RAID arrays in the NAS.

Healthcare / Clinic

A clinic relies on wireless connectivity for medical devices, tablets, and EMR systems. The 1G AP uplinks are saturated during shift change when 60+ devices reconnect simultaneously. Upgrading AP uplinks from 1G to 2.5G — over existing Cat6 cable — resolves the bottleneck without a cabling project.

Hospitality / Hotel

A 200-room hotel installs Wi-Fi 6E APs in corridors and public spaces requiring 5G uplinks. The existing Cat6 cabling throughout the property supports 5GBASE-T. Only the access-layer switches need changing — the cable infrastructure is already sufficient.

Is 2.5GbE Worth It in 2026?

For most commercial environments deploying Wi-Fi 6 or newer access points, or refreshing access-layer switches: yes.

2.5GbE is worth it if:

You are installing or already have Wi-Fi 6 access points and want to avoid uplink bottlenecks
You have Cat5e or Cat6 cabling and cannot justify a full re-cable to Cat6A
You have a NAS or shared storage used by multiple workstations simultaneously
You are refreshing access-layer switches within the next 12–24 months — the cost delta for 2.5G capable switches is now small
You are designing a new commercial installation and want to future-proof the switch tier

2.5GbE may not be necessary if:

Your access points are still Wi-Fi 5 (802.11ac) — a 1G uplink remains sufficient
Every device on your network is a phone, camera, or low-bandwidth IoT sensor
You are already running 10G throughout your infrastructure

New Installation Recommendation

If you are running new cabling today, install Cat6A throughout regardless of your current switch tier. Cat6A supports 2.5G, 5G, and 10G at full 100m. The cable is the expensive, disruptive, long-lived part of the infrastructure — the switches are cheap and easy to replace. Never let switch cost justify under-speccing the cable. See our conduit fill guide and Cat6A installation services.

Frequently Asked Questions

Does Cat5e support 2.5GbE?

Yes. IEEE 802.3bz officially specifies 2.5GBASE-T operation over Cat5e cabling at full 100m channel length. In practice, performance depends on installation quality — a well-installed Cat5e run will support 2.5G. Degraded or older Cat5e runs may fall back to 1G via auto-negotiation. Cat5e does not support 5G at 100m.

What is the difference between NBASE-T and 10GBASE-T?

NBASE-T (IEEE 802.3bz) covers the 2.5Gbps and 5Gbps speed tiers and runs over existing Cat5e and Cat6 cabling. 10GBASE-T (IEEE 802.3an) runs at 10Gbps and requires Cat6A for a full 100m channel. They are different standards with different cable requirements and different port chipsets, though many modern switches support both.

Do I need a 2.5G switch for Wi-Fi 6 access points?

Yes, to use your Wi-Fi 6 APs at full potential. Wi-Fi 6 access points aggregate up to 2.4Gbps of combined radio throughput — more than a 1G uplink can carry. A 2.5G switch port over Cat5e or Cat6 removes that bottleneck at minimal additional cost. For Wi-Fi 6E APs with a 6GHz radio, a 5G uplink is the correct specification.

Is 2.5GbE backward compatible with 1G devices?

Yes. NBASE-T ports auto-negotiate — they automatically operate at the highest speed both devices support. A 2.5G switch port connected to a 1G NIC will negotiate to 1G and function normally with no configuration changes required. This makes multi-gig switches a drop-in replacement for existing 1G infrastructure.

Does Cat6 support 5GbE?

Yes. IEEE 802.3bz specifies 5GBASE-T operation over Cat6 cabling at full 100m channel length. Cat6’s 250MHz bandwidth specification provides sufficient headroom. Cat5e does not support 5G at 100m. For new installations targeting 5G or 10G, Cat6A is the professional specification as it supports all speeds to 100m with significant margin.

How much faster is 2.5GbE than Gigabit in real-world use?

2.5GbE delivers approximately 280 MB/s of real-world file transfer throughput, compared to ~112 MB/s on Gigabit — a 2.5× improvement. A 10GB video file transfer takes roughly 36 seconds on 2.5G versus 90 seconds on 1G. The difference is most noticeable in multi-user shared storage environments and in wireless environments where many clients are simultaneously active on a Wi-Fi 6 access point.

What cable should I run for a new multi-gigabit installation?

Always run Cat6A for any new commercial structured cabling installation targeting 2.5G, 5G, or 10G speeds. Cat6A supports all NBASE-T speeds plus 10GBASE-T at full 100m channel length with significant bandwidth headroom remaining. It also handles PoE++ thermal loads better than Cat6. The cable is the most expensive and disruptive part of any network installation — always specify Cat6A so the infrastructure is not the limiting factor for the next 15–20 years.

Related Resources

Cablify Technical Team

Commercial Cabling Specialists — Toronto & GTA

Cablify designs and installs commercial network cabling, fiber optic, CCTV, and structured cabling infrastructure across Toronto, Mississauga, Brampton, and the Greater Toronto Area. All structured cabling installations are ANSI/TIA-568 compliant with full channel certification at Cat6 or Cat6A performance.

The post 2.5GbE, 5GbE & Multi-Gigabit Ethernet Explained appeared first on Cablify.

PoE vs PoE+ vs PoE++: 802.3af, 802.3at & 802.3bt Compared

HP — Wed, 29 Apr 2026 02:58:57 +0000

15.4W

PoE 802.3af

30W

PoE+ 802.3at

60W

PoE++ Type 3

100W

PoE++ Type 4

How PoE Works: PSE, PD & Powered Pairs Explained

Power over Ethernet lets a single Cat5e/Cat6/Cat6A cable carry both network data and electrical power simultaneously — eliminating the separate power adapter at every networked device.

The system operates through two roles defined in the IEEE 802.3 standard family:

PSE (Power Sourcing Equipment): The device that supplies power — a PoE-capable network switch or a standalone PoE injector. The PSE detects whether the connected device supports PoE before delivering any power.
PD (Powered Device): The device that receives power — an IP camera, VoIP phone, wireless access point, access control reader, or any device built to consume PoE.

Critical Safety Mechanism

IEEE 802.3 requires every PSE to perform a detection and classification handshake before delivering power. The PSE sends a low-voltage probe; if no valid PD signature is detected, no power is delivered. Standard ethernet devices plugged into a PoE port receive data only — they cannot be damaged by a compliant PSE.

How Power Is Delivered: 2-Pair vs. 4-Pair

Mode A: Power on data pairs (1/2 and 3/6). DC power is superimposed via centre-tap transformer. Used by 802.3af and 802.3at.
Mode B: Power on spare pairs (4/5 and 7/8). Also used by 802.3af and 802.3at.
4-Pair (802.3bt): All four pairs carry power simultaneously, enabling 60W and 100W. This is why Cat6A is mandatory for PoE++ — the cable must handle power on all 4 pairs without thermal or signal degradation.

PD Classification: How the Switch Allocates Power per Port

Class	Standard	Max PD Power	Max PSE Output	Typical Use
Class 0	Default	12.95W	15.4W	Legacy / unclassified
Class 1	802.3af	3.84W	4W	Low-power sensors
Class 2	802.3af	6.49W	7W	IP phones, basic cameras
Class 3	802.3af	12.95W	15.4W	Most cameras, phones
Class 4	802.3at	25.5W	30W	WAPs, PTZ cameras
Class 5	802.3bt	40W	45W	Smart lighting, video conf
Class 6	802.3bt	51W	60W	High-power WAPs
Class 7	802.3bt	62W	75W	Displays, advanced APs
Class 8	802.3bt	71.3W	100W	LCD panels, workstations

The 4 Standards at a Glance

Specification	PoE	PoE+	PoE++ Type 3	PoE++ Type 4
IEEE Standard	802.3af	802.3at	802.3bt-2018	802.3bt-2018
Year Ratified	2003	2009	2018	2018
Max PSE Output	15.4W	30W	60W	100W
Max PD Usable Power	12.95W	25.5W	51W	71.3W
Powered Pairs	2 pairs	2 pairs	4 pairs	4 pairs
Max Current per Pair	350mA	600mA	600mA	960mA
Min Cable Grade	Cat3	Cat5e	Cat6 (Cat6A preferred)	Cat6A mandatory
Backward Compatible?	Baseline	Yes — with 802.3af PDs	Yes — all prior standards	Yes — all prior standards
Switch Budget Impact	Low	Moderate	High	Very High

Power Budget
Power Loss Across a 100m Cable Run (PSE → PD)

802.3af

15.4W

PSE output

Cable loss

−2.45W

12.95W

at PD

802.3at

30W

PSE output

Cable loss

−4.5W

25.5W

at PD

802.3bt T3

60W

PSE output

Cable loss

−9W

51W

at PD

802.3bt T4

100W

PSE output

Cable loss

−20.7W

71.3W

at PD

802.3af — PoE (15.4W): The Original Standard

Ratified by IEEE in 2003, 802.3af was the first standardized Power over Ethernet specification. It defined the fundamental framework all subsequent standards build upon — the detection handshake, the classification system, and the 2-pair power delivery model.

802.3af

PoE

IEEE 802.3af — 2003

15.4W

Max PSE Output / 12.95W at PD

Pairs used: 2 (Mode A or B)

Min cable: Cat3 (Cat5e recommended)

Current limit: 350mA per pair

Voltage range: 44–57V DC

IP camerasVoIP phonesaccess controlIoT sensors

Still Relevant in 2025

Despite being over 20 years old, 802.3af covers the majority of deployed PoE devices: basic IP cameras (5–12W), all standard VoIP phones (3–8W), access control readers (2–5W), and IoT sensors. Don’t over-specify — a 30W PoE+ port wasted on a 6W camera is unnecessary switch budget cost.

Real-World Power at 802.3af

IP camera (fixed, 1080p): 5–9W
IP camera (fixed, 4K): 10–13W
VoIP phone (basic): 3–5W
VoIP phone (color display): 6–9W
Access control reader: 2–5W
IoT/environmental sensor: 1–4W
Basic WAP (single-band): 8–12W

802.3at — PoE+ (30W): The Commercial Sweet Spot

The 802.3at amendment, ratified in 2009, doubled the available power to 30W by increasing the current limit from 350mA to 600mA per pair. It maintains full backward compatibility with 802.3af — every PoE+ port can power any 802.3af device without reconfiguration.

802.3at

PoE+

IEEE 802.3at — 2009

30W

Max PSE Output / 25.5W at PD

Pairs used: 2 (Mode A or B)

Min cable: Cat5e (Cat6 recommended)

Current limit: 600mA per pair

Voltage range: 50–57V DC

enterprise WAPsPTZ camerasvideo confthin clients

PoE+ is the dominant standard in modern commercial deployments. It powers enterprise-grade wireless access points (15–25W), PTZ security cameras, video conferencing endpoints, and thin-client terminals. For any new office switch deployment today, PoE+ on all ports is the professional standard recommendation.

Specifier Note

Many switches advertise “PoE+” but have a limited total PoE budget that can’t deliver 30W on all ports simultaneously. A 24-port PoE+ switch with a 185W budget can only sustain full 30W on about 6 ports at once. Always check the total switch PoE budget — not just the per-port maximum.

Real-World Power at 802.3at

Dual-band enterprise WAP (802.11ac): 15–22W
Tri-band enterprise WAP (Wi-Fi 6E): 20–25W
PTZ IP camera (1080p): 18–24W
Video conferencing endpoint (small): 18–25W
Thin client terminal: 20–25W
VoIP conference phone: 12–18W

802.3bt Type 3 — PoE++ (60W): High-Power Devices

Ratified in 2018, 802.3bt represents the most significant architectural change in PoE history. By utilizing all 4 cable pairs simultaneously for power delivery, it delivers up to 60W (Type 3) or 100W (Type 4) — enabling PoE for smart building infrastructure, LED lighting, and high-performance wireless equipment.

802.3bt Type 3

PoE++

IEEE 802.3bt — 2018

60W

Max PSE Output / 51W at PD

Pairs used: 4 (all pairs)

Min cable: Cat6 (Cat6A mandatory for thermal safety in bundles)

Current limit: 600mA per pair

Voltage range: 50–57V DC

smart lightinghigh-power WAPsLED driversvideo conf

Cable Requirement — Non-Negotiable

802.3bt Type 3 running at 60W on 4 pairs generates significant heat in cable bundles. Cat6A is the mandatory professional specification. Cat6A’s 23 AWG conductors produce less DC resistance and less heat per metre than Cat6’s 24 AWG. Using Cat6 is technically within spec at short, isolated runs — but thermal derating applies in any bundled pathway and will cause channel certification failures.

Real-World Power at 802.3bt Type 3

Wi-Fi 6/6E enterprise AP (multi-radio): 30–50W
IP PoE LED light fixture: 30–55W
Cisco Catalyst video conferencing: 40–51W
Industrial PoE display panel: 35–50W
High-performance thin client: 30–45W

802.3bt Type 4 — PoE++ (100W): Maximum Power

802.3bt Type 4

PoE++

IEEE 802.3bt — 2018

100W

Max PSE Output / 71.3W at PD

Pairs used: 4 (all pairs)

Min cable: Cat6A — mandatory, no exceptions

Current limit: 960mA per pair

Voltage range: 52–57V DC

LCD displaysdigital signagelaptopsworkstations

At 71.3W usable at the device, Type 4 can power small laptops, large digital signage displays, and compact workstations entirely over ethernet — a single Cat6A cable carrying both 10Gbps data and full workstation power. The trade-off is infrastructure cost: Type 4 switches are significantly more expensive per port and require substantial PoE budgets. Currently deployed selectively for high-value endpoints.

⚡ Interactive Tool
Free PoE Budget Calculator

Enter your switch total PoE budget and device mix. The calculator shows if your power budget is sufficient and how much headroom remains.

Switch Settings

Total Switch PoE Budget (Watts)

Total Switch Ports

Connected Devices

📷 IP Cameras (PoE, ~9W)

72W

📞 VoIP Phones (PoE, ~6W)

72W

📡 Enterprise WAPs (PoE+, ~22W)

88W

🔒 Access Control (~4W)

16W

💡 PoE++ Lighting (Type 3, ~40W)

0W

248

Total Watts Required

Budget used
67%

Switch PoE Budget
370W

Total Devices
28

Headroom Remaining
122W

Ports Used / Available
28 / 24

✓

Budget OK — sufficient headroom for growth.

Get a PoE Infrastructure Quote →

Cable Requirements & Thermal Considerations

PoE introduces DC current through the same conductors carrying data. This current generates heat — and heat degrades both cable performance and longevity over time.

Thermal & Cable Spec
Cable Grade vs. PoE Standard

802.3af

Cat5e+

At 350mA max, heat generation is minimal. Cat5e is technically spec’d but Cat6 is always preferred for future flexibility.

802.3at

Cat6 rec.

600mA increases thermal load. In bundled pathways >24 cables, TIA-568 derating applies. Cat6 handles this well; Cat5e requires careful bundle management.

802.3bt T3

Cat6A req.

4-pair power at 600mA/pair. 23 AWG conductors in Cat6A are essential. Bundled Cat6 with PoE++ will fail channel certification under thermal derating rules.

802.3bt T4

Cat6A only

960mA per pair generates serious heat. Cat6A only, full-stop. Plenum-rated CMP Cat6A for any air-handling space. Keep bundles small.

The TIA-568 Temperature Derating Rule

TIA-568-C.1 specifies cable performance at a maximum of 60°C (140°F). In a typical commercial building, ambient temperature in a cable pathway is 20–25°C. PoE current in a large bundle can add 5–15°C — pushing cables toward or past their thermal ceiling. For every 1°C above the rated baseline, the maximum supported cable length must decrease. This is why large PoE deployments mandate Cat6A — its lower DC resistance generates less heat per metre.

Which PoE Standard Do You Actually Need?

Device	Typical Draw	Minimum Standard	Recommended	Cable
IP camera (fixed, up to 4K)	5–13W	PoE 802.3af	PoE (802.3af)	Cat6
VoIP phone	3–8W	PoE 802.3af	PoE (802.3af)	Cat6
Access control reader	2–6W	PoE 802.3af	PoE (802.3af)	Cat5e/Cat6
Enterprise WAP (Wi-Fi 6/6E dual/tri-band)	15–25W	PoE+ 802.3at	PoE+ (802.3at)	Cat6
PTZ security camera	15–25W	PoE+ 802.3at	PoE+ (802.3at)	Cat6
VoIP conference phone	12–20W	PoE+ 802.3at	PoE+ (802.3at)	Cat6
High-perf WAP (Wi-Fi 6E multi-radio)	25–50W	PoE++ T3	PoE++ Type 3	Cat6A
PoE LED lighting system	30–55W	PoE++ T3	PoE++ Type 3	Cat6A
Digital signage display	35–65W	PoE++ T4	PoE++ Type 4	Cat6A
Laptop / thin workstation	40–65W	PoE++ T4	PoE++ Type 4	Cat6A

7 Common PoE Planning Mistakes

Mistake #1: Confusing Port Power with Switch Budget

A switch rated “30W PoE+ per port” with a 185W total budget cannot deliver 30W on all 24 ports simultaneously — only about 6. Always calculate your aggregate device load against the total switch PoE budget.

Mistake #2: Assuming All “PoE Switches” Are IEEE Compliant

Budget PoE switches often have inflated port-power ratings and no LLDP/CDP for proper classification. Cisco, Aruba, Netgear ProAV, and Ubiquiti use proper IEEE-compliant detection. Budget switches may not — causing intermittent device issues, brownouts, or phantom power under load.

Mistake #3: Running PoE++ on Cat6 in Bundled Pathways

It may work initially — but it will fail channel certification under thermal derating rules once the cable temperature rises. PoE++ on Cat6 in bundles is a latent compliance issue. Use Cat6A from day one.

Mistake #4: Ignoring Injector Standard Compatibility

A PoE injector must match the standard of the PD. Using an 802.3af injector for an 802.3at device will under-power it, causing crashes or brownouts. Always match injector output class to device requirement.

Mistake #5: Not Planning for Switch Budget Growth

You install 12 cameras today at 8W each = 96W on a 185W switch. Fine. Next year you add 6 enterprise WAPs at 22W each = 132W more. Budget exceeded. Always size switch PoE budgets to at least 150% of current load.

Mistake #6: Using PoE Splitters Instead of Native PoE Devices

PoE splitters introduce additional failure points, heat, and conversion losses. Where possible, spec native PoE devices rather than adding splitters to non-PoE equipment. The reliability difference is significant over a 5-year horizon.

Mistake #7: Forgetting Cable Distance and Voltage Drop

Longer runs mean higher resistance and greater voltage drop. A PoE++ device drawing maximum power at the end of a 90m run may brownout where the same device on a 30m run performs perfectly. For power-hungry devices on long runs, shorten cable runs or use switches with 57V output vs. 54V.

Frequently Asked Questions

Is PoE+ backward compatible with PoE devices?

Yes. Full backward compatibility is built into the IEEE 802.3 standard family. A PoE+ (802.3at) switch port powers any 802.3af device at the lower wattage without reconfiguration. Similarly, 802.3bt (PoE++) switch ports correctly power 802.3af and 802.3at devices. The detection and classification handshake ensures the PSE always delivers only what the PD requests.

What is the difference between PoE and PoE+?

PoE (802.3af) delivers up to 15.4W per port with 12.95W usable at the device. PoE+ (802.3at) delivers up to 30W per port with 25.5W usable — exactly double. Both use 2 cable pairs for power delivery. The practical difference is that PoE+ covers modern enterprise WAPs, PTZ cameras, and video conferencing endpoints that exceed PoE’s power envelope.

Do I need Cat6A cable for PoE++?

Yes — for any production installation. 802.3bt PoE++ uses all 4 cable pairs for power delivery, generating significantly more heat in bundled pathways. Cat6A’s 23 AWG conductors have lower DC resistance, producing less heat per metre. TIA-568 thermal derating rules make Cat6 marginal in bundled PoE++ pathways — Cat6A is the mandatory professional specification for any code-compliant, certifiable PoE++ installation.

What happens if a PoE switch runs out of budget?

When a PoE switch’s total power budget is exhausted, newly connected devices receive data connectivity but no power — they simply won’t turn on. On managed switches, port-level PoE priority settings control which devices are denied first. Always size switch PoE budget to at least 150% of calculated device load.

Can PoE damage non-PoE devices?

No — not if the PSE is IEEE 802.3-compliant. The standard mandates a detection handshake before delivering power. A laptop or PC plugged into a PoE port receives data connectivity only — no power damage risk. However, non-compliant “passive PoE” products (common in budget CCTV systems) do not perform detection and will damage non-PoE equipment. Always use IEEE 802.3-compliant active PoE equipment.

What PoE standard do enterprise WiFi access points require?

Most enterprise Wi-Fi 5 and Wi-Fi 6 access points require PoE+ (802.3at, 30W) at minimum. High-performance tri-band Wi-Fi 6E and Wi-Fi 7 APs with multiple radios are increasingly requiring PoE++ Type 3 (802.3bt, 60W). Always check the manufacturer datasheet — power class varies significantly even within a single vendor’s product line.

Related Resources

Cablify Technical Team

Commercial Cabling Specialists — Toronto & GTA

Cablify designs and installs commercial network cabling, fiber optic, CCTV, and PoE infrastructure across Toronto, Mississauga, Brampton, and the Greater Toronto Area. All structured cabling installations are ANSI/TIA-568 compliant with full channel certification reporting at Cat6 or Cat6A performance.

The post PoE vs PoE+ vs PoE++: 802.3af, 802.3at & 802.3bt Compared appeared first on Cablify.

US Bans Foreign-Made Consumer Routers — What Canadian Businesses Need to Know

HP — Tue, 24 Mar 2026 13:56:30 +0000

On March 23, 2026, the U.S. Federal Communications Commission made one of the most consequential decisions in networking history. The FCC updated its national security “Covered List” to include all consumer-grade routers produced in foreign countries — effectively banning any new foreign-made router models from entering the U.S. market. Without FCC equipment authorization, a device cannot be legally imported, marketed, or sold in the United States.
This ruling didn’t just shake up Silicon Valley. It sent a clear message to businesses and IT professionals across North America: the era of treating network hardware as a cheap, disposable commodity is over. And for businesses in Toronto, Mississauga, Brampton, and across the GTA, the implications are closer to home than you might expect.
html

What This Article Covers
This guide explains what the FCC router ban means, which brands are affected, why Canadian businesses are directly impacted, and what practical steps GTA businesses should take to protect their network infrastructure. It is not legal or regulatory advice.

html

65%+

Market share held by foreign router brands during the pandemic — virtually all now affected by the ban

100%

Of new foreign-made consumer router models now blocked from FCC authorization and U.S. market entry

Mar 2027

Earliest date existing covered routers may lose eligibility for software updates under the new rules

What Exactly Did the FCC Do?

The FCC’s Covered List is maintained under Section 2 of the U.S. Secure Networks Act. Any device placed on this list is deemed to pose an “unacceptable risk to U.S. national security” and is barred from receiving new FCC equipment authorizations — cutting off its legal pathway into the American market entirely.
This action followed a formal determination by a White House-convened interagency panel involving the Department of Homeland Security, the Department of War, and other executive agencies with national security expertise. The panel concluded that foreign-produced routers introduce supply chain vulnerabilities that could disrupt critical infrastructure and national defense, and that the risk was unacceptable.
FCC Chairman Brendan Carr stated that foreign-produced routers posed “an unacceptable national security risk” and that the Commission was pleased to act on the Executive Branch’s determination.
One important clarification: this ban does not require you to throw away your current router. Previously authorized models can still be sold by retailers and used by consumers. Existing devices remain eligible for software updates through at least March 1, 2027. The ban applies exclusively to new device models seeking FCC authorization going forward.

The Security Threats That Triggered the Ban

This ruling didn’t come out of nowhere. Two major state-sponsored hacking campaigns were central to the FCC’s determination — and understanding them matters for any Canadian business owner thinking about their own network security posture.

Volt Typhoon

This Chinese state-backed hacking group systematically compromised small office and home office routers across the United States, building persistent hidden backdoors inside critical infrastructure including energy grids, water systems, and transportation networks. The intrusions went undetected for years precisely because the attack vector was the router itself — a device most businesses never scrutinize.

Salt Typhoon

A separate but related campaign, Salt Typhoon targeted U.S. telecommunications providers and was linked to the interception of sensitive government communications. Again, compromised network hardware served as the primary entry point. The scale and sophistication of these operations alarmed national security officials at the highest levels of the U.S. government.

The FCC’s Own Words
“Recently, malicious state and non-state sponsored cyber attackers have increasingly leveraged the vulnerabilities in small and home office routers produced abroad to carry out direct attacks against American civilians in their homes. From disrupting network connectivity to enabling local networking espionage and intellectual property theft, foreign-produced routers present unacceptable risks to Americans.”

— FCC National Security Determination, March 2026

Which Router Brands Are Affected?

Here is the most disruptive aspect of this ruling: virtually every major consumer router brand manufactures its products overseas. This is not limited to Chinese-owned companies like TP-Link. Even iconic American-headquartered companies are caught by the ban.

Brand	Headquarters	Manufacturing Location	Status Under New Rules
TP-Link	China	China / Vietnam	New models banned
Netgear	USA	Taiwan / Thailand	New models banned
Google Nest WiFi	USA	Taiwan / Vietnam	New models banned
Amazon Eero	USA	Taiwan	New models banned
Asus	Taiwan	Taiwan / China	New models banned
Linksys / Belkin	USA	Asia	New models banned

Companies can apply for a “Conditional Approval” exemption through the Department of Homeland Security or the Department of War. However, the process requires full disclosure of management structure, supply chain details, and — most significantly — a concrete plan to move manufacturing to the United States. As of today, no major consumer router brand manufactures in America. Industry observers widely expect legal challenges from affected manufacturers given the sweeping scope of the ruling.

What This Means for Canadian Businesses

You might be thinking this is a U.S. regulatory matter with no direct relevance in Canada. It isn’t — and here’s why GTA businesses should be paying close attention right now.

Impact #1

Supply Chain Disruption Will Hit Canada Immediately

Canada and the U.S. share tightly integrated technology supply chains. The same router brands that dominate shelves at Best Buy and Staples in the U.S. are the same ones dominating shelves in Canada. As new model approvals dry up, manufacturing volume drops and factories retool, availability will tighten and prices will rise north of the border. Expect constraints on new router models within months.

Impact #2

The Same Security Vulnerabilities Exist on Canadian Networks

The state-sponsored hacking groups that targeted U.S. infrastructure — Volt Typhoon, Salt Typhoon, and others — do not confine their operations to American networks. Canadian businesses with cross-border operations, intellectual property, financial data, or any connection to critical industries face identical risks from the same compromised hardware. The Canadian Centre for Cyber Security has repeatedly flagged supply chain attacks on network hardware as a top-tier threat to Canadian organizations.

Impact #3

Canadian Regulation Is Likely to Follow

History shows that when the U.S. acts on cybersecurity threats, Canada follows. The Huawei 5G equipment ban in Canada came after the U.S. moved first. The same pattern is a credible near-term possibility for consumer networking hardware. Businesses that build their infrastructure on certified, professionally installed wired cabling now will be ahead of whatever regulatory curve arrives next.

Why Wired Network Infrastructure Is the Right Response

The FCC ruling is a powerful signal for businesses across the GTA to reassess their networking strategy from the ground up. Much of the vulnerability in consumer and small-business networks stems from over-reliance on wireless routers as the central nervous system of connectivity. When a router is compromised — through a firmware backdoor, a zero-day exploit, or a supply chain attack — every device on the Wi-Fi network is potentially exposed.
A professionally installed network cabling infrastructure eliminates that central vulnerability. Wired networks are physically isolated, cannot be wirelessly intercepted, and are not dependent on the firmware of a single consumer device that may have been assembled in a factory with questionable oversight.

Cat6 Cabling — The Commercial Standard

Cat6 cabling is the current standard for commercial network installations, delivering gigabit and multi-gigabit performance with significant headroom for growth. Unlike consumer routers, every run in a structured cabling system is professionally tested, certified, and documented — giving your IT team full visibility and control over your network with no dependence on foreign-manufactured consumer hardware.

Fiber Optic — The Gold Standard for Security and Performance

For businesses that demand the highest levels of performance and security, fiber optic cabling offers capabilities no consumer router can approach. Fiber transmits light rather than electrical signals, making it physically immune to electromagnetic interception. Tapping a fiber cable requires physically severing it — which immediately triggers network alerts. For backbone connections between floors or buildings, fiber is unmatched in both security and longevity.

Data Cabling Built to Last

Whether you’re running a small office in downtown Toronto or a multi-location operation across the GTA, professional data cabling provides the kind of scalable, certified infrastructure that a consumer router can never replicate. Every run is tested, labeled, and documented. For older installations, Cat5e cabling upgrades remain a cost-effective step up from legacy wiring that predates modern bandwidth demands.

The Physical Infrastructure Advantage
Unlike consumer networking gear shipped from overseas factories with unknown firmware provenance, professionally installed cabling is physical infrastructure — verifiable, auditable, and entirely under your control. No firmware. No backdoors. No supply chain uncertainty. A properly installed structured cabling system will serve your business reliably for 15–20 years regardless of what happens to the consumer router market.

Consolidate Your Infrastructure in One Project

A network cabling installation is also the right time to address your physical security infrastructure. Cablify can integrate CCTV and security camera cabling and access control systems within the same project — reducing cost and ensuring all your infrastructure runs on consistent, certified cabling standards from day one.

Common Network Infrastructure Mistakes GTA Businesses Make — And How to Fix Them

Mistake #1

Running the Whole Office on a Single Consumer Router

A single consumer router serving an entire office is a single point of failure for both performance and security. It is also the exact device class now identified as a national security risk by the highest levels of U.S. government. A structured cabling approach distributes connectivity through tested runs and managed switches — eliminating the single-point-of-failure problem entirely.
Fix: Have a certified network cabling specialist assess your current layout and design a proper structured cabling system sized for your space and user count.

Mistake #2

Decade-Old Cabling That Predates Gigabit Requirements

Many Toronto commercial premises are still running on Cat5 or early Cat5e installations from the early 2000s. These cables are the bottleneck limiting your network performance regardless of what router or ISP speed you add on top. They also lack the headroom to support modern VoIP, cloud applications, and high-density Wi-Fi access points properly.
Fix: A cabling audit will identify which runs are underperforming. In most cases, a targeted Cat6 upgrade of the highest-traffic runs delivers the most immediate performance gain at the lowest cost.

Mistake #3

No Documented Cabling Layout

Without a documented cabling plan — showing which cable runs where, what each port connects to, and where patch panels and consolidation points are located — every network change, fault diagnosis, and expansion becomes a time-consuming guessing game. This is one of the most common problems we encounter in GTA commercial properties that have been through several rounds of ad-hoc cable additions.
Fix: Professional installation includes full documentation of every run, port, and panel. If your existing infrastructure lacks this, Cablify can audit and document your current cabling as a standalone service.

Mistake #4

Treating Fiber as a Future Upgrade Rather Than a Current Option

Many GTA businesses assume fiber optic cabling is prohibitively expensive or only relevant for large enterprises. In reality, fiber optic installation for backbone and inter-floor connections is often cost-competitive with high-grade copper — and the performance, security, and longevity advantages are significant. Fusion splicing and fiber termination services are available across the GTA at pricing that makes fiber accessible to mid-size commercial operations.

Frequently Asked Questions

Does the FCC ban affect Canada directly?
The FCC ban is a U.S. regulatory action and does not carry direct legal force in Canada. However, because the Canadian consumer router market is supplied by the same global manufacturers affected by the ban, supply availability and pricing in Canada will be significantly impacted. The underlying cybersecurity threats that motivated the ban are equally relevant to Canadian networks, and Canadian regulatory action along similar lines is possible.
Can I still buy my current router model?
Yes, for now. Previously authorized models can still be imported, sold, and used. Retailers can continue selling existing stock. The ban applies only to new models that have not yet received FCC authorization. As existing stock depletes and no new models can be authorized, availability will tighten considerably.
Is wired cabling genuinely more secure than Wi-Fi?
Yes, fundamentally. A wired connection cannot be intercepted without physical access to the cable. It is not dependent on router firmware, which is where the vulnerabilities exploited by state-sponsored hackers reside. For any business handling sensitive data, client records, financial information, or intellectual property, a wired network backbone is a baseline security requirement — not a luxury.
How long does a professional cabling installation take?
A small office with 10 to 20 drops can typically be completed in one to two days. Larger commercial installations across multiple floors may take a week or more. Cablify works around your schedule to minimize business disruption. Contact us for a free, no-obligation quote.
Does this ruling affect enterprise-grade networking equipment?
The FCC ruling specifically covers consumer-grade networking devices intended for residential use, as defined by NIST. Enterprise-grade commercial switches, routers, and firewalls are not covered by this specific ruling. However, security professionals recommend applying the same scrutiny to enterprise networking hardware — vetting manufacturer transparency, supply chain documentation, and firmware provenance regardless of regulatory requirements.

What GTA Businesses Should Do Right Now

Start by auditing every consumer-grade router currently operating across your business locations. Document the manufacturer, model, and firmware version. Pay particular attention to any TP-Link, Huawei, or older Netgear hardware flagged in previous security advisories.
Get a professional assessment of your existing cabling infrastructure. Many businesses are running on decade-old wiring that predates modern gigabit requirements. A certified network cabling specialist can identify gaps and map the most efficient upgrade path for your space and budget.
If a full upgrade isn’t immediately feasible, ensure every networking device on your premises is running the latest available firmware. The FCC has confirmed existing authorized devices remain eligible for updates through at least March 2027 — use that window to keep current hardware as secure as possible while planning your longer-term infrastructure investment.
For businesses across Mississauga, Brampton, Oakville, and Hamilton and Burlington, the same principles apply — and Cablify’s certified team serves all of these areas with the same standards we bring to every Toronto installation.

“The question isn’t whether your business can afford a professional wired network infrastructure. The question is whether you can afford the security exposure, the supply disruption, and the regulatory risk of not having one.”

— Cablify network cabling team, Toronto

The Bottom Line

The FCC’s decision to ban all new foreign-made consumer routers is a historic acknowledgment, at the highest levels of government, that the networking hardware sitting in millions of homes and businesses represents a genuine national security vulnerability. State-sponsored actors have exploited these devices at scale. The evidence was compelling enough to prompt the most sweeping action against consumer networking hardware in U.S. telecommunications history.
For Canadian businesses, the message is clear: invest in certified, professionally installed, physically secure wired network infrastructure. It eliminates the attack surface that consumer routers create, insulates your business from the supply disruption now unfolding in the router market, and positions you ahead of the regulatory developments that are likely to follow in Canada.
Cablify has been helping Toronto and GTA businesses build exactly this kind of infrastructure for over 18 years. Certified, insured, and trusted across the region — we’re here when you’re ready to talk.

Ready to Build a Network Infrastructure That Doesn’t Depend on Foreign Consumer Hardware?

Get a free, no-obligation quote from Cablify’s certified network cabling team. Serving Toronto, Mississauga, Brampton, Oakville, Hamilton, and across the GTA.

Get a Free Quote →

647-846-1925 · info@cablify.ca · Mon–Sat 8am–8pm

The post US Bans Foreign-Made Consumer Routers — What Canadian Businesses Need to Know appeared first on Cablify.

PoE vs. PoE+ – A useful simple Guide

HP — Mon, 13 Oct 2025 17:55:38 +0000

Power over Ethernet (PoE) technology has revolutionized networking by allowing a single Ethernet Cabling to deliver both data and electrical power to devices, simplifying installations and reducing clutter. Whether you’re setting up a small office, a surveillance system, or an enterprise network, understanding PoE and its enhanced version, PoE+, is crucial. PoE (IEEE 802.3af) provides basic power delivery, while PoE+ (IEEE 802.3at) offers double the capacity for more demanding devices. This guide dives deep into their differences, benefits, and real-world implications, helping you choose the right standard for your needs in 2025.

What is PoE?

PoE, defined by the IEEE 802.3af standard ratified in 2003, enables powered devices (PDs) like IP phones, wireless access points, and basic cameras to receive power from a power sourcing equipment (PSE), such as a PoE switch or injector, over standard twisted-pair Ethernet cables (Cat5e or higher). This was the first official standardization of PoE, following earlier proprietary implementations by companies like Cisco in the late 1990s, which accelerated its adoption across industries.

Key features in simple terms:

Power Delivery: Up to 15.4 watts (W) at the PSE, but after cable losses (about 15-20% due to resistance), it delivers roughly 12.95W to the PD—enough for low-power gadgets without needing wall outlets.
Voltage and Current: Operates at 44–57V DC with a maximum current of 350mA, making it safe for most office environments.
Detection and Classification: The PSE “handshakes” with the PD to detect compatibility and assigns one of four classes (0–3), from 0.44W for tiny sensors to 15.4W for full-load devices. This prevents overloads.
Cable Usage: Uses two of the four twisted pairs (Mode A: data pairs 1-2/3-6 for 10/100 Mbps; Mode B: spare pairs 4-5/7-8). Fun fact: It works over distances up to 100 meters, the Ethernet standard limit.

PoE adoption has grown steadily, paralleling standard evolutions—by 2025, over 70% of enterprise networks incorporate some PoE for basic powering, per industry reports. It’s ideal for low-power applications where simplicity and cost savings matter, eliminating the need for separate power adapters and reducing setup time by up to 30% in small installs.

What is PoE+?

PoE+, or PoE Plus, introduced by the IEEE 802.3at standard in 2009, builds on PoE to support higher-power devices. It maintains backward compatibility with PoE while extending capabilities for modern IoT and AV equipment, addressing the power shortfalls of the original standard as devices like HD cameras emerged.

Key features in simple terms:

Power Delivery: Up to 30W at the PSE, providing about 25.5W to the PD after similar cable losses—nearly double PoE, perfect for devices that “hunger” for more juice.
Voltage and Current: Similar voltage range (50–57V DC) but higher current up to 600mA, allowing for beefier loads without spiking risks.
Enhanced Classification: Adds Class 4 (up to 30W) with faster, more accurate detection, reducing startup delays to under 50ms for seamless operation.
Cable Usage: Still two pairs, but with better tolerance for voltage drops on longer runs, ensuring consistent performance up to 100m.

Since its launch, PoE+ has seen rapid uptake, especially in surveillance and Wi-Fi sectors, contributing to the overall PoE market’s projected growth from USD 2.9 billion in 2025 to USD 12.4 billion by 2034 at a 17.4% CAGR. It powers more energy-intensive devices like pan-tilt-zoom (PTZ) cameras, video phones, and multi-radio Wi-Fi access points, making it a staple in mid-sized businesses.

PoE vs. PoE+: A Visual Guide to Power Over Ethernet

PoE vs. PoE+

Powering the Future of Network Devices

While both PoE (IEEE 802.3af) and PoE+ (IEEE 802.3at) deliver power over Ethernet cables, PoE+ provides a significant power boost to support more demanding devices, future-proofing networks for advanced technology. This guide breaks down the key differences.

The Core Difference: Power Delivery

The most critical distinction is the amount of wattage each standard can supply, both from the power source (PSE) and to the powered device (PD) after accounting for power loss over the cable.

PoE Max Delivered Power

12.95W

At the Device (PD)

PoE+ Max Delivered Power

25.5W

At the Device (PD)

Under the Hood: Electrical Specifications

Higher power delivery in PoE+ is enabled by key improvements in its electrical characteristics, primarily an increase in the maximum electrical current.

Max Current Increase

PoE+ allows for a ~71% increase in maximum current, from 350mA to 600mA, which is fundamental to its higher power capacity.

Capability Footprint

A radar chart comparing key metrics shows the expanded operational range of PoE+ across power, current, and voltage.

What Can You Power?

The increased power of PoE+ unlocks support for a new class of network devices that require more energy to function.

PoE (802.3af) Devices

Basic VoIP Phones
Static Security Cameras
Simple Access Points
Network Sensors

PoE+ (802.3at) Devices

Pan-Tilt-Zoom (PTZ) Cameras
Video IP Phones
Multi-Radio Wireless APs
Complex Access Control Systems

The Constants: What Hasn't Changed

Despite the power differences, both standards share the same foundational infrastructure, ensuring ease of use and interoperability.

PSE (Switch)

Max 100m (328 ft)

Cat5e+ Cable

PD (Device)

Both PoE and PoE+ use standard RJ45 connectors and can operate over 2 pairs of wires in a Cat5e (or better) cable up to 100 meters.

The Bottom Line: Cost vs. Capability

Choosing between PoE and PoE+ involves balancing budget with the power requirements of your network devices, both now and in the future.

Typical Cost Premium for PoE+

PoE+ switches and injectors typically cost 20-50% more than their standard PoE counterparts due to the more robust power delivery components.

Key Considerations

✓

Backward Compatibility

PoE+ sources are fully backward compatible and can safely power standard PoE devices.
✓

Efficiency

PoE+ offers better power negotiation, reducing waste by 10-15% compared to PoE, especially in mixed-device networks.

Key Differences: PoE vs. PoE+

The primary distinctions lie in power output, supported devices, and efficiency. Both standards use RJ45 connectors and Cat5e+ cables, but PoE+ future-proofs networks for power-hungry tech. Here’s a breakdown with added data for clarity:

Feature	PoE (IEEE 802.3af)	PoE+ (IEEE 802.3at)
Max Power at PSE	15.4W	30W
Max Power at PD	12.95W (after ~15% loss)	25.5W (after ~15% loss)
Max Current	350mA	600mA
Voltage Range	44–57V DC	50–57V DC
Power Classes	0–3 (0.44W–15.4W)	0–4 (0.44W–30W)
Cable Pairs Used	2 pairs (data or spare)	2 pairs (data or spare)
Max Distance	100m (328 ft)	100m (328 ft)
Efficiency/Heat	~20% power lost to heat in adapters/cables; suitable for low-heat setups	Better classification reduces waste by 10-15%; lower heat generation per watt for high-load devices
Backward Compatibility	N/A (base standard)	Fully compatible with PoE PDs
Typical Cost Premium	Baseline	20–50% higher for switches/injectors

Note: Actual delivered power varies by cable length and quality—thicker Cat6 cables minimize the 15-20% loss common in both. PoE+ edges out in efficiency for mixed networks, as it avoids underpowering that forces inefficient workarounds.

Power, Cost, and Future-Proofing

Choosing between PoE and PoE+ isn’t just about specs—it’s about scalability, safety, and ROI. Let’s break it down with real numbers:

Power Demands: Basic PoE suffices for low-draw devices (e.g., a VoIP phone at ~5W or a basic IP camera at 4-7W), but PoE+ handles high-bandwidth gear like 4K PTZ cameras (15–25W) or dual-band Wi-Fi APs (12-20W) without underpowering. In 2025, with IoT devices averaging 10-15W, mismatched PoE can cause 20–30% more downtime from reboots or failures.
Cost Implications: PoE setups slash installation costs by combining data and power lines—studies show up to 50% savings on labor and materials versus traditional wiring with separate AC adapters. For a 24-port setup, a PoE switch might cost $200-400 upfront, but it pays off in reduced monthly energy bills (adapters waste 20% as heat). PoE+ adds value by supporting diverse devices on one infrastructure, cutting long-term expansion costs by 30-40%, though initial switch prices run $300-600 per port.
Safety and Efficiency: Both negotiate power via inline detection to avoid overloads (e.g., no risk of fires from mismatched voltages), but PoE+ cuts energy waste with precise allocation—expect 10-15% better efficiency in high-use scenarios. Overall, PoE networks generate less heat than multiple adapters, improving rack cooling and longevity.
Future-Proofing: As devices evolve (e.g., AI sensors at 20W+ or edge computing nodes), PoE+ (and PoE++ at 60–100W) prepares you for upgrades without rewiring. With the PoE market hitting USD 3.56 billion for cables alone by 2033, investing now avoids 40% budget hikes later.

In short: PoE for budget basics; PoE+ for growth-minded setups.

Power over Ethernet (PoE) Infographic

One Cable to Rule Them All

A Visual Guide to Power over Ethernet (PoE)

What is PoE?

Power over Ethernet (PoE) is a technology that lets network cables carry electrical power. It eliminates the need for a separate power cable, making it perfect for installing devices in locations where outlets are scarce, like ceilings, walls, or outdoor areas.

PoE Switch

Data & Power Source

Single Ethernet Cable

IP Camera

Powered Device

PoE vs. PoE+: Know Your Power

Different devices have different power needs. The two most common PoE standards, PoE and PoE+, deliver different amounts of power to meet these demands.

PoE (802.3af)

15.4W

Max Power at Source

Ideal for low-power devices like VoIP phones and basic security cameras.

PoE+ (802.3at)

30W

Max Power at Source

Required for more demanding hardware like PTZ cameras, high-performance Wi-Fi APs, and video phones.

Common Devices & Their Power Needs

Matching the right PoE standard to your device is crucial for stable performance. This chart shows the typical power draw for common network hardware, helping you choose between standard PoE and the more powerful PoE+.

Requires PoE

May Require PoE+

Requires PoE+

Real-World Applications

From home offices to large enterprises, PoE simplifies installations and reduces costs across the board.

PoE for Home & Small Business

Perfect for basic setups, PoE powers essential devices reliably and affordably. A small business can deploy a complete VoIP phone system or a security network with minimal wiring and cost.

Cameras on one switch

Under $200 Setup

PoE+ for Enterprise & High-Density

When performance is critical, PoE+ provides the necessary power for high-density Wi-Fi, advanced surveillance, and digital AV systems without the need for extra outlets.

Leads to

40%

Faster Installation Time

Supporting 50+ devices and enabling remote power management.

The Hybrid Advantage

Modern PoE switches often include a mix of PoE and PoE+ ports. This allows you to power a diverse range of devices from a single piece of hardware, maximizing your power budget and future-proofing your network.

Hybrid PoE/PoE+ Switch

PoE Ports

VoIP Phone

Basic IP Camera

PoE+ Ports

Wi-Fi 6 AP

PTZ Camera

Applications and Use Cases

PoE shines in scenarios where clean cabling matters—think ceilings or outdoors. Here’s a simple power cheat sheet for common devices:

Device Type	Typical Power Draw	Best Standard	Example Use Case
VoIP Phone	3-6W	PoE	Office desk setup; powers 100+ units on a basic switch.
Basic IP Camera	4-8W	PoE	Home security; low-cost, reliable for 24/7 monitoring.
Wi-Fi Access Point	8-15W	PoE/PoE+	Enterprise hotspot; handles 50+ users without drops.
PTZ/4K Camera	15-25W	PoE+	Retail surveillance; zoom and pan without power hiccups.
Video Phone/Digital Signage	10-20W	PoE+	Conference rooms; integrates AV without extra outlets.

PoE Applications: Home offices (basic APs, IP cameras), small businesses (VoIP systems). Example: A 10-port PoE switch powers a 5-camera setup for under $200, with zero extra wiring.
PoE+ Applications: Enterprise Wi-Fi (high-density APs), surveillance (PTZ cameras), AV systems (digital signage). Example: A PoE+ network supports 50+ devices in a mid-sized office, enabling remote management and saving 40% on install time.

Hybrid setups are common: Use PoE ports for legacy devices and PoE+ for new ones on the same switch, maximizing your power budget.

Compatibility, Upgrades, and Best Practices

Compatibility: PoE+ PSEs auto-detect and supply PoE levels to legacy PDs (e.g., a 5W phone on a 30W port gets just what it needs); however, PoE PSEs can’t power PoE+ devices—always check labels! This backward compatibility has boosted adoption rates to 80% in mixed environments.
Upgrading: Start with PoE+ switches for new installs—it’s plug-and-play on existing Cat5e. For legacy, add PoE++ (IEEE 802.3bt, 2018) awareness: It uses all four pairs for 60-100W, ideal for laptops or displays.
Best Practices (with quick math):
- Calculate Power Budget: Total available = Switch rating (e.g., 370W for 24-port PoE+). If 10 devices at 20W each = 200W—plenty of headroom. Oversubscribe by >50%? Upgrade!
- Use certified equipment (UL-listed) to avoid fire risks—non-compliant gear causes 15% of PoE failures.
- Test with multimeters for voltage drops (aim <3V over 50m); pure copper cables beat CCA for 10% less loss.
- Monitor via SNMP tools: Track per-port draw to spot inefficiencies early.
- Eco-tip: PoE cuts e-waste by ditching adapters—global savings could hit millions in discarded plugs yearly.

PoE and PoE+ are cornerstones of efficient networking, with PoE offering affordability for basics (15W sweet spot) and PoE+ delivering the muscle (30W) for modern demands. The difference boils down to power, but the “why it matters” is in seamless, scalable deployments that save time, money (up to 50% on installs), and energy (10-20% less waste). In 2025’s connected world—fueled by a $3B+ market—opting for PoE+ isn’t just an upgrade; it’s a strategic edge for IoT, 5G edges, and beyond. Evaluate your devices’ wattage needs, crunch the budget, and invest accordingly for a robust, future-ready network.

PoE vs. PoE+ | An Interactive Infographic Guide

PoE vs. PoE+

A Simple Guide to Power Over Ethernet Standards in 2025

At a Glance: The Power Difference

The most critical distinction between PoE and PoE+ is the amount of power delivered to your devices. PoE+ nearly doubles the power, enabling a new generation of more demanding network hardware.

PoE (802.3af)

12.95W

Max power delivered to the device. Ideal for low-power essentials like VoIP phones and basic cameras.

PoE+ (802.3at)

25.5W

Max power delivered to the device. Necessary for high-performance gear like PTZ cameras and modern Wi-Fi APs.

Core Technical Specifications

While power output is the star, other technical differences in voltage and current handling make PoE+ a more robust standard for high-load environments.

Installation Savings

By combining power and data into a single cable, both PoE standards can drastically reduce installation costs compared to traditional wiring.

Which Standard for Which Device?

Matching the device's power requirements to the right PoE standard is crucial for network stability. Underpowering a device can lead to reboots and failures. This chart shows typical power draws against the limits of each standard.

The Business Case: Market Growth & Future-Proofing

The PoE market is expanding rapidly, driven by the growth of IoT and smart devices. Investing in PoE+, while having a slightly higher upfront cost, prepares your network for the more powerful devices of tomorrow, avoiding costly rewiring projects down the line.

How to Choose: A Simple Decision Flow

Follow this simple process to determine whether PoE or PoE+ is the right fit for your needs.

1⃣

Assess Device Power

What is the max wattage of the devices you need to power?

→

2⃣

Check Budget

Are you on a strict budget for a low-power installation, or can you invest more for future flexibility?

→

3⃣

Consider Future Growth

Will you be adding more powerful devices (like 4K cameras or advanced APs) in the next 3-5 years?

Choose PoE If:

Your devices all consume less than 13W.
The budget is the primary constraint.
You have no plans for network expansion.

Choose PoE+ If:

Any device requires more than 13W.
You need to support PTZ cameras or modern APs.
Future-proofing and scalability are priorities.

Small Business Cisco Switches Guide: PoE, PoE+, Features, Models and Buying Tips

Cisco Catalyst 1200 and 1300 switches are popular choices for small and medium-sized businesses that need reliable networking, VLANs, PoE for access points, IP cameras and VoIP phones, and better management than basic unmanaged switches. This guide explains what these switches do, how PoE and PoE+ work, how to compare models, and how to choose the right Cisco switch for your office, warehouse, retail store or commercial building.

What Is an MDF and IDF? A Simple Guide to Network Closets

If you are planning a commercial office build-out or move, the MDF and IDF are the two network closets that determine how your entire infrastructure works. Most offices get them wrong because nobody explains them in plain language before the floor plan is locked. This guide covers what each one does, when you need both, and what the closet actually needs to function properly.

How Many Access Points Does a Building Need? WAP Density & Coverage Guide

Estimate how many wireless access points a commercial building needs by square footage, user density, floor count, wall materials, and Wi-Fi performance target. Includes a practical AP count calculator for offices, warehouses, clinics, retail spaces, and GTA commercial buildings.

2.5GbE, 5GbE & Multi-Gigabit Ethernet Explained

Wi-Fi 6 and 6E access points now push throughput that saturates a 1Gbps uplink — but a full 10GbE switch is overkill for most commercial floors. 2.5GbE and 5GbE fill that gap, and most buildings already have the Cat6 or Cat6A cable to support them. This guide explains NBASE-T, the full multi-gigabit speed tier from 1G to 10G, which cable categories support each speed, and how to choose the right switch and NIC for your infrastructure without over-spending.

PoE vs PoE+ vs PoE++: 802.3af, 802.3at & 802.3bt Compared

Understand PoE, PoE+, and PoE++ in plain language. Complete comparison of 802.3af, 802.3at, and 802.3bt standards — power levels, cable requirements, supported devices, and a free interactive PoE budget calculator.

US Bans Foreign-Made Consumer Routers — What Canadian Businesses Need to Know

The post PoE vs. PoE+ – A useful simple Guide appeared first on Cablify.

IT Relocation Checklist: Moving Server Racks, Desktops, and Network Equipment with Peace of Mind

HP — Mon, 18 Aug 2025 17:12:22 +0000

Relocating IT infrastructure is a complex task that requires planning, documentation, and technical expertise. A poorly executed move can cause extended downtime, data loss, and unnecessary costs. A well-executed move, on the other hand, ensures business continuity and peace of mind for both IT teams and employees.

This guide outlines every stage of an IT relocation, focusing on server rack moves, desktop transitions, and network equipment reinstallation.

Phase 1: Pre-Move Assessment

The foundation of a successful IT relocation is a detailed pre-move assessment. This stage helps avoid surprises and ensures that both the source and destination environments are ready.

Equipment Inventory

Before moving, you need a full inventory of all IT assets. This includes servers, storage devices, network switches, firewalls, wireless access points, VOIP phones, desktops, and even patch panels. An accurate inventory prevents misplaced equipment and ensures everything is accounted for at the new site.

- - List each device with serial numbers and asset tags.
- - Record configuration details, especially for firewalls, routers, and switches.
- Map physical rack positions to ensure a smooth rebuild later.

Example: A financial firm in Toronto avoided a week-long delay by discovering in the inventory stage that several core switches had end-of-life support and needed upgrades before relocation.

Site Survey at the New Location

The new site must be ready to host your IT equipment. Conduct a site survey to confirm the space, power, cooling, and internet capacity align with your current and future needs.

- - Verify the number of racks and rack dimensions.
- - Check power availability, including UPS and generator backup.
- - Confirm HVAC systems support data center cooling loads.
- Ensure fiber and copper cabling is properly terminated and tested.

Without this step, you risk installing equipment into an environment that cannot support it, leading to overheating, unstable power, or poor connectivity.

Downtime and Scheduling

Relocating IT means downtime. Planning when and how long systems will be offline is critical. Choose maintenance windows that least affect business operations.

- - Communicate the downtime plan to all stakeholders.
- - Ensure backups are complete and verified before the move.
- Set up temporary services, if possible, to minimize disruption.

Example: A healthcare company aligned its relocation with a holiday weekend, reducing the downtime impact on patient services.

ISP and Network Readiness

Internet services often become the hidden bottleneck. Confirm with your ISP that circuits are installed, tested, and live at the new location well in advance.

- - Test primary and backup connections.
- - Validate firewall and VPN configurations at the new site.
- Confirm bandwidth capacity matches business demand.

Skipping this step is a common mistake. Many businesses arrive at their new office only to realize the internet is not ready, causing days of downtime.

Phase 2: Preparation and Labeling

The preparation phase is where you transform planning into actionable steps. It ensures your equipment is ready to be physically moved without confusion, misplacement, or risk of damage. One of the most underestimated tasks in IT relocation is labeling, yet it is often the single factor that determines whether a move finishes in hours or drags on for days.

Backup and Data Protection

Before handling any hardware, confirm all critical data is backed up. A server or storage unit damaged in transit can be replaced, but the data on it might not be recoverable without proper backups.

- - Perform full system backups and test recovery processes.
- - Use both on-premises and cloud backup solutions.
- - Encrypt sensitive data before transport.
- Document backup locations for quick access if recovery is needed.

Example: A law firm relocating its servers discovered a failed drive during the move. Thanks to verified backups, all case files were restored within hours, preventing legal disruptions.

Equipment Labeling

Every piece of equipment must be labeled in a way that links it to both its original location and its destination. This makes reinstallation faster and reduces the chance of mistakes.

- - Label network cables on both ends (patch panel to device).
- - Use durable, heat-resistant labels that will not fall off during transport.
- - Assign rack unit (RU) positions for servers, switches, and PDUs.
- Color-code labels for fiber, copper, and power connections.

A well-labeled server rack rebuild can save hours of troubleshooting, especially when dealing with complex cross-connects.

Cable Management Before the Move

Cables are often overlooked, but they cause the biggest delays if not properly prepared. Tangled or unlabeled cables lead to confusion during reinstallation.

- - Remove unused or legacy cables before the move.
- - Coil and secure active cables with Velcro ties.
- - Photograph current cable layouts for reference.
- Prepare a cable map for the new site.

This step alone reduces errors when reconnecting critical uplinks like firewall-to-core switch connections.

Packing and Protection

Server racks, switches, and storage devices are sensitive to vibration and static. Proper packing prevents damage and ensures the hardware arrives in working condition.

- - Use anti-static covers for servers and desktop PCs.
- - Secure rack-mount equipment with transport rails or remove it for safer handling.
- - Transport hard drives and SSDs in padded cases.
- Pack monitors and desktops with bubble wrap or foam inserts.

Example: A company that skipped anti-static protection during a winter move in Montreal faced multiple motherboard failures due to static discharge. Proper packing would have prevented this.

Documentation and Move Kits

Relocation is smoother when technicians have everything they need at hand. A move kit ensures you don’t waste time looking for tools or supplies during reinstallation.

- - Document rack diagrams and IP address maps.
- - Include screwdrivers, spare cables, patch cords, Velcro ties, and power cords.
- - Keep copies of configuration backups offline and accessible.
- Assign responsibility for handling documentation during the move.

Phase 3: Physical Move and Transport

This is the most delicate part of any IT relocation. Servers, switches, firewalls, and storage devices are expensive, fragile, and mission-critical. A single mistake during transport can cause downtime or permanent data loss. The physical move phase focuses on safe handling, controlled logistics, and secure transit to ensure your IT infrastructure arrives intact and ready for reinstallation.

Moving Server Racks

Server racks are large, heavy, and packed with sensitive equipment. Handling them requires planning and professional movers with IT relocation experience.

- - Decide on transport method: Either move racks fully populated with secured rails or dismount equipment for separate packing.
- - Secure equipment: Use transport brackets, shock absorbers, or rails to prevent vibration damage.
- - Lift with care: Always use professional lifting tools, dollies, and rack lifters to avoid injury and equipment strain.
- Protect airflow panels and doors: Keep rack panels in place or wrap securely to prevent bending.

Example: A Toronto-based financial firm removed all servers from racks for separate padded cases. This slowed the move but prevented thermal damage from rack misalignment.

Transporting Desktops and Workstations

Unlike servers, desktops and workstations are easier to move but still need structured packing to prevent confusion at the destination.

- - Label per user/department: Assign each desktop and monitor to its user, tagged with workstation number.
- - Bundle with accessories: Keep keyboards, mice, and cables with the correct desktop in sealed bags.
- - Protect monitors: Use foam inserts or monitor boxes to avoid screen cracks.
- Secure fragile devices: Laptops, tablets, and thin clients should be placed in shockproof cases.

When desktops are correctly labeled and packed, employees can resume work immediately after reinstallation, reducing productivity loss.

Network Equipment Transit

Switches, routers, firewalls, and wireless controllers are often the most sensitive hardware in an IT move. They control connectivity and security, so their protection is critical.

- - Anti-static protection: Use anti-static bubble wrap and bags to prevent electrostatic discharge.
- - Cushioned transport: Place network gear in padded crates or cases with shock absorbers.
- - Separate high-value items: Firewalls and core switches should be hand-carried by trusted staff, not shipped with bulk equipment.
- Chain of custody: Maintain a record of who is handling critical gear at each stage.

Cable and Peripheral Handling

Cables may not seem important, but missing or damaged cables during reinstallation can delay the entire relocation.

- - Coil and bag cables by type: Separate copper, fiber, and power cables into labeled bags.
- - Protect fiber optic cables: Use hard cases for long fiber runs to avoid microbending damage.
- - Include spares: Always transport 10–20% spare cables in case of loss or damage.
- Keep power cords matched: Server-specific power cords should be packed with their devices.

Security During Transit

Your IT equipment contains sensitive corporate and client data. Even if drives are encrypted, physical theft or tampering poses serious risks.

- - GPS-tracked vehicles: Use professional movers with vehicle tracking.
- - Escorted transport: Have IT staff escort high-value racks or servers.
- - Insurance coverage: Confirm movers carry IT relocation-specific insurance policies.
- Secure stops: Avoid leaving trucks unattended, even for short stops.

Example: During an overnight move between two data centers, a logistics company used a dual-driver system with GPS tracking to prevent theft or delays.

Phase 4: Reinstallation at the New Site

Once the equipment reaches the destination, the priority is to restore the IT environment quickly and securely. This phase focuses on server rack setup, network configuration, and workstation readiness so that business operations resume with minimal disruption. Careful reinstallation prevents downtime, ensures proper airflow for cooling, and verifies that every device is connected as planned.

Server Rack Setup

Server racks form the backbone of your IT infrastructure, so precision during setup is critical.

- - Rebuild racks according to diagrams: Use rack elevation diagrams created during planning to reinstall equipment in the correct order. Consistency reduces troubleshooting time.
- - Ensure airflow management: Arrange servers and network devices in hot aisle/cold aisle orientation to maintain efficient cooling and avoid overheating.
- - Connect power via UPS or PDU: Plug servers and switches into uninterruptible power supplies or rack-mounted power distribution units for stable and redundant electricity.
- Patch fiber and copper connections: Follow the documented patch panel layout when reconnecting cables. Proper labeling ensures that every port is mapped correctly.

Example: A healthcare provider in Mississauga reinstalled racks by using pre-documented elevation diagrams. This avoided confusion and cut reinstallation time by 40%.

Network & Internet Setup

Once the racks are physically assembled, the network layer must be configured. This ensures that internal systems and external connectivity are restored without delay.

- - Configure switches, routers, and firewalls: Apply pre-tested configurations to switches and security appliances. This guarantees that VLANs, ACLs, and routing rules are enforced from day one.
- - Test internal connectivity: Verify communication between servers, storage, and user devices inside the LAN. Use ping tests and traceroutes for validation.
- Validate internet connection: Check with your ISP that the external line is active and configured with the correct IP addresses, gateways, and DNS settings.

Without this step, even if devices are powered up, employees may face outages due to routing errors or firewall misconfigurations.

Desktop Reinstallation

Workstations are where employees interact with business applications. Setting them up properly ensures staff can return to productivity quickly.

- - Place desktops at workstations: Each desktop should be installed at its assigned workstation or cubicle. Correct placement avoids user confusion.
- - Reconnect cables using pre-labeled sets: Use the labeled bundles from the old site to reconnect monitors, peripherals, and power. This saves hours of guesswork.
- Test monitor resolution, network access, and VOIP phones: Ensure each desktop runs at optimal resolution, has network connectivity, and the VOIP handset registers successfully with the PBX or cloud system.

Example: An insurance company in Brampton labeled each workstation’s cable set. On reinstallation day, their team restored over 120 desktops in less than 6 hours with zero misplacements.

Final Validation and Testing

Before declaring the relocation complete, a full round of testing ensures all systems are live and reliable.

- - Run system health checks: Confirm CPU, memory, and storage performance on critical servers.
- - Test application access: Validate ERP, CRM, and email services are available to staff.
- - Verify redundancy: Ensure backup power, failover internet, and redundant links are operational.
- Get user confirmation: Ask department heads to sign off after testing their core applications.

This step reduces the risk of post-move surprises and gives leadership confidence that IT operations are stable.

Phase 5: Testing and Validation

The final phase ensures that everything is functional and ready for day-to-day business use.

System-Level Testing
Applications must be tested before employees return to work. Verify that ERP systems, email servers, and databases are running. Authentication systems like Active Directory or SSO should be tested to confirm user login access.

Performance Validation
Run network speed tests to ensure performance meets pre-move benchmarks. Use monitoring tools to check switch utilization, error rates, and VOIP latency. This ensures that performance is not degraded at the new site.

Staff Support
Provide onsite IT support for at least the first business day after the move. Walk employees through login processes and resolve workstation issues. Record any reported issues during the first week and assign follow-up tasks to resolve them.

Best Practices for a Smooth Relocation

- - Always back up data before beginning.
- - Label everything for faster reinstallation.
- - Test at every stage, not just the end.
- - Keep downtime communication clear and realistic.
- Use experienced IT relocation partners if the move involves complex server environments.

The post IT Relocation Checklist: Moving Server Racks, Desktops, and Network Equipment with Peace of Mind appeared first on Cablify.

MDF vs IDF Rooms: Key Differences in Network Design

HP — Fri, 16 May 2025 15:29:44 +0000

In the world of network design, two critical components stand at the heart of structured cabling systems: the Main Distribution Frame (MDF) and the Intermediate Distribution Frame (IDF). These are not just rooms filled with cables and equipment—they are the backbone of modern connectivity, ensuring seamless data flow across enterprises, campuses, and data centers. Understanding the differences between MDF and IDF rooms is essential for IT professionals, network engineers, and businesses aiming to optimize their network cabling infrastructure. This comprehensive guide explores their roles, design considerations, equipment, security, and scalability, packed with interesting facts and SEO-friendly insights to demystify these pivotal network hubs.

As organizations increasingly rely on high-speed internet, cloud services, and IoT devices, the demand for robust network infrastructure has skyrocketed. According to a 2024 report by Gartner, global IT spending on network infrastructure reached $200 billion, with structured cabling systems like MDF and IDF setups playing a central role. Whether you’re designing a network for a corporate office, university campus, or hospital, mastering MDF vs IDF distinctions can make or break your connectivity strategy. Let’s dive into the key differences, practical applications, and best practices for these critical network components.

What is an MDF Room?

The Main Distribution Frame (MDF) is the central hub of a network, often described as the “nerve center” or “heart” of connectivity. It serves as the primary point where external telecommunications lines—such as internet service provider (ISP) connections, WAN links, or MPLS circuits—enter a building and connect to the internal network. Typically located in a secure, climate-controlled room or data center, the MDF houses critical equipment like core routers, high-capacity switches, firewalls, and servers.

Key Functions of an MDF Room

External Connectivity: The MDF is the demarcation point (demarc) where public or private lines from ISPs or telecom providers terminate, linking external networks to internal systems.

Network Traffic Management: It handles the flow of data packets across the entire network, preventing bottlenecks and ensuring high availability.

Security Hub: The MDF is a strategic point for deploying advanced security measures, including firewalls, intrusion detection systems (IDS), and surveillance.

Scalability and Integration: It connects to IDFs and other distribution points, distributing network access across a facility while supporting future expansion.

Interesting Fact

The term “MDF” originated in telephony, referring to the main distribution frame in central offices where copper lines were terminated. Today, it’s evolved to encompass modern data networks, handling fiber optics and gigabit speeds. In large data centers, a single MDF can manage connections for thousands of devices, processing terabytes of data daily!

MDF Room Design Considerations

Location: MDFs are typically placed near the building’s main telecom entry point to minimize external cable runs and reduce latency.

Environment: Climate control is critical, with temperatures maintained between 64–75°F (18–24°C) and humidity at 40–60% to protect sensitive equipment.

Security: Access is restricted to authorized personnel, often using biometric scanners, keycard readers, or PIN systems, with 24/7 surveillance.

Power: Uninterruptible power supplies (UPS) and backup generators ensure continuous operation, with redundant power feeds for reliability.

What is an IDF Room?

The Intermediate Distribution Frame (IDF) acts as a secondary hub, extending network connectivity from the MDF to specific areas, floors, or departments within a building. IDFs are typically housed in smaller telecom closets or rooms, strategically placed to serve localized zones. They connect end-user devices—such as computers, VoIP phones, wireless access points, and IoT devices—to the broader network via shorter cable runs.

Key Functions of an IDF Room

Localized Connectivity: IDFs distribute network services to end-user devices within a specific area, reducing cable lengths and improving signal strength.

Cable Management: They house patch panels, switches, and cable trays to organize and terminate connections, ensuring efficient network topology.

Performance Optimization: By minimizing cable distances (ideally under 100 meters for Ethernet), IDFs reduce latency and signal degradation.

Flexibility: IDFs allow for easier network expansions in specific zones, such as adding new workstations or devices on a floor.

Interesting Fact

In large buildings, a single IDF can serve up to 200 devices, and multi-story facilities may have one IDF per floor. The maximum Ethernet cable length of 100 meters (328 feet) dictates IDF placement, as longer runs can cause signal loss, making IDFs essential for maintaining performance in sprawling campuses.

IDF Room Design Considerations

Location: IDFs are placed centrally on each floor or within 100 meters of served devices, often stacked vertically in multi-story buildings for efficient cabling.
Size: A minimum of 75 square feet is recommended, though larger setups may require 100–200 square feet depending on equipment and cable volume.
Ventilation: IDFs need adequate airflow, with vented enclosures or cooling fans to manage heat from switches and PoE devices.
Power: Standard 110V outlets are common, but 220V may be needed for high-wattage setups. UPS systems protect against power fluctuations.

Key Differences Between MDF and IDF Rooms

While MDF and IDF rooms share the goal of ensuring network connectivity, their roles, equipment, and design differ significantly. Below is a detailed comparison across critical aspects:

1. Purpose and Functionality

MDF: The primary hub connecting external networks (e.g., ISP, WAN) to the internal network. It manages core network operations, routing traffic to IDFs and other distribution points.

IDF: A secondary hub that extends connectivity from the MDF to end-user devices in specific zones, acting as a relay point for localized traffic.

Example: In a university, the MDF in the central data center connects to the campus ISP, while IDFs in each building serve classrooms and offices.

2. Location

MDF: Located near the building’s telecom entry point, often in a basement, ground floor, or central data center for proximity to external lines.

IDF: Distributed across floors or zones, typically in telecom closets close to end-users to minimize cable runs.

3. Equipment

MDF: Houses high-capacity equipment, including core routers, switches, firewalls, servers, and patch panels. It may also include backup systems and advanced security devices.

IDF: Contains smaller switches, patch panels, and sometimes local servers or backup devices, focused on distribution rather than processing.

Fun Fact: An MDF in a corporate office might manage 10Gbps fiber uplinks, while IDF switches often handle 1Gbps connections to workstations, balancing cost and performance.

4. Security

MDF: Requires stringent security due to its critical role, with advanced firewalls, IDS/IPS, biometric access, and 24/7 monitoring. A breach here could disable the entire network.

IDF: Needs basic security like locked doors, access controls, and surveillance, as disruptions affect only localized areas.

Stat: According to a 2025 cybersecurity report, 60% of network breaches target MDF rooms due to their central role, making security investments critical.

5. Redundancy

MDF: Features extensive redundancy, including multiple power supplies, backup generators, and dual fiber uplinks to ensure uptime.

IDF: Has limited redundancy, such as local UPS units or failover switches, sufficient for localized needs.

Example: A hospital MDF might have triple-redundant power feeds to support life-critical systems, while IDFs rely on single UPS units.

6. Scalability

MDF: Scaling is complex due to space constraints and the need for high-capacity equipment. Expansion often requires significant planning.

IDF: Easier to scale by adding new closets or racks as user zones grow, offering flexibility for dynamic environments.

7. Coverage Area

MDF: Serves the entire network, managing connectivity across a building or campus.

IDF: Covers a specific floor, department, or zone, typically within a 100-meter radius of connected devices.

Analogy: Think of the MDF as a city’s main power plant and IDFs as local substations distributing electricity to neighborhoods.

Real-World Applications of MDF and IDF Rooms

MDF and IDF rooms are deployed across various industries, each with unique requirements:

1. Corporate Offices

MDF: Located in a central data center, connecting to ISPs and managing inter-departmental traffic.

IDF: Placed on each floor to serve workstations, VoIP phones, and wireless access points, ensuring low latency for employees.

Fact: A 2024 survey found that 70% of Fortune 500 companies use multiple IDFs per building to support hybrid work environments.

2. Educational Institutions

MDF: In a campus data center, linking to external networks and serving as the hub for student and faculty connectivity.

IDF: Distributed across academic buildings, libraries, and dorms to provide Wi-Fi and wired access.

Stat: Universities with robust MDF-IDF setups report 30% fewer network outages, critical for online learning platforms.

3. Hospitals

MDF: Manages critical data flows for medical records, imaging systems, and telemedicine, with high redundancy for reliability.

IDF: Supports patient rooms, labs, and operating theaters, ensuring real-time access to health data.

Fun Fact: Hospital IDFs often include PoE switches to power medical IoT devices, like smart beds and monitors.

4. Industrial Complexes

MDF: Controls production and operational networks, integrating IoT and automation systems.

IDF: Placed in key manufacturing areas to connect machinery and monitoring equipment.

Trend: Industrial IoT adoption is driving a 15% increase in IDF deployments in factories, per a 2025 industry report.

Best Practices for MDF and IDF Room Design

To maximize performance, reliability, and scalability, follow these best practices:

1. Plan for Growth

MDF: Design with extra rack space and power capacity for future equipment. Use modular switches to support higher bandwidth.

IDF: Install additional cable trays and ports to accommodate new devices or floor expansions.

Tip: Use TIA/EIA-568 standards for structured cabling to ensure consistency and future-proofing.

2. Optimize Cooling and Power

MDF: Deploy dedicated HVAC systems and monitor temperature/humidity to prevent equipment failure. Include redundant power feeds.

IDF: Use vented enclosures and cooling fans, especially for PoE switches generating heat. Ensure UPS coverage for outages.

Stat: Overheating causes 25% of network hardware failures, making cooling a top priority.

3. Enhance Security

MDF: Implement biometric access, surveillance cameras, and IDS/IPS integration. Conduct regular security audits.

IDF: Use keycard access and monitor closets to prevent tampering. Label all cables and ports for quick identification.

4. Use High-Quality Cabling

MDF to IDF: Deploy fiber optic cables (e.g., OM4 or OS2) for high-speed, low-latency backbone connections.

IDF to Devices: Use Cat6 or Cat6A for Ethernet runs to support 1–10Gbps speeds and PoE applications.

Fact: Fiber optic cables can transmit data over 10 kilometers without signal loss, ideal for campus-wide MDF-IDF links.

5. Maintain Detailed Documentation

Create network diagrams mapping MDF to IDF connections, including cable types, lengths, and port assignments.

Conduct semi-annual audits to check for dust, heat, and equipment wear, updating documentation as needed.

Tip: Use DCIM software to visualize and manage MDF/IDF assets in real-time, reducing troubleshooting time.

Challenges and Solutions in MDF and IDF Deployment

Challenge 1: Space Constraints

Issue: MDFs require significant space for racks and cooling, while IDF closets may be cramped in retrofitted buildings.

Solution: Use wall-mounted enclosures for small IDFs and modular racks in MDFs to optimize space. Plan for vertical stacking in multi-story setups.

Challenge 2: Cost Management

Issue: Comprehensive IDF setups in large buildings can cost $20,000–$100,000, with MDFs often exceeding $200,000.

Solution: Prioritize scalable equipment and phased deployments. Partner with vendors like The Network Installers for cost estimates and efficient installations.

Challenge 3: Network Downtime

Issue: Equipment failures or misconfigurations in the MDF can disrupt the entire network, while IDF issues affect local zones.

Solution: Implement redundancy (e.g., dual uplinks, backup power) and use network monitoring tools to detect issues early.

Challenge 4: Security Risks

Issue: Unauthorized access to MDF or IDF rooms can lead to data breaches or sabotage.

Solution: Integrate multi-layered security, including physical access controls and real-time monitoring, with regular audits to identify vulnerabilities.

Future Trends in MDF and IDF Design

As technology evolves, MDF and IDF rooms are adapting to new demands:

5G and Edge Computing: MDFs are integrating 5G base stations to support low-latency applications, while IDFs host edge servers for real-time data processing.

Sustainable Design: Energy-efficient cooling and low-power switches are reducing the carbon footprint of MDF/IDF setups, aligning with 2025 ESG goals.

AI-Driven Monitoring: AI-powered DCIM tools are automating MDF/IDF management, predicting failures, and optimizing traffic flow.

Stat: By 2027, 40% of enterprises will use AI-driven network monitoring, per IDC, enhancing MDF/IDF reliability.

The distinction between MDF and IDF rooms is more than technical jargon—it’s the foundation of efficient, scalable, and secure network design. The MDF serves as the central hub, connecting external networks to internal systems and managing core operations, while IDFs extend connectivity to localized zones, ensuring performance and flexibility. By understanding their roles, equipment, security needs, and design considerations, network professionals can build robust infrastructures that meet today’s demands and tomorrow’s challenges.

Whether you’re setting up a new data center, upgrading a campus network, or optimizing an office LAN, the MDF and IDF are your dynamic duo. Invest in high-quality cabling, prioritize security, and plan for scalability to create a network that’s fast, reliable, and future-proof. For expert guidance, consider consulting providers like The Network Installers or Infinite Networks, who specialize in tailored MDF/IDF solutions. Embrace the power of structured cabling, and let your network shine.

Small Business Cisco Switches Guide: PoE, PoE+, Features, Models and Buying Tips

What Is an MDF and IDF? A Simple Guide to Network Closets

How Many Access Points Does a Building Need? WAP Density & Coverage Guide

2.5GbE, 5GbE & Multi-Gigabit Ethernet Explained

The post MDF vs IDF Rooms: Key Differences in Network Design appeared first on Cablify.

Decoding Cisco DNA Center Licensing: Which Tier is Right for Your Business?

HP — Fri, 07 Feb 2025 00:45:59 +0000

Navigating the world of network management can feel like traversing a complex maze, especially when licensing comes into play. Cisco DNA Center promises to simplify this process, offering powerful tools for automation, assurance, and more. But deciphering the different licensing tiers – Essentials, Advantage, and Premier – can be daunting. This guide breaks down each tier in plain language, empowering you to choose the most cost-effective option for your specific needs.

Cisco DNA Center Fundamentals

Cisco DNA Center is Cisco’s network management and automation platform. It provides a centralized dashboard for designing, deploying, managing, and assuring your network. From automating routine tasks to providing deep insights into network performance, DNA Center aims to streamline network operations and improve efficiency. Licensing is essential as it grants access to the platform’s features, provides ongoing support, and ensures you’re running legitimate software. While Cisco DNA Center can be deployed in the cloud, this article will focus on on-premises deployments, as requested.

Deep Dive into the Licensing Tiers

Let’s explore the key features and target audiences for each licensing tier:

1. Essentials:

Target Audience: Small to medium-sized businesses (SMBs) with basic network management needs. Think organizations with limited IT staff and straightforward network topologies.

Key Features:
- Basic Automation: Streamlined device provisioning and configuration.
- Network Visibility: Fundamental monitoring and reporting on network health.
- Device Management: Centralized control over network devices.
- Limited Assurance Capabilities: Basic network health monitoring and troubleshooting tools.

Use Cases: Ideal for deploying and managing a smaller network, basic monitoring and troubleshooting, and automating simple network tasks.

Pricing Considerations: The most affordable tier, making it budget-friendly for smaller organizations.

2. Advantage:

Target Audience: Larger organizations with more complex networks and advanced requirements. This includes businesses with multiple locations, a larger number of devices, and a need for more in-depth network insights.

Key Features:
- Advanced Automation: More sophisticated automation workflows, including policy-based automation.
- Enhanced Assurance with Analytics: Deeper network analytics, proactive issue identification, and performance optimization.
- Policy-Based Segmentation: Enhanced security through network segmentation.
- Comprehensive Security Features: Integration with security tools and enhanced threat detection.

Use Cases: Suitable for larger deployments, complex network topologies, and organizations that need deeper insights into network performance and proactive management capabilities.

Pricing Considerations: The mid-range tier, offering a balance between features and cost.

3. Premier:

Target Audience: Enterprises with the most demanding network needs and a focus on cutting-edge features. This tier is designed for large, distributed networks with mission-critical applications.

Key Features:
- All the features of Advantage: Includes all the benefits of the Advantage tier.
- Advanced Analytics: AI-driven insights, predictive analytics, and proactive network optimization.
- Enhanced Security Integrations: Seamless integration with advanced security platforms.
- (Potentially More): May include access to the latest and most advanced features as they become available.

Use Cases: Perfect for large, distributed networks, mission-critical applications, and organizations that require maximum visibility, automation, and security.

Pricing Considerations: The most expensive tier, offering the most comprehensive capabilities and advanced features.

Choosing the Right Tier – A Practical Guide

Selecting the right Cisco DNA Center license is crucial for maximizing your investment. Here’s a practical guide:

Needs Assessment: Ask yourself these key questions:
- How many network devices (switches, routers, access points) do you have?
- What level of network automation do you require? (Basic configuration, policy-based automation, etc.)
- What are your top network security priorities? (Firewall integration, intrusion detection, segmentation, etc.)
- What is your budget for network management?

Comparison Table: (See table below)

Feature	Essentials	Advantage	Premier
Basic Automation	Yes	Yes	Yes
Advanced Automation	No	Yes	Yes
Network Visibility	Basic	Enhanced	Advanced
Network Analytics	Limited	Enhanced	AI-Driven
Policy-Based Segmentation	No	Yes	Yes
Security Features	Basic	Comprehensive	Enhanced Integrations
AI-Driven Insights	No	No	Yes
Pricing	Lowest	Mid-Range	Highest

Export to Sheets

Scenario Examples:

Small Retail Store (10 devices): Essentials would likely suffice.

Medium-Sized Business (50 devices, multiple locations): Advantage is probably the best fit.

Large Enterprise (500+ devices, mission-critical applications): Premier is likely the necessary choice.

Beyond the Basics

Licensing Management: Cisco DNA Center licenses are typically managed through Cisco Smart Licensing, which simplifies activation and tracking.

Support and Renewals: Maintaining valid licenses ensures access to technical support and software updates, crucial for keeping your network secure and performing optimally.

Working with a Cisco Partner (Your Company): As a Cisco authorized reseller in Canada, we can provide expert guidance, personalized consultations, competitive pricing, and local support to help you choose and implement the right Cisco DNA Center licensing for your business. Contact us today for a free assessment!

Frequently Asked Questions (FAQ)

Can I upgrade my license later? Yes, you can typically upgrade to a higher tier as your needs evolve.

What happens if my license expires? You will lose access to the features associated with that license tier.

How do I manage my Cisco DNA Center licenses? Through Cisco Smart Licensing.

Choosing the correct Cisco DNA Center licensing tier is a critical decision. By understanding the features and target audiences for each tier, and by carefully assessing your own network needs, you can ensure you’re getting the best value for your investment. Don’t hesitate to contact us for personalized guidance and expert support in navigating the Cisco DNA Center licensing landscape. We’re here to help you make the right choice for your business for Cisco Support in Canada.

The post Decoding Cisco DNA Center Licensing: Which Tier is Right for Your Business? appeared first on Cablify.
