Data and Electrical Conduit in Canada: Canadian Electrical Code Guide for Low-Voltage Cabling

HP — Mon, 18 May 2026 19:30:13 +0000

Running data cables and electrical wiring in the same conduit may look convenient on site, but it can create serious safety, inspection, performance, and maintenance problems.

In Canada, the Canadian Electrical Code, Part I, officially CSA C22.1, is the national base standard for electrical installations. The latest edition is CSA C22.1:24, Canadian Electrical Code, Part I, 26th Edition, published in 2024 by CSA Group. Provinces and territories may adopt it with local amendments. In Ontario, for example, the 2024 Ontario Electrical Safety Code includes the Canadian Electrical Code, Part I, plus Ontario-specific amendments, and became effective May 1, 2025.

For contractors, IT managers, builders, and facility owners, the key point is simple:

Data Cabling, communication, fiber, audio, security, and other low-voltage cabling should normally be installed in separate conduit, separate boxes, and separate pathways from electrical power conductors.

This is not only about signal interference. It is about electrical safety, code compliance, insulation ratings, fire protection, serviceability, and avoiding failed inspections.

Can Data and Electrical Wiring Share the Same Conduit?

In most normal commercial installations, data cables and electrical branch-circuit conductors should not be installed in the same conduit.

This applies to common systems such as:

Cat6 and Cat6A network cabling
Telephone and communication cables
Security camera cables
Access control cabling
Intercom cabling
Audio and paging cables
Control cables
Fiber optic cabling
Low-voltage device cabling

The Canadian Electrical Code separates electrical power wiring from communication and low-voltage systems because they are different types of circuits with different hazards, insulation requirements, and installation methods.

CEC guidance for communication systems includes requirements for raceways, bonding, cable selection, fire spread, plenum spaces, shafts, raised floors, and separation from power conductors. A public Code guide summarizing Section 60 notes that communication cables must maintain separation from other conductors depending on voltage and installation type, and that communication cables should not be placed in boxes, raceways, or fittings containing lighting, power, or Class 1 circuits unless specific separation or system-supply exceptions apply.

The Simple Contractor Rule

For most projects, use this practical rule:

Do not run Cat6, fiber, audio, access control, CCTV, or other low-voltage cables in the same conduit as 120V, 208V, 240V, 347V, or 600V electrical wiring.

Instead:

Use separate conduits.
Use separate junction boxes.
Use separate pull boxes.
Keep clear separation in cable trays.
Cross power at 90 degrees where crossing is unavoidable.
Use listed, approved cable types for the environment.
Follow local authority requirements and inspection rules.

This is the approach most likely to pass inspection, protect the cabling system, and avoid future troubleshooting.

Why Power and Data Should Be Kept Separate

1. Electrical Safety

Electrical power conductors can carry dangerous voltage and current. Data and communication cables are not normally designed to be exposed to the same electrical environment.

If a power conductor is damaged inside a conduit and contacts a data cable, the low-voltage cable can become energized. That creates a shock hazard, a fire hazard, and a risk to connected equipment such as switches, routers, cameras, access control boards, intercoms, and NVRs.

2. Insulation Rating Issues

Power conductors and low-voltage/data cables are not usually rated the same way.

A common Cat6 cable jacket is not intended to sit inside the same raceway as building power conductors unless the installation method is specifically allowed and all applicable insulation, separation, and listing requirements are satisfied.

Section 16 guidance for Class 1 and Class 2 circuits also shows the importance of insulation rating and circuit classification. For Class 1 circuits, conductors of different circuits may be allowed together only when insulated for the maximum voltage present, but power supply conductors are limited unless connected to the same equipment and properly insulated.

3. Signal Interference

Power conductors can induce electromagnetic noise into nearby copper communication cables.

This can affect:

Ethernet performance
Audio quality
Analog camera signals
Intercom systems
Paging systems
Access control readers
Control wiring
RS-485 or other low-voltage communication lines

With modern Ethernet, twisted-pair design helps reduce interference, but it does not make poor pathway design acceptable. Keeping power and data separate is still the correct commercial installation practice.

4. Heat and Cable Derating

Power conductors can generate heat, especially where multiple current-carrying conductors are installed together.

Data cables also have performance limits. For example, PoE and PoE++ applications can add heat inside cable bundles. Mixing systems inside the wrong conduit can create long-term reliability issues and make troubleshooting difficult.

5. Future Maintenance Problems

When power and low-voltage cables share pathways, future service becomes risky.

A low-voltage technician may open a junction box expecting only data cabling and find electrical power conductors inside. An electrician may pull new conductors and damage network cables. A future tenant improvement may become more expensive because the pathways are not cleanly separated.

Good conduit design is not only about today’s installation. It is about safe service for the next 10 to 20 years.

Canadian Electrical Code Sections That Matter

The exact rule application depends on the cable type, voltage, building type, province, and authority having jurisdiction. However, the following CEC areas are especially relevant when designing power and data pathways.

CEC Area	Why It Matters for Data and Electrical Conduit
Section 12: Wiring Methods	Covers raceways, conduit systems, cable installation, support, protection, and wiring methods.
Section 16: Class 1 and Class 2 Circuits	Important for control, low-voltage, limited-energy, and power-limited circuits.
Section 56: Optical Fiber Cables	Applies to fiber optic cable installation requirements.
Section 60: Electrical Communication Systems	Important for communication conductors and cables inside buildings.
Section 10: Grounding and Bonding	Important when metallic raceways, armoured cables, shields, and equipment bonding are involved.
Section 2: General Rules	Includes broad safety, fire spread, and general installation principles.

For Ontario projects, contractors must also consider the Ontario Electrical Safety Code, which is the law in Ontario and includes Ontario-specific amendments to the Canadian Electrical Code.

Common Jobsite Scenarios

Scenario 1: Cat6 and 120V Power in the Same PVC Conduit

Recommended answer: Do not do this.

Cat6 network cable should not be pulled into the same conduit as 120V branch-circuit conductors in a standard commercial installation. Use one conduit for electrical power and another conduit for data.

This avoids code complications, EMI issues, safety hazards, and failed inspections.

Scenario 2: Data Cable and Power in the Same Junction Box

Recommended answer: Avoid it unless a listed barrier or approved divided box is used.

Communication cables should not be placed inside boxes or compartments containing power conductors unless the installation meets the required separation or exception conditions. Section 60 guidance specifically points to separation from lighting, power, and Class 1 circuits unless separated by a suitable partition or where the power conductors solely supply the communication system or remote-control equipment.

Scenario 3: PoE Cable and Regular Data Cable Together

Recommended answer: Usually acceptable when installed as structured cabling, but design for heat and bundle size.

PoE is not the same as 120V electrical power. PoE runs over data cable and is commonly installed with network cabling. However, PoE bundles should still be designed properly, especially for high-power PoE, long runs, large bundles, and warm ceiling spaces.

Scenario 4: Fiber and Electrical in the Same Pathway

Recommended answer: Use separate conduit unless the design is specifically approved.

Non-conductive fiber does not behave like copper data cable, but that does not automatically mean it should be installed with electrical conductors. Armoured or conductive fiber introduces bonding and grounding considerations. The cleanest commercial design is still separate conduit.

Scenario 5: Audio Cable and Electrical in the Same Conduit

Recommended answer: Do not run mic-level, line-level, speaker control, or low-voltage audio cables in the same conduit as power.

Audio is especially sensitive to electrical noise. Even when the system works, you may hear hum, buzz, distortion, or interference. For commercial AV, paging, worship spaces, event halls, factories, and offices, audio pathways should be planned separately from electrical power.

Best Practices for Data and Electrical Separation

1. Use Dedicated Conduits

The best installation is simple:

One conduit system for electrical power
One conduit system for data and communications
Separate boxes and pull points
Proper labeling at both ends

This keeps the installation safe, serviceable, and inspection-friendly.

2. Keep Parallel Runs Separated

Avoid running data cables tightly parallel to electrical conduits for long distances.

Where possible, maintain physical separation between power and communication pathways. The required distance may depend on voltage, cable type, raceway type, shielding, and local authority interpretation.

3. Cross at 90 Degrees

When data and electrical pathways must cross, cross them at a 90-degree angle.

This reduces the length of exposure between the systems and helps reduce noise coupling.

4. Use Metallic Conduit Where Needed

Metal conduit can provide better physical protection and may reduce electromagnetic interference when properly bonded. However, metallic conduit does not automatically permit mixing power and data in the same raceway.

It must still be installed according to the applicable Code requirements.

5. Use Correct Cable Ratings

Choose cable jackets based on the environment:

Riser-rated cable for vertical riser spaces where required
Plenum-rated cable for air-handling spaces where required
Outdoor-rated cable for exterior conduit or wet locations
Armoured cable where mechanical protection is needed
FT-rated communications cable where applicable

A cable that works in an office ceiling may not be suitable for a shaft, plenum, underground duct, exterior conduit, warehouse, or industrial space.

6. Respect Firestopping and Fire Separations

Any cable or conduit passing through a fire-rated wall, floor, or shaft must be properly firestopped.

CEC communication-system guidance also highlights fire spread and plenum-related requirements for cables passing through fire separations, ducts, plenums, and similar spaces.

7. Label Everything

Every conduit, box, cable, and pathway should be clearly labeled.

For structured cabling, label:

MDF end
IDF end
Patch panel port
Faceplate or device end
Camera or AP location
Fiber strand count and destination
Conduit destination

Clear labeling reduces service time and prevents future mistakes.

Recommended Installation Approach for Commercial Projects

For offices, warehouses, schools, retail stores, industrial facilities, and commercial buildings, the best design is:

Electrical Pathways

Dedicated conduit for power
Installed by licensed electrical contractor where required
Proper grounding and bonding
Proper box fill and conduit fill
Proper support and mechanical protection
Inspection by the applicable authority where required

Low-Voltage Pathways

Dedicated conduit, J-hooks, tray, or approved low-voltage pathway
Separate from power wiring
Proper cable rating for the building space
Proper bend radius and pulling tension
Tested and certified after installation
Labeled at both ends
Designed for future expansion

Network Cabling

Cat6 or Cat6A based on bandwidth requirements
Separate pathway from electrical
Maximum permanent link length maintained
Fluke-tested where professional certification is required
Installed away from EMI sources such as motors, transformers, VFDs, fluorescent ballasts, and large power feeders

Fiber Cabling

Separate conduit or innerduct where practical
Proper bend radius
Proper pulling method
LC, SC, or other connector type based on hardware
OM3, OM4, OM5, or OS2 selected based on link distance and transceiver requirements
Tested with light source/power meter or OTDR where required

Quick Rule of Thumb Table

Installation Situation	Best Practice
Cat6 with 120V power in same conduit	Use separate conduit
Data and power in same box	Use separate boxes or approved divider
Fiber and power in same conduit	Use separate conduit unless specifically approved
Audio and electrical in same conduit	Use separate conduit
PoE camera cable with other network cables	Usually acceptable as structured cabling
Data crossing electrical conduit	Cross at 90 degrees
Long parallel data and power runs	Maintain separation
Plenum ceiling space	Use properly rated cable
Fire-rated wall penetration	Firestop correctly
Outdoor conduit	Use wet-location/outdoor-rated cable where required

Why This Matters for Business Owners

Poor separation between data and electrical wiring can create hidden problems.

You may not see the issue on day one. The network may appear to work. Cameras may come online. Access control may function. Speakers may pass audio.

But later, the problems begin:

Random network drops
Camera freezing
Audio hum
Failed cable tests
Inspector correction notices
Equipment damage
Higher service costs
Unsafe maintenance conditions
Expensive rework after ceiling close-in

A proper conduit plan prevents these issues before they become expensive.

Final Recommendation

For Canadian commercial projects, the safest and most professional approach is:

Keep electrical power and low-voltage/data cabling in separate conduit systems.

Use separate boxes, separate pull points, proper cable ratings, correct firestopping, clean labeling, and proper testing.

There are limited Code-based exceptions for specific approved systems, barriers, partitions, or power conductors that solely supply communication equipment. However, those exceptions should not be treated as general permission to mix data and power.

When in doubt, separate the systems and confirm the installation with the local authority having jurisdiction, a licensed electrician, or the project engineer.

A clean separation strategy protects people, equipment, inspections, and long-term network performance.

Also check this popular article – Data Cable coduit fill guide Chart

The post Data and Electrical Conduit in Canada: Canadian Electrical Code Guide for Low-Voltage Cabling appeared first on Cablify.

New Office Network Cabling Plan: Step-by-Step Guide

HP — Sat, 16 May 2026 17:00:40 +0000

Construction · IT Infrastructure · Toronto / GTA

Network Cabling Plan for a New Office Build: A Step-by-Step Guide for Owners and Project Managers

Network cabling is one of the cheapest line items in a new office build, but getting it wrong is among the most expensive mistakes you can make. Walls go up, drywall closes, and the cost of a forgotten drop quadruples overnight. This guide walks you through every decision, from the first design meeting to final certification, so your network is ready on day one and still relevant in year ten.

🕒 22 min read
📚 12 sections
🔧 3 interactive tools
🏭 Toronto & GTA focused

$180–$350

Cost per Drop (CAD, 2026)

2–4x

Cost After Drywall Closes

15–25 yrs

Cabling Lifecycle

2 drops

Per Workstation Minimum

When to Start Planning (Hint: Earlier Than You Think)

The single biggest determinant of a successful office network is when cabling enters the construction conversation. On most projects we see in Toronto and the GTA, the cabling contractor gets called after framing is complete, after the electrical drawings are finalized, and sometimes after drywall is partly up. By then, half the good decisions have already been made by someone else, usually badly.

Cabling should be specified at the same time as the electrical and mechanical drawings, before the GC starts framing. Here is why that timing matters:

Conduit pathways: If conduit is not in the slab or in the walls before drywall, you are limited to surface-mounted raceways or ceiling J-hooks. Both work, but neither looks as clean and both add labour cost on every future change.
Floor cores and sleeves: Drilling a 4 inch core through a poured concrete slab to feed a workstation island costs roughly $400 to $800 after the fact. Including it in the original concrete pour costs almost nothing.
Network closet location: The MDF needs power, cooling, drainage, and structural support. If the architect places it without consulting the IT designer, you end up with a closet next to a washroom water line, under a roof drain, or 80 metres from the furthest workstation when the 90 metre horizontal cable limit is 90 metres.
Coordination with electrical: Data cables that run parallel to high-voltage feeders pick up interference. Separation distances need to be in the drawings, not negotiated on site.

Rule of Thumb

Bring the cabling contractor into design meetings the moment you have a floor plan with proposed wall locations. Not the day before rough-in. The cost of a 30 minute design review is recovered the first time it prevents a single core drill.

Construction Sequencing Timeline

Here is what a properly sequenced cabling installation looks like on a typical Toronto office fit-out, mapped against construction phases. Use this as your reference when reviewing the GC’s schedule.

📅 Schedule
Cabling Tasks by Construction Phase

Pre-DesignWeek -8 to -4

Requirements gathering and floor plan review

IT designer attends design meetings with architect and GC. Department layouts, headcount forecasts, conference rooms, AP locations, and security camera positions are confirmed. Cabling contractor reviews proposed MDF and IDF locations against horizontal distance limits.

Owner deliverable

PermitsWeek -4 to 0

RFQ issued, contractor selected, drawings issued for permit

Cabling RFQ goes out with full BOM, drop schedule, and labelling spec. Selected contractor’s shop drawings are included in the IFP (Issued For Permit) drawing set. Conduit pathways appear on electrical drawings, not as an afterthought.

Critical milestone

DemolitionWeek 1 to 2

Site walk, existing cable removal, abandoned plenum cable abatement

Toronto’s electrical code requires removal of abandoned cable from plenum spaces. The cabling contractor identifies and removes legacy cable, salvages anything reusable (rare), and verifies pathway access for new runs.

ESA / OBC requirement

Rough-InWeek 3 to 6

Conduit, sleeves, backboxes, J-hooks installed before drywall

This is the highest-leverage window in the entire project. Every cable pathway, every wall penetration, every backbox at every drop location must be in place before drywall closes. Cable can be pulled later, but pathways cannot be added after.

No drywall until inspected

Cable PullWeek 5 to 8

Horizontal cable runs pulled through completed pathways

Cables are pulled from the IDF to each drop location, labelled at both ends, and dressed into J-hooks or conduit. Pull tensions must not exceed 25 lbs for Cat6A. Pulls happen before ceiling tiles go in to allow inspection.

Performed by cabling contractor

Drywall & TrimWeek 7 to 10

Drywall closes; faceplates and keystones installed at drops

Once drywall is up and painted, the cabling contractor returns to terminate keystones at the wall plates. Patch panel terminations happen in parallel in the IDF and MDF rooms.

Coordinated with painter

Fiber BackboneWeek 9 to 11

Fiber pulled between MDF and IDFs, terminated and tested

Fiber backbone runs between network closets are pulled, terminated (typically LC connectors on OM4 multimode or OS2 single mode), and tested with an OTDR and optical loss test set.

Tier 1 testing minimum

CertificationWeek 10 to 12

Every link Fluke-certified, reports delivered to owner

100% of horizontal copper and fiber links are tested with a calibrated certification tester. PDF reports are delivered to the owner as part of project closeout. This is your warranty paper trail.

Required for warranty

Active GearWeek 11 to 13

Switches, APs, and racks installed; user acceptance testing

Network equipment is mounted, patched, configured, and tested. APs are surveyed against the original Wi-Fi design to confirm signal coverage matches predicted performance.

Pre-occupancy

Rough-In Inspection

Do not let the GC close drywall until the cabling contractor has walked the entire space and signed off on pathways, backboxes, and stubbed conduit. We have seen owners pay six figures to reopen drywall on jobs that skipped this 30 minute inspection.

Step 1: Define the Network Requirements

Before any drops get counted, the design needs answers to a small set of business questions. The cabling contractor cannot make these calls. They are owner decisions, and they shape every downstream specification.

REQUIREMENT 01

Headcount & Growth

Day-one vs. 5-year

Workstations on day one
Expected headcount in 5 years
Hot-desk vs. assigned seating ratio
Workstation density (sq ft per person)

REQUIREMENT 02

Device Mix

What plugs in where

Desk phones (VoIP / softphone only)
Printers, MFPs, label printers
IP cameras (PoE budget impact)
Access control panels and readers
AV systems, digital signage, TVs

REQUIREMENT 03

Performance Targets

Speed and uptime

1 GbE or 10 GbE to the desk
Multi-gig backhaul for APs
Redundant uplinks needed?
Failover ISP / dual carrier entry

REQUIREMENT 04

Special Spaces

Conference, server, lab

Conference rooms: AV, video bar, control
Server / equipment rooms
Reception desks
Kitchens and break rooms (POS, TVs)
Mothers’ rooms, wellness rooms

One question almost no one asks early enough: are you running phones over the network or are they going away? Most Toronto offices opened in the last three years have skipped desk phones entirely. If your team uses Teams, Zoom, or Webex from laptops, you can drop a phone cable from every workstation. That is real money saved.

The Two-Drops-Per-Workstation Standard

Even if you are skipping phones, the long-standing recommendation is two cable drops per workstation. The math is simple. Cable is cheap, labour is expensive, and a drop that goes unused costs nothing. A workstation that needs a second drop two years later costs $400 to $800 to retrofit. Run two now. For executive offices and dense conference rooms, run three or four.

Step 2: Calculate Drop Count

This is where projects either get budgeted accurately or get hit with change orders later. The calculator below uses the multipliers we apply on real Cablify projects. Adjust the inputs to match your space and you will get a defensible drop count plus a budget range.

🔢 Tool 01
Drop Count & Budget Estimator

Office Inputs

Number of Workstations (Day One)

Drops per Workstation

Conference Rooms

Printers, MFPs, Copiers

IP Cameras (PoE)

Wi-Fi Access Points

Growth Buffer

Estimated Project

Workstation Drops
100

Conference Room Drops
16

Printer / MFP Drops
3

Camera Drops
8

AP Drops (2 per AP)
12

+ Growth Buffer
28

Total Drops Required

167

Estimated Budget Range
$30K–$58K

Toronto/GTA pricing, includes Cat6A cable, terminations, faceplates, patch panel, and Fluke certification. Excludes fiber backbone, racks, and active equipment.

Where the Multipliers Come From

Conference rooms: 4 drops each is the minimum for a modern room (display, video bar, control panel, table connection). Larger rooms with redundant displays or in-table panels need 6 to 8.
Access points: Both TIA-568 and IEEE 802.11 recommend 2 Cat6A drops per AP. The second drop is for either link aggregation (multi-gig backhaul) or future redundancy. Wi-Fi 7 makes this non-optional. For more on this, see our guide on how many network drops per room.
Growth buffer: 20% is what we recommend for stable businesses. Less is risky; more is wasteful if the space is leased.

Step 3: Plan Wi-Fi 6E / Wi-Fi 7 Access Point Coverage

Wireless drives more of the daily user experience than any other system in a modern office. And almost every poor wireless deployment we have audited in the GTA had the same root cause: the AP cabling was an afterthought. The Wi-Fi designer chose AP locations after the floor plan was finalized, and the cabling contractor pulled drops to those locations after the ceiling was halfway closed.

AP Density: The Rough Math

For modern office space with Wi-Fi 6E or Wi-Fi 7, plan on one AP per 1,500 to 2,500 square feet of usable floor area. Open offices need denser AP coverage than private offices because more devices compete per cell. Conference rooms, training rooms, and reception areas often need a dedicated AP regardless of overall density.

Space Type	Sq Ft per AP	Drops per AP	PoE Class	Backhaul
Open office (low density)	2,500	2 × Cat6A	Class 6 (51W)	2.5 GbE
Open office (high density)	1,500	2 × Cat6A	Class 6 (51W)	2.5 / 5 GbE
Private offices / partitions	2,000	2 × Cat6A	Class 6 (51W)	2.5 GbE
Conference / training rooms	Dedicated AP	2 × Cat6A	Class 6 (51W)	5 GbE
Cafeteria / kitchen	1,800	2 × Cat6A	Class 6 (51W)	2.5 GbE
Wi-Fi 7 (high density, 4×4)	1,200	2 × Cat6A or 4 × Cat6A	Class 8 (71W)	5 / 10 GbE

Cat6A Is The Minimum For New Builds

Wi-Fi 7 APs can push 5 Gbps and beyond per radio. Cat6 supports 10 GbE only to 55 metres. Cat5e is a permanent 1 Gbps ceiling. For any new build in 2026, Cat6A is the floor. The cost difference from Cat6 is minor compared to retrofitting a five-year-old building.

Predictive Survey Before Construction

For any office over 5,000 square feet, pay for a predictive wireless survey before cabling drops are finalized. Tools like Ekahau or Hamina take the floor plan, wall materials, ceiling height, and expected client density, then produce a heatmap that tells you exactly where APs need to go. That is where the cable drops belong. Skipping this step is how offices end up with one AP perfectly placed and three more pulling power to nowhere useful.

Step 4: Design the Fiber Backbone

Horizontal cabling (Cat6A copper) runs from workstations and APs to the nearest network closet (IDF). The IDFs then connect back to the main network closet (MDF) over fiber. This separation is what makes structured cabling scalable.

When You Need Fiber Backbone

If your office is on a single floor under about 9,000 square feet, you probably need only one network closet, and fiber may be limited to the service entrance. As soon as you have multiple floors, or a single floor large enough that some workstations exceed the 90 metre horizontal Cat6A run limit, you need fiber backbone between an MDF and one or more IDFs.

OM4 vs OS2: The Backbone Decision

Fiber Type	Designation	Max Distance @ 10G	Max Distance @ 40G	Use Case
Multimode	OM3	300 m	100 m	Legacy data centres, avoid for new builds
Multimode	OM4	400 m	150 m	Most office buildings, in-building backbone
Multimode	OM5	500 m	440 m (SWDM)	Large campuses, high-density backbones
Single mode	OS2	10+ km	10+ km	Inter-building, ISP entrance, future-proofing

For most Toronto office builds under 50,000 square feet, OM4 multimode is the sensible default. It is cheaper than OS2 on the transceiver side, supports 10/25/40/100 GbE at distances that cover any building you can reasonably call an office, and uses LC duplex connectors that are universal. For multi-tenant buildings, campus environments, or anywhere you might extend the network to another building in the future, run OS2 single mode in parallel. Pulling the second fiber costs almost nothing during construction; pulling it later costs a project.

Strand Count Tip

Pull at least 12 strands of fiber between MDF and each IDF, even if you only need 4 today. Spare strands are insurance against connector failures, future link aggregation, and applications you have not thought of yet. The marginal cost of 8 extra strands is roughly 15 to 20% of the run.

Step 5: Conduit, Pathways, and Penetrations

Pathways are where cabling projects get expensive when they go wrong. The cable itself takes hours to pull; getting it from point A to point B without conduit, J-hooks, and proper firestopping is where days disappear.

Conduit vs J-Hooks vs Cable Tray

EMT conduit: Used for wall stubs from the ceiling down to floor outlets, between floors through fire-rated penetrations, in exposed areas (warehouses, mechanical rooms), and anywhere code requires it. Size for 40% fill maximum, per the National Electrical Code and Canadian Electrical Code. See our conduit fill guide for data cables for sizing math.
J-hooks: The workhorse of modern office cabling. Suspended from structure above the ceiling, J-hooks support cable bundles every 4 to 5 feet along horizontal runs. Faster and cheaper than conduit for open-ceiling pathways.
Cable tray (basket or ladder): Used in MDFs, IDFs, and high-density backbone routes. Visible, accessible, and easy to manage growth.

Floor Cores, Pokethroughs, and Furniture Feeds

For workstations not against a wall (island desks, benching, open collaboration zones), you need to bring power and data up through the floor. Three options:

Pokethroughs: Round penetrations through the slab with fire-rated assemblies. Standard for individual workstations.
Walker duct / underfloor raceway: Pre-installed in raised floors or in the slab pour. Common in trading floors and call centres.
Furniture feed columns: Power and data drop from above into floor-to-ceiling columns that include outlets and grommets. Popular in modern open offices because they avoid floor cores entirely.

Plenum vs Riser Jacket

Toronto fire code (OBC) and the Canadian Electrical Code require plenum-rated (CMP) cable jacket in any space used as a return air plenum. Most drop ceilings in Toronto office buildings are return plenums. Specify CMP jacket on all horizontal Cat6A and fiber unless you have confirmed otherwise. Riser-rated (CMR) is for vertical shafts between floors. Using the wrong jacket is a code violation and a fire-stop liability.

Separation from Power

Data cables run too close to AC power feeders pick up interference, which shows up as crosstalk, packet errors, and reduced throughput. The general rules:

Minimum 6 inches separation from parallel runs of unshielded 120V branch circuits
Minimum 12 inches from parallel runs of 277V/480V feeders
Minimum 24 inches from fluorescent ballasts, transformers, and motors
Perpendicular crossings are fine at any distance (just avoid running parallel for long stretches)

Step 6: Network Closet Design (MDF and IDF)

The network closet is where everything terminates and where 90% of post-occupancy frustration originates. Closets are too small, too hot, in the wrong place, or impossible to expand. Plan it properly the first time.

MDF vs IDF: A Quick Refresher

MDF (Main Distribution Frame): The primary network closet. ISP demarcation, core switches, firewalls, central servers, and the head end of fiber backbone all terminate here. One per building.
IDF (Intermediate Distribution Frame): Satellite closets that aggregate horizontal cabling from a portion of the floor and connect back to the MDF over fiber. One IDF for every 10,000 sq ft is a rough planning rule.

For a deeper breakdown, see our guide on MDF vs IDF differences in network design.

Sizing the Closet

Drops Served	Min Room Size	Rack Count	Cooling Load	Power Circuits
Under 100	6 ft × 8 ft	1 × 42U	3,000 BTU/hr	2 × 20A dedicated
100 to 300	8 ft × 10 ft	2 × 42U	6,000 BTU/hr	2 × 30A on UPS
300 to 600	10 ft × 12 ft	3 × 42U	12,000 BTU/hr	4 × 30A on UPS
600 to 1,000	12 ft × 15 ft	4 to 5 × 42U	18,000 BTU/hr	Dedicated electrical panel

The Mandatory Checklist for Every Closet

Dedicated 24/7 HVAC, not building HVAC that shuts off after hours
Two grounded 20A or 30A circuits minimum, on separate breakers, fed from UPS where possible
Plywood backboard (3/4 inch, fire-treated) on at least two walls for telco and ISP terminations
Solid (not perforated) ceiling tiles to keep dust out
Smoke detector tied into building fire alarm
No water lines through, above, or adjacent to the room. No drains in the ceiling. No washroom on the floor above without a drip pan
Keyed lock (not card reader on the same network) for emergency access
Minimum 36 inch clearance in front of and behind every rack
Wall-mounted ground bar (TGB / TMGB per ANSI/TIA-607)

Step 7: Cable Categories, Jackets, and Specifications

For a new office build in 2026, the cable specification is simpler than it has been in years:

Horizontal copper: Cat6A U/UTP, CMP plenum jacket, 23 AWG solid copper conductors. White or light grey jacket unless owner specifies otherwise. Reputable brands only (Belden, CommScope/Vistance, Panduit, Leviton, Hubbell, AnixterPro, or equivalent).
Backbone fiber: 12-strand OM4 multimode, OFNP plenum-rated, with LC duplex connectors pre-polished or field-terminated with mechanical splice. OS2 single mode in parallel if inter-building or future-proofing is a concern.
Patch cords: Factory-terminated Cat6A patch cords in matching colours. Specify length per outlet location to avoid 7 foot cords in a 2 foot run.
Patch panels: Cat6A-rated, 24 or 48 port, keystone or punch-down (preference is keystone for serviceability).
Keystone jacks: Same brand as the patch panel for end-to-end performance warranty.

Shielded cable (FTP or STP) is generally not needed in standard office environments. Specify it only if there is a known EMI source: heavy industrial neighbours, MRI equipment in adjacent suites, broadcast transmitters, or large motor rooms. For a deep dive on shielding, see UTP vs FTP vs STP vs SFTP cable shielding explained.

Why Not Cat6 or Cat7?

Cat6 saves about 10 to 15% on cable cost but caps 10 GbE at 55 metres, which is shorter than many office runs. Cat7 and Cat8 require non-standard connectors (GG45, TERA) or are limited to 30 metre runs (Cat8). For 2026 office builds, Cat6A U/UTP is the only practical choice. See our cable category speed comparison for the full breakdown.

Step 8: Labeling and Documentation Standards

Labeling is the single highest-leverage thing you can demand from your cabling contractor, and it is also where most jobs come up short. Five years from now, when something needs to move, the labels are what determine whether it takes 20 minutes or two days.

ANSI/TIA-606-C Labeling Scheme

The standard labeling format is: floor / closet / panel / port. For example, 02-IDF1-B-14 means second floor, IDF #1, patch panel B, port 14. The same label appears on:

The cable jacket within 12 inches of both ends
The patch panel port (printed insert or stamped)
The wall plate (engraved or printed insert)
The as-built drawings

What the Contractor Must Deliver

As-built drawings showing every drop location, labelled per the scheme
Patch panel port-to-outlet schedule (spreadsheet or PDF)
Fluke certification reports (PDF, one file per link or a single combined file)
Cable test results filed by link ID, organized by closet
Warranty documentation from the cable manufacturer (15 to 25 years typical with certified install)
A printed copy of all the above in a binder, kept in the MDF

Step 9: Testing and Certification

Every link in the network should be certified with a calibrated tester. Not just continuity. Not just “the light is green on my switch.” Certification.

Copper Certification

A Fluke DSX or equivalent runs a Permanent Link or Channel test against the Cat6A TIA-568.2-D standard. The tester measures:

Wire map (correct pairing, no shorts or splits)
Length
Insertion loss
Return loss
NEXT, PSNEXT, ACR-F, PSACR-F
Propagation delay and delay skew

Every link must Pass. A “Pass*” result (with asterisk, meaning marginal) is not acceptable on new construction. Failed links get re-terminated or re-pulled, not waived.

Fiber Certification

Fiber gets two levels of testing:

Tier 1 (basic): Optical Loss Test Set (OLTS) measures insertion loss and length. Minimum acceptable level for any new install.
Tier 2 (extended): OTDR (Optical Time Domain Reflectometer) creates a trace of the entire fiber, showing the exact location of any splice loss, connector loss, or fault. Worth the extra cost on backbone runs.

Owner Requirement

Make Tier 1 OLTS testing on every fiber strand a contractual requirement. Make Tier 2 OTDR testing a requirement on any backbone run over 50 metres or any link that crosses between buildings. The cost difference is negligible; the diagnostic value when a fiber link degrades two years later is significant.

Step 10: How to Write the RFQ

The RFQ is where you either get apples-to-apples bids or three quotes that are impossible to compare. Spend an hour getting this right and you save a week of back-and-forth.

RFQ Template Sections

Section 1: Project Overview

> Building address, total square footage, floors, occupancy date
> Owner contact, GC contact, architect contact
> Tenant nature (general office, call centre, medical, lab, etc.)

Section 2: Scope of Work

> Drop schedule: attached spreadsheet listing every drop by room and quantity
> Cable specification: Cat6A U/UTP CMP, 23 AWG, brand-equivalent to Belden 10GXS
> Fiber backbone: qty and route, OM4 12-strand or OS2 12-strand
> Pathways: J-hooks above ceiling, EMT conduit stubs, floor cores as required
> Terminations: all keystones, all patch panel ports, all fiber connectors

Section 3: Performance Requirements

> All copper links to be certified per ANSI/TIA-568.2-D Cat6A Permanent Link
> All fiber to be tested per ANSI/TIA-568.3-D Tier 1 (Tier 2 on backbone)
> Manufacturer warranty: minimum 20 years on certified install

Section 4: Deliverables

> As-built drawings (PDF and CAD)
> Port-to-outlet schedule (Excel)
> Certification reports (PDF, organized by link)
> Manufacturer warranty documentation
> Printed binder in MDF

Section 5: Schedule

> Rough-in start date, drywall close date, occupancy date
> Penalty clauses for delays attributable to contractor
> Coordination meetings with GC: weekly

Section 6: Pricing

> Lump sum for base scope
> Unit pricing for: additional drops, additional fiber strands, after-hours work
> Pricing for optional Tier 2 OTDR testing

Red Flags in Bids

Bid Pricing Warnings

Watch for these in returned bids: vague specifications (“Cat6 or better” without brand), no mention of certification, no mention of as-built drawings, suspiciously low pricing per drop (under $150 in GTA typically means corner-cutting), no manufacturer warranty offered, and a single line item with no breakdown. The cheapest bid almost always becomes the most expensive job once change orders hit.

Project Manager Checklist

Use this as your weekly review during the project. Tap items to mark them complete; your progress is tracked at the top.

New Office Cabling Project Checklist
0 of 0 complete

Pre-Design (Week -8 to -4)

Cabling contractor engaged before electrical drawings are finalized

Floor plan reviewed by IT designer; AP and drop locations marked

MDF and IDF locations confirmed against 90m horizontal limits

Predictive Wi-Fi survey completed (offices over 5,000 sq ft)

Headcount, device mix, and 5-year growth assumptions documented

RFQ & Permits (Week -4 to 0)

RFQ issued with drop schedule, cable spec, and deliverables

Minimum 3 bids received and evaluated against same scope

Selected contractor’s shop drawings added to permit set

Cabling pathways shown on electrical drawings

Rough-In (Week 3 to 6)

Conduit stubs, J-hooks, and backboxes installed before drywall

Floor cores and pokethroughs verified per drawing

Fire-rated penetrations sleeved and ready for firestop

Cabling contractor walkthrough and sign-off before drywall closes

Cable Pull & Termination (Week 5 to 10)

Horizontal Cat6A pulled to every drop location

All cables labelled at both ends per ANSI/TIA-606-C scheme

Fiber backbone pulled between MDF and IDFs

All keystones and patch panel ports terminated

Network Closet (Week 7 to 11)

Plywood backboard, ground bar, and racks installed

Dedicated HVAC commissioned, runs 24/7

UPS-backed circuits live and tested

No water lines above or adjacent to closet

Certification & Closeout (Week 10 to 13)

100% of copper links Fluke-certified, all Pass

Fiber tested per Tier 1 (Tier 2 on backbone)

As-built drawings, port schedule, and certification PDFs received

Manufacturer warranty registered and documented

Printed binder placed in MDF

10 Mistakes That Cost Toronto Office Builds

Engaging the cabling contractor too late

By the time you have framing, you have already committed to wall locations, MDF placement, and electrical conduit pathways. The cabling contractor should be at the table when the architect first sketches partition layouts.

Specifying Cat6 to save 10%

Cat6 cannot deliver 10 GbE over standard 90 metre office runs. For a new build that will be in service 15 years, the savings on cable are erased the first time you try to connect a Wi-Fi 7 AP at full speed.

Skipping the predictive Wi-Fi survey

“We’ll put an AP every 25 feet and figure it out later” is how offices end up with dead zones, channel overlap, and three APs serving an empty kitchen while the conference room has none.

One drop per workstation instead of two

Pulling the second drop during construction costs roughly $30 in cable and connectors. Pulling it after occupancy costs $400 to $800 per drop in labour, parts, and after-hours premiums.

MDF too small, no HVAC, or above the men’s washroom

The closet should be sized for 5-year growth, have its own 24/7 HVAC, and have no water lines anywhere near or above it. We have responded to floods in three Toronto offices in the last two years caused by violations of that last rule.

Using riser-rated cable in plenum ceiling spaces

This is both a code violation and a fire-stop liability. Plenum ceilings need CMP-rated cable. Inspectors do check, and the cost to re-pull cable post-inspection is brutal.

No certification, just “everything works”

Without Fluke certification, you have no warranty, no baseline for future troubleshooting, and no evidence that the contractor did the job to spec. Make certification a contractual deliverable.

Forgetting the conference room AV ecosystem

Modern conference rooms need 4 to 6 drops minimum: display, video bar, control panel, table connection, and sometimes a second display or BYOD cable cubby. One drop per room is a permanent regret.

Labels that “make sense at the time”

“Bob’s office,” “the corner one,” “next to the window” labels become useless the moment Bob leaves. Use the ANSI/TIA-606-C scheme from day one: floor/closet/panel/port. Tedious to set up, impossible to break.

No spare conduit between floors or to the MDF

Adding a spare 2 inch EMT during construction costs almost nothing. Coring through a slab to add it three years later costs four figures and disrupts the floor below.

Frequently Asked Questions

How much does network cabling cost for a new office in Toronto?+

In the Toronto and GTA market in 2026, expect to pay between $180 and $350 per Cat6A drop, fully installed and certified. The range depends on building accessibility, ceiling type, conduit requirements, and project size. A typical 50-person office build with 100 to 150 drops, a small fiber backbone, and one network closet usually lands between $35,000 and $65,000. Fiber backbone, racks, patch panels, and active equipment (switches, APs) are normally separate line items.

How many cable drops do I need per workstation?+

The industry-standard recommendation is two Cat6A drops per workstation. One drop is the computer; the second is a spare for future use, secondary device, redundancy, or a VoIP phone if you still use them. Even if you are running softphones today, the marginal cost of the second drop during construction is roughly $30 in cable and connectors versus $400 to $800 to retrofit later. For executive offices, trading floors, or engineering workstations with multiple monitors and devices, plan for three or four drops.

When should I bring the cabling contractor into the project?+

As early as possible, ideally during the design development phase before electrical drawings are finalized. The cabling contractor needs input on MDF and IDF location, conduit pathways, floor cores, and electrical separation distances. Bringing them in at framing is too late; many of the cheapest decisions to make on paper are the most expensive to change once construction is underway.

Should I run fiber or copper to workstations?+

Copper for workstations, fiber for backbone. Cat6A copper supports 10 GbE to the desk at 100 metres and delivers PoE for phones, cameras, and APs. Fiber is used between network closets (MDF to IDF) where distances exceed 90 metres or higher backbone speeds are needed. Running fiber to individual workstations adds significant cost (transceivers, fiber jacks, media converters) for no practical performance benefit in normal office use.

How many access points do I need for a new office?+

As a rough planning rule, expect one AP per 1,500 to 2,500 sq ft of usable space in open office environments, denser if you have high client device counts, glass partitions that reflect signal, or Wi-Fi 7 deployments. Conference rooms, training rooms, and reception areas typically need dedicated APs regardless of overall density. For accurate placement, commission a predictive wireless survey using Ekahau, Hamina, or similar tools before finalizing AP cable drops.

What is the maximum length for a Cat6A cable run?+

90 metres for the permanent link (the cable run from patch panel to wall outlet), plus 10 metres of patch cords total at each end, for a 100 metre channel maximum. This includes all the cable in the wall, ceiling, and conduit. If you have any workstation more than 90 metres of cable distance from the nearest IDF, you need a closer IDF or a different design. This is the constraint that drives MDF and IDF placement on every large office build.

Do I need plenum-rated cable in my office?+

In most Toronto commercial office buildings, yes. If your drop ceiling is used as a return air plenum (and the vast majority are), the Ontario Building Code and Canadian Electrical Code require plenum-rated cable (CMP jacket). Riser-rated (CMR) is for vertical shafts between floors. Standard CM-rated cable is generally only acceptable in exposed surface installations and dedicated cable trays not in plenum spaces. Always confirm with your GC and electrical inspector before ordering cable.

What documentation should the cabling contractor deliver at closeout?+

At project closeout you should receive as-built drawings showing every drop location with its label, a port-to-outlet schedule (spreadsheet), Fluke certification reports for every copper link, OLTS or OTDR reports for every fiber link, manufacturer warranty documentation (typically 20 to 25 years on a certified install), and a printed binder containing all of the above stored in the MDF. If any of these items are missing, the job is not complete. Make this a condition of final payment.

Should I get multiple bids on the cabling work?+

Yes, but only against a detailed RFQ with a fixed scope. Three bids against the same drop schedule, cable specification, and deliverables list will give you usable comparison. Three bids against “structured cabling for our office” will give you three quotes that are impossible to evaluate. Suspiciously low bids (below $150 per drop in the GTA) almost always become the most expensive job because they trigger change orders, missed labelling, and inadequate certification.

What is the difference between MDF and IDF in office network design?+

The MDF (Main Distribution Frame) is the primary network closet where the ISP demarcation, core switches, firewalls, and central servers live. There is one MDF per building. IDFs (Intermediate Distribution Frames) are satellite closets that aggregate horizontal cabling from a portion of the floor and connect back to the MDF over fiber backbone. For offices over roughly 10,000 sq ft or with multiple floors, IDFs become necessary because of the 90 metre horizontal cabling distance limit.

Planning a New Office Build in Toronto or the GTA?

Cablify designs and installs ANSI/TIA-568 compliant structured cabling systems for new commercial builds across Toronto, Mississauga, Brampton, Vaughan, and the Greater Toronto Area. We work with your GC and architect from design through certification.

📞 Get a Free Project Quote
Our Commercial Services →

Related Cabling Guides

Cablify Technical Team

Commercial Cabling Specialists, Toronto & GTA

Cablify designs and installs commercial structured cabling for new office construction across Toronto, Mississauga, Brampton, Vaughan, Markham, and the wider GTA. Every installation is ANSI/TIA-568 compliant with full Fluke channel certification and manufacturer-backed warranty.

The post New Office Network Cabling Plan: Step-by-Step Guide appeared first on Cablify.

Sit/Stand Desk Cable Management: The Complete Office Guide

HP — Fri, 08 May 2026 17:28:25 +0000

There is a version of this project that takes an afternoon. You buy some velcro straps, route each cable under the desk, zip-tie the excess, done. It looks great on day one. By week three, someone has raised their desk to standing height, the cable sleeve has pulled taut against the leg frame, and the HDMI port on their monitor is hanging by a thread.

Now multiply that by 100 desks. Multiply the broken connectors, the IT tickets, the tripping hazards, the frayed power cables dragging across floor tiles. Multiply the liability.

Sit/stand desk cable management is not a tidy-desk project. At commercial scale — 20, 50, or 100 height-adjustable desks in an open-plan office — it is an infrastructure project. And the gap between offices that treat it like one and offices that don’t shows up not in how things look on installation day, but in what happens to the system six months later when the desk moves 400 times and nobody has thought about what happens to the cables every single time it does.

This guide covers everything: the physics of why sit/stand desks are uniquely punishing on cabling, the three mistakes almost every office makes regardless of size, the correct approach at each scale, and the material decisions that separate a system that lasts five years from one that starts failing in five weeks.

Why Sit/Stand Desks Are Different; The Physics Nobody Explains

A cable on a fixed desk is a static object. You route it once, secure it once, and it stays exactly where you put it for the life of the desk. The only force it ever experiences is gravity.

A cable on a height-adjustable desk is a dynamic system. Every time the desk moves from sitting height (roughly 70cm) to standing height (roughly 115cm) the cable stack must accommodate 40 to 50 centimetres of vertical travel. Over a standard workday in a sit/stand-enabled office, the average desk moves four to eight times. Over a year, that’s roughly 1,000 to 2,000 full height cycles per desk.

Now think about what that means for a cable that was routed tightly, without slack, in a fixed path. Every cycle applies tension to every connector. Every cycle flexes the cable at the same bend point. The insulation fatigues. The connector housing loosens. The internal conductors fracture not all at once, but progressively, in a failure mode that shows up as an intermittent connection that your IT helpdesk spends hours troubleshooting before anyone checks the cable.

The number that changes everything: every cable that travels with a sit/stand desk needs a minimum of 50–60cm of free loop slack the “service loop” to absorb the full vertical travel range without ever going taut. Most offices provide zero. Some provide 10cm. Almost none provide the full amount, because the full amount looks messy if you don’t route it correctly, and so the instinct is to tighten it up. That instinct is what drives every cable failure on a sit/stand desk.

Everything in this guide flows from that one principle. The slack must exist. The question is how to contain it so it looks professional, doesn’t create hazards, and survives a thousand desk cycles without degrading.

The Three Mistakes Every Office Makes Regardless of Size

Mistake #1: Treating the Power Bar as the Cable Management Solution

The most common commercial office cable management approach: plug a power bar into the floor outlet, velcro it to the underside of the desk, plug everything in, call it done. The power bar is doing the work of a cable management system but it’s not a cable management system. It’s a power distribution device.

When the desk moves, the power bar moves with it. The power cord from the bar to the wall outlet rarely more than 1.8 metres goes taut at standing height in any desk more than 1 metre from the floor outlet. At full extension, that cord is under tension. The outlet receptacle on the wall is experiencing a lateral pull force it was never rated for. In an office with 50 desks, this is happening simultaneously across the entire floor every time someone stands up.

The fix is not a longer power cord. The fix is separating the desk-mounted power distribution from the floor-level cable containment a distinction covered in the three-zone system below.

Mistake #2: Using Zip Ties on Dynamic Cable Runs

Zip ties are an excellent tool for static cable management server rooms, fixed workstations, structured cabling runs in ceilings and walls. They are among the worst tools you can use on a sit/stand desk, for a reason almost nobody explains: zip ties create fixed constraint points.

A cable that is zip-tied at three points along the desk leg now has a defined path that cannot vary as the desk changes height. If the cable has insufficient slack and most do it flexes at the constraint points during every desk cycle. The tighter the zip tie, the more concentrated the flex. Cable insulation fails at flex points faster than anywhere else. And when it eventually fails, the failure is inside the zip tie invisible until the cable stops working entirely.

Replace every zip tie on a dynamic cable run with a hook-and-loop (velcro) fastener. Velcro allows the cable to shift slightly at the constraint point during movement, distributing the flex stress across a wider section of cable rather than concentrating it. It also makes future cable changes — adding a monitor, replacing a laptop, reconfiguring a desk — a 10-second job rather than a wire-cutting exercise.

Mistake #3: Buying Cables at Desk Length, Not at Travel Length

When offices bulk-order cables for a fleet of sit/stand desks, they typically measure the distance from the device on the desk to the port it connects to — monitor to PC, PC to switch, laptop to power brick — and order cables that length. This produces a beautifully tidy desk at sitting height with exactly zero slack for movement.

The correct cable specification for any cable that travels with the desk — monitor cables, USB-C display cables, laptop charging cables — adds the full 50–60cm service loop to whatever the static connection distance requires. A cable that needs 1 metre to reach at sitting height needs 1.5 to 1.6 metres to reach safely at full standing height with a proper service loop. Order to travel length, not to desk length. It’s a detail that costs almost nothing at procurement time and prevents significant recurring IT costs over the life of the desk fleet.

The Three-Zone System: The Professional Framework for Sit/Stand Cable Management

Every correctly managed sit/stand desk installation — whether it’s 5 desks or 500 — is designed around three distinct zones, each with its own cable behaviour, hardware requirements, and failure modes. Designing for all three zones is what separates a system that runs clean for five years from one that starts failing in five weeks.

Zone	What Happens Here	Key Hardware	Critical Rule
Zone 1 — Desktop	Devices, monitors, peripherals. All cables originate here.	Under-desk cable tray, velcro ties, desk grommet	Everything moves with the desk. Nothing anchored to the floor.
Zone 2 — Vertical Travel	The transition from desk to floor. Cables must absorb 45–50cm of height change.	Flexible cable spine, spiral wrap, service loop bracket	Minimum 55cm of free loop. Never zip-tied. Never taut.
Zone 3 — Floor/Infrastructure	Power distribution and data runs. Static. Never moves.	Under-floor raceway, PDU, floor box, cable tray	Completely separate from Zone 2. Power comes up to the desk — not down from it.

Zone 1 — The Desktop: Everything Travels with the Desk

Every device at the desk — monitor, laptop dock, PC, phone charger — is connected and managed as a single travelling unit. The under-desk cable tray (a J-channel or mesh tray bolted to the underside of the desk surface) gathers all device cables and the desk-mounted power distribution unit into a single managed bundle that moves as one assembly when the desk adjusts.

The power distribution at the desk level should be a surge-protected PDU or commercial-grade desk power unit — not a consumer power bar. The distinction matters for two reasons: commercial PDUs have rated duty cycles for repeated power connection and disconnection, and they are designed for fixed mounting to a surface rather than for floor placement where they can be kicked, compressed, or dragged.

Zone 2 — The Vertical Travel Zone: Where Everything Goes Wrong

This is the zone that determines whether your cable management system succeeds or fails. It’s the transition from the moving desk assembly (Zone 1) to the static floor infrastructure (Zone 3) — and it must accommodate the full height range of the desk without ever restricting movement or placing tension on any connector.

The correct hardware for Zone 2 is a flexible cable spine or cable sock — a bundled sheath that holds all cables together in a single flexible column and attaches to the desk leg at the top with a velcro bracket. The bottom of the spine terminates in a floor-level service loop: a managed bundle of excess cable length that sits in a cable containment box or under-desk basket at floor level. As the desk rises, the spine extends and the service loop feeds upward. As the desk lowers, the spine compresses and the service loop retracts. No tension. No fixed constraint points. No zip ties.

For data cables specifically — network, USB-C, DisplayPort — the spine should keep data and power cables in separate compartments. Running power and data in the same tight bundle causes electromagnetic interference that shows up as network instability, monitor flicker, and USB connection drops. This is one of the most commonly overlooked causes of intermittent workstation issues in open-plan offices.

Zone 3 — The Floor Infrastructure: Static, Separate, and Never Touched After Installation

The power and data infrastructure at floor level should be completely independent of the desk. Power comes from a floor box or under-floor raceway directly to the desk — not through a long cord from the desk PDU dragging on the floor. Data comes from a floor or wall port — installed as part of your commercial network cabling infrastructure — directly into the Zone 2 cable spine.

In open-plan offices with raised access flooring, this is straightforward: data and power runs are below the floor, floor boxes are positioned under each desk, and Zone 2 emerges from the floor box straight into the desk leg. In slab-on-grade offices without raised flooring, Zone 3 typically lives in surface-mounted floor raceways or in the overhead ceiling tray — with drops coming down to each desk cluster. The key rule: Zone 3 never moves, never attaches to the desk, and never relies on the desk-mounted PDU to distribute power across the floor.

Scale Guide: The Right Approach for 20, 50, and 100+ Desks

The three-zone system applies at every scale. What changes is the infrastructure complexity, the procurement approach, the project timeline, and the ongoing maintenance model. Here’s how the implementation changes as your office grows.

20 Desks — The Manageable Phase

At 20 desks, a well-organized in-house or single-contractor installation is achievable in one to two days. The infrastructure decisions at this scale are relatively forgiving — mistakes can be corrected without major disruption.

What works at 20 desks:

Individual desk-by-desk cable spine installation with consistent hardware across all stations
Commercial-grade under-desk PDUs (6-outlet, surge-protected, surface-mounted) at each desk
Floor-level containment using J-channel raceway if raised flooring is unavailable
A single cable length standard across all desks — measure the longest cable run required and standardize all desks to that specification, with excess managed in the service loop
Colour-coded cable identification — one colour per cable type across all 20 desks, making troubleshooting and replacement a two-minute job rather than an archaeological dig

The 20-desk mistake to avoid: Inconsistent hardware. At 20 desks, the temptation is to buy different cable management components for different desks based on individual layout differences. Resist this completely. Standardization at 20 desks means your maintenance model for the next five years costs almost nothing. Inconsistency at 20 desks means every cable change, desk reconfiguration, or new hire setup requires re-engineering the solution from scratch.

50 Desks — The Infrastructure Inflection Point

At 50 desks, the project crosses from a furniture task into an infrastructure task. The total cable volume — power, data, display, USB, and peripheral across 50 sit/stand stations — is significant enough that the floor-level Zone 3 infrastructure must be properly engineered before a single desk is installed.

What changes at 50 desks:

Power distribution becomes a circuit planning exercise. 50 sit/stand desks draw significant combined power — especially if monitor arrays, docking stations, and laptop chargers are running simultaneously. A 20A circuit shared across 8–10 desks is the typical safe maximum. Mapping circuits before installation prevents nuisance breaker trips and ensures compliance with the Ontario Electrical Safety Code’s commercial workload guidelines.
Data infrastructure needs a structured approach. At 50 desks, ad hoc cable runs from desk to patch panel become unmanageable within months. Each desk should have a labelled, documented data run to the nearest IDF or wall patch panel, with the label scheme consistent across the floor. This is the difference between a 30-second port change and a 30-minute troubleshooting session every time something is reconfigured.
Cable length standardization becomes non-negotiable. Ordering non-standard cable lengths at 50-desk scale creates an inventory and replacement nightmare. Establish two or three standard lengths (e.g., 1.5m, 2m, 3m for each cable type) and document which standard applies to which desk position. Replacement cables then come from a single on-site spare kit rather than a custom order every time.
A cable management zone map is required. At 50 desks, a floor plan marking every desk position, its floor power source, its data drop location, and its cable spine routing direction is essential. This document is used for installation, for future reconfigurations, and for onboarding any new IT or facilities staff who needs to understand how the floor works.

The 50-desk mistake to avoid: Starting desk installation before the Zone 3 infrastructure is complete. This is the most common timeline pressure failure in medium-office cable management projects. Desks arrive, the pressure to get staff seated wins over the correct infrastructure sequence, and desks go in with temporary Zone 3 solutions — long extension cords, shared power bars, unmanaged data runs — that become permanent by default. The temporary solution is always harder to fix than the permanent solution would have been to install correctly the first time.

100+ Desks — The Full Infrastructure Project

At 100 desks, every decision made at installation time compounds across the entire floor for five to seven years. A $2 saving per desk on cable management hardware is a $200 saving at installation that becomes a $3,000 maintenance liability over the life of the desk fleet. This is the scale where doing it right is demonstrably cheaper than doing it fast.

What a 100-desk installation requires:

A pre-installation cable audit meeting. Before any hardware is ordered, every desk position needs to be surveyed: what devices will be at this station, how many monitors, what type of docking or charging, what data connectivity is required. This drives cable specification, PDU sizing, and Zone 3 circuit allocation. Surprises discovered during installation at 100-desk scale are expensive.
Cluster-based infrastructure design. 100 desks broken into clusters of 8–12, each cluster fed by its own floor box or ceiling drop, each cluster’s Zone 3 fully independent from adjacent clusters. This isolation principle means a failure in one cluster — a tripped breaker, a damaged floor raceway, a failed patch panel port — affects 10 people, not 100.
A professional cable labelling system. Every cable at every desk labelled at both ends, with a consistent scheme (desk number + cable type + circuit ID). This isn’t an aesthetic decision. At 100 desks, the ability to identify and replace a specific cable in under 5 minutes without disturbing adjacent workstations is worth several hours of IT helpdesk time per month.
Scheduled maintenance intervals. A 100-desk sit/stand fleet should have quarterly visual inspections of Zone 2 cable spines — checking for fatigue signs, loose velcro brackets, and service loop compression. Most cable failures are detectable before they occur. Catching a fatigued cable at inspection costs $12 in materials. Discovering it when a director’s monitor dies during a presentation costs significantly more.
A documented as-built record. Every circuit, every data run, every cable type and length at every desk, documented and signed off at project completion. This document is the single most valuable deliverable from a 100-desk installation — and the one most commonly skipped in projects that prioritize speed over sustainability.

The Commercial Cable Management Materials Guide: What to Specify and What to Avoid

Component	Specify This	Not This — And Why
Cable fasteners	Hook-and-loop (velcro) reusable wraps, 15–20mm width	Zip ties — create fixed stress points on dynamic cables, must be cut for any change
Vertical cable management	Flexible nylon cable spine or expanding spiral wrap, minimum 55cm travel range	Rigid cable channel or fixed J-channel mounted to the desk leg — does not flex with height change
Under-desk cable tray	Steel mesh tray, bolt-mounted to desk underside, minimum 100mm wide	Adhesive-mount trays — adhesive fails within 6–18 months under cable weight, especially in air-conditioned offices
Desk power distribution	Commercial surge-protected PDU, IEC C13 or Australian/Canadian standard, mount-rated	Consumer power bars — not rated for continuous commercial duty, poor surge protection, not mount-designed
Service loop containment	Under-desk cable basket or floor-level cable containment box	Free-hanging service loops — move with air currents, catch on chair wheels, create floor-level tripping hazards
Floor/zone 3 raceway	PVC surface raceway, minimum 38mm × 25mm, with separate power and data channels	Single-channel raceway mixing power and data — causes EMI, violates CEC separation requirements in commercial installations
Cable identification	Adhesive cable labels, both ends, with desk number and cable type	Colour coding alone — colours fade, differ between product batches, and provide no information during after-hours service calls

The Safety and Compliance Layer: What Your Facilities Manager Needs to Know

Cable management in a commercial Ontario office is not purely an aesthetic or operational concern. There are compliance dimensions that directly affect your WSIB exposure, your insurance coverage, and your ability to pass a fire marshal inspection.

Ontario’s Occupational Health and Safety Act (OSHA) places a general duty on employers to maintain a workplace free from recognized hazards. Cables crossing pedestrian areas, cables dragging on floor tiles where chairs roll over them, and cables creating tripping hazards in egress paths are all recognizable OSHA violations. After a tripping incident, a documented cable management failure significantly increases your liability exposure in any WSIB claim.

The Ontario Electrical Safety Code (OESC) prohibits the use of extension cords as permanent wiring — a rule violated by approximately 80% of commercial offices in Ontario. If your sit/stand desks are powered by extension cords running from wall outlets to desk power bars, you are operating outside the Code. This is relevant not only during an ESA inspection but in the aftermath of any electrical incident — a fire, an electric shock, or equipment damage — where your insurer may investigate whether the installation met code at the time of the incident.

Your commercial property insurance policy may have maintenance and installation standards clauses that are triggered by electrical incidents in the workplace. A professional cable management installation, documented with an as-built record, is meaningful evidence that due diligence was exercised. A floor full of extension cords and consumer power bars is meaningful evidence that it wasn’t.

Future-Proofing: Designing for Hybrid Work, Desk Hoteling, and Technology Change

The office cable management system you install today needs to accommodate the office you’ll be running in three years. Two trends are changing what that means faster than any point in the last two decades.

Desk hoteling and hot-desking — where no employee has an assigned workstation and desks are booked on arrival — fundamentally changes the cable requirements at each station. A hoteling desk needs a universal docking solution (USB-C Power Delivery dock with monitor, network, and peripheral pass-through) that any laptop can connect to with a single cable. It needs power available for devices of different wattage requirements. And it needs cable management that survives being connected and disconnected by a different person every day — which means velcro, not zip ties, and strain-relieved connectors on every cable end.

USB-C convergence is simultaneously simplifying and complicating desk cable management. As monitors, docks, and peripherals migrate to USB-C and Thunderbolt, the cable count per desk is decreasing — a single USB-C cable can carry power, display, network, and peripheral data simultaneously. But USB-C cable quality varies enormously, and a substandard USB-C cable in a high-wattage charging application is a fire risk that is difficult to identify visually. Specify cables with active e-marker chips for any application above 60W, and standardize on a single quality-controlled supplier across the full desk fleet.

DIY vs. Professional Installation: The Honest Decision Guide

Not every cable management project needs a professional installer. Here’s the honest breakdown:

Scenario	DIY Works If…	Professional Makes Sense If…
Under 15 desks, single room	IT staff available, hardware already specified correctly	No internal IT resource or tight deadline
20–50 desks, open plan	Dedicated project manager, 2+ days allocated, Zone 3 already complete	Working around live staff, deadline pressure, or no Zone 3 plan
50–100+ desks, multi-zone	Rarely — scale and compliance complexity make professional specification essential	Almost always — design, procurement, installation, labelling, and as-built documentation all require professional management
Existing chaotic installation	If chaos is isolated to 5 or fewer desks	Remediation of a failed installation — easier to replace correctly than to patch incrementally

Frequently Asked Questions

How much extra cable length do I need for a sit/stand desk?

Every cable that travels with the desk needs a minimum of 50 to 60 centimetres of service loop slack beyond the static connection distance. A cable that reaches its destination at sitting height with 1 metre of length needs 1.5 to 1.6 metres to safely reach at full standing height without going taut. Order to travel length, not desk length. This is the single most important specification decision in the entire project.

Can I use the same power bar for a sit/stand desk as a regular desk?

Consumer power bars are not recommended for commercial office sit/stand deployments for two reasons. First, they are not rated for the continuous commercial duty cycle of an office environment. Second, the power cord from a consumer power bar to the wall outlet is typically 1.5 to 1.8 metres — insufficient to reach a floor outlet from a desk at full standing height without going taut. Specify commercial-grade, mount-rated PDUs at each desk, with Zone 3 infrastructure delivering power to within reach of the desk at maximum height.

Are extension cords allowed in a commercial office in Ontario?

The Ontario Electrical Safety Code prohibits extension cords as permanent wiring in commercial installations. Extension cords are permitted as temporary connections — during a move, during construction, during an interim period before permanent power is installed — but not as a permanent solution for powering workstations. Most commercial offices in Ontario run extension cords as de facto permanent power, which places them outside Code compliance and creates insurance and liability exposure in the event of an electrical incident.

How long does a professional 100-desk cable management installation take?

A 100-desk sit/stand cable management project — including Zone 3 infrastructure assessment, hardware procurement, installation, labelling, and as-built documentation — typically runs three to five business days for an experienced commercial installation team. Projects with tight timelines, working around live staff, or involving significant Zone 3 remediation may run longer. Pre-installation planning and a completed Zone 3 infrastructure are the two factors that most reliably compress the installation timeline.

What is the most common cause of cable failure on a sit/stand desk?

Insufficient service loop slack, combined with zip tie constraint points. When a cable is routed with no free loop and secured with zip ties at fixed points along the desk leg, every height cycle flexes the cable at those fixed points. The insulation fatigues progressively, the internal conductors fracture, and the failure presents as an intermittent connection — intermittent video signal, inconsistent charging, unstable network connection — that is extremely difficult to diagnose without physical inspection. The fix is always the same: remove the zip ties, add a 55cm+ service loop, re-secure with velcro wraps.

Does Cablify manage office cable management projects across the GTA?

Yes — office cable management at commercial scale is a core Cablify service across the Greater Toronto Area, covering sit/stand desk fleets from 10 to 200+ stations. We handle everything from pre-installation audit and Zone 3 infrastructure assessment through hardware specification, installation, labelling, and as-built documentation. We work around occupied offices, accommodate tight timelines, and guarantee a clean, compliant, documented result. Contact us for a free on-site assessment.

Ready to Do This Right — Once?

The offices that get cable management right don’t think about it again for five years. The offices that get it wrong are re-doing it annually — one broken cable, one tripping complaint, one fire marshal notice at a time.

At Cablify, we design and install commercial cable management systems for offices across the Greater Toronto Area. Sit/stand desk fleets, open-plan reconfiguration projects, office fit-outs, and cable remediation for existing installations that never got done properly — we’ve done all of it, at every scale, working around live staff with minimal disruption to your operations.

If you have 20 desks or 200, if your timeline is May 15 or next quarter, if you’re starting from scratch or trying to fix what someone else left behind — contact Cablify today for a free on-site assessment. We’ll tell you exactly what the project involves, what it costs, and how long it takes. No surprises on installation day.

The post Sit/Stand Desk Cable Management: The Complete Office Guide appeared first on Cablify.

The CCTV Dead Zone Problem: Where Warehouse Theft Really Happens

HP — Thu, 07 May 2026 23:26:26 +0000

The Uncomfortable Truth About Warehouse Security Camera Systems

Cargo theft in Canada and North America is no longer a nuisance problem — it’s a crisis. Cargo theft surged by over 60% in 2025, with average per-incident values exceeding $270,000. And the most alarming part of that number isn’t the total. It’s where most of those losses are occurring: inside facilities that already have active CCTV systems installed.

The cameras are there. The recording is running. The theft is happening anyway.

We’ve assessed hundreds of commercial and industrial facilities across the Greater Toronto Area over the years, and the pattern is consistent enough that we’ve given it a name internally: the coverage confidence trap. It’s the state a facility manager or operations director falls into after signing off on a security camera installation — a reasonable belief that the system is working, because nobody has told them otherwise.

The problem isn’t the cameras. It’s that the industry standard for warehouse CCTV installation was built around a floor plan, not around how theft actually occurs in a working warehouse. Installers mount cameras at entry points, at exit doors, and at the end of primary aisles. Those are legitimate coverage zones. But they’re also the most visible zones — the ones that any experienced, patient, or opportunistic thief will instinctively avoid once they’ve spent a single shift learning how the building works.

Theft doesn’t happen at the front door. It happens in the twelve places nobody thought to look.

Why Even Good Installers Miss These Spots

This isn’t an indictment of the security camera industry. Most installations are done competently, by professionals, using quality equipment. The gaps exist for three structural reasons that are worth understanding before you walk your own facility.

Reason one: installations are designed from blueprints. A floor plan shows you the shape of the building, the doors, and the walls. It does not show you the 14-foot-high pallet rack that creates a 40-foot shadow corridor behind it. It doesn’t show you the dock leveller that blocks line-of-sight from the nearest camera every time a trailer backs in. The real geometry of a working warehouse changes completely the moment inventory fills the racks — and most installations are designed before that inventory is in place.

Reason two: camera placement follows traffic, not threat. High-traffic zones feel like high-risk zones. The main aisle, the receiving desk, the entrance — these get cameras because people are always there. But consistent, chronic theft rarely happens in front of witnesses. It happens in the quiet pockets: the staging area around the corner from receiving, the consolidation zone where mixed pallets sit before put-away, the area adjacent to the break room that isn’t technically a common area and isn’t technically a restricted area either.

Reason three: field-of-view is calculated for distance, not for geometry. A 4mm wide-angle lens covering 90 degrees looks great in a spec sheet. In practice, a single shelving unit at 45 degrees from that camera can eliminate coverage of an entire back quadrant of a warehouse bay. Nobody calculated the rack geometry when they spec’d the cameras. Nobody walked the floor at inventory height and looked back at the lens.

The 7 Warehouse CCTV Dead Zones — And Exactly Why Theft Concentrates in Each One

Dead Zone #1: The Rear Shadow Corridor Behind Floor-to-Ceiling Racking

This is the most common dead zone in any warehouse using standard selective pallet racking. When rack rows run perpendicular to the exterior wall and cameras are mounted on that wall shooting down the aisle, the back side of the rack — the narrow corridor between the rear uprights and the wall — falls completely outside any camera’s angle of coverage.

In a single-deep rack configuration, that corridor might be 18 inches wide — barely enough to stand in. In a double-deep or drive-in rack system, that rear zone can be 4 to 6 feet deep. Wide enough to conceal activity. Wide enough to temporarily stage items being moved without proper documentation. Wide enough that a theft pattern can operate for months before a discrepancy shows up in an audit cycle.

The fix: End-of-aisle cameras angled back toward the wall at the rear of each rack run, or overhead fisheye cameras mounted at intervals along the ceiling above the rear corridor. Neither is expensive. Both are almost never included in a standard installation scope.

Dead Zone #2: The Dock Leveller Shadow Zone

The loading dock is the most obvious place to put a camera — and therefore the most thoroughly covered zone in most warehouses. But there’s a gap that almost every installation misses, and it’s created by the dock leveller itself.

When a trailer backs into a loading bay and the leveller plate drops to bridge the gap, it creates a shadow zone directly beneath the trailer lip and on the floor of the dock pit. Cameras mounted above the dock door, pointed inward, cannot see below the leveller plate. Cameras mounted inside the warehouse looking toward the dock shoot straight into the reflected light of the trailer interior.

This zone — roughly 6 to 10 feet deep, the width of the dock bay, at floor level — is where items disappear during the transition from trailer to floor. Not in the trailer. Not in the warehouse. In the 30 seconds when a box is on the leveller plate, handled by someone whose hands are out of frame, in a zone that no camera at standard mounting height is pointed at.

The fix: Low-angle cameras mounted on the dock door frame, angled to capture the leveller plate and the 8-foot zone immediately inside the dock from a 30-degree downward angle. These cameras require weatherproof housings given the exposure to outdoor conditions when the door is open.

Dead Zone #3: The Blind Corner at Conveyor and Sorting Transitions

In distribution and fulfilment warehouses, conveyor systems create architectural barriers as significant as any wall. Where a conveyor makes a 90-degree turn, where a sorter transitions to a manual pack station, where a powered belt ends and floor transport begins — these transition points create corners that are physically impossible to cover with a single camera without placing it directly above the transition point.

These locations are also the highest-velocity points in the facility for individual item handling. They’re where boxes slow down, where items get manually redirected, and where the difference between an item going to the right destination and an item being pocketed is a moment of contact outside camera frame.

The fix: Overhead dome or fisheye cameras mounted directly above each conveyor transition point, not at the end of the conveyor run. Position matters more than camera count here — one correctly placed camera at the transition covers what three misplaced cameras cannot.

Dead Zone #4: The Stairwell and Mezzanine Landing

Warehouses with mezzanine storage or multi-level pick modules treat the stairs as circulation infrastructure, not as a security zone. Cameras cover the mezzanine floor. Cameras cover the ground floor below. The stairwell itself — and critically, the landing at the top of the stairs — is a dead zone in the vast majority of installations.

That landing is where items move vertically in the facility without being on a documented goods lift. It’s a handoff point that exists outside the camera coverage zones of both levels. In facilities where mezzanine storage contains high-value, small-form-factor inventory — electronics components, pharmaceuticals, apparel — stairwell landings are disproportionately represented in loss incidents.

The fix: A camera at the base of the stairs angled upward to capture the landing, and a second camera mounted at ceiling height on the mezzanine looking back down toward the stairhead. Both cameras should have sufficient resolution to capture item detail, not just human presence.

Dead Zone #5: The Wrong End of the Loading Bay

Here is the single most reliably wrong camera placement we encounter in warehouse assessments: the camera pointed at the dock door from inside the building.

This camera captures who enters the building from the loading dock. It captures trailer activity at the door threshold. What it does not capture is the area immediately behind the loading area — the staging zone where received inventory sits before it moves to put-away. That staging zone is typically 20 to 30 feet behind the dock door, outside the camera’s field of view, and is where received inventory is most vulnerable in the hours between arrival and system entry.

The dock door camera faces the wrong direction for inventory protection. It’s positioned for people-flow monitoring, not asset protection. You need both: a camera covering the door threshold, and a separate camera covering the staging zone behind it.

The fix: Mount a second camera on the wall parallel to the loading bay, angled to cover the staging and pre-put-away zone. This camera should have sufficient wide angle to cover the full staging depth — typically 25 to 40 feet — and sufficient resolution at that distance to capture pallet and carton detail.

Dead Zone #6: The Employee Break Room Approach Corridor

Almost every warehouse has a camera inside the break room or pointed at the break room entrance. Almost none has a camera covering the corridor or transition zone between the picking floor and the break room door.

That corridor — typically 10 to 20 feet of circulation space — is where items move off the floor and into personal belongings. Not in the break room, where there’s a camera. Not on the floor, where there’s a camera. In the 15 feet between them where the handoff occurs and nothing is watching.

This dead zone is particularly significant in facilities where workers carry personal bags, lunch containers, or tool kits, and where a no-bags policy on the floor hasn’t been implemented or is inconsistently enforced.

The fix: A camera covering the full approach corridor with sufficient resolution to identify items being carried. This camera should be positioned to capture both directions of movement — into the break room and out of it — not just the door itself.

Dead Zone #7: The Perimeter Fence Line at Night

Internal theft gets the attention. External perimeter breaches cost more per incident. The gap in almost every warehouse perimeter camera system is the fence line itself — specifically, the ground-level zone at the base of the perimeter fence where items can be pushed under, thrown over, or retrieved through a cut section at a time when no one is watching.

Perimeter cameras are typically mounted at the building corners, covering the yard from height. They’re excellent for detecting vehicle movement and human presence in the open yard. They’re nearly useless for detecting fence-line activity because the fence-to-building distance exceeds the useful identification range of most standard cameras at night, and because the camera angle from building height looking outward creates a gap at the base of the fence that falls below the effective field of view.

The fix: Dedicated fence-line cameras — preferably thermal or low-light optimized — mounted at intermediate points along the perimeter fence itself, not at building corners. In high-risk facilities, pair these with perimeter intrusion detection (vibration sensors or beam detectors) that trigger camera recording on breach.

The Psychology Behind Why Dead Zones Become Theft Zones

There’s a concept in criminology called the “surveillance cue effect” — the simple observation that the presence of a visible camera changes behaviour in its immediate vicinity. People walk straighter. They don’t linger. They carry items visibly rather than concealed. The camera doesn’t need to be recording. It just needs to be there.

The inverse is equally predictable. A space that workers identify — consciously or not — as unmonitored becomes a zone of reduced behavioural constraint. This isn’t a moral observation. It’s a documented behavioural response to environmental cues. People in warehouses learn their environment rapidly. They know which aisles feel observed and which ones don’t. They know which areas the manager walks through and which ones they don’t. Dead zones in your camera coverage don’t stay invisible to the people working inside them.

This is why closing dead zones works even when nothing suspicious has happened yet. The presence of coverage changes the risk calculation for everyone in the facility — not just those with intent to steal, but anyone whose lapse of attention or ethical drift depends on the confidence that no one is watching.

The Warehouse CCTV Coverage Audit Checklist

Walk your facility with this checklist before your next inventory cycle. For each zone, the question isn’t “do we have a camera nearby?” — it’s “can a camera actually see this specific area at sufficient resolution to identify a person and an item?”

Zone to Audit	What to Look For	Covered?	Action Needed
Rear of pallet racking	Can you see behind the back uprights from any camera?	☐ Yes ☐ No	End-aisle or overhead camera
Dock leveller plate and pit	Is the leveller surface visible when a trailer is docked?	☐ Yes ☐ No	Low-angle dock frame camera
Conveyor transition points	Is every 90° turn and sorter transition covered from directly above?	☐ Yes ☐ No	Overhead dome at each transition
Stairwell and mezzanine landing	Is the landing at both top and bottom of stairs visible?	☐ Yes ☐ No	Base-angle + ceiling camera pair
Receiving staging zone	Is the area 20–40 ft behind the dock door covered?	☐ Yes ☐ No	Side-wall wide-angle camera
Break room approach corridor	Is the full corridor from floor to break room door visible?	☐ Yes ☐ No	Corridor-length coverage camera
Perimeter fence base	Can any camera identify activity at the base of the fence at night?	☐ Yes ☐ No	Fence-mounted low-light camera
High-value pick zones	Is every pick face in a high-value SKU area covered at identification resolution?	☐ Yes ☐ No	Resolution audit + repositioning
Waste and recycling compactor	Is the compactor input zone and the area around it covered?	☐ Yes ☐ No	Dedicated compactor camera
Driver waiting and yard office	Is the area where external drivers wait covered without blind angles?	☐ Yes ☐ No	Dedicated yard office camera

Save this checklist and walk your facility with a team member. For each “No” answer, photograph the zone and note the estimated camera distance and mounting height required for coverage. This becomes your gap remediation scope.

One More Thing: Coverage Area Is Not the Same as Useful Coverage

There is one dead zone this checklist cannot fully capture, and it’s the most insidious one: the camera that’s pointed in the right direction but recording at a resolution that cannot support identification.

A 2MP camera covering a 60-foot warehouse aisle will show you a person-shaped blur. You’ll know something happened. You’ll know roughly when. You will not know who. And without who, your footage is anecdote, not evidence.

The rule of thumb for forensic-quality identification is 40 pixels per foot of subject width at the distance being monitored. At 30 feet from a 4MP camera with a standard lens, you’re at the edge of reliable identification. At 50 feet with the same camera, you’re into useful presence-detection but unreliable face recognition. At 80 feet, you’re capturing events you cannot act on.

High-value areas — high-value SKU zones, receiving staging, dock leveller coverage — need 4K cameras or carefully matched focal-length lenses on 4MP sensors. This is not a luxury specification. It’s the minimum required for footage that an insurance adjuster or law enforcement investigator can use to do anything with.

Frequently Asked Questions

How do I find out if my warehouse has CCTV dead zones without hiring someone?

Walk every area of your facility during active operations and ask one question at each spot: if I were doing something I shouldn’t be doing right now, could anyone watching the monitors see me clearly enough to identify me and what I’m holding? If the answer is no, you have a dead zone. Pay specific attention to the seven zones covered in this article — they account for the overwhelming majority of coverage gaps we find in professional assessments. Photograph each gap from the perspective of someone standing in it, looking back at the nearest camera. This documents both the gap and the camera’s actual angle relative to that position.

How many cameras does a typical warehouse need for complete coverage?

Camera count is almost the wrong question — placement and resolution matter far more than quantity. That said, a practical starting point for a 50,000 square foot warehouse with standard selective racking is 24 to 36 cameras, depending on rack density, number of dock doors, conveyor infrastructure, and mezzanine levels. A facility with 16 correctly positioned cameras will outperform one with 32 cameras in suboptimal positions every single time. If your current camera count seems high but your loss rate remains elevated, the problem is almost certainly placement and resolution, not quantity.

Should I use dome cameras or bullet cameras in a warehouse environment?

Both have appropriate applications in warehouse environments, but for different zones. Dome cameras — particularly vandal-resistant IP66/IK10-rated domes — are best for interior zones where discrete coverage and wide-angle fisheye options are valuable: overhead conveyor coverage, mezzanine landings, break room corridors. Bullet cameras are better suited for long-aisle coverage, dock exterior zones, and perimeter fence lines where directional IR illumination and longer focal lengths are needed to cover distance effectively. Most professional warehouse installations use a combination of both.

What is the minimum resolution for warehouse CCTV cameras?

For general area monitoring — aisles, common areas, traffic corridors — 2MP (1080p) cameras are adequate. For zones requiring identification quality footage — receiving staging, dock levellers, high-value pick areas, break room approach corridors — 4MP or 4K (8MP) cameras are the minimum worth installing. Recording 2MP footage in a zone where you need to identify a face or read a label is the same as having no camera at all for evidentiary purposes. Specify resolution per zone based on the forensic requirement, not the equipment budget.

How long should warehouse security camera footage be retained?

The minimum retention period for most commercial insurance policies in Canada is 30 days. For facilities handling high-value inventory or pharmaceutical goods, 60 to 90 days is the professional standard. Retention period is determined by your NVR storage capacity — calculate daily storage per camera based on resolution and compression (H.265 encoding significantly reduces storage requirements without meaningful quality loss), multiply by camera count, and size your NVR storage to hit your target retention window. Storage is inexpensive. Running out of footage 27 days into a 30-day investigation window is not.

Can Cablify assess my warehouse for CCTV coverage gaps?

Yes — warehouse security camera assessments are one of the most common services we provide for commercial and industrial clients across the Greater Toronto Area. We walk the facility during active operations, map coverage against the actual geometry of the building with inventory in place, identify dead zones with specific remediation recommendations, and produce a scope document for any gap coverage work required. If your current system was installed more than three years ago or was designed before your current racking configuration was in place, an assessment is almost certainly going to find addressable gaps.

Your Inventory Is Worth More Than a Camera Installation That Looks Good on Paper

The warehouse manager from the opening of this article eventually found his answer. The missing inventory had been systematically removed over four months, from a single dead zone behind a rack row, by a single person who had correctly identified that the camera closest to that area pointed 15 degrees too far left to see behind the uprights.

The fix was one additional camera, one repositioned camera, and about three hours of work. The gap had existed since the original installation. Nobody had ever walked that aisle and looked back at the lens.

At Cablify, we design and install commercial IP camera systems across the Greater Toronto Area — including warehouse facilities, distribution centres, manufacturing plants, and multi-site commercial properties. We don’t design from blueprints. We walk the floor with you, with inventory in place, and build coverage around how your facility actually works — not how it looks on a plan.

Contact Cablify today to book a warehouse CCTV coverage assessment. We’ll find your dead zones before someone else does.

The post The CCTV Dead Zone Problem: Where Warehouse Theft Really Happens appeared first on Cablify.

How Many Access Points Does a Building Need? WAP Density & Coverage Guide

HP — Mon, 04 May 2026 22:25:54 +0000

Commercial Wi-Fi Planning Guide

How many access points does your building actually need?

The useful answer is not “one AP per floor.” A building needs enough wireless access points to satisfy coverage, capacity, roaming, and building material requirements at the same time. The quick planning range for a normal office is often one commercial AP per 1,500 to 2,500 sq ft, but user density, walls, ceiling height, and Wi-Fi 6/7 performance targets can change that number fast.

1,500-2,500

sq ft per AP in many offices

25-35

active business users per AP

-67

dBm design target for strong data/voice

1/floor

absolute minimum; rarely enough alone

2.5GbE

preferred uplink for many Wi-Fi 6/7 APs

20-30%

PoE power headroom to reserve

CAD

floor plans improve estimate accuracy

Quick Answer: AP Count by Building Type

For a normal commercial building, start with square footage, then validate the count against users and room density. The table below is a practical budgeting guide, not a final RF design. A professional wireless design may increase or decrease the number once wall materials, AP model, channel plan, and mounting locations are reviewed.

Building / Area Type	Budgeting Range	Capacity Range	What Changes the Count	Survey Priority
Standard office	1 AP per 1,500-2,500 sq ft	25-35 active users/AP	Meeting rooms, glass walls, dense desk clusters	Recommended
Open office / co-working	1 AP per 1,200-2,000 sq ft	20-30 active users/AP	High device count, video calls, shared SSIDs	High
Clinic / dental / medical office	1 AP per 1,200-1,800 sq ft	20-30 active users/AP	Small rooms, imaging equipment, roaming tablets	High
Retail / showroom	1 AP per 1,500-2,500 sq ft	25-35 active users/AP	POS reliability, guest Wi-Fi, stock room coverage	Recommended
Restaurant / hospitality	1 AP per 1,000-1,600 sq ft	20-30 active users/AP	Guest density, patios, kitchens, POS terminals	High
Warehouse / industrial	1 AP per 2,500-5,000 sq ft	20-35 active users/AP	Racking, inventory, forklifts, ceiling height	Required
Classroom / training room	1 AP per room or per 700-1,200 sq ft	20-30 active users/AP	Everyone connects at once; video/testing workloads	Required
Event / auditorium	Designed by capacity, not square feet	30-50 users per 5 GHz/6 GHz radio	Channel reuse, client steering, seating density	Required

The Plain-English Formula

Start with coverage APs based on square footage. Then calculate capacity APs based on active users. The real starting count is whichever number is higher, with at least one AP per floor and additional APs for conference rooms, warehouses, patios, clinics, and any area where users complain about slow Wi-Fi today.

Interactive Access Point Count Estimator

Use this calculator for a planning-level estimate before a site visit. It is intentionally conservative for commercial buildings because an under-built Wi-Fi network usually costs more to fix than doing the AP count and cabling plan properly the first time.

Commercial WAP Density Calculator
Estimate access points, cable drops, PoE budget, and switch port planning.

Building type

Total square footage

Number of floors

Peak active users

Wall / obstruction level

Ceiling height

Performance target

AP generation

Estimated Planning Range
This is a pre-sales estimate. Final placement should be confirmed by floor plan review or on-site survey.

8-10

access points

approx. APs per floor

For this profile, coverage and capacity are both important. A professional survey should confirm wall attenuation, AP mounting, and channel reuse.

Effective coverage/AP1,390 sq ft
Cable drops to plan10 Cat6A drops
PoE switch budget286 W+
Recommended uplink2.5GbE AP ports

Coverage

Capacity

Survey need

Calculator Disclaimer

This estimator is for budgeting and early planning. Wi-Fi is radio, not plumbing: two buildings with the same square footage can need different AP counts because concrete, glass, metal shelving, 6 GHz coverage, neighbouring networks, and user density all change the design.

Why Square Footage Is Only the First Step

Square footage tells you how much area must be covered. It does not tell you how hard that area is to cover or how many people will share the same radios. A 10,000 sq ft empty office and a 10,000 sq ft clinic with exam rooms, imaging equipment, tablets, guest Wi-Fi, and roaming staff are not the same wireless problem.

Coverage

Can a device hear a strong enough signal everywhere users work, scan, pay, call, or move?

Capacity

Can the APs support the number of active clients and applications in each area?

Roaming

Can devices move between APs without sticking to a weak AP or dropping calls?

Interference

Are APs, neighbours, Bluetooth, machinery, or bad channel plans adding airtime noise?

Mounting

Can APs be ceiling-mounted or aimed from useful locations without blocked signal paths?

Infrastructure

Do you have Cat6/Cat6A drops, PoE budget, switch ports, and uplinks where APs belong?

The most common mistake is counting APs by area only. That can work in a small, low-density office, but it fails in conference rooms, healthcare spaces, warehouses, schools, hotels, and retail environments where users cluster into specific zones.

WAP Coverage Area per AP

Manufacturers often publish idealized coverage numbers. For example, current UniFi indoor APs such as U6 Pro and U7 Pro list coverage around 1,500 sq ft, while certain outdoor directional models publish much larger coverage figures. Those specs are useful, but a commercial design should treat them as a reference point, not a guarantee.

Planning Scenario	Usable Coverage/AP	Why It Changes	Planning Note
Open office, light walls	1,800-2,500 sq ft	Few obstructions and normal ceilings	Still check conference rooms separately.
Typical office with rooms	1,200-2,000 sq ft	Drywall, glass, furniture, and users	Best starting range for most commercial quotes.
Clinic / dense small rooms	900-1,600 sq ft	More walls per square foot	Plan for roaming tablets and reliable voice/data.
Warehouse with clear aisles	2,500-5,000 sq ft	Large open volume but high mounting and racking	Aisle layout matters more than total area.
Classroom / training room	700-1,200 sq ft	Many users active at the same time	Capacity usually controls count.
Concrete / block / metal-heavy areas	500-1,200 sq ft	High attenuation and reflection	Survey before committing to AP locations.

Commercial Rule of Thumb

If you need one safe budgeting number for an office before seeing the floor plan, use one AP per 1,500 sq ft. If the space is open and low-density, the final design may need fewer. If it has many rooms, high ceilings, voice/roaming requirements, or heavy user density, it may need more.

User Density and Capacity Planning

Every access point has a maximum client count, but that number is not the same as a good design target. An AP may technically associate hundreds of devices, but performance depends on active clients, airtime, channel width, radio band, client quality, and the applications people are using.

10-20

Light use

Small office, browsing, email, occasional calls.

25-35

Normal business

Good target for offices with meetings and cloud apps.

20-30

Voice / POS / tablets

Use fewer clients per AP when roaming quality matters.

30-50

High-density radio

Used carefully in auditoriums and training rooms with RF design.

For offices, a practical target is often 25 to 35 active users per AP. For classrooms, restaurants, clinics, POS environments, and video-heavy workplaces, use a lower number. For auditoriums and events, capacity is usually planned per 5 GHz or 6 GHz radio, not simply per AP.

Important Distinction

Do not size the Wi-Fi network by “maximum clients supported” on a datasheet. Size it by active users, application load, target signal quality, and channel plan. A network that lets 200 clients connect to one AP can still feel unusable if those clients are fighting for the same airtime.

Multi-Floor Buildings and Roaming

Wi-Fi does not stop cleanly at the ceiling. In multi-floor buildings, APs can interfere through floors while still failing to provide reliable coverage where users actually need it. That is why multi-floor design should not be handled by placing one powerful AP in the middle and hoping it covers everything.

Multi-Floor Issue	What Goes Wrong	Better Design Approach
AP directly above AP	Same-channel interference can stack vertically	Offset AP placement between floors where possible.
One AP expected to cover two floors	Signal may be weak, inconsistent, or blocked by slab/decking	Plan each floor as its own coverage area.
Stairwells and elevators	Clients may cling to a weak AP during movement	Design roaming overlap intentionally, especially for voice/tablets.
Too much transmit power	Clients hear too many APs and roaming decisions get worse	Use correct AP count plus controlled power, not maximum power.

As a baseline, plan at least one AP per floor. Then calculate each floor by square footage and by room type. A 3-floor office with 18,000 total sq ft is not “six APs somewhere.” It is three separate RF environments that need their own AP placement, cable routes, PoE switch planning, and roaming overlap.

Warehouses, Clinics, Retail, and Schools

Commercial wireless design gets more specific when the building is not a simple office. These environments often need a professional survey because the highest-risk areas are exactly where the business depends on Wi-Fi most.

Environment	Primary Wi-Fi Risk	AP Planning Guidance	Lead Driver
Warehouse	Metal racking, high ceilings, forklifts, aisle shadows	Design by aisle coverage and scanner locations, not only square footage.	RF survey
Clinic / dental office	Many small rooms and roaming staff devices	Use tighter AP spacing and validate signal in exam rooms.	Reliability
Retail	POS, guest Wi-Fi, back office, stock room gaps	Separate business/POS and guest needs; confirm checkout coverage.	POS uptime
Restaurant	Dense guests, patios, kitchen interference	Plan indoor, patio, POS, and back-of-house zones separately.	Guest load
School / training	Many clients active at once	Capacity plan by room occupancy and channel reuse.	Density
Hotel / multi-suite	Many walls and repeated room layouts	Use floor plan modeling and controlled low-power AP placement.	Roaming

Cabling, PoE, and Switch Requirements

The AP count is only half of the installation plan. Every ceiling AP needs a cable pathway, a certified copper drop, PoE power, and a switch port. For new commercial installations, Cat6A is the cleanest long-term choice because it supports 1G, 2.5G, 5G, and 10G paths over the full building lifecycle.

Wi-Fi AP Type	Typical Port Need	Typical PoE Class	Cabling Recommendation	Why It Matters
Wi-Fi 5 / basic Wi-Fi 6	1GbE	PoE or PoE+	Cat6 minimum	Works for many low-density offices.
Wi-Fi 6 / 6E business AP	1GbE or 2.5GbE	PoE+	Cat6A preferred	Avoids uplink bottlenecks and re-cabling later.
Wi-Fi 7 AP	2.5GbE	PoE+	Cat6A preferred	Many current Wi-Fi 7 APs ship with 2.5GbE ports.
High-performance Wi-Fi 7 / XG AP	5GbE / 10GbE	PoE++	Cat6A or fiber-backed design	Useful for high-density or high-throughput spaces.

Installation Recommendation

For every planned AP, budget one dedicated Cat6A cable drop, one PoE switch port, and 20-30% PoE power headroom. If the AP model has a 2.5GbE or 10GbE uplink, make sure the switch and cable plant support that speed before installation day.

When You Need a Professional Site Survey

The estimator is useful for pre-sales planning, but some buildings should not be designed from square footage alone. A professional survey turns “we probably need 9 APs” into a real plan: where each AP goes, how it will be cabled, what switch power is needed, and whether coverage/capacity will meet the business requirement.

Floor Plan Review

Confirm square footage, rooms, ceilings, walls, and high-use zones.

Coverage Model

Estimate AP count and likely mounting locations before cabling.

On-Site Validation

Check signal, noise, wall attenuation, and interference conditions.

Cabling Plan

Map cable paths, IDF/MDF locations, PoE switches, and access constraints.

Install + Test

Mount APs, certify drops, configure radios, and verify business areas.

Get a site survey if any of these apply:

You have a warehouse, clinic, school, restaurant, hotel, event space, or multi-floor office.
You are installing Wi-Fi 6E or Wi-Fi 7 and want to use 6 GHz coverage reliably.
You have conference rooms, training rooms, dense work areas, POS terminals, roaming tablets, or warehouse scanners.
Your existing Wi-Fi shows dead zones, sticky clients, random drops, slow meetings, or poor roaming.
You need new cable pathways, new PoE switches, Cat6A cabling, or IDF/MDF changes.

The Sales-Critical Answer

If someone asks, “How many APs do we need?” the professional answer is: we can estimate it from square footage and users, but we should confirm it with your floor plan and a site survey before installing cable or buying hardware. That is the difference between a guess and a commercial wireless design.

Frequently Asked Questions

How many access points do I need for 10,000 sq ft?

For a typical commercial office, 10,000 sq ft usually needs about 5 to 8 access points. Open low-density space may need fewer, while clinics, multi-room offices, training areas, restaurants, and heavy-wall buildings may need more. Always validate by user count, wall materials, floors, and site survey.

How many access points per 1,000 sq ft?

A practical office planning range is 0.4 to 0.7 APs per 1,000 sq ft, or roughly one AP per 1,500 to 2,500 sq ft. Dense rooms, concrete walls, high ceilings, and voice or POS requirements can push the count closer to one AP per 1,000 to 1,500 sq ft.

How many users can one wireless access point support?

For planning, use about 25 to 35 active business users per AP in normal offices. Use a lower target for voice, POS, tablets, clinics, and classrooms. Datasheet maximum client counts are association limits, not ideal performance targets.

Can one access point cover an entire floor?

Sometimes, but it is rarely the right commercial design. One AP may cover a small open floor, but it may not provide enough capacity, roaming overlap, conference room performance, or reliable signal through walls. Most commercial floors need multiple APs placed where users actually work.

Do Wi-Fi 6 and Wi-Fi 7 reduce the number of APs needed?

Not automatically. Wi-Fi 6 and Wi-Fi 7 can improve efficiency and throughput, but they do not remove walls, interference, or user density. In 6 GHz designs, coverage can actually require tighter AP spacing because higher-frequency signals have less wall penetration than 2.4 GHz.

Should access points be mounted on the ceiling or wall?

Ceiling mounting is usually best for indoor commercial APs because it gives more even coverage across work areas. Wall mounting can work for some AP models, hotel rooms, outdoor areas, and warehouses, but the AP antenna pattern and mounting instructions should be checked before installation.

What cable should be run to wireless access points?

For new commercial AP cabling, Cat6A is the best long-term choice. It supports 1G, 2.5G, 5G, and 10G Ethernet at full channel distance when installed correctly. Cat6 can work for many APs, but Cat6A gives more headroom for Wi-Fi 6E, Wi-Fi 7, and future multi-gigabit access points.

When is a wireless site survey required?

A wireless site survey is strongly recommended for warehouses, clinics, multi-floor offices, schools, hotels, restaurants, event spaces, and any building with existing Wi-Fi complaints. It is also recommended before major Wi-Fi 6E or Wi-Fi 7 deployments because 6 GHz coverage and multi-gig uplinks need more careful planning.

Related Cablify Resources

Technical References

Cablify Technical Team

Commercial Wireless, Cat6A, and Low-Voltage Cabling Specialists

Cablify designs and installs commercial network cabling, fiber optic, CCTV, access control, and wireless access point infrastructure across Toronto, Mississauga, Brampton, and the Greater Toronto Area. Our team supports AP placement, PoE switch planning, Cat6A cabling, site surveys, and installation for business Wi-Fi environments.

The post How Many Access Points Does a Building Need? WAP Density & Coverage Guide appeared first on Cablify.

2.5GbE, 5GbE & Multi-Gigabit Ethernet Explained

HP — Mon, 04 May 2026 13:14:21 +0000

Standard Ethernet

2.5G

NBASE-T / 2.5GBASE-T

NBASE-T / 5GBASE-T

10G

10GBASE-T

What Is Multi-Gigabit Ethernet?

Multi-Gigabit Ethernet is the collective name for the 2.5Gbps and 5Gbps Ethernet speed tiers that sit between standard Gigabit (1G) and 10 Gigabit (10G). For two decades, commercial Ethernet jumped directly from 1Gbps to 10Gbps — with nothing in between. Multi-Gigabit fills that gap.

The reason these intermediate speeds exist is practical: the jump from 1G to 10G requires expensive new switches, new cables in many cases, and entirely new network cards. For the majority of commercial environments — and nearly all SMB deployments — 10G is significantly more than needed. 2.5G delivers 2.5 times the throughput of standard Gigabit for a fraction of the cost of a 10G upgrade.

Why Now?

Multi-Gigabit has existed as a standard since 2016, but it entered mainstream purchasing in 2023–2025 as multi-gig switch prices dropped from $400+ per port to under $50 per port for unmanaged 2.5G switches. The catalyst is Wi-Fi 6 and Wi-Fi 6E access points, which now routinely aggregate more throughput than a 1G uplink can carry.

The NBASE-T Standard Explained

Multi-Gigabit Ethernet runs on the NBASE-T specification — originally developed by a consortium of Cisco, Aquantia, and others before being ratified by IEEE in 2016 as IEEE 802.3bz. The “N” in NBASE-T stands for the speeds it covers: 2.5GBASE-T and 5GBASE-T.

The critical engineering achievement of NBASE-T is that it achieves 2.5Gbps and 5Gbps throughput over the same Cat5e and Cat6 cabling infrastructure already installed in the world’s commercial buildings. It does this by using advanced DSP (digital signal processing) and forward error correction — the same techniques that allowed Gigabit Ethernet to run over Cat5e when Cat5e was originally spec’d for 100Mbps.

Speed	IEEE Standard	Marketing Name	Year Ratified	Min Cable	Max Distance
100 Mbps	802.3u	Fast Ethernet	1995	Cat5	100m
1 Gbps	802.3ab	Gigabit Ethernet	1999	Cat5e	100m
2.5 Gbps	802.3bz	2.5GBASE-T / NBASE-T	2016	Cat5e	100m
5 Gbps	802.3bz	5GBASE-T / NBASE-T	2016	Cat6	100m
10 Gbps	802.3an	10GBASE-T	2006	Cat6A	100m

Key Distinction

NBASE-T (2.5G / 5G) and 10GBASE-T are different standards. 10GBASE-T requires Cat6A for the full 100m channel. NBASE-T achieves 2.5G over Cat5e and 5G over Cat6 at full 100m distance — making it a true in-place upgrade for legacy cabling plants.

Speed Tiers: 1G vs 2.5G vs 5G vs 10G Compared

All four speeds run over twisted-pair copper, connect with the same RJ-45 plug, and use the same physical port form factor on switches. The difference is purely in what the electronics inside negotiate.

Relative throughput (1G = baseline)

1 Gbps

Baseline — standard today

2.5 Gbps

2.5× faster

Wi-Fi 6 AP uplink sweet spot

5 Gbps

5× faster

Wi-Fi 6E / 7 AP uplink

10 Gbps

10× faster — server / spine

Core / server links

Spec	1G (Gigabit)	2.5G (NBASE-T)	5G (NBASE-T)	10G
Throughput	1,000 Mbps	2,500 Mbps	5,000 Mbps	10,000 Mbps
Real-world file transfer	~112 MB/s	~280 MB/s	~560 MB/s	~1,120 MB/s
Min cable (100m)	Cat5e	Cat5e	Cat6	Cat6A
Backward compatible?	—	Yes — auto-negotiates to 1G	Yes — negotiates to 2.5G / 1G	Yes — all lower speeds
Switch cost per port (2026)	$5–15	$30–60	$40–80	$80–200+
NIC cost (2026)	Built-in on all PCs	$20–45	$35–70	$60–150
Typical use case	Workstations, phones, cameras	Wi-Fi 6 AP uplinks, NAS	Wi-Fi 6E AP uplinks, high-perf NAS	Servers, core switches, storage

Why 2.5GbE Exists: The Wi-Fi 6 Uplink Bottleneck

The single most important driver of multi-gigabit adoption in commercial buildings is the mismatch between Wi-Fi 6 access point throughput and 1G uplink capacity.

A modern enterprise Wi-Fi 6 access point — such as the Cisco Catalyst 9124, Aruba AP-635, or Ubiquiti U6-Pro — aggregates 2.4Gbps to 4.8Gbps of combined radio throughput across its bands. Yet the vast majority of these APs connect to the network through a single Ethernet port. If that port is limited to 1Gbps, you’ve installed a $500 access point and capped it at 40% of its potential throughput on day one.

The Bottleneck Problem
Wi-Fi AP throughput vs. Ethernet uplink capacity

Wi-Fi 5 (802.11ac)

867 Mbps

Max aggregate. 1G uplink is sufficient. No bottleneck.

Wi-Fi 6 (802.11ax)

2.4 Gbps

Max aggregate. 1G uplink is a bottleneck. Needs 2.5G.

Wi-Fi 6E / 7

4.8–9.6 Gbps

Max aggregate. Needs 5G or 10G uplink.

Design Rule of Thumb

For Wi-Fi 6 APs: provision a 2.5G uplink per access point. For Wi-Fi 6E or Wi-Fi 7 APs with a 6GHz radio: provision a 5G uplink. Always check the AP’s datasheet for its uplink port rating before designing switch infrastructure.

Cable Compatibility: Does Cat5e / Cat6 Support 2.5GbE?

This is the question that matters most for retrofit installations. The short answer: yes — with important caveats.

2.5GBASE-T on Existing Cable

Cat5e (installed 2000–2010): Officially supports 2.5GBASE-T to 100m per IEEE 802.3bz. Real-world performance depends on installation quality. A well-installed Cat5e run will typically pass. Degraded or older runs may auto-negotiate down to 1G.
Cat6: Comfortably supports 2.5GBASE-T. Cat6’s improved crosstalk specs and tighter twist rates give it more margin than Cat5e at 2.5G speeds.
Cat6A: Fully supports 2.5G, 5G, and 10G. If running new cable, Cat6A eliminates every speed question for the next 20 years.

5GBASE-T on Existing Cable

Cat5e: Not supported at 100m. Cat5e lacks the bandwidth headroom for 5G at full channel length.
Cat6: Supports 5GBASE-T to 100m per IEEE 802.3bz. Well-installed Cat6 runs will pass channel certification at 5G speeds.
Cat6A: Fully supports 5G to 100m with significant margin remaining.

Cable Type	Bandwidth	Max Speed at 100m	2.5G Support	5G Support	10G Support
Cat5e	100 MHz	2.5 Gbps	Yes ✓	No ✗	No ✗
Cat6	250 MHz	5 Gbps	Yes ✓	Yes ✓	≤55m only
Cat6A	500 MHz	10 Gbps	Yes ✓	Yes ✓	Yes ✓
Cat8	2,000 MHz	40 Gbps (≤30m)	Yes ✓	Yes ✓	Yes ✓

Important: Auto-Negotiation

NBASE-T devices auto-negotiate — they test the link and settle on the highest speed the cable reliably supports. A Cat5e link that can’t maintain 2.5G falls back to 1G automatically. You won’t break anything by trying. For any new installation, always run Cat6A — it eliminates every speed limitation for the full building lifecycle. See our cable speeds comparison guide.

2.5GbE vs 5GbE vs 10GbE: Which Do You Need?

Device / Use Case	Bandwidth Required	Recommended Speed	Min Cable
VoIP phone, IP camera, IoT sensor	<100 Mbps	1G	Cat5e
Workstation (standard office)	100–500 Mbps	1G	Cat5e/Cat6
Wi-Fi 5 (802.11ac) AP uplink	Up to 867 Mbps	1G	Cat5e
Wi-Fi 6 (802.11ax) AP uplink	Up to 2.4 Gbps	2.5G	Cat5e/Cat6
Power user workstation / creative pro	500 Mbps–2 Gbps	2.5G	Cat5e/Cat6
NAS / shared media storage (SMB)	1–4 Gbps	2.5G or 5G	Cat6
Wi-Fi 6E (802.11ax 6GHz) AP uplink	Up to 4.8 Gbps	5G	Cat6
Wi-Fi 7 (802.11be) AP uplink	Up to 9.6 Gbps	10G	Cat6A
Server uplink to core switch	10+ Gbps	10G+	Cat6A / Fiber

Multi-Gigabit Switch Landscape in 2026

Until 2022, multi-gigabit switches were enterprise-only products costing $200–400 per port. The market has fundamentally changed.

Unmanaged 2.5G Switches (Home / Small Office)

Brands like TP-Link, Netgear, and TRENDnet now sell 5–8 port unmanaged 2.5G switches for $80–150 total. These are plug-and-play, require no configuration, and work identically to a Gigabit switch but at 2.5G speeds.

Managed 2.5G / Multi-Gig Switches (SMB / Commercial)

Managed multi-gig switches in the 8–24 port range now start around $300–800. Ubiquiti UniFi, TP-Link Omada, and Netgear ProAV M4350 series all include 2.5G or mixed 2.5G/10G port configurations with VLAN, QoS, and PoE support.

Enterprise Multi-Gig (Cisco / Aruba / Juniper)

Enterprise multi-gig switches from Cisco Catalyst 9200/9300 series, Aruba 6200/6300, and Juniper EX4100 support NBASE-T on every access port — critical for large-scale Wi-Fi 6/6E AP deployments in offices, schools, and healthcare facilities.

Price Trajectory

In 2022, a 2.5G port cost roughly 8–10× a 1G port. In 2026, that ratio has compressed to 3–4×. By 2026–2027, analysts project 2.5G ports will be 1.5–2× the cost of 1G — at which point multi-gig simply becomes the new default for commercial deployments, just as Gigabit replaced Fast Ethernet in the early 2000s.

Real-World Use Cases

Commercial Office — Wi-Fi 6 Deployment

A 4-floor office building installs Wi-Fi 6 APs (Aruba AP-635) at 4 APs per floor, 16 total. Each AP has a 2.5G PoE uplink port. The structured cabling is Cat6 installed in 2015. Rather than re-cabling for 10G, the network team replaces each IDF’s 1G switches with 24-port 2.5G PoE+ managed switches. Total cable re-use: 100%. Investment: ~$1,200 per IDF vs. $4,000+ for a 10G infrastructure change.

SMB with Network-Attached Storage

A 20-person creative agency runs a Synology NAS for shared video project storage. Installing a small 2.5G switch and 2.5G NICs in the 5 primary editing workstations boosts NAS transfer rates from 112 MB/s to 280 MB/s — roughly matching the read/write throughput of modern NVMe RAID arrays in the NAS.

Healthcare / Clinic

A clinic relies on wireless connectivity for medical devices, tablets, and EMR systems. The 1G AP uplinks are saturated during shift change when 60+ devices reconnect simultaneously. Upgrading AP uplinks from 1G to 2.5G — over existing Cat6 cable — resolves the bottleneck without a cabling project.

Hospitality / Hotel

A 200-room hotel installs Wi-Fi 6E APs in corridors and public spaces requiring 5G uplinks. The existing Cat6 cabling throughout the property supports 5GBASE-T. Only the access-layer switches need changing — the cable infrastructure is already sufficient.

Is 2.5GbE Worth It in 2026?

For most commercial environments deploying Wi-Fi 6 or newer access points, or refreshing access-layer switches: yes.

2.5GbE is worth it if:

You are installing or already have Wi-Fi 6 access points and want to avoid uplink bottlenecks
You have Cat5e or Cat6 cabling and cannot justify a full re-cable to Cat6A
You have a NAS or shared storage used by multiple workstations simultaneously
You are refreshing access-layer switches within the next 12–24 months — the cost delta for 2.5G capable switches is now small
You are designing a new commercial installation and want to future-proof the switch tier

2.5GbE may not be necessary if:

Your access points are still Wi-Fi 5 (802.11ac) — a 1G uplink remains sufficient
Every device on your network is a phone, camera, or low-bandwidth IoT sensor
You are already running 10G throughout your infrastructure

New Installation Recommendation

If you are running new cabling today, install Cat6A throughout regardless of your current switch tier. Cat6A supports 2.5G, 5G, and 10G at full 100m. The cable is the expensive, disruptive, long-lived part of the infrastructure — the switches are cheap and easy to replace. Never let switch cost justify under-speccing the cable. See our conduit fill guide and Cat6A installation services.

Frequently Asked Questions

Does Cat5e support 2.5GbE?

Yes. IEEE 802.3bz officially specifies 2.5GBASE-T operation over Cat5e cabling at full 100m channel length. In practice, performance depends on installation quality — a well-installed Cat5e run will support 2.5G. Degraded or older Cat5e runs may fall back to 1G via auto-negotiation. Cat5e does not support 5G at 100m.

What is the difference between NBASE-T and 10GBASE-T?

NBASE-T (IEEE 802.3bz) covers the 2.5Gbps and 5Gbps speed tiers and runs over existing Cat5e and Cat6 cabling. 10GBASE-T (IEEE 802.3an) runs at 10Gbps and requires Cat6A for a full 100m channel. They are different standards with different cable requirements and different port chipsets, though many modern switches support both.

Do I need a 2.5G switch for Wi-Fi 6 access points?

Yes, to use your Wi-Fi 6 APs at full potential. Wi-Fi 6 access points aggregate up to 2.4Gbps of combined radio throughput — more than a 1G uplink can carry. A 2.5G switch port over Cat5e or Cat6 removes that bottleneck at minimal additional cost. For Wi-Fi 6E APs with a 6GHz radio, a 5G uplink is the correct specification.

Is 2.5GbE backward compatible with 1G devices?

Yes. NBASE-T ports auto-negotiate — they automatically operate at the highest speed both devices support. A 2.5G switch port connected to a 1G NIC will negotiate to 1G and function normally with no configuration changes required. This makes multi-gig switches a drop-in replacement for existing 1G infrastructure.

Does Cat6 support 5GbE?

Yes. IEEE 802.3bz specifies 5GBASE-T operation over Cat6 cabling at full 100m channel length. Cat6’s 250MHz bandwidth specification provides sufficient headroom. Cat5e does not support 5G at 100m. For new installations targeting 5G or 10G, Cat6A is the professional specification as it supports all speeds to 100m with significant margin.

How much faster is 2.5GbE than Gigabit in real-world use?

2.5GbE delivers approximately 280 MB/s of real-world file transfer throughput, compared to ~112 MB/s on Gigabit — a 2.5× improvement. A 10GB video file transfer takes roughly 36 seconds on 2.5G versus 90 seconds on 1G. The difference is most noticeable in multi-user shared storage environments and in wireless environments where many clients are simultaneously active on a Wi-Fi 6 access point.

What cable should I run for a new multi-gigabit installation?

Always run Cat6A for any new commercial structured cabling installation targeting 2.5G, 5G, or 10G speeds. Cat6A supports all NBASE-T speeds plus 10GBASE-T at full 100m channel length with significant bandwidth headroom remaining. It also handles PoE++ thermal loads better than Cat6. The cable is the most expensive and disruptive part of any network installation — always specify Cat6A so the infrastructure is not the limiting factor for the next 15–20 years.

Related Resources

Cablify Technical Team

Commercial Cabling Specialists — Toronto & GTA

Cablify designs and installs commercial network cabling, fiber optic, CCTV, and structured cabling infrastructure across Toronto, Mississauga, Brampton, and the Greater Toronto Area. All structured cabling installations are ANSI/TIA-568 compliant with full channel certification at Cat6 or Cat6A performance.

The post 2.5GbE, 5GbE & Multi-Gigabit Ethernet Explained appeared first on Cablify.

How to Isolate CCTV Cameras from Your Office Network Using VLANs — And Why Every Business with 10+ Cameras Needs to Do This

HP — Sun, 03 May 2026 22:12:01 +0000

Picture this: your team is in the middle of an important video call, file transfers are crawling, and your VoIP phones keep dropping. Meanwhile, your IT manager is staring at a network monitor wondering where all the bandwidth went. The answer? Your 24 IP security cameras are streaming 1080p footage 24 hours a day — directly onto the same network your staff uses to run the business.

This is one of the most common and costly networking mistakes we see in commercial buildings across the GTA. IP cameras are powerful, affordable, and easy to install — but almost no one tells you that mixing surveillance traffic with corporate data traffic on the same flat network is a recipe for poor performance, security vulnerabilities, and escalating troubleshooting costs.

The fix is a CCTV VLAN: a dedicated, logically isolated segment of your network where your cameras and NVR live completely separate from everything else. In this guide, we’ll explain what a CCTV VLAN is, why it matters, and walk you through exactly how to set one up — step by step.

Why IP Cameras Don’t Belong on Your Main Office Network

When your office network was first set up, it was probably designed around workstations, printers, and maybe a server or two. Adding 10, 20, or 30 IP cameras to that same network without any segmentation creates three serious problems.

1. Bandwidth Saturation

A single 1080p IP camera streaming continuously at 2 Mbps doesn’t sound like much. But multiply that by 20 cameras and you’re pushing 40 Mbps of constant background traffic on a network that your staff is also using for Microsoft Teams calls, cloud backups, and file sharing. At 4K resolution, that number climbs past 80 Mbps. On a 100 Mbps uplink to your core switch, surveillance traffic can consume the majority of your available capacity before the business day even starts.

2. Security Exposure

IP cameras are notoriously among the least secure devices on any network. Most run embedded firmware that rarely gets updated, many ship with default credentials that never get changed, and a growing number communicate with manufacturer cloud servers in China and other jurisdictions with unclear data handling practices. When these cameras sit on your corporate LAN, a compromised camera becomes a foothold inside your network — with direct access to servers, shared drives, and workstations. VLAN isolation removes that risk entirely.

3. Broadcast Storm Risk

Cameras that malfunction or are misconfigured can trigger broadcast storms — flooding the network with traffic that every device has to process. On a flat, unsegmented network, a single misbehaving camera can take down your entire office. On an isolated VLAN, the storm stays contained within the camera segment and your business operations continue unaffected.

What Is a VLAN? (Plain-Language Explanation)

A VLAN — Virtual Local Area Network — is a way of dividing a single physical network switch into multiple logically separate networks. Think of it like having two completely different buildings inside one physical office, with a security guard at the door between them controlling exactly who can pass through and when.

Devices on VLAN 10 (your corporate network) cannot see or talk to devices on VLAN 20 (your CCTV network) unless you explicitly create a rule allowing that communication. From a traffic and security standpoint, they behave like entirely separate networks — even though they share the same physical switches and cabling infrastructure.

VLANs are configured on managed switches using VLAN IDs (numbers between 1 and 4094). Common CCTV VLAN IDs used in commercial deployments include VLAN 30, 40, or 50 — keeping them clearly separate from the default VLAN 1 (which should never be used for production traffic).

What You Need Before You Start

VLAN isolation requires managed switching. Here’s what your infrastructure needs to include before you can implement this properly:

A managed Layer 2 switch — Unmanaged switches have no VLAN capability whatsoever. You need a managed switch from a brand like Cisco (CBS350 series), Ubiquiti UniFi (USW-24-PoE), NETGEAR (GS724TP), or TP-Link Omada (TL-SG3428). This is the non-negotiable hardware requirement.
A PoE managed switch for cameras — In most commercial CCTV deployments, cameras are powered via Power over Ethernet. Your managed switch must support PoE or PoE+ (802.3af or 802.3at) with sufficient power budget for all connected cameras. Calculate 15–25W per camera for standard IP cameras, 25–30W for PTZ cameras.
A router or Layer 3 switch with VLAN routing capability — This is what enforces the firewall rules between VLANs and controls which traffic is allowed to cross from the CCTV segment to the corporate segment (or the internet).
An NVR (Network Video Recorder) or VMS server — This is the device that receives, records, and manages footage from your cameras. Its placement within the VLAN design is critical, as discussed below.
Cat6 or Cat6A cabling — For PoE camera runs, always use Cat6 or Cat6A. Cat5e is technically capable but leaves no headroom for PoE+ power delivery over longer runs. Keep all camera cable runs under 90 metres.

Step-by-Step: How to Set Up a CCTV VLAN for Your Business

The following walkthrough covers the logical process for any managed switch environment. Exact menu paths vary slightly between Cisco, Ubiquiti, NETGEAR, and TP-Link, but the underlying steps are identical across all platforms.

Step 1: Plan Your VLAN ID and IP Address Scheme

Before touching any switch configuration, document your design on paper. Good VLAN planning prevents mistakes that are painful to undo after cameras are installed.

A typical commercial deployment might look like this:

VLAN 10 — Corporate LAN: 192.168.10.0/24
VLAN 20 — Guest Wi-Fi: 192.168.20.0/24
VLAN 30 — CCTV / Surveillance: 192.168.30.0/24
VLAN 40 — VoIP phones: 192.168.40.0/24

Assign your cameras static IP addresses within the CCTV VLAN subnet (e.g., 192.168.30.10 through 192.168.30.50). Static IPs on cameras are strongly recommended over DHCP — cameras moving IP addresses causes NVR recording gaps that are difficult to diagnose.

Step 2: Create the CCTV VLAN on Your Managed Switch

Log into your managed switch’s administration interface and create a new VLAN entry with your chosen VLAN ID (e.g., VLAN 30) and a descriptive name such as “CCTV-Surveillance.” Save this to the VLAN database. At this stage, the VLAN exists but no ports are assigned to it yet.

Step 3: Configure Camera Ports as Access Ports

Each physical port on your switch that a camera connects to must be configured as an access port assigned to VLAN 30. An access port belongs to exactly one VLAN and strips VLAN tags before forwarding traffic to the connected device (the camera doesn’t need to know anything about VLANs — it just sees a network it can communicate on).

In Cisco CLI, this looks like:

interface FastEthernet0/3
 switchport mode access
 switchport access vlan 30

In Ubiquiti UniFi, you assign the port profile “CCTV” to each camera port through the switch port settings panel. In TP-Link Omada, you set Port VLAN to PVID 30 on each camera port.

Step 4: Configure the Trunk Port Toward Your Router or Core Switch

The uplink port connecting your CCTV switch to your core switch or router must be a trunk port — a port that carries traffic from multiple VLANs simultaneously using 802.1Q VLAN tagging. Configure this uplink to allow both your corporate VLAN and your CCTV VLAN to pass through.

interface GigabitEthernet0/1
 switchport mode trunk
 switchport trunk allowed vlan 10,30

If your cameras are on a dedicated PoE switch that connects upward to a core switch, that inter-switch link is your trunk. Every VLAN that needs to travel between switches must be explicitly allowed on the trunk — VLANs not listed are blocked by default.

Step 5: Place Your NVR on the CCTV VLAN

This is where many installers make a critical error: they put the NVR on the corporate LAN (VLAN 10) and the cameras on the CCTV VLAN (VLAN 30), then wonder why the NVR can’t pull footage. For cameras and NVR to communicate, they need to be on the same VLAN — or you need an explicit inter-VLAN routing rule permitting NVR-to-camera traffic.

The cleanest architecture for most commercial deployments is to place the NVR on VLAN 30 alongside the cameras. The NVR records directly from cameras on the same VLAN, and only NVR management traffic (port 8000, 8080, or RTSP) is allowed to cross from the corporate LAN into the CCTV VLAN so that authorised staff can view footage.

Step 6: Configure Firewall Rules to Block Cross-VLAN Traffic

VLANs alone provide Layer 2 isolation — devices on different VLANs cannot communicate directly. But if your router or Layer 3 switch is performing inter-VLAN routing, traffic can potentially cross between VLANs at Layer 3 unless firewall rules explicitly block it.

The rule set you need for CCTV isolation is straightforward:

Block all traffic from VLAN 30 to VLAN 10 — cameras should never initiate connections to your corporate network.
Block all traffic from VLAN 30 to the internet — unless your cameras absolutely require cloud connectivity (which most enterprise IP cameras do not). Blocking outbound internet from the CCTV VLAN prevents camera firmware from phoning home to manufacturer servers.
Allow VLAN 10 to reach NVR management ports on VLAN 30 — this lets authorised staff access live feeds and recordings from their workstations.
Allow NTP traffic from VLAN 30 — cameras and NVRs need accurate time synchronisation. Allow UDP port 123 outbound from the CCTV VLAN to your NTP server or an internal time source.

In Ubiquiti UniFi, this is done through Traffic Rules or the Firewall Rules panel under LAN In. In Cisco IOS, you apply ACLs on the VLAN interface. In TP-Link Omada, you configure ACL rules between the CCTV and LAN networks.

Step 7: Test and Verify Isolation

After configuration, always verify that your VLAN isolation is actually working — not just assumed to be working. From a workstation on VLAN 10, try to ping a camera IP on VLAN 30. If the firewall rules are correct, the ping should fail. Then confirm you can still reach the NVR management interface from VLAN 10. Then verify from a camera IP that you cannot ping any device on VLAN 10.

Document every test result. This documentation matters for compliance, insurance, and future troubleshooting.

Add QoS to Prioritise Camera Traffic Within the CCTV VLAN

VLAN isolation solves the bandwidth competition problem between cameras and corporate traffic. But within the CCTV VLAN itself — particularly in large deployments with 20 or more cameras — Quality of Service (QoS) ensures that video streams reach the NVR without packet loss or jitter, even during periods of peak traffic.

On your managed PoE switch, configure DSCP marking for camera traffic to prioritise video streams over any management traffic on the same VLAN. Most commercial IP cameras support DSCP marking in their network configuration. Set camera video traffic to DSCP 46 (Expedited Forwarding) and configure your switch’s QoS queuing to honour these markings.

This is particularly important for high-camera-count deployments where multiple cameras share an uplink — for example, 12 cameras feeding through a 1 Gbps uplink to your NVR. Without QoS, burst traffic from motion events on multiple cameras can cause brief queuing that results in dropped frames and recording gaps.

Physical Isolation vs. VLAN Isolation: Which Is Right for Your Business?

Some commercial deployments — particularly those with strict security requirements such as financial institutions, data centres, and government facilities — opt for physical network isolation rather than logical VLAN isolation. This means deploying a completely separate physical switch, separate cabling infrastructure, and a separate NVR with no connection to the corporate network whatsoever.

Physical isolation is more expensive (it essentially doubles your switching infrastructure) but is provably more secure. There is no risk of VLAN misconfiguration, no inter-VLAN routing rule that could accidentally allow traffic through, and no shared physical medium between corporate and surveillance networks.

For most commercial deployments with 10–50 cameras, VLAN isolation on a quality managed switch provides an excellent balance of security, cost, and manageability. Physical isolation becomes worth the investment when your compliance obligations or threat model require it.

Common Mistakes That Defeat VLAN Isolation (And How to Avoid Them)

Leaving cameras on the native VLAN (VLAN 1): VLAN 1 is the default VLAN on all managed switches and is often not properly secured. Never use VLAN 1 for any production traffic, including cameras.
Using an unmanaged PoE switch for cameras connected to a managed core switch: Traffic entering through an unmanaged switch arrives untagged on whatever VLAN the access port is configured for. This can work — but only if you understand exactly how your upstream managed switch handles it. Mixing managed and unmanaged switches in CCTV deployments is a source of hard-to-diagnose failures.
Forgetting to restrict outbound internet access from the CCTV VLAN: VLAN isolation protects your corporate network from cameras. Blocking outbound internet protects your camera footage from leaving your premises. Both rules are needed.
Skipping the verification step: Assuming VLANs are working without testing is how security misconfiguration stays hidden for months. Always test isolation before signing off on an installation.
Not documenting the VLAN design: Three months after installation, someone adds a new camera, plugs it into a corporate LAN port, and wonders why the NVR doesn’t pick it up. A documented VLAN map and port assignment sheet prevents this.

Frequently Asked Questions

Do I need a managed switch just for CCTV VLAN isolation?

Yes. There is no way to implement VLANs on an unmanaged switch — they have no VLAN configuration capability. If your current CCTV installation uses an unmanaged PoE switch, you will need to replace it with a managed switch to implement isolation. This is one of the most common infrastructure upgrades we perform for businesses that have grown their camera count beyond 5–10 units.

Can I use a Cisco Catalyst switch for CCTV VLANs?

Absolutely. Cisco Catalyst switches — including the popular CBS350 series designed for small and medium businesses — are excellent choices for CCTV VLAN deployments. They offer robust VLAN support, strong PoE power budgets, and detailed per-port power monitoring that is invaluable for managing large camera deployments. Cablify has extensive experience designing and deploying Cisco-based CCTV network infrastructure across the GTA.

How many cameras can one PoE switch support?

This depends on two factors: port count and PoE power budget. A 24-port switch with a 370W PoE budget can comfortably power 24 cameras drawing 15W each. Add higher-wattage PTZ cameras and that number drops. Always calculate your total power draw before specifying a switch — and leave at least 20% headroom for cable length derating and power delivery losses.

Will VLAN isolation affect remote viewing of my cameras?

No — when configured correctly, remote viewing through your VPN or NVR’s remote access feature works exactly as before. Your IT administrator or network installer needs to ensure the NVR’s remote access ports are accessible through the firewall, but VLAN isolation does not break remote viewing. It just controls which devices on your internal network can reach the camera VLAN directly.

Is VLAN isolation enough to fully secure my CCTV system?

VLAN isolation is an essential and highly effective first layer of security. For comprehensive CCTV network security, pair it with strong camera passwords, regular firmware updates, blocking internet access from the CCTV VLAN, and physical security on your network rack. For high-security environments, physical network isolation or additional intrusion detection may be appropriate.

Ready to Isolate Your CCTV Network the Right Way?

Properly isolating your IP camera infrastructure from your corporate network is not a luxury — it’s a fundamental requirement for any commercial CCTV deployment with 10 or more cameras. The performance gains, security improvements, and operational stability that come from a well-designed CCTV VLAN pay for themselves quickly in reduced downtime, fewer network complaints, and a surveillance system that simply works reliably.

At Cablify, we design and install commercial network infrastructure across the Greater Toronto Area — including structured cabling, managed switching, PoE camera systems, and complete CCTV network segmentation projects. Whether you’re starting from scratch or upgrading an existing flat-network camera installation, our team brings the technical depth to do it right the first time.

Contact Cablify today for a free consultation on your CCTV network infrastructure. We’ll assess your current setup, identify segmentation gaps, and design a solution that protects your business and your surveillance investment.

The post How to Isolate CCTV Cameras from Your Office Network Using VLANs — And Why Every Business with 10+ Cameras Needs to Do This appeared first on Cablify.

UTP vs FTP vs STP vs SFTP: Cable Shielding Types Explained

HP — Fri, 01 May 2026 14:08:58 +0000

UTP

Unshielded Twisted Pair

FTP

Foil-Shielded (overall)

STP

Individual Pair Shielded

SFTP

Braid + Foil Shielded

How Ethernet Cable Shielding Works

Every ethernet cable carries data as differential electrical signals on twisted wire pairs. The twisting itself provides the first line of defence against interference — equal and opposite signals cancel out noise that hits both wires equally. But in high-interference environments, twisting alone isn’t enough. That’s where shielding comes in.

Shielding is a conductive layer — foil, braided wire, or both — placed around the twisted pairs to intercept, absorb, and redirect electromagnetic energy before it can corrupt the signal.

The Two Types of Interference Shielding Addresses

EMI (Electromagnetic Interference): External noise from motors, generators, fluorescent lighting, HVAC systems, MRI machines, industrial equipment, and radio transmitters. EMI induces voltage in nearby cables, corrupting the signal. Shielding blocks this external noise from reaching the conductors.
Crosstalk (NEXT/FEXT): Noise that bleeds between pairs within the same cable bundle. At high frequencies (10Gbps+), pair-to-pair crosstalk becomes the dominant performance limiter. Individual pair shielding eliminates this by isolating each pair in its own Faraday cage.

The Faraday Cage Principle

A shielding layer acts as a Faraday cage — an enclosure of conductive material that distributes electromagnetic charges around its exterior, cancelling the field inside. For shielding to work, the cage must be continuous and properly grounded. A broken or ungrounded shield is often worse than no shield at all, as it can act as an antenna and amplify interference.

How the Shield Redirects Energy

When an electromagnetic field encounters the shield, three things happen simultaneously: part of the energy is reflected away from the cable, part is absorbed and converted to heat in the conductive layer, and the remainder passes through — attenuated. The effectiveness of this process depends on the shield material, thickness, coverage percentage, and critically, whether the drain wire is properly terminated at both ends.

The Drain Wire

All shielded cables include a drain wire — an uninsulated conductor that runs in contact with the foil shield along the full length of the cable. The drain wire provides the continuous electrical connection needed to ground the shield. Without a properly terminated drain wire, the shield cannot function. In installations where the drain wire is left unconnected at one or both ends, the cable may fail channel certification even though the physical shielding is intact.

The ISO/IEC 11801 Naming System Explained

The cable shielding naming system is frequently misused in the field. Terms like “STP” and “FTP” are often used interchangeably — incorrectly. The definitive reference is the ISO/IEC 11801 standard, which defines a two-part naming convention that precisely describes the shielding on both the overall cable and the individual pairs.

Format

XX/YZZ

The full ISO 11801 designation. Two parts separated by a slash.

XX = Overall Shield

U / F / S / SF

U = Unshielded • F = Foil • S = Braid • SF = Braid + Foil

YZZ = Pair Shield

UTP / FTP / STP

U = Unshielded pairs • F = Foil per pair • S = Braid per pair

ISO 11801 Code	Common Name	Overall Shield	Per-Pair Shield	Typical Use
U/UTP	UTP	None	None	Office, home, standard LAN
F/UTP	FTP / ScTP	Overall foil	None	Light industrial, some offices
U/FTP	STP (loose usage)	None	Foil per pair	10GBase-T, data centres
F/FTP	FTP / FFTP	Overall foil	Foil per pair	High-interference industrial
S/FTP	SFTP / PiMF	Overall braid	Foil per pair	Severe EMI, Cat7/Cat8
SF/FTP	SFTP (full)	Braid + foil	Foil per pair	Extreme EMI, Cat8 data centres

Industry Naming Confusion

“STP” is one of the most misused terms in networking. In ISO 11801, STP strictly means a cable with a braided shield per pair and no overall shield (U/STP) — a configuration almost never used in practice. What most installers call “STP” is actually S/FTP or F/UTP. When ordering cable, always specify the ISO code (e.g., U/FTP Cat6A) rather than relying on common names to avoid receiving the wrong product.

UTP — Unshielded Twisted Pair (U/UTP)

UTP is the global standard for ethernet cabling in commercial and residential environments. It relies entirely on the physics of twisted pairs — the twist rate varies between pairs within the cable to differentiate their resonant frequencies and minimise crosstalk. No metallic shielding layer is present.

U/UTP

UTP

Unshielded Twisted Pair

EMI Protection Level

Overall shield: None

Per-pair shield: None

Grounding required: No

Max speed: 10GbE (Cat6A)

Flexibility: Excellent

Cost: Lowest

officeshomesschoolsretail

Why UTP Works in Most Buildings

Modern commercial buildings are surprisingly clean electromagnetic environments. Steel framing, concrete structure, and distance from industrial equipment keep ambient EMI levels low enough that UTP’s inherent crosstalk rejection handles the job. The vast majority of corporate office networks, school networks, retail installations, and residential structured cabling use U/UTP Cat6 or Cat6A — and perform perfectly for decades.

When to Choose UTP

Use UTP when: the building has no significant EMI sources (motors, generators, fluorescent lighting on the same circuit runs, RF transmitters), cable runs don’t pass near electrical panels or HVAC equipment, and the environment is standard office or commercial space. This covers approximately 80% of commercial ethernet installations.

UTP Advantages

Lowest cost per metre — typically 20–40% cheaper than equivalent shielded cable
Lightest and most flexible — easier to pull through conduit and route in tight spaces
No grounding infrastructure required — eliminates a significant installation complexity
No ground loop risk — improper grounding of shielded cable can introduce more noise than it eliminates
Compatible with all standard RJ45 termination equipment and patch panels
Easier field termination — no drain wire to manage, less jacket to strip

UTP Limitations

No protection against external EMI fields — vulnerable near motors, generators, VFDs
Not suitable for outdoor or direct-burial installation without additional protection
Cannot be used in environments requiring EMC compliance for sensitive equipment

FTP / F/UTP — Overall Foil Shield

F/UTP (commonly called FTP or ScTP — Screened Twisted Pair) adds a single metallic foil layer wrapped around all four pairs together, beneath the outer jacket. The pairs themselves remain unshielded. A drain wire runs in contact with the foil along the cable’s full length.

F/UTP

FTP

Foil-Shielded Twisted Pair

EMI Protection Level

Overall shield: Aluminium foil

Per-pair shield: None

Grounding required: Yes — at both ends

Max speed: 10GbE (Cat6A FTP)

Flexibility: Good

Cost: Moderate

light industrialhospitalsfactories

What the Overall Foil Protects Against

The foil layer is highly effective at blocking high-frequency EMI — radio frequency interference (RFI) from transmitters, microwave equipment, and other RF sources. It provides moderate protection against lower-frequency EMI from motors and fluorescent lighting. What it does not address is pair-to-pair crosstalk — because the pairs inside the shield remain unshielded relative to each other.

The Ground Loop Risk

F/UTP must be grounded at both ends to function correctly. However, grounding at both ends in buildings with different ground potential creates a ground loop — a circulating current in the shield that introduces hum and noise into the very signal it’s supposed to protect. Proper installation requires either a single-point ground or equipment with ground loop isolation. This is the most common cause of FTP installation failures in the field.

FTP Typical Applications

Hospital environments with sensitive medical equipment
Light manufacturing areas where motors run near cable trays
Environments near large fluorescent or LED driver arrays
Outdoor runs in conduit where RF ingress is a concern
Government or military facilities requiring EMC compliance

U/FTP — Individually Foil-Shielded Pairs (often called STP)

U/FTP has no overall shield, but wraps each of the four pairs in its own individual foil layer. This configuration directly targets pair-to-pair crosstalk (NEXT and FEXT) by isolating each pair in its own Faraday cage. It is the dominant configuration for Cat6A 10GbE and higher-performance applications.

U/FTP

STP

Individually Foil-Shielded Pairs

EMI Protection Level

Overall shield: None

Per-pair shield: Foil on each pair

Grounding required: Yes — drain wire per pair

Max speed: 25/40GbE (Cat8)

Flexibility: Moderate

Cost: Moderate-high

data centres10GbE runsCat7

Why U/FTP Dominates High-Speed Installations

At 10Gbps (Cat6A) and above, alien crosstalk — interference between cables in adjacent bundles — becomes the primary performance constraint. Individual pair shielding eliminates the internal crosstalk component entirely, allowing the cable to meet channel performance specifications over longer runs and in larger bundles without the aggressive bundle size restrictions imposed on U/UTP Cat6A.

U/FTP Cat6A cables are also typically smaller in diameter than U/UTP Cat6A (which uses a thick inner separator to manage crosstalk), making them significantly easier to pull in congested pathways and more conduit-efficient.

Data Centre Note

In structured cabling for data centres, U/FTP Cat6A or S/FTP Cat7 is the professional recommendation — not because EMI is necessarily a concern, but because individual pair shielding eliminates alien crosstalk and enables higher port densities in patch panels and cable trays without performance degradation.

S/FTP & SF/FTP — Braid + Foil (SFTP)

S/FTP combines an overall braided shield with individual foil shielding on each pair. SF/FTP adds an additional overall foil layer beneath the braid. These are the highest-performance shielding configurations, used in severe EMI environments, Cat7, Cat7A, and Cat8 cable specifications.

S/FTP • SF/FTP

SFTP

Screened + Foil-Shielded Pairs

EMI Protection Level

Overall shield: Braided copper (+ foil on SF/FTP)

Per-pair shield: Foil on each pair

Grounding required: Yes — critical

Max speed: 25/40GbE (Cat8)

Flexibility: Reduced

Cost: Highest

Cat7/Cat8severe EMIindustrialMRI

The Braid Shield Advantage

Where foil shields are thin and effective against high-frequency interference, braided shields add low-frequency EMI rejection, mechanical durability, and significantly higher coverage percentages (typically 85–98% vs. foil’s near-100% for HF but lower LF effectiveness). The combination of braid + per-pair foil delivers attenuation across the full frequency spectrum — from 50Hz power-frequency hum to multi-GHz RF.

When SFTP is Required

Within or adjacent to MRI suites — the RF pulses and gradient fields are intense enough to corrupt any unshielded cable
Industrial factory floors with large VFDs (Variable Frequency Drives), CNC machines, or arc welders
Broadcasting facilities with high-power transmitters in the building
Military and government secure facilities with strict TEMPEST/EMC requirements
Cable runs within or adjacent to elevator shafts (strong motor fields)
Cat7 and Cat8 specifications — both mandate S/FTP or SF/FTP construction by design

The Termination Challenge

SFTP cable requires shielded RJ45 connectors (or GG45/TERA for Cat7/7A) with proper 360° shield termination. Standard unshielded keystones and patch panels cannot be used. The braided drain must be terminated with a full-circumference connection to the connector shell — pigtail grounding (wrapping the drain wire around a pin) reduces shield effectiveness by up to 90% at high frequencies and is a code violation in most jurisdictions.

Full Comparison: All 4 Shielding Types

Attribute	UTP (U/UTP)	FTP (F/UTP)	STP (U/FTP)	SFTP (S/FTP)
ISO Code	U/UTP	F/UTP	U/FTP	S/FTP or SF/FTP
Overall Shield	None	Aluminium foil	None	Copper braid (+ foil)
Per-Pair Shield	None	None	Foil per pair	Foil per pair
EMI Protection	Basic (twist only)	Moderate (HF EMI)	Good (crosstalk + EMI)	Maximum (full spectrum)
Crosstalk Rejection	Twist-based only	Twist-based only	Excellent (per-pair foil)	Excellent (per-pair foil)
Grounding Required	No	Yes — both ends	Yes — both ends	Yes — critical, both ends
Ground Loop Risk	None	Yes — if improperly grounded	Yes — if improperly grounded	Yes — if improperly grounded
Connector Type	Standard RJ45	Shielded RJ45	Shielded RJ45	Shielded RJ45 / GG45
Cable Diameter (Cat6A)	7–8mm (large)	6–7mm	6–6.5mm (slim)	7–9mm (large)
Weight	Lightest	Light	Moderate	Heaviest
Flexibility	Best	Good	Good	Reduced
Relative Cost	1x (baseline)	1.3–1.5x	1.4–1.7x	2–3x
Best For	Standard offices, homes	Light industrial, hospitals	Data centres, 10GbE	Severe EMI, Cat7/8

Noise Attenuation
Shield Effectiveness by Interference Type

U/UTP

External EMI

RF Interference

Pair Crosstalk

Low-Freq Noise

F/UTP

External EMI

RF Interference

Pair Crosstalk

Low-Freq Noise

U/FTP

External EMI

RF Interference

Pair Crosstalk

Low-Freq Noise

S/FTP

External EMI

RF Interference

Pair Crosstalk

Low-Freq Noise

Which Cable Do You Need? Environment Guide

🏢

Corporate Office

U/UTP Cat6A

Clean EMI environment, standard Cat6A UTP handles 10GbE with no issues. Shielding adds cost and complexity for no benefit.

🏠

Residential / Home

U/UTP Cat6

No EMI concerns. UTP Cat6 is more than sufficient for gigabit home networks. Cat6A if future-proofing.

🏥

Hospital / Medical Facility

F/UTP Cat6A

Medical equipment can generate EMI. FTP provides protection without the complexity of full SFTP. MRI suites require S/FTP.

🏭

Light Manufacturing

F/UTP or U/FTP Cat6A

Motors and equipment create moderate EMI. FTP for EMI protection, U/FTP if crosstalk from cable density is also a concern.

⚡

Heavy Industrial / Factory

S/FTP Cat7

VFDs, arc welders, large motors. Only braid + foil shielding provides sufficient protection. Conduit additionally recommended.

🏢

Data Centre

U/FTP Cat6A

High cable density requires per-pair shielding to manage alien crosstalk. U/FTP is thinner than U/UTP Cat6A, improving conduit efficiency.

📺

Broadcast / AV Facility

F/UTP or S/FTP

RF transmitters and mixing equipment require shielding. F/UTP minimum; S/FTP near transmitters or in studios with RF exposure.

🏠

MRI Suite / Radiology

S/FTP Cat7

MRI gradient fields and RF pulses are among the most intense EMI sources in any building. Only S/FTP provides adequate protection.

⏬

Elevator / Lift Shaft

F/UTP or S/FTP

Elevator motors create significant EMI. Any cable running in or adjacent to shaft should be at minimum FTP. Use S/FTP for high-traffic installations.

🌄

Outdoor / Direct Burial

Outdoor-rated UTP or FTP

Use outdoor-rated (CMX/OSP) jacket regardless of shielding. FTP if run near exterior lighting or antenna systems.

🏫

School / Education

U/UTP Cat6A

Standard commercial environment. UTP Cat6A supports 10GbE and handles classroom density without shielding.

✈

Airport / Transport Hub

F/UTP Cat6A

Radar, radio, and navigation equipment creates ambient RF. FTP recommended for all horizontal runs. S/FTP near radar equipment.

Interactive Shielding Recommendation Tool

🔎 Tool
Cable Shielding Recommendation Tool

Answer the questions below and get an instant shielding recommendation with the ISO cable code.

Site Conditions

Environment Type

Nearby EMI Sources

Required Speed / Category

Cable Bundle Density

U/UTP

Unshielded Twisted Pair

Recommended Category

Cat6A

Connector Required

Standard RJ45

Grounding Required

No

Cost Premium

Baseline

Standard office environment with no significant EMI sources. U/UTP Cat6A is the correct and most cost-effective choice.

Get a Cabling Quote →

Grounding: The Critical Requirement Nobody Mentions

Shielded cable that isn’t properly grounded doesn’t just fail to protect — it can actively make interference worse. The shield becomes an antenna, picking up EMI and capacitively coupling it into the pairs it was meant to protect.

The Single-Point vs. Both-Ends Grounding Debate

There are two valid grounding approaches, and choosing the wrong one for your installation is the single most common cause of shielded cable failures:

Single-point grounding (one end only): Eliminates ground loop risk by breaking the circuit between the two ground references. Used when the two ends of the cable are at different buildings or different electrical systems. The shield still provides protection against high-frequency EMI through capacitive coupling, but is less effective at low frequencies.
Both-ends grounding: Provides maximum shield effectiveness across the full frequency spectrum. Required by TIA-568 for most commercial installations. Only works correctly when both ends are at the same ground potential — meaning the same electrical distribution system. If there is any ground potential difference, a circulating current flows through the shield and introduces hum.

Ground Potential Difference

If you measure AC voltage between the shield ground at the patch panel and the shield ground at the outlet, any reading above 1V indicates a ground potential difference that will cause ground loop hum. This is common in older buildings with poor bonding, in buildings with multiple electrical services, and in any installation spanning separate buildings. Test before committing to a both-ends ground configuration.

Proper Shield Termination at the Connector

The shield must make 360° contact with the connector’s metallic shell. This means:

Using shielded RJ45 plugs and keystone jacks with a metallic housing
Folding the foil back over the cable jacket and clamping it under the connector’s shield clamp — not wrapping the drain wire around a pin
For braided shields: the braid must be folded back and captured in the connector’s clamp, not trimmed away
Shielded patch panels must be bonded to the rack, which must be bonded to the building ground bus

Grounding the Rack Infrastructure

For shielded cabling to function as a system, the entire infrastructure must be grounded: shielded patch panels connect to shielded patch cords, which connect to shielded switch ports. A single unshielded component in the chain breaks the Faraday cage and eliminates the protection.

7 Common Shielding Mistakes

Mistake #1: Using Shielded Cable Without Grounding It

This is the most common and most damaging mistake. Ungrounded shielded cable acts as an antenna, often performing worse than UTP in the same environment. Every shielded installation requires a verified ground path from shield to earth at the correct termination points.

Mistake #2: Pigtail Grounding Instead of 360° Termination

Wrapping the drain wire around a connector pin (pigtail ground) creates a high-impedance connection that is essentially useless above a few MHz. At 100MHz — the Cat5e frequency ceiling — a pigtail ground has near-zero effectiveness. All shielded connectors must use circumferential clamp termination.

Mistake #3: Mixing Shielded Cable with Unshielded Connectors

Using F/UTP cable terminated into standard unshielded keystones eliminates the shield at every termination point. The shield exists only in the cable run itself but is not connected to anything. This provides essentially no benefit over UTP.

Mistake #4: Specifying Shielded Cable in Clean Environments

Shielded cable in a clean office environment adds 20–40% material cost, requires more time to terminate correctly, increases ground loop risk, and provides zero performance benefit over UTP. Specify shielding only where EMI measurement or environmental assessment confirms a need.

Mistake #5: Not Testing for Ground Loops After Installation

A ground loop manifests as a 50/60Hz hum on audio circuits and as degraded BER on ethernet links. After any shielded installation, verify ground continuity and measure ground potential difference between termination points before commissioning. A time-domain reflectometer (TDR) test alone will not reveal ground loop issues.

Mistake #6: Using the Wrong Category for the Application

Specifying S/FTP Cat7 for an office environment is common over-engineering. The shielded connectors (GG45 or TERA) required for Cat7 are expensive, fragile, and require specialist termination. For most installations requiring shielded cable, F/UTP or U/FTP Cat6A with standard shielded RJ45 is technically sufficient and far more practical.

Mistake #7: Not Maintaining the Shield Through Conduit Transitions

When shielded cable transitions through metallic conduit fittings, the conduit must be properly bonded to the cable’s shield ground. An interruption in the grounding path at a conduit entry point — such as a plastic bushing inserted to protect the cable jacket — can break the ground circuit if the plastic is not bridged by a separate bonding conductor.

Frequently Asked Questions

What is the difference between UTP, FTP, STP and SFTP cable?

UTP (U/UTP) has no shielding — it relies on twisted pairs to reject interference. FTP (F/UTP) adds an overall aluminium foil shield around all pairs. STP in its ISO sense (U/FTP) has individual foil shields on each pair but no overall shield. SFTP (S/FTP or SF/FTP) has both an overall braided shield and per-pair foil shields. Each adds cost and complexity in exchange for greater EMI and crosstalk immunity. For most offices and commercial buildings, UTP is the correct choice. Shielded variants are needed in high-interference environments.

Does shielded cable perform better than UTP in normal office environments?

No — and it can perform worse if improperly grounded. In a typical commercial office with no significant EMI sources, UTP Cat6 or Cat6A delivers identical data performance to shielded cable. The shield provides no advantage when there is no significant interference to block. Improperly grounded shielded cable can introduce ground loop hum that degrades performance. Only specify shielded cable when an EMI assessment confirms a need.

What is STP cable used for?

In ISO 11801 notation, U/FTP (what many call “STP”) — with foil on each individual pair but no overall shield — is primarily used for 10GbE and higher-speed applications in data centres and high-density cable environments. The per-pair foil eliminates alien crosstalk, enabling better performance in large cable bundles. It’s also a common choice for Cat7 and Cat8 structured cabling. In industrial EMI environments, the separately shielded pairs work alongside an overall shield (S/FTP).

Does shielded ethernet cable need to be grounded?

Yes, absolutely. An ungrounded shield is not just ineffective — it can act as an antenna and amplify the very interference it’s meant to block. The drain wire in every shielded cable must be terminated to an earthed connector shell (360° clamp termination, not pigtail), which connects to a grounded patch panel, rack, and ultimately the building earth bus. Grounding at both ends provides maximum protection but requires both ends to be at the same ground potential to avoid ground loops.

What is FTP cable and when should I use it?

FTP cable (F/UTP in ISO notation) has a single overall aluminium foil layer wrapped around all four pairs. It is effective against high-frequency electromagnetic interference (RFI) and moderate EMI from motors and fluorescent lighting. Use FTP in hospitals, light industrial environments, broadcast facilities, or anywhere that external EMI is present but pair-to-pair crosstalk is not a primary concern. It requires a grounded shielded RJ45 connector at each end and must be properly bonded to avoid ground loops.

What is the difference between Cat6A UTP and Cat6A FTP?

Both support 10GbE at 500MHz over 100m. The difference is entirely in shielding: U/UTP Cat6A has no metallic shield and manages alien crosstalk through physical pair separation (requiring a thick internal separator, making the cable larger — 7–8mm diameter). F/UTP or U/FTP Cat6A has individual pair or overall foil shielding that eliminates alien crosstalk through isolation rather than separation, resulting in a smaller diameter cable (6–6.5mm). The shielded version is thinner and more conduit-efficient but requires grounded connectors and proper bonding infrastructure.

Can I use shielded and unshielded cable together in the same installation?

You can run both in the same building, but you cannot mix them within the same channel. A shielded cable terminated into an unshielded patch panel or keystone loses all shielding effectiveness at the termination — the shield is not connected to anything. Each channel must be either fully shielded (cable + connectors + patch panel) or fully unshielded. Many installers specify shielded cable in high-EMI zones (plant rooms, cable rooms adjacent to electrical infrastructure) and UTP in clean office areas, with separate patch panels for each zone.

What cable shielding does Cat7 and Cat8 require?

Cat7 (ISO/IEC 11801) mandates S/FTP or SF/FTP construction — an overall braided shield plus individual foil per pair. It requires GG45 or TERA connectors (not standard RJ45) for full Cat7 channel performance. Cat8 (TIA-568-C.2-1 and ISO 11801-1 Amendment 2) mandates S/FTP or SF/FTP construction but is designed to use shielded RJ45 connectors over very short runs (up to 30m) in data centre applications. For 10GbE over standard 100m horizontal runs, Cat6A is the appropriate specification — Cat7 and Cat8 are data centre and high-density short-run standards.

Related Resources

Cablify Technical Team

Commercial Cabling Specialists — Toronto & GTA

Cablify designs and installs commercial structured cabling systems — UTP, FTP, and shielded Cat6A — across Toronto, Mississauga, Brampton, and the Greater Toronto Area. All installations are ANSI/TIA-568 compliant with full channel certification reporting.

The post UTP vs FTP vs STP vs SFTP: Cable Shielding Types Explained appeared first on Cablify.

PoE vs PoE+ vs PoE++: 802.3af, 802.3at & 802.3bt Compared

HP — Wed, 29 Apr 2026 02:58:57 +0000

15.4W

PoE 802.3af

30W

PoE+ 802.3at

60W

PoE++ Type 3

100W

PoE++ Type 4

How PoE Works: PSE, PD & Powered Pairs Explained

Power over Ethernet lets a single Cat5e/Cat6/Cat6A cable carry both network data and electrical power simultaneously — eliminating the separate power adapter at every networked device.

The system operates through two roles defined in the IEEE 802.3 standard family:

PSE (Power Sourcing Equipment): The device that supplies power — a PoE-capable network switch or a standalone PoE injector. The PSE detects whether the connected device supports PoE before delivering any power.
PD (Powered Device): The device that receives power — an IP camera, VoIP phone, wireless access point, access control reader, or any device built to consume PoE.

Critical Safety Mechanism

IEEE 802.3 requires every PSE to perform a detection and classification handshake before delivering power. The PSE sends a low-voltage probe; if no valid PD signature is detected, no power is delivered. Standard ethernet devices plugged into a PoE port receive data only — they cannot be damaged by a compliant PSE.

How Power Is Delivered: 2-Pair vs. 4-Pair

Mode A: Power on data pairs (1/2 and 3/6). DC power is superimposed via centre-tap transformer. Used by 802.3af and 802.3at.
Mode B: Power on spare pairs (4/5 and 7/8). Also used by 802.3af and 802.3at.
4-Pair (802.3bt): All four pairs carry power simultaneously, enabling 60W and 100W. This is why Cat6A is mandatory for PoE++ — the cable must handle power on all 4 pairs without thermal or signal degradation.

PD Classification: How the Switch Allocates Power per Port

Class	Standard	Max PD Power	Max PSE Output	Typical Use
Class 0	Default	12.95W	15.4W	Legacy / unclassified
Class 1	802.3af	3.84W	4W	Low-power sensors
Class 2	802.3af	6.49W	7W	IP phones, basic cameras
Class 3	802.3af	12.95W	15.4W	Most cameras, phones
Class 4	802.3at	25.5W	30W	WAPs, PTZ cameras
Class 5	802.3bt	40W	45W	Smart lighting, video conf
Class 6	802.3bt	51W	60W	High-power WAPs
Class 7	802.3bt	62W	75W	Displays, advanced APs
Class 8	802.3bt	71.3W	100W	LCD panels, workstations

The 4 Standards at a Glance

Specification	PoE	PoE+	PoE++ Type 3	PoE++ Type 4
IEEE Standard	802.3af	802.3at	802.3bt-2018	802.3bt-2018
Year Ratified	2003	2009	2018	2018
Max PSE Output	15.4W	30W	60W	100W
Max PD Usable Power	12.95W	25.5W	51W	71.3W
Powered Pairs	2 pairs	2 pairs	4 pairs	4 pairs
Max Current per Pair	350mA	600mA	600mA	960mA
Min Cable Grade	Cat3	Cat5e	Cat6 (Cat6A preferred)	Cat6A mandatory
Backward Compatible?	Baseline	Yes — with 802.3af PDs	Yes — all prior standards	Yes — all prior standards
Switch Budget Impact	Low	Moderate	High	Very High

Power Budget
Power Loss Across a 100m Cable Run (PSE → PD)

802.3af

15.4W

PSE output

Cable loss

−2.45W

12.95W

at PD

802.3at

30W

PSE output

Cable loss

−4.5W

25.5W

at PD

802.3bt T3

60W

PSE output

Cable loss

−9W

51W

at PD

802.3bt T4

100W

PSE output

Cable loss

−20.7W

71.3W

at PD

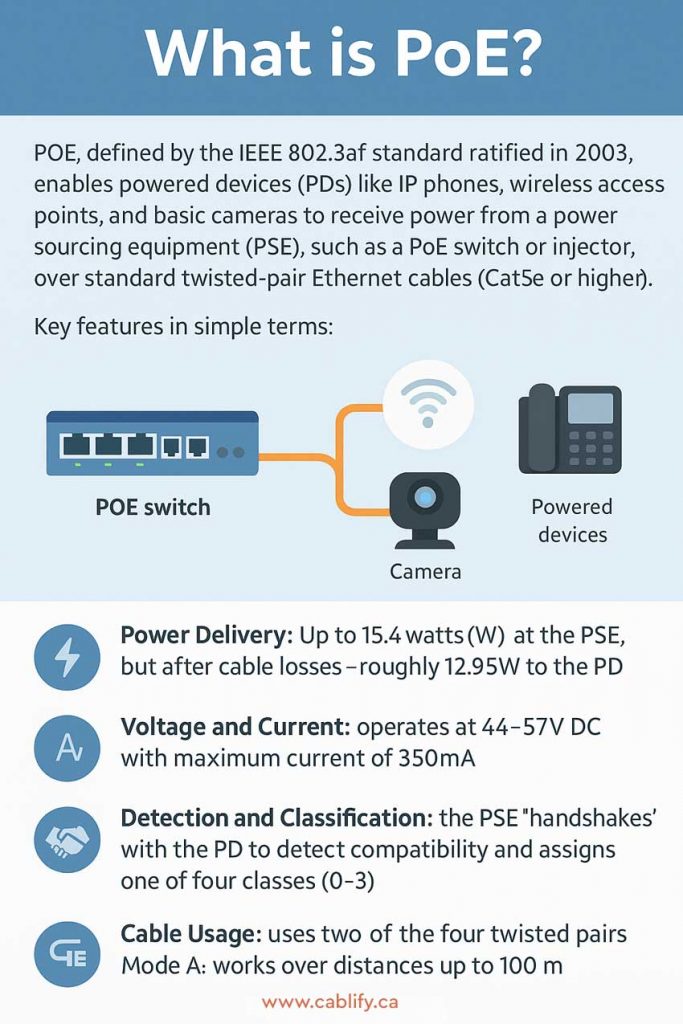

802.3af — PoE (15.4W): The Original Standard

Ratified by IEEE in 2003, 802.3af was the first standardized Power over Ethernet specification. It defined the fundamental framework all subsequent standards build upon — the detection handshake, the classification system, and the 2-pair power delivery model.

802.3af

PoE

IEEE 802.3af — 2003

15.4W

Max PSE Output / 12.95W at PD

Pairs used: 2 (Mode A or B)

Min cable: Cat3 (Cat5e recommended)

Current limit: 350mA per pair

Voltage range: 44–57V DC

IP camerasVoIP phonesaccess controlIoT sensors

Still Relevant in 2025

Despite being over 20 years old, 802.3af covers the majority of deployed PoE devices: basic IP cameras (5–12W), all standard VoIP phones (3–8W), access control readers (2–5W), and IoT sensors. Don’t over-specify — a 30W PoE+ port wasted on a 6W camera is unnecessary switch budget cost.

Real-World Power at 802.3af

IP camera (fixed, 1080p): 5–9W
IP camera (fixed, 4K): 10–13W
VoIP phone (basic): 3–5W
VoIP phone (color display): 6–9W
Access control reader: 2–5W
IoT/environmental sensor: 1–4W
Basic WAP (single-band): 8–12W

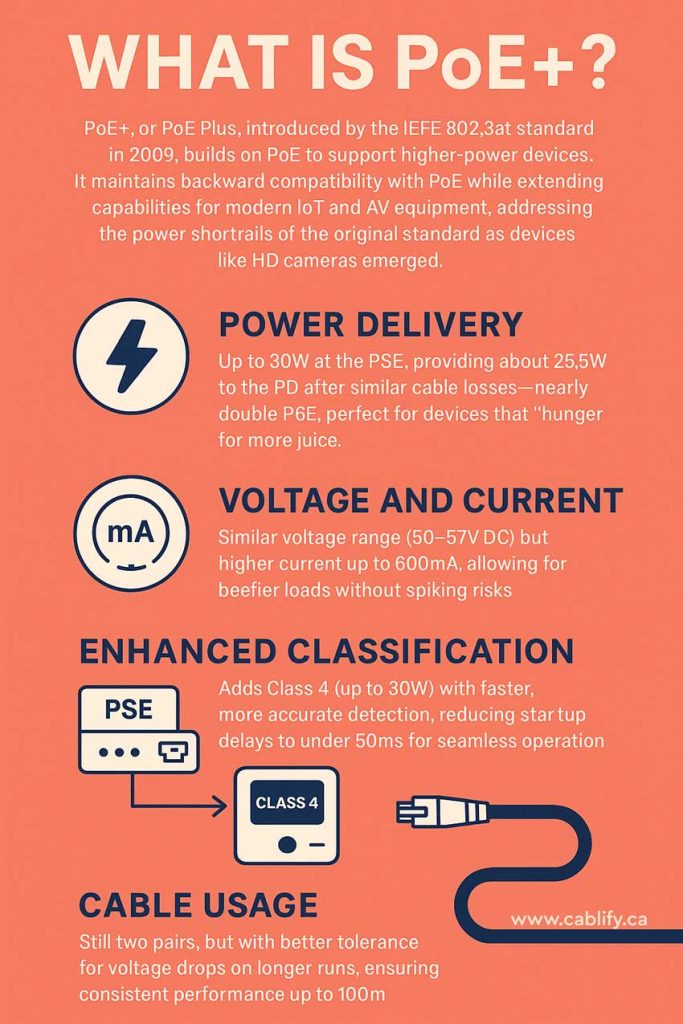

802.3at — PoE+ (30W): The Commercial Sweet Spot

The 802.3at amendment, ratified in 2009, doubled the available power to 30W by increasing the current limit from 350mA to 600mA per pair. It maintains full backward compatibility with 802.3af — every PoE+ port can power any 802.3af device without reconfiguration.

802.3at

PoE+

IEEE 802.3at — 2009

30W

Max PSE Output / 25.5W at PD

Pairs used: 2 (Mode A or B)

Min cable: Cat5e (Cat6 recommended)

Current limit: 600mA per pair

Voltage range: 50–57V DC

enterprise WAPsPTZ camerasvideo confthin clients

PoE+ is the dominant standard in modern commercial deployments. It powers enterprise-grade wireless access points (15–25W), PTZ security cameras, video conferencing endpoints, and thin-client terminals. For any new office switch deployment today, PoE+ on all ports is the professional standard recommendation.

Specifier Note

Many switches advertise “PoE+” but have a limited total PoE budget that can’t deliver 30W on all ports simultaneously. A 24-port PoE+ switch with a 185W budget can only sustain full 30W on about 6 ports at once. Always check the total switch PoE budget — not just the per-port maximum.

Real-World Power at 802.3at

Dual-band enterprise WAP (802.11ac): 15–22W
Tri-band enterprise WAP (Wi-Fi 6E): 20–25W
PTZ IP camera (1080p): 18–24W
Video conferencing endpoint (small): 18–25W
Thin client terminal: 20–25W
VoIP conference phone: 12–18W

802.3bt Type 3 — PoE++ (60W): High-Power Devices

Ratified in 2018, 802.3bt represents the most significant architectural change in PoE history. By utilizing all 4 cable pairs simultaneously for power delivery, it delivers up to 60W (Type 3) or 100W (Type 4) — enabling PoE for smart building infrastructure, LED lighting, and high-performance wireless equipment.

802.3bt Type 3

PoE++

IEEE 802.3bt — 2018

60W

Max PSE Output / 51W at PD

Pairs used: 4 (all pairs)

Min cable: Cat6 (Cat6A mandatory for thermal safety in bundles)

Current limit: 600mA per pair

Voltage range: 50–57V DC

smart lightinghigh-power WAPsLED driversvideo conf

Cable Requirement — Non-Negotiable

802.3bt Type 3 running at 60W on 4 pairs generates significant heat in cable bundles. Cat6A is the mandatory professional specification. Cat6A’s 23 AWG conductors produce less DC resistance and less heat per metre than Cat6’s 24 AWG. Using Cat6 is technically within spec at short, isolated runs — but thermal derating applies in any bundled pathway and will cause channel certification failures.

Real-World Power at 802.3bt Type 3

Wi-Fi 6/6E enterprise AP (multi-radio): 30–50W
IP PoE LED light fixture: 30–55W
Cisco Catalyst video conferencing: 40–51W
Industrial PoE display panel: 35–50W
High-performance thin client: 30–45W

802.3bt Type 4 — PoE++ (100W): Maximum Power

802.3bt Type 4

PoE++

IEEE 802.3bt — 2018

100W

Max PSE Output / 71.3W at PD

Pairs used: 4 (all pairs)

Min cable: Cat6A — mandatory, no exceptions

Current limit: 960mA per pair

Voltage range: 52–57V DC

LCD displaysdigital signagelaptopsworkstations

At 71.3W usable at the device, Type 4 can power small laptops, large digital signage displays, and compact workstations entirely over ethernet — a single Cat6A cable carrying both 10Gbps data and full workstation power. The trade-off is infrastructure cost: Type 4 switches are significantly more expensive per port and require substantial PoE budgets. Currently deployed selectively for high-value endpoints.

⚡ Interactive Tool
Free PoE Budget Calculator

Enter your switch total PoE budget and device mix. The calculator shows if your power budget is sufficient and how much headroom remains.

Switch Settings

Total Switch PoE Budget (Watts)

Total Switch Ports

Connected Devices

📷 IP Cameras (PoE, ~9W)

72W

📞 VoIP Phones (PoE, ~6W)

72W

📡 Enterprise WAPs (PoE+, ~22W)

88W

🔒 Access Control (~4W)

16W

💡 PoE++ Lighting (Type 3, ~40W)

0W

248

Total Watts Required

Budget used
67%

Switch PoE Budget
370W

Total Devices
28

Headroom Remaining
122W

Ports Used / Available
28 / 24

✓

Budget OK — sufficient headroom for growth.

Get a PoE Infrastructure Quote →

Cable Requirements & Thermal Considerations

PoE introduces DC current through the same conductors carrying data. This current generates heat — and heat degrades both cable performance and longevity over time.

Thermal & Cable Spec
Cable Grade vs. PoE Standard

802.3af

Cat5e+

At 350mA max, heat generation is minimal. Cat5e is technically spec’d but Cat6 is always preferred for future flexibility.

802.3at

Cat6 rec.

600mA increases thermal load. In bundled pathways >24 cables, TIA-568 derating applies. Cat6 handles this well; Cat5e requires careful bundle management.

802.3bt T3

Cat6A req.

4-pair power at 600mA/pair. 23 AWG conductors in Cat6A are essential. Bundled Cat6 with PoE++ will fail channel certification under thermal derating rules.

802.3bt T4

Cat6A only

960mA per pair generates serious heat. Cat6A only, full-stop. Plenum-rated CMP Cat6A for any air-handling space. Keep bundles small.

The TIA-568 Temperature Derating Rule

TIA-568-C.1 specifies cable performance at a maximum of 60°C (140°F). In a typical commercial building, ambient temperature in a cable pathway is 20–25°C. PoE current in a large bundle can add 5–15°C — pushing cables toward or past their thermal ceiling. For every 1°C above the rated baseline, the maximum supported cable length must decrease. This is why large PoE deployments mandate Cat6A — its lower DC resistance generates less heat per metre.

Which PoE Standard Do You Actually Need?

Device	Typical Draw	Minimum Standard	Recommended	Cable
IP camera (fixed, up to 4K)	5–13W	PoE 802.3af	PoE (802.3af)	Cat6
VoIP phone	3–8W	PoE 802.3af	PoE (802.3af)	Cat6
Access control reader	2–6W	PoE 802.3af	PoE (802.3af)	Cat5e/Cat6
Enterprise WAP (Wi-Fi 6/6E dual/tri-band)	15–25W	PoE+ 802.3at	PoE+ (802.3at)	Cat6
PTZ security camera	15–25W	PoE+ 802.3at	PoE+ (802.3at)	Cat6
VoIP conference phone	12–20W	PoE+ 802.3at	PoE+ (802.3at)	Cat6
High-perf WAP (Wi-Fi 6E multi-radio)	25–50W	PoE++ T3	PoE++ Type 3	Cat6A
PoE LED lighting system	30–55W	PoE++ T3	PoE++ Type 3	Cat6A
Digital signage display	35–65W	PoE++ T4	PoE++ Type 4	Cat6A
Laptop / thin workstation	40–65W	PoE++ T4	PoE++ Type 4	Cat6A

7 Common PoE Planning Mistakes

Mistake #1: Confusing Port Power with Switch Budget

A switch rated “30W PoE+ per port” with a 185W total budget cannot deliver 30W on all 24 ports simultaneously — only about 6. Always calculate your aggregate device load against the total switch PoE budget.

Mistake #2: Assuming All “PoE Switches” Are IEEE Compliant

Budget PoE switches often have inflated port-power ratings and no LLDP/CDP for proper classification. Cisco, Aruba, Netgear ProAV, and Ubiquiti use proper IEEE-compliant detection. Budget switches may not — causing intermittent device issues, brownouts, or phantom power under load.

Mistake #3: Running PoE++ on Cat6 in Bundled Pathways

It may work initially — but it will fail channel certification under thermal derating rules once the cable temperature rises. PoE++ on Cat6 in bundles is a latent compliance issue. Use Cat6A from day one.

Mistake #4: Ignoring Injector Standard Compatibility

A PoE injector must match the standard of the PD. Using an 802.3af injector for an 802.3at device will under-power it, causing crashes or brownouts. Always match injector output class to device requirement.

Mistake #5: Not Planning for Switch Budget Growth

You install 12 cameras today at 8W each = 96W on a 185W switch. Fine. Next year you add 6 enterprise WAPs at 22W each = 132W more. Budget exceeded. Always size switch PoE budgets to at least 150% of current load.

Mistake #6: Using PoE Splitters Instead of Native PoE Devices

PoE splitters introduce additional failure points, heat, and conversion losses. Where possible, spec native PoE devices rather than adding splitters to non-PoE equipment. The reliability difference is significant over a 5-year horizon.

Mistake #7: Forgetting Cable Distance and Voltage Drop

Longer runs mean higher resistance and greater voltage drop. A PoE++ device drawing maximum power at the end of a 90m run may brownout where the same device on a 30m run performs perfectly. For power-hungry devices on long runs, shorten cable runs or use switches with 57V output vs. 54V.

Frequently Asked Questions

Is PoE+ backward compatible with PoE devices?

Yes. Full backward compatibility is built into the IEEE 802.3 standard family. A PoE+ (802.3at) switch port powers any 802.3af device at the lower wattage without reconfiguration. Similarly, 802.3bt (PoE++) switch ports correctly power 802.3af and 802.3at devices. The detection and classification handshake ensures the PSE always delivers only what the PD requests.

What is the difference between PoE and PoE+?

PoE (802.3af) delivers up to 15.4W per port with 12.95W usable at the device. PoE+ (802.3at) delivers up to 30W per port with 25.5W usable — exactly double. Both use 2 cable pairs for power delivery. The practical difference is that PoE+ covers modern enterprise WAPs, PTZ cameras, and video conferencing endpoints that exceed PoE’s power envelope.

Do I need Cat6A cable for PoE++?

Yes — for any production installation. 802.3bt PoE++ uses all 4 cable pairs for power delivery, generating significantly more heat in bundled pathways. Cat6A’s 23 AWG conductors have lower DC resistance, producing less heat per metre. TIA-568 thermal derating rules make Cat6 marginal in bundled PoE++ pathways — Cat6A is the mandatory professional specification for any code-compliant, certifiable PoE++ installation.

What happens if a PoE switch runs out of budget?

When a PoE switch’s total power budget is exhausted, newly connected devices receive data connectivity but no power — they simply won’t turn on. On managed switches, port-level PoE priority settings control which devices are denied first. Always size switch PoE budget to at least 150% of calculated device load.

Can PoE damage non-PoE devices?

No — not if the PSE is IEEE 802.3-compliant. The standard mandates a detection handshake before delivering power. A laptop or PC plugged into a PoE port receives data connectivity only — no power damage risk. However, non-compliant “passive PoE” products (common in budget CCTV systems) do not perform detection and will damage non-PoE equipment. Always use IEEE 802.3-compliant active PoE equipment.

What PoE standard do enterprise WiFi access points require?

Most enterprise Wi-Fi 5 and Wi-Fi 6 access points require PoE+ (802.3at, 30W) at minimum. High-performance tri-band Wi-Fi 6E and Wi-Fi 7 APs with multiple radios are increasingly requiring PoE++ Type 3 (802.3bt, 60W). Always check the manufacturer datasheet — power class varies significantly even within a single vendor’s product line.

Related Resources

Cablify Technical Team

Commercial Cabling Specialists — Toronto & GTA

Cablify designs and installs commercial network cabling, fiber optic, CCTV, and PoE infrastructure across Toronto, Mississauga, Brampton, and the Greater Toronto Area. All structured cabling installations are ANSI/TIA-568 compliant with full channel certification reporting at Cat6 or Cat6A performance.

The post PoE vs PoE+ vs PoE++: 802.3af, 802.3at & 802.3bt Compared appeared first on Cablify.

How Many Network Drops Per Room? The Complete Planning Guide

HP — Tue, 28 Apr 2026 23:04:52 +0000

TIA-568 Min Per Work Area

4–6

Best Practice Per Desk

25yr

Structured Cabling Lifespan

3×

Cost to Retrofit vs Plan Right

What Exactly Is a Network Drop?

A network drop — also called a data drop, ethernet outlet, or telecom outlet — is a single RJ-45 port installed in a wall plate at an end-user location, connected by a structured cable run back to a central patch panel in your telecommunications room (TR), main distribution frame (MDF), or intermediate distribution frame (IDF).

Each drop represents a dedicated, full-duplex link between a user’s workspace and your network switch. Unlike Wi-Fi — which is shared bandwidth over a shared medium — a wired drop delivers dedicated bandwidth from that specific switch port. It is the foundation of every reliable enterprise network.

Key Distinction

Wireless access points (WAPs) supplement but do not replace wired drops in commercial environments. Every WAP also requires its own dedicated wired uplink drop — typically one to two Cat6A runs per AP location, depending on whether multi-gig backhaul or PoE redundancy is required.

Drop vs. Outlet vs. Port — What’s the Difference?

These terms are used interchangeably in the field, but there is a technical distinction worth knowing: a network drop is the complete cable run from patch panel to wall plate. A network outlet is the physical keystone jack installed in that wall plate. A port is the specific RJ-45 socket — in most configurations, one outlet = one port = one drop.

When a cabling contractor quotes “24 drops,” they mean 24 complete cable runs — each terminated with a keystone jack at the wall and a patch panel port in the TR. Labor accounts for roughly 60–70% of that cost.

The TIA-568 Standard: What the Code Actually Says

The authoritative standard governing commercial network cabling in North America is ANSI/TIA-568-C.1, published by the Telecommunications Industry Association. In Canada, this standard is harmonized with CSA T528 and referenced by most provincial building codes for commercial construction.

Standard Reference

ANSI/TIA-568-C.1 specifies the minimum cabling requirements for commercial buildings. The TIA-569 standard covers pathways and spaces — conduit, cable tray, and TR room sizing. Together, these two standards define the baseline for any code-compliant commercial installation in Canada and the US.

The Minimum Requirement: 2 Outlets Per Work Area

TIA-568-C.1 mandates a minimum of two telecommunications outlets per work area. Historically, this meant one voice (telephone) and one data (ethernet) outlet. As VoIP displaced analog telephony, both ports are now typically wired as Cat6 or Cat6A data drops — giving each workstation a dedicated VoIP and a dedicated data connection on the same cable plant.

Critically, the standard defines a “work area” as approximately 10 square metres (100 sq ft) of usable floor space. A 1,000 sq ft open-plan office should be designed for a minimum of 10 work areas, meaning at least 20 outlets — before adding WAPs, cameras, or shared devices.

ANSI/TIA-568-C.1
The 3 Planning Formulas Every Project Needs

01

TIA-568 Baseline Minimum

min_outlets

=

(sq_ft ÷ 100) × 2

2 outlets per every 100 sq ft — the absolute code-minimum for commercial occupancy.

02

Industry Best Practice

recommended

=

(desks × 4) + APs + cameras + shared

4 drops per workstation plus all shared devices — what professionals actually spec for 10-year reliability.

03

Patch Panel Sizing Rule

patch_ports

=

ROUND_UP(drops × 1.20)

Always oversize by 20%. Patch panel ports are cheap — retrofitting a full rack later costs 5× more.

The 90-Metre Horizontal Cable Limit

TIA-568 imposes a strict 90-metre (295-foot) maximum on horizontal cable runs — measured from the patch panel port in the TR to the keystone jack at the wall outlet. This leaves a total channel budget of 100 metres when patch cables at each end are added. In a large building, this rule drives your IDF room placement strategy. If any cable run would exceed 90m from the nearest TR, you need an additional IDF room on that floor or zone.

Performance Impact Warning

Cable runs exceeding 90m will degrade signal integrity, cause packet loss, and fail channel certification testing. Worse, they may appear to work at gigabit speeds initially, then produce intermittent errors under load — one of the most difficult network faults to diagnose. Do not exceed this limit, ever.

Recommended Drops by Room Type

The following counts represent industry best practice — not bare minimums. These figures assume Cat6 or Cat6A structured cabling throughout, PoE capability on the switch side, and a 10-year planning horizon.

Private Office (Single Occupant)

4–6 drops

2 at desk (data + VoIP), 1 near door (camera/reader), 1 additional workstation. Add 2 for executive suite with AV/conferencing.

deskvoipcctv

Open-Plan Workstation

2–4 per station

Minimum 2 per desk. Best practice: 4 (data, VoIP, spare, hot-desk overflow). Floor boxes or under-desk raceways preferred over wall plates.

datavoipflex

Conference Room (4–6 seats)

6–8 drops

2 at table (floor box), 2 at credenza (AV/display), 1 near projector wall, 1 AP drop above ceiling. Add 2 if room has a video conferencing codec.

avapfloor-box

Board / Large Conference (10–20 seats)

10–16 drops

4–6 at table (floor boxes), 2–4 at credenza/AV rack, 2 AP uplinks (dual-band), 2 for display feeds, 1 room controller, 1 spare.

avdual-apfloor-box

Reception / Lobby

4–8 drops

2 at front desk, 1 for IP camera, 1 for access control reader, 1 AP uplink, 1–3 for digital signage or visitor kiosk.

cctvaccesssignage

Break Room / Kitchen

2–4 drops

1 for AP, 1 for IP camera, 1–2 for smart appliances or digital menu boards. Skip VoIP unless your plan includes kitchen-area phones.

apcctviot

Healthcare Exam Room

6–10 drops

Clinical workstation (2), nurse call (1), IP camera (1), medical IoT (1–2), physician workstation (2), portable equipment spare (1).

clinicaliothipaa

Classroom / Training Room

2/desk + 4–6 teacher

2 drops at each student desk position. Teacher station needs 4–6 (PC, AV, doc camera, AP uplink). Add ceiling AP drops for high device density.

educationavdense-ap

🖧

Server Room / MDF

12–24+ per rack

Minimum 2 uplinks per rack (redundant), OOB management drops, KVM, power management. Size patch panels to 120% of projected drops.

mdfredundantoob

Warehouse / Stockroom

2–4 per zone

1 ceiling-mounted long-range AP per zone, 1 wired terminal/scanner, 1 IP camera per aisle entrance. Industrial conduit required throughout.

industrialapconduit

Hallways / Corridors

1–2 per 100 lin ft

Primarily for ceiling-mounted APs and IP cameras. One drop per planned AP location, one per camera position. Plenum-rated cable required in open ceilings.

plenumapcctv

Retail / POS Zone

4–6 per zone

1–2 per POS station, 1 camera per zone, 1 AP uplink, 1–2 for digital signage or kiosk. Add 1 spare per zone minimum.

poscamerasignage

Master Reference Table — All Room Types

Use this table as your planning baseline. Adjust for your specific building density, technology stack, and growth projections. The “Enterprise” column assumes dual-redundant uplinks, dedicated VoIP runs, and full PoE budgets for all active devices.

Room Type	TIA Min	Industry Standard	Enterprise	Cable Grade	Notes
Private Office (1 person)	2	4–6	6–8	Cat6A	Desk + door + AP + spare
Open-Plan Workstation	2	3–4/desk	4–6/desk	Cat6	Floor boxes preferred
Conference Room (4–6 seats)	2	6–8	10–12	Cat6A	Add 2 for video codec
Board Room (10–20 seats)	4	10–16	16–24	Cat6A	Floor boxes + AP ceiling
Reception / Lobby	2	4–8	8–12	Cat6	Cameras + access control
Break Room / Kitchen	2	2–4	4–6	Cat6	AP + camera + IoT
Print / Copy Station	1	2–3	3–4	Cat6	1 per MFP, 1 spare
Healthcare Exam Room	4	6–10	10–14	Cat6A	Clinical + IoT + camera
Classroom / Training Room	2/desk	2/desk+6 teacher	4/desk+8	Cat6A	High AP density needed
Server Room / MDF	12/rack	24/rack	48+/rack	Cat6A/Fiber	120% panel headroom
IDF / Comms Closet	—	24–48 ports	48–96	Cat6A+Fiber	Size for floor zone
Warehouse / Stockroom Zone	1/zone	2–4/zone	4–8/zone	Cat6A conduit	Industrial-rated required
Hallway / Corridor (per 100ft)	—	1–2	2–3	Plenum Cat6	AP + camera positions
Mechanical / Electrical Room	—	2–4	4–6	Cat6 conduit	BMS + sensors
Parking / Exterior	—	1–2/camera	2/camera	Cat6A outdoor	Weatherproof, PoE
Retail / POS Zone	2	4–6	6–10	Cat6	POS + camera + AP

Free Network Drop Calculator

Get an instant drop recommendation for your specific project — no guesswork.

Room Details

Room / Area Type

Number of Workstations / Desks

IP Security Cameras in This Area

Additional Systems

VoIP / IP Phones at Every Desk

Wireless Access Points Needed

Access Control / Card Readers

Building Automation / IoT Sensors

Shared Printers / MFP Devices

AV / Conferencing Equipment

Add 20% Spare Ports (Future-Proofing)

Total Network Drops Recommended

Data Drops0

VoIP / Phone Drops0

Wireless AP Uplinks0

Camera / Security Drops0

Other Systems0

Spare / Future-Proofing0

Recommended Cable Grade

—

Patch Panel Ports Required

—

Switch Ports Required

—

Get a Free Quote Based on These Numbers →

Critical Planning Factors Before You Pull Cable

The drop counts above are starting points. Before finalizing your cable plan, you must answer these questions — each one can materially change your drop count and cable grade requirements.

1. What Is Your 5-Year Technology Roadmap?

Structured cabling is a 15–25 year infrastructure investment. The devices you deploy in year one rarely resemble what you’ll run in year five. In 2015, nobody was planning for PoE++ smart lighting or the density of IoT devices in a modern office. Plan for what’s coming: higher PoE budgets, denser Wi-Fi, video conferencing at every desk, and building automation converging onto IP networks.

Rule of Thumb

Whatever drop count you calculate today, add 25–30% before finalizing. Labor is the single largest cost in any cabling project. Running one additional drop while the walls are open costs roughly $80–$150 CAD. Retrofitting that same drop after drywall is installed costs $350–$800+. The math is obvious.

2. Open Plan vs. Closed Office — It Changes Everything

Open-plan floors require floor boxes or under-floor raceway systems — perimeter raceway, raised floor, or furniture-fed systems. Wall plates are often impractical for interior workstations far from perimeter walls. Floor boxes allow drops to be positioned precisely at workstation clusters, with flexibility to reposition if the layout ever changes.

3. PoE vs. Passive Power: Your Cable Grade Decision

PoE Standard	IEEE Spec	Max Power	Typical Devices	Cable Requirement
PoE	802.3af	15.4W	IP phones, basic cameras	Cat5e minimum
PoE+	802.3at	30W	WAPs, PTZ cameras, thin clients	Cat6 recommended
PoE++ Type 3	802.3bt	60W	Smart lighting, video conferencing	Cat6A mandatory
PoE++ Type 4	802.3bt	100W	LCD panels, small appliances	Cat6A mandatory

4. WAP Placement: The Hidden Drop Multiplier

Every wireless access point needs its own wired uplink drop — and enterprise-grade WAPs from Cisco, Aruba, and Ubiquiti increasingly require two drops per AP for multi-gig backhaul and PoE redundancy. A rough guideline: one WAP per 2,500–4,000 sq ft in a low-density open office; one WAP per 1,000–2,000 sq ft in a conference or classroom environment. Each AP position = 1–2 dedicated ceiling cable drops not shared with any user device.

5. Security Camera Coverage and Drop Placement

IP camera drops are among the most frequently under-planned elements in commercial cabling. Every camera requires its own dedicated PoE drop — no sharing. Cameras must be positioned based on a formal coverage design. Common positions requiring ceiling or high-wall drops include: all entry/exit doors, all corridors, parking, server room, and reception. These positions are almost always inaccessible once ceilings are finished.

PoE & Structured Cabling: What Most Contractors Get Wrong

Power over Ethernet changes the physics of your cabling plant in ways many commercial contractors underestimate. When current flows through a cable, the cable generates heat. In a bundled pathway — a conduit or cable tray carrying dozens of runs — this heat accumulates and can drive cable temperature above its rated operating threshold.

Temperature Rise and the 60°C Rule

TIA-568-C.1 rates Cat6 and Cat6A performance at a cable temperature of up to 60°C (140°F). In a typical office, ambient temperature in a cable pathway runs 20–25°C. PoE current in a bundle of 24 Cat6 cables can add 5–15°C of additional heat — still within margin. But in a bundle of 48+ cables in a warm ceiling plenum running 60W PoE++ simultaneously, you may exceed the thermal threshold, degrading performance and accelerating cable aging.

Critical Design Rule

If you are deploying PoE++ (802.3bt) on more than 25% of drops in a bundle, specify Cat6A throughout. Cat6A has a larger 23 AWG conductor diameter (vs. 24 AWG for Cat6), lower DC resistance, and better thermal performance under sustained PoE load. This is not optional — it is the correct engineering choice for any modern commercial installation.

The 7 Most Expensive Under-Cabling Mistakes

In 20+ years of commercial cabling work across the GTA and Ontario, these are the planning failures we are called in to fix most often. Every one of them was preventable.

Mistake #1: Planning for Today, Not Three Years from Now

The most common and costliest mistake. A 50-person office installs 2 drops per desk, runs out of ports within 18 months as devices multiply, and pays $40,000 to retrofit cable through finished ceilings. The original upgrade would have cost $8,000. Plan with a 5-year device density projection — always.

Mistake #2: Forgetting WAP Drops Entirely

We regularly see cable plans that include zero drops for wireless access points — the assumption being that Wi-Fi is “wireless.” Every WAP needs a wired drop. A 5,000 sq ft office floor needs 3–5 WAP positions; nobody planned for those drops. Result: visible surface-mount conduit runs after the fact, or weak coverage from a single WAP at the nearest wall outlet.

Mistake #3: Sharing Drops Between Devices

Using unmanaged desktop switches to share a single drop across multiple devices is a Band-Aid, not a solution. They add latency, create single points of failure, complicate network management, and often violate enterprise security policy. Every device that needs network connectivity should have its own dedicated drop.

Mistake #4: Installing Cat5e in a New Building

Cat5e is end-of-life as a specification for new commercial installation. Cat6 is the absolute minimum for any project started today; Cat6A is the professional recommendation for anything with a 10+ year lifespan. Installing Cat5e in 2025 is the equivalent of putting a 100MB hard drive in a new server — technically it works, but you will regret it within years.

Mistake #5: No Slack Loops at the Patch Panel

Cable runs terminated with no slack at the patch panel cannot be re-terminated if a connector fails or if the panel needs to move even a few inches. Professional installations include a minimum 3-foot service loop behind the patch panel for every cable run, stored on a spool or D-ring in the TR.

Mistake #6: Undersizing the Patch Panel

A 24-drop installation does not need a 24-port patch panel. It needs at least a 48-port panel — 24 for current drops, 24 spare for future runs. Patch panel real estate in a rack is cheap. Adding a second panel later when the rack is full of active equipment is expensive and disruptive.

Mistake #7: No Documentation or Labeling

An unlabeled, undocumented cable plant is a ticking clock. When the contractor who installed it moves on, nobody knows which patch panel port connects to which wall jack. Troubleshooting any connectivity issue becomes a 2-hour detective exercise. Demand a complete as-built documentation package — port-level labeling, floor plan with drop locations, and a cable schedule — as part of every installation contract.

Pre-Installation Planning Checklist

Use this before finalizing any commercial cabling plan. REQUIRED items are non-negotiable for TIA-568 compliance. BEST PRACTICE items represent professional-grade installation standards.

All horizontal cable runs confirmed < 90 metres from TR to outlet REQUIRED
Telecommunications room(s) meet TIA-569 minimum dimensions and dedicated-use requirements REQUIRED
Minimum 2 outlets per TIA-defined work area (~100 sq ft) REQUIRED
Cable grade selected: Cat6 minimum, Cat6A for PoE or 10GBase-T REQUIRED
Plenum-rated (CMP) cable specified for any run through air-handling ceiling without conduit REQUIRED
WAP locations determined by RF coverage design, dedicated ceiling drops allocated BEST PRACTICE
IP camera coverage plan finalized, drop positions confirmed before ceiling closure BEST PRACTICE
Access control / card reader positions confirmed with security integrator BEST PRACTICE
PoE budget calculated per switch port; Cat6A specified for PoE++ runs BEST PRACTICE
20–25% spare drops added to every zone for future density growth BEST PRACTICE
Patch panel sized to 120% of installed drops, headroom ports documented BEST PRACTICE
3-foot service loops specified for every run at patch panel termination BEST PRACTICE
Complete as-built documentation and port-level labeling in scope of work BEST PRACTICE
Cable test report (channel certification Cat6/6A) required at project close BEST PRACTICE
IDF/MDF room sized for 5-year equipment growth with adequate power and cooling BEST PRACTICE

Frequently Asked Questions

What is the minimum number of network drops required per room by code?

ANSI/TIA-568-C.1 mandates a minimum of two telecommunications outlets per work area, defined as approximately 100 square feet of usable floor space. Both outlets should be wired as data drops (Cat6 or better) in any modern VoIP-based environment. This is an absolute minimum — industry best practice recommends 3–4 drops per individual workstation to account for VoIP phones, docking stations, and future device growth.

How many ethernet drops do I need for a 1,000 sq ft office?

For a 1,000 sq ft open-plan office with 8–10 workstations, a well-designed cabling plan includes approximately 40–55 drops: 32–40 workstation drops (4 per desk), 4–6 for wireless access points (2 APs at 2 drops each), 3–4 for IP security cameras, 2–4 for shared printers, and 3–5 spare drops for future growth. Always add 20–25% buffer to any count you calculate.

Should I use Cat6 or Cat6A for commercial cabling?

Cat6A is the professional recommendation for any new commercial installation. It supports 10 Gigabit Ethernet at full 100-metre channel length, has superior thermal performance under PoE loads, and provides better alien crosstalk isolation in bundled pathways. The cost difference between Cat6 and Cat6A on a typical commercial project is 10–15%. Given that structured cabling is expected to last 15–25 years, that premium is almost always justified. Use Cat6A for all drops carrying PoE++ devices.

Do wireless access points count as network drops?

Yes. Every wireless access point requires at least one dedicated wired ethernet drop for its uplink, and many enterprise-grade APs require two drops for multi-gig backhaul or PoE redundancy. These AP drops are ceiling-mounted, separate from any user workstation drops, and should be planned as part of a formal RF site survey — not as an afterthought. A typical office floor of 5,000 sq ft may require 3–6 dedicated AP ceiling drops that have nothing to do with workstation count.

How much does it cost to add a network drop in a commercial building?

In Ontario and the GTA, a Cat6 or Cat6A network drop during new construction or a tenant fit-out typically costs $120–$200 CAD per drop, all-in. A retrofit drop through an already-finished wall or ceiling costs $280–$600+ per drop depending on run length and wall construction. For concrete or masonry walls, expect $500–$900+ per drop. This cost difference is the single strongest argument for planning correctly before construction is complete.

How many network drops does a conference room need?

A small conference room seating 4–6 people should have 6–8 network drops: 2 at the conference table (via a floor box), 2 at a credenza or AV location, 1 at the display wall, and 1 ceiling drop for a wireless access point. If the room has a video conferencing codec (Cisco, Poly, Logitech), add 2 more dedicated drops. Larger board rooms seating 10–20 should plan for 10–16 drops minimum, including dual AP coverage and a dedicated AV rack position.

What is the maximum cable run length for a network drop?

ANSI/TIA-568 specifies a maximum horizontal cable run of 90 metres (295 feet) from the patch panel in the telecommunications room to the wall outlet. The total channel — including patch cables at each end — must not exceed 100 metres. If any drop would exceed 90 metres, you need an additional IDF room closer to that zone. Exceeding this limit degrades signal integrity, increases bit error rates, and will fail channel certification testing.

Related Resources

Expand your knowledge with these related guides from the Cablify technical library:

Cablify Technical Team

Commercial Cabling Specialists — Toronto & GTA

Cablify is a commercial network cabling, fiber optic, CCTV, and structured wiring company serving Toronto, Mississauga, Brampton, and the Greater Toronto Area. Our technical team has designed and installed cabling infrastructure for offices, healthcare facilities, educational institutions, and industrial properties across Ontario. All installations are ANSI/TIA-568 compliant and include full channel certification reporting.

The post How Many Network Drops Per Room? The Complete Planning Guide appeared first on Cablify.
