Amp to Wire Size Chart: Complete Guide for 12V, 120V & 240V (2026)

HP — Sun, 31 May 2026 18:28:51 +0000

Wire sizing is one of those topics where the wrong answer costs real money, and in the worst case, lives. A breaker that holds 30 amps on a 14-gauge wire will eventually start a fire. A wire that’s too thin for a long run will drop voltage and burn out motors. So getting the gauge right matters.

This guide gives you the amp to wire size chart for the situations homeowners and contractors search most: 120V branch circuits, 240V appliances and EV chargers, 12V automotive and solar systems, and full residential service feeds up to 400 amps. The tables match the National Electrical Code (NEC) Table 310.16 and the Canadian Electrical Code (CEC) Table 2, which are nearly identical for the conductor sizes most people care about.

If you only need a quick answer, jump to the chart below. If you’re sizing wire for a long run or a tricky load, read the section on voltage drop and the calculation formula further down.

Quick Amp to Wire Size Chart (Copper, 75°C Column)

This is the chart most electricians use day to day. It assumes copper conductors with THHN or THWN-2 insulation, terminations rated for 75°C (which covers almost all modern breakers and equipment over 100A), and a standard 30°C ambient temperature.

Amperage	Copper Wire Size (AWG)	Common Use
15 A	14 AWG	Lighting, general 120V outlets
20 A	12 AWG	Kitchen, bathroom, garage outlets
30 A	10 AWG	Dryer, water heater, small A/C
40 A	8 AWG	Electric range, larger A/C
50 A	8 AWG (75°C) or 6 AWG (60°C / NM cable)	Range, hot tub, Level 2 EV charger
60 A	6 AWG	Sub-panel feeder, large hot tub
70 A	4 AWG	Small sub-panel
80 A	4 AWG	Sub-panel feeder
90 A	3 AWG	Sub-panel, small service
100 A	3 AWG copper or 1 AWG aluminum	100A residential service or sub-panel
110 A	2 AWG	Feeder
125 A	1 AWG copper or 2/0 aluminum	125A panel feed
150 A	1/0 AWG copper or 3/0 aluminum	150A service
175 A	2/0 AWG copper or 4/0 aluminum	175A service
200 A	3/0 AWG copper or 4/0 aluminum	Standard 200A residential service
225 A	4/0 AWG copper or 250 kcmil aluminum	Feeder
250 A	250 kcmil copper or 300 kcmil aluminum	Service entrance
300 A	350 kcmil copper or 500 kcmil aluminum	Light commercial
400 A	500 kcmil copper or 750 kcmil aluminum	Large residential, light commercial

A printable PDF of this chart is linked at the bottom of the page. Keep a copy in your truck or pinned in the shop.

How to Read the Chart (Temperature Ratings Explained)

The same wire can have three different ampacity ratings depending on what column you use. This trips up a lot of people, so here’s the plain explanation.

Every conductor has an insulation temperature rating: 60°C, 75°C, or 90°C. THHN and THWN-2 wire, the most common types in raceway, are rated 90°C. NM-B cable (Romex) is technically 90°C rated, but code forces you to use the 60°C column for it.

The rule that actually decides which column you use is NEC 110.14(C). In short:

Circuits 100 amps or less with standard breakers: use the 60°C column unless every termination is marked 75°C
Circuits over 100 amps: use the 75°C column
The 90°C column is only used as a starting point for derating calculations, never as the as-installed ampacity

Here’s the full copper ampacity table, all three columns, from NEC 310.16:

Wire Size (AWG/kcmil)	60°C Ampacity	75°C Ampacity	90°C Ampacity
14 AWG	15 A	20 A	25 A
12 AWG	20 A	25 A	30 A
10 AWG	30 A	35 A	40 A
8 AWG	40 A	50 A	55 A
6 AWG	55 A	65 A	75 A
4 AWG	70 A	85 A	95 A
3 AWG	85 A	100 A	115 A
2 AWG	95 A	115 A	130 A
1 AWG	110 A	130 A	145 A
1/0 AWG	125 A	150 A	170 A
2/0 AWG	145 A	175 A	195 A
3/0 AWG	165 A	200 A	225 A
4/0 AWG	195 A	230 A	260 A
250 kcmil	215 A	255 A	290 A
300 kcmil	240 A	285 A	320 A
350 kcmil	260 A	310 A	350 A
400 kcmil	280 A	335 A	380 A
500 kcmil	320 A	380 A	430 A
600 kcmil	350 A	420 A	475 A
750 kcmil	400 A	475 A	535 A

Important: NEC 240.4(D) caps the overcurrent device size on small conductors regardless of column. No matter what the ampacity table says, 14 AWG copper cannot be protected by more than a 15A breaker, 12 AWG by more than 20A, and 10 AWG by more than 30A.

Aluminum Wire Sizing

Aluminum is common in service entrance cables, feeders, and large branch circuits because it’s cheaper per amp. The trade-off is that aluminum conducts less efficiently, so you need a larger gauge to carry the same current. As a rough rule, aluminum sizes up one or two AWG steps from copper.

Amperage	Copper (75°C)	Aluminum (75°C)
30 A	10 AWG	8 AWG
50 A	8 AWG	6 AWG
100 A	3 AWG	1 AWG
125 A	1 AWG	2/0 AWG
150 A	1/0 AWG	3/0 AWG
200 A	3/0 AWG	4/0 AWG
400 A	500 kcmil	750 kcmil

If you’re using aluminum, make sure your lugs and breakers are listed for aluminum (look for the CU/AL or AL/CU stamp) and use antioxidant compound on the terminations.

Canadian Electrical Code (CEC) Notes

The CEC Table 2 ampacities match NEC 310.16 for the most common sizes. The Canadian code has a few special rules worth knowing if you’re working in Ontario, BC, Alberta, or anywhere else under CSA jurisdiction.

100A residential service: A #3 AWG copper or #1 AWG aluminum conductor at 75°C is typically used. Some authorities require #1 AWG copper for overhead service drops.
200A residential service: Per a specific note in CEC Table 2, a 3-wire 120/240V residential service is permitted to use #2/0 AWG copper at 200A (a small bump above the standard ampacity, allowed for residential services only).
Minimum conductor size (CEC Rule 4-002): No copper conductor smaller than 14 AWG, and no aluminum smaller than 12 AWG, is permitted for general wiring.

If you’re in Canada, always verify with your local AHJ (Authority Having Jurisdiction). Provinces add their own amendments to the CEC. In Ontario, that’s the ESA. In BC, it’s Technical Safety BC. In Alberta, Municipal Affairs Safety Services.

Amp to Wire Size Chart for 240V Circuits

The wire size for a 240V circuit depends only on the amperage, not the voltage. A 50A circuit at 240V uses the same gauge wire as a 50A circuit at 120V. What changes with voltage is the wattage the circuit can deliver (240V circuits carry twice the power for the same amperage) and the voltage drop on long runs (lower as voltage rises).

Here’s the practical 240V chart for the loads most people search:

240V Load	Typical Amps	Wire Size (Copper)
Window A/C	15 A	14 AWG
Baseboard heater (small)	20 A	12 AWG
Electric dryer	30 A	10 AWG
Electric range (small)	40 A	8 AWG
Electric range (full)	50 A	8 AWG (THHN) or 6 AWG (NM cable)
Hot tub	50–60 A	6 AWG
Level 2 EV charger (40A continuous)	50 A breaker	6 AWG
Level 2 EV charger (48A continuous)	60 A breaker	6 AWG
Welder	50–60 A	6 AWG
Sub-panel (100A)	100 A	3 AWG copper or 1 AWG aluminum

Continuous loads (anything running over three hours, like EV chargers) must be sized at 125% per NEC 210.19. That’s why a 40A continuous EV charger needs a 50A breaker.

Amp to Wire Size Chart for 12V Circuits

12V DC is a completely different beast. Because the voltage is so low, even small voltage drops are a big deal. A 0.5V drop is 4% of a 12V system but only 0.2% of a 240V system. So you size 12V wires for voltage drop, not just ampacity.

Here’s the standard 12V wire size chart for short runs (under 10 feet round trip):

Amps	Wire Size (AWG)
5 A	16 AWG
10 A	14 AWG
15 A	12 AWG
20 A	10 AWG
30 A	10 AWG
40 A	8 AWG
50 A	6 AWG
75 A	4 AWG
100 A	2 AWG
150 A	1/0 AWG
200 A	2/0 AWG

For longer 12V runs, jump up a gauge for every doubling of distance. A 50A run at 20 feet round trip should use 4 AWG instead of 6.

Common Wire Size Questions

These are the questions homeowners, contractors, and apprentices search for over and over, so here are direct answers.

What size wire do I need for 100 amps?

For a 100A circuit, use 3 AWG copper or 1 AWG aluminum at the 75°C column. This applies to a 100A sub-panel feed or a 100A residential service in most cases. If the run is longer than about 100 feet, bump up one size for voltage drop.

What size wire do I need for 125 amps?

Use 1 AWG copper or 2/0 AWG aluminum. A 125A panel feeder typically runs 1 AWG copper THHN in 1¼” conduit.

Do I need 6 or 8 gauge wire for a 50 amp circuit?

It depends on the wire type and terminal rating:

8 AWG THHN copper in conduit, with 75°C-rated terminals: 50A is the exact rating, so 8 AWG works
6 AWG copper NM-B (Romex) for a 50A circuit: required, because NM cable uses the 60°C column where 8 AWG is only 40A
For a hot tub, EV charger, or anything outdoors in conduit, 6 AWG is the safer pick

When in doubt, go with 6 AWG. The extra few dollars buy you margin on a long run.

What’s the amp rating of 6/3 wire?

6/3 NM-B (Romex) is rated for 55 amps based on the 60°C column, which is what NEC 334.80 requires for NM cable. In practice, 6/3 NM is the standard cable for 50A circuits (electric ranges, hot tubs, dryers with a separate neutral), since it has three insulated conductors plus a ground.

If you see 6/3 in conduit as individual THHN conductors, the same wire jumps to 65A (75°C) or 75A (90°C). But in cable form, 55A is your limit.

Can 4 AWG carry 100 amps?

No, not for a standard installation. 4 AWG copper is rated 70A at 60°C, 85A at 75°C, and 95A at 90°C. None of those columns reach 100A. For 100 amps you need 3 AWG copper or larger, or 1 AWG aluminum. The only exception is welding cable or other specialty cables with higher temperature ratings, which doesn’t apply to building wiring.

What size wire for 50 amps in Canada?

The CEC matches NEC for this one. Use 6 AWG copper in cable (NMD90), or 8 AWG copper in conduit if all terminations are 75°C rated. For most Canadian residential 50A circuits (range, hot tub, sub-panel) you’ll see 6 AWG copper NMD90 or 6 AWG aluminum.

What size wire do I need to carry 100 amps over 100 feet?

For a 100A circuit at 240V running 100 feet one way, voltage drop becomes the deciding factor. Standard 3 AWG copper is fine for ampacity but pushes about 3% voltage drop at full load over that distance. To stay under 3%, bump up to 2 AWG copper or 1/0 AWG aluminum for that run. For 120V circuits at 100 amps over 100 feet, jump to 1 AWG copper or 2/0 aluminum.

What gauge wire for a 1000 watt or 1200 watt car amp?

This is a 12V car audio question. At 12V the current draw is roughly:

1000W amp: about 83 amps continuous, peaks higher
1200W amp: about 100 amps continuous, peaks higher

For most car audio installations:

1000W amp: 4 AWG power and ground
1200W amp: 4 AWG works for short runs, 2 AWG is safer for long runs
1500W and above: 2 AWG or 1/0 AWG

The CEA-2006 standard for car audio uses a different efficiency calculation than electrical building codes, so amp manufacturer recommendations sometimes differ. When in doubt, go bigger. Voltage drop on a 12V system kills amplifier headroom fast.

How to Calculate Wire Size for Amps

The full calculation uses two checks: ampacity (does the wire handle the current safely) and voltage drop (does the voltage stay within tolerance at the load).

Step 1: Determine the load current

For resistive loads: I = P / V

For motor loads, look up the FLA (Full Load Amps) on the motor nameplate, or use the NEC motor tables.

For continuous loads (running three or more hours): multiply the load by 1.25.

Step 2: Pick the wire from the ampacity chart

Match the calculated current to the 75°C column (or 60°C for residential branch circuits up to 100A).

Step 3: Check voltage drop

The voltage drop formula for single-phase (or DC) is:

VD = (2 × K × L × I) / CM

Where:

VD = voltage drop in volts
K = 12.9 for copper, 21.2 for aluminum (ohm-cmil per foot)
L = one-way length in feet
I = current in amps
CM = cross-section of the wire in circular mils (look up by AWG)

You want VD to stay under 3% of the system voltage for branch circuits, or 5% combined for branch plus feeder.

For three-phase circuits, replace the 2 with 1.732 (the square root of 3).

Quick voltage drop rule of thumb

If your run is longer than 100 feet, go up one wire size for every additional 100 feet at the same amperage. This is rough but works for most residential and light commercial work.

Sizing Wire by kW (Kilowatt Load)

If your load is rated in kilowatts (common for heaters, ovens, motors), convert to amps first:

Amps = (Watts) / (Volts × Power Factor)

For resistive loads, power factor is 1.0. For motors, it’s usually 0.8 to 0.95. Examples:

5 kW heater on 240V: 5000 / 240 = 20.8A → 12 AWG copper
10 kW range on 240V: 10000 / 240 = 41.7A → 8 AWG copper
15 kW heater on 240V single-phase: 62.5A → 4 AWG copper
20 kW motor at 480V 3-phase, PF 0.9: 26.7A → 10 AWG copper

Then check the chart and voltage drop.

Ambient Temperature and Derating

The ampacity tables assume a 30°C ambient. If the wire runs through a hot attic, an industrial environment, or any space hotter than that, the ampacity drops. NEC Table 310.15(B)(1) gives correction factors. A few common values for 90°C wire:

40°C ambient: multiply by 0.96
50°C ambient: multiply by 0.87
60°C ambient: multiply by 0.76

Also, when you have more than three current-carrying conductors in a single raceway, you apply adjustment factors per NEC 310.15(C)(1):

4 to 6 conductors: 80%
7 to 9 conductors: 70%
10 to 20 conductors: 50%

These are why a wire that “should” handle the current on paper sometimes needs to go up a size in real installations. The same principle applies to conduit fill calculations, which limit how many conductors you can pull through a given raceway.

When to Call a Licensed Electrician

This chart and the calculations cover the standard cases, but real installations have variables: voltage drop on long underground runs, parallel conductors, motor starting current, harmonic loads on neutrals, special equipment terminations, local code amendments. If you’re working on service entrance conductors, a panel change, or any 240V appliance circuit and you’re not licensed, hire someone who is. The cost of a service call is small compared to the cost of a fire or a failed inspection.

At Cablify, our team handles structured cabling and low-voltage work across the GTA. For high-voltage electrical work we partner with licensed master electricians. If you’re planning a build-out or service upgrade and need both pulled together cleanly, get in touch and we’ll coordinate it.

Download the Amp to Wire Size Chart (PDF)

For a printable one-page reference with all the copper and aluminum ampacities, common loads, and voltage drop quick-rules, download the free PDF and keep a copy on your phone or in your truck.

Download PDF Chart

Frequently Asked Questions

Is 4 gauge wire enough for a 1200 watt amp?

Yes for a short run (under 10 feet). For longer runs in a vehicle, step up to 2 AWG to keep voltage drop in check.

What size wire for a 50 amp breaker?

6 AWG copper in cable form (NM-B or NMD90), or 8 AWG copper in conduit if the terminals are rated 75°C.

Can you put a 30 amp breaker on 12 gauge wire?

No. NEC 240.4(D) caps 12 AWG copper at 20 amps regardless of insulation type. Putting a 30A breaker on 12 AWG is a code violation and a fire risk.

What size wire for 200 amp service?

3/0 AWG copper or 4/0 AWG aluminum for standard residential service in conduit. In Canada under the CEC, 2/0 AWG copper is permitted for 200A residential service under the 3-wire residential note in Table 2.

Does wire length matter for sizing?

Yes. For runs longer than 100 feet, voltage drop becomes the deciding factor. Increase wire size one step for each additional 100 feet at the same current.

Aluminum vs copper, which is better?

Copper is more conductive and more compact for the same ampacity. Aluminum is cheaper and lighter for large feeders and service entrances. For branch circuits inside walls, stick with copper.

What’s the difference between AWG and kcmil?

AWG (American Wire Gauge) is the standard for smaller conductors. As the AWG number gets smaller, the wire gets bigger (14 AWG is thinner than 8 AWG). Once you go past 4/0 AWG, the system switches to kcmil (thousand circular mils), and bigger numbers mean bigger wire (500 kcmil is bigger than 250 kcmil).

How do I know if my wire is THHN, THWN, or NM?

The type is printed on the outer jacket every few feet. THHN/THWN-2 is single insulated conductor for use in conduit. NM-B (often called Romex) is a sheathed cable with multiple conductors and a ground, used inside walls in dry locations. NMD90 is the Canadian equivalent of NM-B.

This guide is for reference only and does not replace a licensed electrician’s design or inspection. All electrical work should comply with the latest edition of the NEC (in the US) or CEC (in Canada) plus any local amendments. Always verify ampacities, derating factors, and overcurrent protection requirements against the current code edition before installation.

The post Amp to Wire Size Chart: Complete Guide for 12V, 120V & 240V (2026) appeared first on Cablify.

Cable Tray Systems: A Complete Guide to Types & Installation

HP — Sun, 30 Nov 2025 17:06:42 +0000

In the hidden pathways of commercial buildings, industrial plants, and data centers, a silent network forms the circulatory system for power and data. Managing this complex web of cables requires a robust, flexible, and safe solution. This is the role of the cable tray system—a structured framework designed to support and organize insulated electrical cables, control cables, and communication lines.

Far superior to traditional conduit in many applications, cable tray systems offer unparalleled accessibility for maintenance, upgrades, and repairs, making them the preferred choice for modern infrastructure.

What is a Cable Tray System?

A cable tray system is a unit assembly of sections and fittings that forms a rigid structural system used to securely fasten or support cables and wiring. Think of it as a sophisticated “highway” for cables, keeping them organized, protected, and easily accessible.

Key Components of a Cable Tray System

A complete system is made up of several integral parts:

Straight Sections: The long, straight lengths of tray that form the main cable runs. They are available in various standard lengths.
Fittings (Bends and Tees): These components allow the system to change direction and branch out.
- Horizontal Bends: Change direction on the same plane (e.g., 30°, 45°, 90°).
- Vertical Bends (Risers): Allow the tray to move from one elevation to another.
- Tees and Crosses: Create branches in the system to route cables to different areas.
Reducers: Used to connect trays of different widths, often when moving from a main run (wide) to a branch run (narrow).
Accessories:
- Covers: Protect cables from falling debris, dust, moisture, and unauthorized access.
- Splice Plates: Connect straight sections of tray together securely.
- Hold-Down Clamps: Secure the covers to the tray base.
- Drop-Outs: Allow cables to exit the tray vertically to connect to equipment below.
Supporting Components:
- Cable Tray Supports: These include trapeze hangers, center-span supports, and wall brackets that anchor the entire system to the building structure (ceiling, wall, or floor).

Common Types of Cable Trays and Their Applications

Selecting the right type of tray is critical for performance and safety.

Ladder Type: The strongest design, featuring side rails and connecting rungs. Its open structure provides excellent cable ventilation, making it ideal for supporting large power cables in heavy industrial applications with long support spans.
Solid Bottom Tray: Provides a continuous, solid surface that offers maximum protection to cables from dust, moisture, and physical interference. It is often used in commercial buildings for telecommunication and fiber-optic cables.
Trough (Ventilated) Tray: Features a ventilated bottom, offering a balance between the strength of a ladder tray and the protection of a solid bottom. It provides good cable ventilation with more support than a ladder tray.
Wire Mesh Tray: A lightweight and highly flexible solution made from welded steel wire. It allows for 360-degree cable access and is easy to modify on-site, making it perfect for data centers, office buildings, and control rooms where changes are frequent.
Channel Type: Typically used for lighter cable loads in commercial and institutional applications. It is often used for backbone and horizontal distribution.
Fiberglass (FRP) Tray: Manufactured from fiberglass-reinforced plastic, these trays are non-conductive and highly resistant to corrosion. They are essential in harsh environments like chemical plants, water treatment facilities, and coastal areas.

Essential Assembly and Installation Tips

Proper installation is key to a safe and reliable system.

Plan the Route Meticulously: Before installation, create a detailed plan of the entire cable tray run, including all supports, bends, and tees. Ensure the route avoids interference with other utilities like pipes and ductwork.
Select the Correct Tray and Load Rating: Always choose a tray system with a load rating (rung strength and side rail stiffness) that exceeds the total weight of all cables it will carry, including future additions.
Secure Supports Properly: Supports must be anchored to the building structure at intervals specified by engineering standards and the manufacturer’s recommendations. The strength of the entire system relies on its supports.
Ground the System Continuously: A cable tray system must be bonded and grounded as a continuous electrical conductor to ensure safety and protect against fault currents.
Use Proper Fastening: Ensure all splice plates, connectors, and hardware are tightened to the specified torque. This maintains the mechanical and electrical continuity of the system.
Maintain Bend Radius: When routing cables, the most critical rule is to never exceed the cable’s minimum bend radius. Sharp bends can damage cable insulation and impair performance.
Implement Cable Management: Use accessories like cable ties, cleats, and straps within the tray to keep cables neatly organized, separated by voltage or signal type, and prevent stress on terminations.
Consider Expansion Joints: In environments with significant temperature fluctuations, expansion joints should be installed to allow for thermal expansion and contraction of the tray, preventing stress and deformation.

A well-designed and installed cable tray system is more than just a support structure; it is a strategic investment in the safety, scalability, and longevity of a facility’s electrical and data infrastructure. By understanding the components, selecting the appropriate type for the environment, and adhering to best installation practices, you can create a robust cable management highway that will serve reliably for years to come.

The post Cable Tray Systems: A Complete Guide to Types & Installation appeared first on Cablify.

The Importance of Surge Protection: Safeguarding Your Electrical and Data Infrastructure

HP — Fri, 17 Jan 2025 00:54:11 +0000

In today’s digital age, businesses and homes rely heavily on electrical and data systems to function efficiently. From computers and servers to security cameras and HVAC systems, a power surge can damage or completely destroy critical infrastructure. Without proper surge protection, the risk of unexpected failures, data loss, and costly repairs increases significantly.

As a leading provider of electrical and data cabling services, Cablify understands the crucial role that surge protection plays in maintaining business continuity and safeguarding assets. In this article, we’ll explore what power surges are, their causes, and why investing in high-quality surge protection is a necessity rather than an option.

Common Causes of Power Surges

Power surges can originate from a variety of sources, both internal and external. Understanding these causes can help businesses and homeowners take proactive measures to prevent damage.

1. Lightning Strikes

Lightning is one of the most powerful sources of electrical surges. When lightning strikes a power line or enters a building through antennas, phone lines, or external wiring, it can send a massive surge through the electrical system, damaging everything in its path.

2. Utility Grid Switching

Electrical utility companies manage the power grid by switching loads and rerouting electricity as needed. These operations can create sudden spikes in voltage, affecting sensitive electronics.

3. High-Powered Electrical Equipment

Large appliances such as air conditioners, refrigerators, elevators, and industrial machinery often cause surges when they start or stop running. These internal surges may not be as powerful as those caused by lightning, but over time, they can degrade electronic components.

4. Wiring Issues

Faulty or outdated wiring can contribute to uneven voltage levels, increasing the risk of electrical surges. Proper grounding and high-quality electrical installations are essential for maintaining stable voltage levels.

5. Power Outages and Blackouts

When power is restored after an outage, the sudden rush of electricity can create a surge. Businesses with sensitive data and equipment should always have surge protection systems in place.

The Risks of Not Having Surge Protection

Failing to protect electrical and data systems from power surges can have serious consequences. Here are some of the biggest risks:

1. Equipment Damage and Replacement Costs

Without surge protection, valuable electronic devices such as servers, network switches, security cameras, and HVAC systems can suffer irreversible damage. The cost of replacing this equipment can be substantial, especially for businesses with extensive IT infrastructure.

2. Data Loss and Corruption

Power surges can corrupt or erase data stored on computers, servers, and hard drives. For businesses, this can mean the loss of critical files, customer information, and operational data, leading to downtime and financial losses.

3. Business Downtime

If a surge damages essential systems, businesses may experience prolonged downtime while repairs or replacements are made. This downtime can affect productivity, customer satisfaction, and overall revenue.

4. Fire Hazards

Uncontrolled power surges can lead to overheating of electrical components, increasing the risk of electrical fires. A properly installed surge protection system can prevent these dangerous situations.

5. Reduced Lifespan of Equipment

Even if a power surge does not immediately destroy a device, repeated small surges can shorten the lifespan of electronic components, leading to premature failure and increased maintenance costs.

Types of Surge Protection Devices

There are various surge protection devices (SPDs) designed to safeguard electrical and data infrastructure. The choice of SPD depends on the level of protection required.

1. Whole-Building Surge Protectors

Installed at the main electrical panel, these protectors prevent surges from entering a building’s electrical system. They are essential for safeguarding all connected equipment.

2. Plug-in Surge Protectors

These are common in homes and offices and provide localized protection for computers, printers, and other sensitive electronics. High-quality models offer multiple layers of defense, including EMI/RFI filtering and voltage clamping.

3. Data Line Surge Protectors

Power surges can travel through telephone lines, coaxial cables, and Ethernet cables. Installing surge protection for data lines ensures that network devices remain safe from voltage spikes.

4. Industrial and Commercial Surge Protection

Larger facilities often require industrial-grade surge protection systems capable of handling high voltage levels and providing protection for complex electrical networks.

Best Practices for Surge Protection

To maximize surge protection effectiveness, businesses and homeowners should follow these best practices:

1. Assess Electrical and Data Infrastructure

Conduct an audit of your electrical and data systems to identify vulnerable points where surge protection is needed.

2. Invest in Quality Surge Protectors

Not all surge protectors are created equal. Look for devices with high joule ratings and response times under 1 nanosecond.

3. Use Layered Protection

Combining whole-building surge protectors with localized plug-in surge protectors ensures comprehensive protection.

4. Regular Maintenance and Inspections

Over time, surge protectors degrade due to repeated surge absorption. Regularly inspect and replace old devices to maintain protection.

5. Unplug Devices During Storms

If possible, unplug sensitive electronics during lightning storms to add an extra layer of protection.

6. Ensure Proper Grounding

Surge protectors must be properly grounded to function effectively. Work with qualified electricians to ensure safe installations.

Surge protection is not a luxury—it’s a necessity. Whether you’re running a small office, a large enterprise, or a data center, protecting your electrical and data infrastructure should be a top priority. Investing in high-quality surge protection solutions ensures uninterrupted operations, prevents costly damage, and enhances the longevity of your equipment.

At Cablify, we are committed to delivering top-tier surge protection solutions that safeguard your business from unforeseen power events. Contact us today to learn more about how we can help protect your assets with cutting-edge surge protection technology.

Protect your investments—Don’t wait for a surge to teach you a costly lesson!

The post The Importance of Surge Protection: Safeguarding Your Electrical and Data Infrastructure appeared first on Cablify.

Guide to Rigid Conduit

HP — Wed, 16 Oct 2024 22:58:01 +0000

Rigid conduit plays a critical role in electrical systems, providing protection for wiring and ensuring safe, reliable, and durable installations. This comprehensive guide covers everything you need to know about rigid conduit, from the basics of what it is, to types, specifications, benefits, installation best practices, and more. We will also include tables and charts to offer a deeper understanding of this essential electrical component.

What is Rigid Conduit?

Rigid conduit is a type of electrical conduit that is designed to protect and route electrical wiring in a variety of settings, including commercial, industrial, and residential applications. It is made from strong and durable materials, typically steel, stainless steel, aluminum, or PVC, and is known for its ability to provide robust mechanical protection against physical damage.

Rigid conduit is favored for its:

Durability: It can withstand harsh environments, impacts, and heavy loads.
Electrical Grounding: The metal variants of rigid conduit can serve as an excellent grounding path.
Resistance to Environmental Conditions: Protects against moisture, dust, and corrosion (depending on the material).

Types of Rigid Conduit

Type	Material	Applications	Features
Rigid Metal Conduit (RMC)	Steel/Stainless Steel	Heavy-duty industrial, commercial, and outdoor applications	High strength, corrosion-resistant
Intermediate Metal Conduit (IMC)	Steel	Industrial and commercial where lighter weight is preferred	Lighter than RMC, corrosion-resistant
Aluminum Conduit	Aluminum	Outdoor and wet locations, industrial	Lightweight, rust-resistant
PVC Conduit	PVC (Plastic)	Residential, industrial, corrosive environments	Non-conductive, corrosion-resistant
Flexible Metal Conduit (FMC)	Metal	Indoor, connecting motors or devices to rigid conduit	Flexible, used for vibration-prone areas

Specifications and Standards

Rigid conduit must adhere to specific standards to ensure safety and functionality. In North America, the following standards apply:

UL 6 (Underwriters Laboratories): Covers rigid metal conduit and sets standards for safety, construction, and performance.
NEMA (National Electrical Manufacturers Association) TC2 and TC3: Define standards for PVC conduit.
NEC (National Electrical Code): Governs the installation of all conduit systems, including rigid conduit.

Each of these standards specifies aspects such as:

Wall thickness and diameter
Corrosion resistance
Bending and mechanical strength
Thermal properties

Applications of Rigid Conduit

Rigid conduit is versatile and can be used in various environments:

Commercial Buildings: For running electrical wiring in offices, shops, and other commercial establishments.
Industrial Facilities: To provide a robust wiring solution in factories, warehouses, and other industrial settings.
Residential Projects: Used for high-durability needs or where protection against rodents and physical damage is required.
Outdoor Installations: Ideal for outdoor electrical systems where exposure to elements is a concern.

Benefits of Using Rigid Conduit

1. Mechanical Protection: One of the key advantages is its ability to shield wiring from physical damage, moisture, and other environmental factors.

2. Durability: Rigid conduit is extremely durable, especially metal variants that can last for decades with minimal maintenance.

3. Corrosion Resistance: Aluminum and coated steel options offer resistance to corrosion, making them suitable for wet or chemically harsh environments.

4. Electrical Grounding: Metal conduits can act as a grounding path, improving safety by reducing the risk of electric shock.

5. Ease of Maintenance: Wiring inside a conduit can be easily accessed for maintenance, inspection, or replacement, without the need to cut walls or other structures.

Installation Best Practices

Preparation

Planning and Layout: Before starting, prepare a detailed layout of the conduit runs, including the length, bends, junction boxes, and connection points. Proper planning can minimize the need for additional fittings and reduce material waste.
Material Selection: Choose the right type of conduit based on the application. For example, select PVC conduit for corrosive environments or aluminum conduit for areas requiring a lightweight, rust-resistant option.

Cutting and Bending

Cutting Rigid Conduit: Use a pipe cutter or hacksaw to cut the conduit to the required lengths. Ensure that cuts are clean and smooth, and deburr the edges to prevent wire damage during installation.
Bending: Use a conduit bender designed for the specific material (e.g., steel, aluminum). Bending should be done carefully to avoid kinks, and always follow the manufacturer’s specifications for minimum bend radius.

Table: Minimum Bend Radius for Rigid Conduit

Conduit Size	Minimum Bend Radius (Inches)
1/2″	4.5
3/4″	6.0
1″	8.0
2″	16.0

Securing and Supporting

Anchoring Conduit: Ensure that the conduit is securely anchored to walls or structures using proper brackets or hangers. Spacing between supports must comply with local codes (e.g., NEC).
Spacing Between Supports: The standard support intervals are typically 10 feet for metal conduit and 3 feet for PVC conduit. Additional supports should be added near bends, junction boxes, and connections.

Connection and Wiring

Threading and Coupling: Thread the ends of the conduit if required, and use couplings to join sections. Make sure connections are tight and secure to maintain a continuous grounding path.
Pulling Wires: Use fish tape to pull wires through the conduit. Lubricants can be used to reduce friction, especially in longer runs or when pulling multiple wires.
Sealing: In outdoor installations or hazardous environments, ensure that all joints are properly sealed to prevent moisture ingress.

Chart: Recommended Conduit Fill Capacity

Conduit Size	Maximum Number of 12 AWG Wires	14 AWG Wires
1/2″	9	12
3/4″	16	21
1″	26	34
2″	84	112

Inspection and Testing

Visual Inspection: After installation, conduct a thorough visual inspection to check for proper connections, secure fittings, and compliance with layout plans.
Electrical Testing: Perform electrical testing to ensure that all wiring is properly connected and there are no issues with grounding or continuity. Check for any signal interference if running data cables.

Safety Considerations

Personal Protective Equipment (PPE): Always wear safety glasses, gloves, and proper attire when cutting, threading, or bending conduit.
Lockout/Tagout: Follow lockout/tagout procedures when working on existing systems to prevent accidental energization.
Handling and Storage: Store rigid conduit in a dry, clean area to prevent contamination and damage. Handle with care, especially for longer lengths.

Comparison: Rigid Conduit vs. Other Types

Feature	Rigid Conduit	Flexible Metal Conduit (FMC)	Electrical Metallic Tubing (EMT)	PVC Conduit
Strength	High	Moderate	Low	Moderate
Flexibility	Low	High	Moderate	Moderate
Corrosion Resistance	High (with coating)	Moderate	Low	High
Cost	High	Moderate	Low	Low
Applications	Industrial, outdoor, heavy-duty	Vibration-prone areas, indoor	Indoor, light commercial	Corrosive environments, underground

Troubleshooting Common Issues

Difficulties in Bending: Ensure that you are using the correct bender for the material. Incorrect tools can lead to improper bends, which can cause damage.
Corrosion: For outdoor or wet environments, use corrosion-resistant coating or opt for aluminum or PVC conduit.
Electrical Ground Issues: Check all connections and ensure that couplings are properly secured to maintain a continuous grounding path.

Rigid conduit is a robust, reliable solution for electrical installations across a wide range of environments. From commercial settings to industrial facilities, it provides the necessary protection and durability for safe and efficient electrical systems. By following best practices for installation, maintenance, and safety, electricians can ensure that the systems they build are compliant, long-lasting, and easy to maintain.

Proper planning, the right tools, and adherence to local codes will make all the difference in the success of your installation. When choosing a rigid conduit, consider factors such as environmental conditions, durability requirements, and cost to determine the best fit for your application.

EMT Conduit Fill Chart Canada, Free Calculator + Full Tables (CEC 2026)

Canada’s most complete EMT conduit fill chart. Free interactive calculator, full THWN/RW90 tables for EMT, PVC & RMC, CEC Rule 12-910 compliant. Download PDF free.

Data and Electrical Conduit in Canada: Canadian Electrical Code Guide for Low-Voltage Cabling

Can data cables and electrical wiring run in the same conduit in Canada? In most commercial installations, the safest and cleanest answer is no. This guide explains how the Canadian Electrical Code treats power, communication, low-voltage, fiber, Cat6, and conduit separation.

EMT vs Rigid vs IMC Conduit for Commercial Buildings

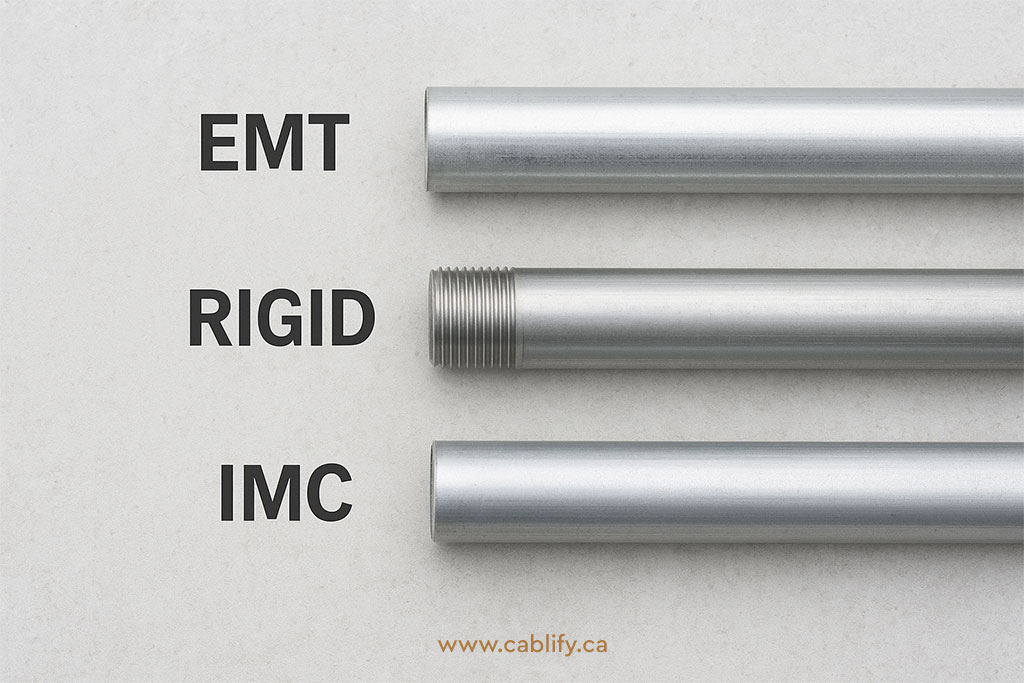

EMT vs Rigid vs IMC Conduit: Choosing the Right One for Commercial Buildings

EMT Installation: Comprehensive Guide and Pro Tips for Electricians

Electrical Metallic Tubing (EMT) is the lightweight champion of electrical conduits, offering durability without the bulk. Made from galvanized steel or aluminum, EMT stands out for its ease of manipulation (cutting, bending, assembling) making it a popular choice among electricians for various installations. It’s like the Swiss Army knife of conduits – versatile, reliable, and [...]

Conduit Fill Guide for Data cables

If you are an electrical contractor, IT installer, or network engineer, choosing the wrong conduit size can turn a simple cable pull into a nightmare of snags, deformed jackets, and failed certification tests. This conduit fill guide for data cables answers the practical question on every job site: how many Cat5e, Cat6, or Cat6A cables [...]

The post Guide to Rigid Conduit appeared first on Cablify.

Comparing Copper and Aluminum Cabling for Today’s Technology

HP — Sat, 04 May 2024 13:21:09 +0000

In the world of electrical engineering, conductors play a pivotal role in the efficiency and safety of power distribution. Among the various metals employed, copper and aluminum stand out as the dominant materials used in electrical conductors. Each of these metals offers unique properties that cater to different demands in the industry. This detailed exploration will delve into the characteristics, applications, and innovations surrounding copper and aluminum conductors, offering insights that go beyond the conventional comparison.

The Essence of Conductors

Conductors are materials that facilitate the flow of electric current through the movement of electrons. Ideal conductors are typically nonmagnetic metals, which possess attributes like high conductivity, sufficient tensile strength, low weight, and resilience to environmental exposure. The choice of conductor material impacts not only the efficiency of power transmission but also the physical and economic aspects of electrical systems.

Copper Conductors: The Traditional Choice

Historical Context and Properties Copper’s journey as a conductor dates back to the early days of electricity, with pioneers like Benjamin Franklin and Michael Faraday exploiting its superior electrical properties. This metal has not only powered the telegraph, telephone, and electric motor but has also set the global standard in conductivity. According to the International Annealed Copper Standard (IACS) established in 1913, pure annealed copper is benchmarked at 100% IACS, with many modern samples exceeding this standard due to advances in metallurgical processes.

Advantages and Specifications Copper’s preeminence in electrical applications stems from its excellent conductivity, robust tensile strength, and significant thermal properties. These features make it ideal for a wide range of applications, from building wiring to sophisticated electronics and automotive systems. Copper wires meet stringent specifications such as ASTM B3, which covers soft or annealed copper wire for electrical purposes.

Aluminum Conductors: The Lightweight Competitor

Evolution and Composition Aluminum, known for its lightweight and cost-effectiveness, presents a compelling alternative to copper, especially in applications where weight and budget are critical constraints. Comprising 61% of copper’s conductivity and just 30% of its weight, aluminum offers a significant advantage in large-scale and aerial electrical installations. This metal is primarily used in different alloy forms, such as the AA-1350 and AA-8000 series, the latter being developed to address early issues related to connection quality and fire safety in household wiring.

Regulations and Applications Aluminum’s adoption was propelled by the high cost of copper during the 1960s and 1970s, leading to its widespread use in residential wiring. However, its physical differences from copper led to the development of AA-8000 series aluminum alloys, which better mimic copper’s physical properties. These alloys are now specified under ASTM B800 and are the only aluminum conductors approved by the National Electric Code for certain types of electrical installations.

Detailed Comparison and Applications

Copper vs. Aluminum: A Performance Overview When substituting aluminum for copper, it is typical to select an aluminum conductor that is two AWG sizes larger to achieve equivalent performance. Here’s a closer look at the properties comparison based on XHHW-2 cable ratings:

Property	AA-8000 Series Aluminum	Copper
AWG size for 60 A at 75°C	6	8
Weight per 1,000 ft.	39 lb.	65 lb.
Nominal diameter	0.26 in	0.23 in
Maximum pulling tension	157 lb.	132 lb.

Broader Applications Copper continues to dominate in most electronic cables and residential wiring due to its high conductivity. It’s also favored in power generation and automotive applications. Aluminum, on the other hand, is extensively used for overhead transmission lines in utilities and other applications where its lightweight nature is beneficial, such as in aircraft and potential future uses in automotive frameworks. Additionally, for large coaxial cables, copper-clad aluminum wire combines the conductivity of copper with the weight advantage of aluminum.

Connector Considerations

Connectors for aluminum conductors must be specifically rated for their use to prevent connectivity issues. Such connectors, often suitable for both aluminum and copper, are labeled accordingly (e.g., AL7CU). For soldered connections, copper or tinned copper is preferred due to the difficulty of soldering aluminum.

Forward-Looking Insights

As we advance in material science and electrical engineering, the debate between copper and aluminum continues to evolve. Innovations in alloy composition and processing may further enhance the capabilities and applications of both metals, potentially changing the landscape of electrical conductor materials.

The choice between copper and aluminum conductors depends on a variety of factors including electrical requirements, environmental conditions, mechanical properties, and economic considerations. Understanding the comprehensive attributes and suitable applications of each can significantly enhance the effectiveness and cost-efficiency of your projects. While copper offers superior conductivity and durability, making it ideal for high-quality, long-lasting installations, aluminum provides a lightweight and cost-effective alternative, especially valuable in large-scale and weight-sensitive applications. By carefully assessing the specific needs of your installation, including load demands, environmental exposure, and budget constraints, you can make a well-informed decision that balances performance, safety, and cost.

The post Comparing Copper and Aluminum Cabling for Today’s Technology appeared first on Cablify.

Brightening Up Business: Choosing the Best LED Lighting for Commercial Spaces

HP — Mon, 24 Jul 2023 00:06:57 +0000

Imagine walking into a vibrant, well-lit space – a place where every corner is meticulously illuminated, making it feel inviting and comfortable. Now, contrast this with a poorly lit room, where the shadows are prominent and the atmosphere is less than welcoming. The difference between these two experiences underscores the power and importance of appropriate lighting. It becomes even more crucial in a commercial setting where lighting can impact everything from productivity and employee satisfaction to energy consumption and customer experience.

In the world of commercial lighting, one technology has stood out in recent years for its efficiency, cost-effectiveness, and sustainability – Light Emitting Diodes, or more commonly known as LED lights. LED lighting has been revolutionizing the illumination landscape, offering solutions that outshine their conventional incandescent or fluorescent counterparts.

In this comprehensive guide, we’ll explore the world of LED lighting for commercial spaces. We’ll delve into the reasons that make LEDs an excellent choice, explore different types of LED lights, consider key factors in choosing LED lights, and even provide a guide to calculate the number of LED lights you might need for your commercial space.

Whether you’re an entrepreneur looking to cut down on energy costs, a business manager wanting to improve your workspace, or a property owner keen on making a sustainable choice, this guide will illuminate the path to achieving your goals with LED lighting.

Why LED Lights for Commercial Spaces?

When it comes to selecting lighting for commercial spaces, you need a solution that combines cost-effectiveness, energy efficiency, longevity, and quality. LED lights outshine many traditional lighting options on these fronts. Here’s why LED lights are an excellent choice for commercial spaces:

1. Energy Efficiency: LEDs are champions of efficiency. They convert up to 95% of energy into light, wasting only 5% as heat. Contrast this with incandescent bulbs that convert only about 10% of energy into light, squandering the remaining 90% as heat. What does this mean for your business? With LEDs, a significant chunk of your electricity consumption converts into usable light, not wasted heat, leading to substantial savings on energy bills. This high efficiency is particularly beneficial in commercial settings where lights are on for extended periods.

2. Long Lifespan: LED lights are known for their long lifespan. They can last up to 50,000 hours, sometimes even more, depending on the usage and model. In a commercial setting, where lights are often operational for a large part of the day, this extended lifespan means less frequent replacement. Not only does this lower the costs associated with buying new lights, but it also reduces maintenance costs.

3. Superior Light Quality: LED lights offer superior light quality compared to traditional lighting solutions. They provide brighter, uniform light distribution, ensuring no areas are left dim or poorly lit. Additionally, they come in a range of color temperatures and have better Color Rendering Index (CRI) scores, meaning they can more accurately reproduce the color of objects as compared to natural light.

4. Eco-Friendly: As businesses across the globe strive to be more sustainable, switching to LED lights is an effective step towards this goal. LEDs consume less power, reducing their carbon footprint. They also last longer, meaning less waste from light bulb replacements. Moreover, unlike compact fluorescent lights (CFLs), they do not contain harmful mercury, making them safer to use and dispose of.

5. Instant Lighting & Frequent Switching: LED lights light up immediately at their full brightness once switched on, with no warm-up period required. This is a stark contrast to many traditional lights that take several minutes to reach full brightness. Additionally, LEDs can handle frequent on/off cycles without degradation, making them ideal for commercial spaces where lights may be switched on and off regularly.

6. Versatility: LEDs are highly adaptable and can be designed for virtually any lighting application due to their size and efficiency. This versatility allows businesses to create tailored lighting solutions to meet their unique needs.

LED lights offer businesses a way to maintain high-quality lighting while saving on energy costs, reducing maintenance efforts, and contributing positively to the environment.

Different Types of LED Lights

One of the main reasons LED lights have become so popular in commercial spaces is their versatility. They come in a wide variety of types, each designed to meet specific lighting needs. Here are some commonly used LED light types in commercial settings:

1. LED Panels: LED panel lights are typically square or rectangular and provide even, uniform, and bright lighting. They are an ideal replacement for traditional fluorescent ceiling lights. The diffuser on LED panels ensures that the light is spread over a large area, making it ideal for offices, retail stores, hospitals, and educational institutions.

2. LED Tubes: LED tube lights are designed to replace traditional fluorescent tube lights. They provide better energy efficiency, longer lifespan, and superior light quality. They’re often used in offices, garages, warehouses, and any other places where long, linear lighting is required.

3. LED Downlights: Also known as pot lights or recessed lights, LED downlights are installed into the ceiling, providing a sleek and modern look. These lights emit light in a downward direction, giving a narrow spotlight kind of effect. They’re perfect for creating a warm and welcoming atmosphere in places like hotels, restaurants, and residential buildings.

4. LED High Bay Lights: As the name suggests, LED high bay lights are designed for spaces with high ceilings, typically 20 feet or more. They provide bright and uniform lighting, making them an excellent choice for warehouses, factories, gyms, and retail stores with high ceilings.

5. LED Strip Lights: LED strip lights, also known as LED tape or ribbon lights, are flexible circuit boards populated by surface mounted light-emitting diodes (SMD LEDs) and other components. They are perfect for accent lighting, back-lighting, pathway lighting, and decorative lighting on ceilings, walls, and other tight spaces.

6. LED Bulbs: LED bulbs are the most common type of LED light. They come in a variety of shapes, sizes, and fittings and are designed to replace traditional incandescent or CFL bulbs. They are used in various settings, including offices, retail stores, hotels, and more.

7. LED Spotlights: LED spotlights produce a narrow beam of light that can be directed at specific areas or objects. They’re used in many commercial settings for accent lighting, such as highlighting product displays in retail stores or artworks in a gallery.

Each of these LED types offers unique benefits and can be used to create optimal lighting conditions for various commercial spaces. When choosing an LED light type, consider factors such as the size of the space, the ceiling height, the desired lighting effect, and the specific lighting needs of the business.

Factors to Consider When Choosing LED Lights

Choosing the right LED lights for your commercial space is not as simple as picking the first option you come across. Several factors come into play to ensure you make the most out of your investment. Here are the key considerations:

1. Size and Layout of the Space: The size and layout of your space will largely determine the type and number of LED lights you need. Larger spaces will typically require more powerful lights or a greater number of lights to sufficiently illuminate the area. The layout is also essential – consider where the lights will be placed for optimal illumination.

2. Type of Business: Different businesses have different lighting needs. For instance, an art gallery might require LED spotlights with high Color Rendering Index (CRI) scores to accurately portray artwork, while an office space might need bright, cool white LED panels to maintain productivity.

3. Color Temperature: LED lights come in a range of color temperatures, usually measured in Kelvins (K). Lower temperatures (2700-3000K) produce a warm, cozy light that’s often used in hotels, restaurants, and residential spaces. On the other hand, higher temperatures (4000-6500K) produce a cool, bright white light ideal for task-oriented spaces like offices, retail stores, or hospitals.

4. Luminous Efficacy (Lumens/Watt): Luminous efficacy refers to how much light a bulb produces for each watt of electricity. In simple terms, it’s a measure of an LED light’s efficiency. Look for LED lights that offer high lumens for less wattage, as these will be the most energy-efficient.

5. Color Rendering Index (CRI): CRI is a measure of a light source’s ability to reveal the actual color of objects as compared to an ideal light source like natural light. A high CRI is desirable as it means the light source accurately represents different colors. For businesses where color accuracy is important, such as retail stores or art galleries, LEDs with a high CRI are recommended.

6. Dimmability: Depending on the nature of your commercial space, you might require lights with dimming capabilities. LED lights are available in dimmable versions, allowing you to adjust the light intensity as per your needs.

7. Lifespan and Warranty: Always check the expected lifespan of an LED light before purchasing. Most quality LEDs have a lifespan of 25,000 to 50,000 hours, significantly outlasting traditional light sources. Also, consider the warranty provided by the manufacturer, which can serve as a guarantee of the product’s durability.

8. Safety and Certifications: Ensure that the LED lights you choose meet all safety standards and have the necessary certifications. Lights should be tested and certified by recognized testing laboratories to ensure they are safe to use.

By considering these factors, you can select LED lights that not only meet your illumination needs but also contribute to the overall efficiency, aesthetics, and functionality of your commercial space.

How to Calculate the Number of LED Lights Needed

After understanding the types of LED lights and the factors to consider, the next crucial step is determining the number of LED lights required for your commercial space. Having the right number of lights ensures your space is adequately lit without unnecessarily escalating energy costs. Here’s a simple guide on how to calculate this:

1. Calculate the Total Lumen Requirement: Start by calculating the total lumen requirement for your space. Lumens measure the amount of visible light emitted by a source. Different types of spaces require different lumen levels. For instance, a retail store might require around 50 lumens per square foot, while a warehouse could require 30 lumens per square foot. Multiply the total square footage of your space by the required lumens per square foot to get your total lumen requirement.

2. Check the Lumen Output of the LED Light: Next, check the lumen output of the LED light you plan to use. This is usually mentioned on the LED light packaging or product description.

3. Determine the Number of Lights Needed: Divide your total lumen requirement by the lumen output of the LED light. The resulting number will give you a rough estimate of the number of LED lights needed to adequately illuminate your commercial space.

For example, if your retail store is 1000 square feet and requires 50 lumens per square foot, your total lumen requirement is 50,000 lumens. If the LED light you chose has a lumen output of 1600 lumens, you would need approximately 31 LED lights (50,000 divided by 1600).

Keep in mind, this calculation provides a rough estimate. Other factors like the layout of the space, the color of the walls and ceiling, and the presence of natural light can affect the number of lights needed. You might need fewer lights if your space has a lot of natural light or lighter colored walls, and more if the space has darker colored walls and little to no natural light.

When in doubt, it’s always beneficial to consult with a lighting designer or a professional with experience in commercial lighting. They can provide a more accurate assessment of your lighting needs based on the specific characteristics of your space.

The Bright Future of LED Lighting in Commercial Spaces

The shift towards LED lighting in commercial spaces is more than just a trend; it’s a testament to the myriad advantages that this technology brings. From energy efficiency and cost savings to improved light quality and reduced environmental impact, the benefits are tangible and significant.

Choosing the right LED lights for your commercial space might seem like a daunting task, but with the right knowledge and guidance, it can be simplified. By understanding the different types of LED lights, considering crucial factors like your space’s size, the type of business, and the desired light temperature, and calculating the number of lights needed, you can make an informed decision.

Real-life implementations, like the shopping mall case study we discussed, prove that well-planned LED lighting upgrades can enhance the aesthetics of a space while driving down costs and contributing to sustainability efforts.

As we advance towards a more energy-conscious future, LED lighting stands out as a powerful tool for businesses to create engaging spaces, improve their bottom line, and reduce their carbon footprint. Embracing LED technology is not just about keeping up with the times; it’s about paving the way for a brighter, more sustainable future.

The post Brightening Up Business: Choosing the Best LED Lighting for Commercial Spaces appeared first on Cablify.

The basics of three Phase Electricity

HP — Fri, 24 Mar 2023 22:54:41 +0000

Three-phase electricity is an essential component of modern power distribution systems, providing a more efficient and reliable means of delivering electrical energy than single-phase systems. This explanation will discuss the basics of three-phase electricity in approximately 3000 words.

Introduction to Electricity

Electricity is a form of energy resulting from charged particles, such as electrons and protons. It can be generated through various means, including chemical reactions, electromagnetic induction, and photovoltaic processes. Electrical energy is typically transmitted through conductive materials in the form of an electric current, which is the flow of electric charge.

Single-Phase and Three-Phase Electricity

Single-phase electricity involves the delivery of power through a single alternating current (AC) waveform. The voltage in a single-phase system oscillates between positive and negative values, reaching zero volts at two points during each cycle. This results in a periodic fluctuation in power delivery.

Three-phase electricity, on the other hand, involves the delivery of power through three separate AC waveforms, each offset by a 120-degree phase difference. This arrangement results in a more constant power delivery, enabling the efficient operation of large motors and reducing the need for large energy storage systems.

Advantages of Three-Phase Electricity

a) Continuous Power Delivery: In a three-phase system, the sum of the power delivered by the three individual waveforms is constant, ensuring a continuous flow of power. This enables smoother operation of electric motors and reduces the need for energy storage devices like capacitors.

b) Efficiency: Three-phase systems are more efficient in delivering power, as they require less conductor material for a given power output compared to single-phase systems. This results in reduced material costs and energy losses due to resistance in the conductors.

c) Motor Performance: Electric motors operating on three-phase power exhibit improved performance characteristics, such as higher torque and reduced vibration, compared to their single-phase counterparts. This allows for the use of simpler and more robust motor designs in many applications.

d) Load Balancing: In a three-phase system, it is easier to balance the electrical loads across the three phases, reducing the risk of overloading individual conductors and improving overall system stability.

Generation of Three-Phase Electricity:

Three-phase electricity is typically generated by an alternator, which is a type of electrical machine that converts mechanical energy into electrical energy. The alternator contains a rotating magnetic field, which induces a voltage in stationary coils or windings. The rotor, containing the magnetic field, rotates at a constant speed, while the stator houses the windings.

By using a three-phase alternator, it is possible to generate three separate AC voltages, each with a phase difference of 120 degrees. The rotor’s magnetic field can be generated by a wound-field design or by using permanent magnets. The stator windings are arranged in a specific manner to produce the desired phase difference between the generated voltages.

Transformers in Three-Phase Systems

Transformers are crucial components in three-phase systems, allowing for voltage conversion and isolation between different parts of the electrical grid. Transformers consist of two or more coils of wire, known as windings, which are wound around a magnetic core. When an AC voltage is applied to the primary winding, a magnetic field is created, which induces a voltage in the secondary winding.

Three-phase transformers can be designed in various configurations, such as delta (Δ) and wye (Y) connections. Delta-connected transformers have their windings connected in a closed-loop triangular formation, while wye-connected transformers have one end of each winding connected to a common neutral point.

Transmission and Distribution of Three-Phase Electricity

Three-phase electricity is transmitted and distributed through a network of power lines and substations, which are designed to efficiently deliver power over long distances and maintain voltage levels within specified limits. Transmission lines are typically high-voltage lines that carry electricity from generating stations to distribution substations, where the voltage is stepped down for local use. Distribution lines then carry the electricity to end consumers, such as residential, commercial, and industrial users.

Power Factor and Three-Phase Systems

Power factor is a measure of the efficiency with which an electrical system utilizes the supplied power. In three-phase systems, the power factor is crucial because it affects the efficiency, voltage stability, and overall performance of the system. A power factor of 1 indicates that the system is operating at maximum efficiency, with all the power being converted into useful work.

In practice, however, the power factor often deviates from 1 due to the presence of reactive loads, such as inductive or capacitive components. Reactive loads create a phase difference between the current and voltage waveforms, leading to an inefficient use of power. Power factor correction techniques can be employed to minimize this inefficiency, such as adding capacitors or inductors to the electrical system to compensate for the reactive power.

Electrical Loads in Three-Phase Systems

Electrical loads in three-phase systems can be classified as balanced or unbalanced. Balanced loads are those where the current and power consumption are equal across all three phases. Unbalanced loads, on the other hand, have different current and power consumption values across the phases. Maintaining balanced loads is essential for the efficient operation of a three-phase system, as it helps reduce the risk of overloading individual conductors and ensures stable voltage levels.

Faults and Protection in Three-Phase Systems

Faults can occur in three-phase systems due to various reasons, such as equipment failure, insulation breakdown, or external factors like lightning strikes. Faults can lead to short circuits, overloads, or imbalances in the system, resulting in potential damage to equipment, disruptions in power supply, or even safety hazards.

Protection devices and schemes are employed in three-phase systems to detect and mitigate the effects of faults. Common protection devices include circuit breakers, fuses, and relays, which are designed to disconnect the affected part of the system in the event of a fault. Additionally, protective relaying schemes can be implemented to provide more advanced fault detection and isolation capabilities, such as differential protection, distance protection, and overcurrent protection.

Three-Phase Electrical Equipment

Various types of electrical equipment are designed specifically for use in three-phase systems. Some examples include:

a) Three-Phase Motors: Electric motors designed to operate on three-phase power offer improved performance, efficiency, and reliability compared to single-phase motors. Common types of three-phase motors include induction motors, synchronous motors, and reluctance motors.

b) Three-Phase Generators: As discussed earlier, three-phase generators, such as alternators, produce three separate AC voltages with a 120-degree phase difference, enabling the efficient generation and distribution of electrical power.

c) Three-Phase Converters: Converters can be employed to convert between single-phase and three-phase power, allowing for compatibility between different types of electrical systems. Converters can be classified as rectifiers (AC to DC), inverters (DC to AC), and cycloconverters (AC to AC).

Three-phase electricity is a vital aspect of modern power distribution systems, offering significant advantages over single-phase electricity in terms of efficiency, reliability, and performance. Understanding the basics of three-phase electricity, including generation, transmission, distribution, and the associated equipment, is essential for anyone working with or studying electrical systems.

The post The basics of three Phase Electricity appeared first on Cablify.

Ground, Neutral, and Hot Wires Explained

HP — Thu, 23 Mar 2023 13:40:57 +0000

Ground, Neutral, and Hot Wires Explained

Electrical systems are an integral part of modern life, powering the devices and appliances that we use every day. To ensure the safe and efficient operation of these systems, it is essential to understand the role of the three types of wires used in electrical circuits: ground, neutral, and hot wires. In this comprehensive explanation, we will delve into the functions, differences, and safety aspects of ground, neutral, and hot wires.

Comparison Table between Hot, Neutral and Ground Wire

Characteristic	Hot Wire	Neutral Wire	Ground Wire
Color Coding (US)	Black or Red	White or Gray	Green or Bare Copper
Purpose	Carries current to the load from the power source	Returns current to the power source from the load	Provides a path to the earth in case of a fault
Electrical Potential	Live or charged (carries voltage)	Zero potential to ground (but can carry current back to the source)	Zero potential, not intended to carry current under normal operations
Safety Role	Poses a shock risk if touched	Generally safe to touch, but can be dangerous under fault conditions	Prevents electric shock by providing a path for fault current
Connection in Panel	Connected to the circuit breaker	Connected to the neutral bus bar	Connected to the ground bus bar (which may be bonded to the neutral bus bar in the main panel)
Current Carrying	Yes, under normal operation	Yes, under normal operation	No, only under fault condition

The table outlines the basic differences between hot, neutral, and ground wires in typical residential electrical systems in the Canada/United States. The color coding might vary in other countries, so it’s essential to consult local codes and standards. The primary distinction lies in their purpose and safety features, where the hot wire is the source of power, the neutral wire completes the circuit, and the ground wire provides a safe path for electricity in case of a fault.

Functions of Ground, Neutral, and Hot Wires

Ground Wire:

The ground wire, also known as the “safety wire,” is designed to protect people and equipment from electrical faults by providing a direct path for electrical current to flow back to the earth in case of a short circuit or other malfunction. By creating a low-resistance pathway, the ground wire helps prevent dangerous voltage levels from building up on exposed metal parts of electrical devices, which could cause injury or damage.

In most residential and commercial wiring systems, the ground wire is typically green or bare copper. Its primary function is to connect the metal chassis or enclosure of an electrical device to the earth, either through a grounding electrode (such as a metal water pipe or a ground rod) or the ground bus bar in the main electrical panel.

Neutral Wire:

The neutral wire, usually white or gray in color, serves as the return path for electrical current in a single-phase alternating current (AC) circuit. It is connected to the neutral bus bar in the main electrical panel and, in turn, to the grounding electrode system. The neutral wire carries the same amount of current as the hot wire but in the opposite direction, thereby completing the electrical circuit.

In a balanced electrical system, the voltage across the hot and neutral wires should be equal and opposite, resulting in a net voltage of zero. This is crucial for maintaining the safety and efficiency of the system, as it ensures that the electrical load is evenly distributed and prevents excessive voltage from causing damage or injury.

Hot Wire:

The hot wire, often black, red, or blue, is responsible for carrying electrical current from the power source (such as the utility company or a generator) to the electrical devices in a circuit. The hot wire is connected to the circuit breaker or fuse in the main electrical panel, which is designed to protect the circuit by interrupting the flow of current if an overload or short circuit occurs.

In an AC system, the voltage across the hot wire alternates between positive and negative values, creating an oscillating electric field that drives the flow of current through the circuit. The voltage and frequency of the AC supply are typically standardized for a given region (such as 120 volts and 60 Hz in the United States), allowing electrical devices to be designed and manufactured to operate within specific parameters.

Differences Between Ground, Neutral, and Hot Wires

While ground, neutral, and hot wires all play crucial roles in electrical circuits, they serve distinct functions and are subject to different safety standards and regulations.

Ground vs. Neutral:

The main difference between the ground and neutral wires is their purpose within an electrical circuit. The ground wire serves as a safety mechanism, providing a low-resistance path for electrical current to flow back to the earth in case of a fault. In contrast, the neutral wire is an essential component of the circuit itself, acting as the return path for electrical current.

Under normal operating conditions, the ground wire should not carry any current. However, the neutral wire carries the same amount of current as the hot wire, ensuring that the electrical load is evenly distributed across the circuit.

Ground vs. Hot:

The ground wire and hot wire have fundamentally different roles in an electrical system. While the ground wire is a safety feature designed to protect against electrical faults, the hot wire is responsible for delivering power from the source to the devices in the circuit. The ground wire is usually at or near zero voltage, whereas the hot wire carries a voltage that alternates between positive and negative values.

In the event of a fault, the ground wire provides a low-resistance path for current to flow back to earth, preventing dangerous voltage levels from building up on exposed metal parts. The hot wire, on the other hand, is connected to a circuit breaker or fuse, which interrupts the flow of current in case of an overload or short circuit to protect the circuit and prevent damage or injury.

Neutral vs. Hot:

The neutral wire and the hot wire work together to complete an electrical circuit. While the hot wire carries electrical current from the power source to the devices, the neutral wire serves as the return path for the current. Both wires carry the same amount of current but in opposite directions, maintaining a balanced electrical system.

The voltage difference between the hot and neutral wires is what powers the electrical devices in a circuit. Under normal conditions, the voltage across the hot and neutral wires should be equal and opposite, resulting in a net voltage of zero. This balance is crucial for ensuring the safety and efficiency of the electrical system.

Safety Aspects of Ground, Neutral, and Hot Wires

Properly functioning ground, neutral, and hot wires are essential for maintaining the safety of electrical systems. Some key safety aspects include:

Grounding: Grounding the metal parts of electrical devices and systems helps prevent dangerous voltage levels from building up in case of a fault, reducing the risk of electrical shock or fire.

Circuit protection: Circuit breakers and fuses are designed to protect electrical circuits by interrupting the flow of current through the hot wire when an overload or short circuit is detected. This prevents damage to electrical devices and reduces the risk of fire.

Proper wire connections: Ensuring that ground, neutral, and hot wires are connected correctly is crucial for the safe operation of electrical systems. Incorrect connections can lead to imbalances in the electrical load, increasing the risk of damage or injury.

Wire insulation and color-coding: Ground, neutral, and hot wires are typically color-coded to help ensure correct identification and connections. The insulation on these wires should be intact and in good condition to prevent electrical shorts or shocks.

Regular maintenance and inspections: Periodic inspections and maintenance of electrical systems can help identify potential issues, such as damaged wiring, loose connections, or faulty grounding, before they become dangerous.

By understanding the functions, differences, and safety aspects of ground, neutral, and hot wires, you can help ensure the safe and efficient operation of electrical systems in your home or workplace.

The post Ground, Neutral, and Hot Wires Explained appeared first on Cablify.

Key components involved in electrical work for IT rooms

HP — Tue, 07 Feb 2023 15:05:00 +0000

Electrical work for IT rooms is a critical aspect of any technology-driven business. It involves the installation, maintenance, and repair of the electrical systems that power and support the IT equipment. Electrical work for IT rooms involves several tasks that are necessary to ensure the efficient and safe operation of the IT equipment. Here are some of the key components involved in electrical work for IT rooms:

Power Distribution: Power distribution is the process of ensuring that electrical power is distributed to the various components of the IT room in a safe and organized manner. This includes installing circuit breakers, power distribution units (PDUs), and uninterruptible power supplies (UPS) to ensure a stable and reliable power source for the IT equipment. The installation of PDUs and UPSs is critical as they help to ensure that the IT equipment continues to operate even in the event of a power outage.

Wiring and Cabling: Wiring and Data cabling are essential components of any IT room. They must be installed and configured in a way that allows for easy maintenance and future upgrades. This includes installing data cables and network cabling to connect the IT equipment to the network, and ensuring that the cabling is organized and labeled for easy identification and maintenance.

Grounding and Surge Protection: IT equipment is vulnerable to power surges, which can cause permanent damage. Grounding and surge protection help to reduce the risk of electrical surges and prevent damage to the IT equipment. This involves installing grounding systems and surge protection devices to ensure that the electrical systems are stable and secure.

Lighting: Adequate lighting must be provided in the IT room to ensure that the equipment can be monitored and maintained safely. The lighting must be bright enough to allow technicians to see the equipment clearly, but not so bright that it causes glare or eye strain.

HVAC: The temperature in an IT room must be regulated to ensure that the IT equipment operates at its optimal level. HVAC (heating, ventilation, and air conditioning) systems must be installed and maintained to ensure a consistent temperature in the IT room. This helps to prevent overheating, which can cause the IT equipment to malfunction.

Electrical Testing and Certification: Regular testing and certification of the electrical systems in the IT room are necessary to ensure they are operating safely and efficiently. This includes regular inspections, load testing, and other electrical safety checks. This helps to identify any potential problems early on and ensures that the electrical systems are functioning at their best.

Electrical work for IT rooms is a complex and technical task that requires specialized knowledge and skills. It is essential that a professional electrical contractor is engaged to handle this work to ensure the efficient and safe operation of the IT equipment. This will help to reduce the risk of electrical malfunctions and ensure that the IT equipment operates at its optimal level, reducing downtime and increasing productivity.

The post Key components involved in electrical work for IT rooms appeared first on Cablify.

Common Commercial Electrical Problems

HP — Wed, 27 Feb 2019 16:11:54 +0000

Working with electricity in manufacturing or production industries can be hazardous, although it is relatively safe. If workers and electric appliances and devices’ users stick to the rules and follow the guidelines in hazard control and safety regulations, electricity is always a friend. But when untrained personnel or workers that are not well-trained handle electrical appliances, shock may occur which may eventually lead to death.

Electrical hazards occur the most in the construction industry. More than 52% of electrical hazards is attributed to the construction industry. In the industry, most fatalities are caused by direct contact with overhead power lines either by individuals, machines or hand-operated machinery.

Most workers including engineers, over head line workers, electricians and others involved in these industries are at the forefront of people exposed to the danger of electrical hazard. Electrocution is described as a death resulting from electric shock. Without an electrical fault in the industry, if all workers follow safety rules to the letter, there cannot be electrocution. But even if all workers follow rules to the letter, if there is a problem with electrical installation in the industry, electrocution can occur.

In order to stay safe and avoid the shock of death in industries, this article will outline few common electrical problems that are particular to manufacturing, production or construction industries and attempt to provide useful tips to rectifying such problems so as o avert death as a result of electrical shock.

Electrical Shocks

One of the common electrical problems that occur in factories and more on construction sites is electric shock. This can easily lead to electrocution if not resolved. Electrical shock in factories can occur due to the use of damaged electrical appliances or devices, stepping on or touching of naked wire, over head power line drag and the likes. The risk of electrical shock in factories and most especially in the construction industry is very high.

Another cause for this problem is negligence on the part of the device user and or personnel. Safety rules and guideline are available to device users so as to protect them from hazards, but most electrical appliance users in factories do not regard the safety rules and regulations. Neglecting the rules may result in electrical shock which may or not be fatal.

In averting the danger of electrical shock, it is important that each personnel follow strictly the safety guidelines and rules laid down for the use of electrical appliances and devices. More importantly, is the fact that any naked wire in the factory MUST be tapped or covered up so as to be safe for human touch either by conscious touch on unconscious touch or walkover.

Inadequate Wiring and Overloaded Circuits

When the size of wires used for industrial wiring is lower than the current load it will carry at the factory, it causes overheating and can subsequently turn into a fire outbreak.

Even when the factory is properly wired, some workers may plug in appliances of over 15amps into a 15amps socket. This is overloading in itself and can cause fire.

Proper and standard circuit breakers must be installed and when working with heavy duty appliances, only heavy duty extension cords must be used. Care must also be taken so as not to overload just a point of circuit all the time.

Little to no knowledge of electrical equipment

Using electrical equipments without full knowledge of the equipment is a danger in itself. Knowledge of electrical equipment is a common problem in factories as some employees are not trained to use the electrical equipments they handle in factories. When you are equipped with adequate knowledge of the equipment you handle in a factory, the better safer for you. The only solution to this problem is to simply train employees that handle electrical equipments immediately they are employed. Good training will enhance productivity and safety will be guaranteed.

Frequent Outages

A frequent power outage is another common problem in manufacturing, construction and production industries in regards to electricity supply. This is the more reason why most factories and industries have a standby backup generator in case of power outage. That in itself is a solution. Power outage can be caused a lot of things ranging from the power surge, substandard wiring from the mains or transformer, transformer circuit overload and the likes. When there is an outage, factories simply switch over to the generator to continue work without halting. But even after switching to the generator, it is essential to report such outage to the electricity provider so that the cause of the outage can be traced and resolved.

Too high or too low supply

Supply of electricity sometimes fluctuates. When this happen in factories or manufacturing industries or even on construction sites, it is best to hold work till the supply stabilizes, or a backup generator can be started to continue work. If the source of the fluctuation is traced by a professional electrician to be within the factory, then it can be rectified as quickly as possible. But if after tracing the fluctuation, it is actually from the power supplier, then, it means the factory will need to wait until the supply rectifies the fluctuation from their side. Fluctuations like this can damage big and heavy duty machines in factories which may cost the industry a lot of money.

Electrical sparks

Except for the welding department, sparks are not supposed t be seen in factories like it is normal. When electrical sparks occur, then it means that a negative and a positive wire have inter mingled or “kissed”. This love between negative and positive wires is not a good thing for electrical appliances and may even result in over heating of the wires in contact and may lead to a fire . Welding points bring out sparks of light, but when to opposite charge wires come in contact, the spark can damage a lot of equipments that may be plugged to power or are in use at the time. Parks must be prevented in factories at all cost and one of the easiest way to prevent electrical parks is to always tape back naked wires or opened wire cables. When there is incessant electrical sparks in a factory, the head electrician or a professional electrician must be called upon to attend to the situation after the mains have been switched off.

Always get services from Professional Electricians who are certified and experienced with Commercial Electrical Services.

The post Common Commercial Electrical Problems appeared first on Cablify.
