Why Is My Office Wi-Fi Actually Slow? The Cabling Issues Nobody Talks About

HP — Sat, 21 Mar 2026 22:21:15 +0000

Network Infrastructure · Toronto & GTA

Why Is My Office Wi-Fi Actually Slow?
The Cabling Issues Nobody Talks About

Everyone blames the router. The real culprits are hiding inside your walls — and they’re costing your business more than you think.

March 2026
8 min read
GTA Business Guide

Your IT guy upgraded the router. You bought a mesh system. You even called your ISP and sat on hold for 45 minutes. And yet — the Wi-Fi in your Toronto office is still crawling at 10 a.m. when everyone settles in with their laptops.

Here’s what nobody in the router-selling business wants you to know: wireless performance is only as good as the wired infrastructure underneath it. In most slow office Wi-Fi situations we encounter across the GTA, the router isn’t the problem at all. The problem is a decade-old Cat5e cable buried in the wall, a patch panel with loose terminations, or an access point being starved of power by an underpowered PoE switch.

These are the issues that don’t show up in a speed test advertisement. They don’t get diagnosed by rebooting the router. And they definitely don’t get fixed by buying a newer mesh system from Best Buy. Let’s pull back the drywall — figuratively — and look at what’s actually happening.

73%

of Wi-Fi complaints in commercial offices trace back to wired infrastructure issues

Cat5e

Still found in most Toronto office buildings built before 2010 — a major bottleneck

3×

Typical throughput improvement after a structured cabling upgrade in congested offices

First: How Wi-Fi and Wired Cabling Are Connected

To understand why cabling affects your Wi-Fi, picture what’s actually happening when your colleague streams a Teams call from the boardroom. The Wi-Fi signal from their laptop doesn’t float magically to the internet — it travels wirelessly to the nearest access point (AP) on your ceiling. From there, every single bit of data leaves the wireless world and travels down a physical ethernet cable, through a wall, into a patch panel, through a switch, and out to your internet connection. The wireless hop is maybe 30 feet. The wired journey is where everything can fall apart.

The Data Journey in Your Office

Laptop / Phone
(Wireless)

→

Ceiling Access
Point (AP)

→

In-wall
Cable Run

→

Patch Panel
/ Switch

→

Router &
Internet

If any link in that wired chain is underperforming, your Wi-Fi suffers — period. A Wi-Fi 6E access point with a theoretical 10 Gbps limit, connected to a degraded Cat5e cable capable of only 100 Mbps in practice, will deliver exactly 100 Mbps of real-world performance. Every time. It doesn’t matter how fast the AP is rated.

The Upgrade TrapBusinesses across the GTA spend thousands on new Wi-Fi 6 or Wi-Fi 7 access points, only to see minimal improvement. If the cabling behind those APs is old Cat5e — or worse, has bad terminations — the hardware upgrade is almost entirely wasted money.

The 6 Cabling Culprits Behind Slow Office Wi-Fi

Culprit #1

Outdated Cat5e Cabling — The Hidden Speed Cap

Cat5e was the gold standard when most GTA office buildings were wired up in the 2000s. It handles up to 1 Gbps at 100 metres — which sounded great in 2005. The problem? Modern Wi-Fi 6 and Wi-Fi 6E access points can push 2.5 Gbps, 5 Gbps, or even 10 Gbps on their uplinks — and Cat5e simply cannot keep up. Your brand-new AP is being bottlenecked by cable older than the iPhone.

Cat6 handles 10 Gbps at shorter distances with significantly better crosstalk rejection. Cat6A handles 10 Gbps reliably at full 100-metre runs. If your office is wired with Cat5e and you’re running modern APs, you’re leaving a massive amount of capacity on the table — every single day.

Culprit #2

Loose or Improperly Terminated Connections

Termination is the process of connecting a cable’s individual wires to a keystone jack, patch panel port, or RJ45 plug. Done properly, it’s nearly invisible. Done poorly, it’s one of the most common sources of network performance problems we find across the GTA.

A loose punch-down in a patch panel. A keystone jack installed at the wrong angle. An RJ45 crimped without proper strain relief. None of these look wrong to the naked eye, but each one introduces resistance, increases signal loss, and can cause a Gigabit-rated cable to negotiate down to 100 Mbps — or drop entirely under load.

The Symptom to Watch ForNetwork speeds fine in the morning but slow and unreliable as the office heats up? Bad terminations are a prime suspect. Heat causes metal contacts to expand slightly, and a marginal connection becomes a failing one.

Culprit #3

PoE Power Starvation — Your Access Point Is Running on Fumes

Most modern access points are PoE (Power over Ethernet) devices — they receive electrical power through the same cable carrying their data. This introduces a critical dependency: the power budget of your switch. Not all PoE is equal:

Standard	Max Power / Port	Suitable For	Status
PoE (802.3af)	15.4W	Basic IP phones, older APs	Outdated
PoE+ (802.3at)	30W	Most standard APs, IP cameras	Acceptable
PoE++ (802.3bt)	60–90W	Wi-Fi 6E APs, high-power devices	Recommended

A high-performance Wi-Fi 6E access point can require 25–30W of clean, stable power. If your switch only delivers 15W per port, the AP throttles itself — reducing radio output and disabling MIMO streams. The AP is physically capable of serving 100 devices at full speed, but it’s operating at 40% capacity because the switch feeding it is too weak. We’ve walked into dozens of GTA offices where brand-new access points were on aging PoE switches. This was always why the upgrade made barely any difference.

Culprit #4

Cable Runs That Are Too Long — Or Bent Too Hard

Ethernet has a hard 100-metre maximum run length for Cat5e and Cat6. In practice, the real problems come from cables that have been bent, kinked, or run near interference sources. In Toronto’s older commercial buildings — anything in the Financial District or King West built before 2000 — cables get re-routed around HVAC upgrades, bundled with electrical runs, and generally abused over decades of renovations.

The Electrical Interference ProblemUnshielded ethernet running close to high-voltage electrical wiring picks up electromagnetic interference (EMI). The result: elevated error rates, dropped packets, and speeds that vary wildly depending on nearby equipment. Shielded Cat6A or fiber solves this completely.

Culprit #5

Insufficient Access Point Density — One AP Can’t Cover What You Think

This is directly caused by a cabling decision made years ago: not enough cable drops were installed. An AP handling 50+ simultaneous device connections will be congested regardless of its hardware rating. The recommended guideline for dense offices is roughly one AP per 800–1,200 sq ft, or one AP per 25–30 simultaneous connected devices. Most GTA offices we visit are running half that density — because there were never enough cable drops to support proper AP placement. The fix isn’t a different AP. It’s running more cable drops.

Culprit #6

The Patch Panel — The Forgotten Failure Point

Between your in-wall cable runs and your network switch sits the patch panel. It’s essential. And in many offices, it’s years overdue for inspection. Dirty, corroded, or loose patch panel ports are surprisingly common — and surprisingly destructive. A port with oxidized contacts can cause a Gigabit connection to drop to 100 Mbps, or introduce enough packet loss to make video calls completely unusable, even while a speed test to the same port looks “fine.” Speed tests don’t capture packet loss well.

“We’ve never walked into a slow office and found the router to be the root cause. It’s always something in the wall, the patch panel, or the switch. Always.”

— Cablify installation team, GTA commercial projects

How to Diagnose Whether Cabling Is Your Problem

You don’t need to rip open walls to get a preliminary read. Here’s a practical approach:

✓
Run a wired speed test from a laptop directly plugged into a wall port. If this is also slow, the problem is almost certainly cabling or the switch — not Wi-Fi. If wired is fast but wireless is slow, you have an AP density or PoE power problem.
✓
Check your switch’s PoE budget and per-port allocation. Log into your switch and look at power draw on ports connected to access points. If they’re close to the port maximum, your APs are being throttled.
✓
Ask: how old is the cabling? If nobody has a cabling record and you don’t know when the office was last wired, assume it’s old Cat5e and act accordingly.
✓
Test several different wall ports around the office. If speeds vary significantly between ports, you have termination or cable quality issues — not a router problem.
✗
Don’t just run a single Speedtest and call it done. Speedtest measures peak throughput. It doesn’t measure jitter, packet loss, or latency — the metrics that determine whether video calls and real-time apps actually work.
✗
Don’t assume it’s the ISP until you’ve verified your in-building infrastructure. We frequently see GTA businesses blaming Rogers or Bell when the bottleneck is entirely inside their own four walls.

What a Proper Cabling Fix Looks Like

Here’s what a professional remediation project typically involves for a mid-size Toronto office:

1. Structured Cabling Audit

A certified technician performs a cable certification test on every run using a Fluke or similar tester, producing a pass/fail report identifying exactly which runs have bad terminations, marginal performance, or outright failures. This is the non-negotiable first step — you can’t fix what you haven’t measured.

2. Cable Replacement or Re-Termination

Remediation might be as simple as re-punching a few patch panel ports, or as extensive as running new Cat6A throughout. For offices deploying Wi-Fi 6E or preparing for Wi-Fi 7, Cat6A is the right choice — it supports 10 Gbps reliably at full run lengths and handles next-generation PoE++ power demands without thermal issues.

3. PoE Switch Assessment and Upgrade

We review the total PoE power budget against the actual requirements of all connected devices — APs, cameras, access control readers, IP phones. If the budget is insufficient, a PoE expansion via a new switch or injector strategy is recommended before any AP hardware upgrades are considered.

4. Access Point Density Planning

With clean, certified cabling in place, the right number of AP locations can be identified based on your office’s actual size, density, and usage patterns. New cable drops are run to support proper AP placement — not just wherever a cable happened to already terminate.

Real-World Result — North York, 60-Person OfficeA professional services firm came to us after spending $8,000 on new Ubiquiti access points with no improvement. Our audit found three cable runs terminated with incorrectly punched Cat5e keystone jacks — all three feeding their busiest conference rooms. Re-termination took four hours. Wi-Fi performance improved by over 300% in those rooms.

The Bottom Line: Stop Blaming the Router

Wi-Fi complaints are usually the visible symptom of an invisible problem. The access point is the last device in a chain of physical infrastructure — and that chain is only as strong as its weakest cable. For most Toronto and GTA businesses in buildings that haven’t had a cabling upgrade in the past decade, the infrastructure in the walls is the single biggest thing limiting network performance. No router upgrade, mesh system, or ISP upgrade will change that.

The good news? A proper cabling assessment is fast, non-invasive, and inexpensive relative to the performance gains it unlocks. And once it’s done right, it’s done — you’re not rebooting infrastructure every six months.

The next time your conference room Wi-Fi drops in the middle of a client presentation, don’t look at the ceiling. Look at what’s inside the wall behind it.

Is Your Cabling Holding Back Your Wi-Fi?

Cablify’s certified technicians serve Toronto, Mississauga, Brampton, Oakville, and across the GTA. Get a no-obligation cabling assessment and find out exactly what’s limiting your network.

Get a Free Assessment →

647-846-1925 · info@cablify.ca · Mon–Sat 8am–8pm

The post Why Is My Office Wi-Fi Actually Slow? The Cabling Issues Nobody Talks About appeared first on Cablify.

UniFi Access Point Power Requirements: PoE, PoE+, and Beyond

HP — Wed, 21 Jan 2026 13:58:42 +0000

Understanding Power over Ethernet (PoE) Standards

Before selecting equipment, understand these key PoE standards:

802.3af (PoE): 15.4W switch port budget, ~12.95W to device
802.3at (PoE+): 30W switch port budget, ~25.5W to device
802.3bt (PoE++): Type 3 (60W) and Type 4 (90W) switch budgets
Ubiquiti Passive PoE: 24V or 48V passive (non-standard) – use with caution
PoE Max Budget: Total power available from switch (shared across all ports)

Wi‑Fi 7 models (U7 series)

AP Model	Gen	Min PoE Standard	Max Power Draw	Recommended PoE	Notes
U7 Pro	Wi‑Fi 7	PoE+	21 W	PoE+	2.5 GbE port
U7 Pro Max	Wi‑Fi 7	PoE+	21 W	PoE+	Dedicated scanning radio
U7 Long‑Range	Wi‑Fi 7	PoE+	16 W	PoE+	Extended range design
U7 Lite	Wi‑Fi 7	PoE	10 W	PoE+	2.5 GbE uplink
U7 Pro XG	Wi‑Fi 7	PoE+	21 W	PoE+	10 GbE uplink
U7 Pro XGS	Wi‑Fi 7	PoE+	21 W	PoE+	10 GbE + scanning radio
U7 In‑Wall	Wi‑Fi 7	PoE+	20 W	PoE+	In‑wall with 4‑port switch
U7 Pro Outdoor	Wi‑Fi 7	PoE+	26 W	PoE+	IP67, AFC 6 GHz support

E7 Wi‑Fi 7 high‑power series

AP Model	Gen	Min PoE Standard	Max Power Draw	Recommended PoE	Notes
Access Point E7	Wi‑Fi 7	PoE++	46 W	PoE++ Type 4	Dual Ethernet (10G + 1G)
E7 Campus	Wi‑Fi 7	PoE++	46 W	PoE++ Type 4	PRISM filtering, directional
E7 Audience	Wi‑Fi 7	PoE++	46 W	PoE++ Type 4	High‑density optimized

Wi‑Fi 6 / 6E models

AP Model	Gen	Min PoE	Max Draw	Recommended PoE	Notes
U6 Enterprise	Wi‑Fi 6E	PoE+	22 W	PoE+	6 GHz, high‑density
U6 Enterprise In‑Wall	Wi‑Fi 6E	PoE+	22 W	PoE+	In‑wall, 4‑port switch
U6 Pro	Wi‑Fi 6	PoE	13 W	PoE+	Most popular U6 model
U6 Mesh	Wi‑Fi 6	PoE	13 W	PoE+	Indoor/outdoor mesh
U6 In‑Wall	Wi‑Fi 6	PoE	13 W	PoE+	In‑wall, 4‑port switch

Legacy Wi‑Fi 6 / 5 models

AP Model	Gen	Min PoE	Max Draw	Recommended PoE	Notes
U6 Lite	Wi‑Fi 6	PoE	10.5 W	PoE	Budget option
U6 LR	Wi‑Fi 6	PoE+	16.5 W	PoE+	Long‑range
AC Pro	Wi‑Fi 5	PoE	9 W	PoE	3×3 MIMO
AC HD	Wi‑Fi 5	PoE+	20.5 W	PoE+	High‑density
nanoHD	Wi‑Fi 5	PoE	10.5 W	PoE	Compact 4×4

Critical Power Considerations for Newer APs

The 10GbE Uplink Impact

APs with 10GbE ports (U7 Pro XG/XGS, E7 series) don’t inherently require more power for the Ethernet interface itself, but their advanced radios and processors often demand higher power budgets.

Redundant Power Ports

E7 series and some U7 models feature dual Ethernet ports for power redundancy. These can be configured in:

Active/Standby: Primary port provides power, secondary is backup
Load Sharing: Both ports active (requires compatible switch setup)

Real-World Power Planning

Always add 20-30% overhead to theoretical calculations. Factors increasing consumption:

All radios transmitting at high power
Maximum client connections
Environmental factors (cold temperatures)
Future firmware features

Recommended Switches for UniFi APs

Managed Switches (UniFi Ecosystem)

Switch Model	PoE Budget	Port Types	Max AP Support	Best For
Enterprise Switches
USW-Enterprise-24-PoE	400W	16x PoE++ (30W), 8x PoE++ (60W)	24x E7/U7 Pro	High-density WiFi 7
USW-EnterpriseXG-24	240W	12x PoE++ (60W)	12x E7 series	10GbE backbone + power
USW-Industrial-10G-PoE	65W	4x PoE+	4x U7 Pro	Industrial/outdoor
Pro Switches
USW-Pro-24-PoE	400W	16x PoE+, 8x PoE++	Mix of U6/U7	Mixed generation deployments
USW-Pro-48-PoE	500W	48x PoE+	48x U6 Pro	Large U6 deployments
Lite/Standard Switches
USW-24-PoE	95W	16x PoE	8-10x U6 Lite	Small business/entry
USW-Lite-16-PoE	42W	8x PoE	4x U6 Pro	Small office/home

Unmanaged Switches with PoE

Switch Model	PoE Standard	Total Budget	Notes
UniFi Switch Flex	PoE+	20W per port	Can be powered by PoE+ for remote deployment
Trendnet TPE-TG44G	PoE+	130W	4-port with good budget
Netgear GS308PP	PoE+	64W	8-port compact switch
Important: Unmanaged switches don’t allow power priority configuration or monitoring

Specialty Solutions

PoE++ Injectors: UPOE-AT (60W) for single high-power APs
Midspan PoE Injectors: For non-PoE switch backbones
Industrial PoE: For harsh environments

Installation Best Practices

1. Power Budget Calculation

Total Required Power = (AP1 max draw) + (AP2 max draw) + … + 30% overhead

Total Required Power = (AP1 max draw) + (AP2 max draw) + ... + 30% overhead

Example: 5x U7 Pro Max = 5 × 21W = 105W + 30% = 136.5W minimum switch budget

2. Cable Considerations

Cat6a or better for 10GbE links
Maximum 100m length per Ethernet standard
Avoid cable couplers which increase resistance

3. Switch Stack Power Management

When stacking switches, PoE budgets are NOT shared between units. Each switch must independently power its connected devices.

4. Power Priority Configuration (Managed Switches)

Configure critical APs as "High" priority in UniFi Controller to ensure they maintain power during budget constraints.

Troubleshooting Power Issues

Common Symptoms and Solutions

Symptom	Likely Cause	Solution
AP intermittently reboots	Insufficient power budget	Upgrade switch or reduce load
AP won't power on	Incorrect PoE standard	Verify switch supports required standard
Link speed downgraded	Power/negotiation issue	Check cable quality, try different port
PoE disabled on port	Faulty cable/short	Replace Ethernet cable

Diagnostic Commands (SSH to AP)

# Check received power cat /sys/class/power_supply/max170xx_battery/uevent # Check Ethernet negotiation ethtool eth0

Future-Proofing Your Deployment

Plan for WiFi 7: Even if deploying U6 now, ensure switches support PoE+ minimum
10GbE Ready: Newer APs benefit from >1Gb uplinks
High-Density Areas: Deploy switches with 30W+ per port capability
Modular Power: Consider switches with expandable power supplies

Final Recommendations

Always: Purchase APs and switches from same generation when possible

For new deployments: USW-Enterprise-24-PoE provides best future-proofing

For budget U7 deployments: USW-Pro-24-PoE offers excellent value

For legacy upgrades: Verify existing switch PoE budgets before adding WiFi 6/7 APs

*Note: Specifications may change with firmware updates. Always verify latest requirements in official UniFi datasheets before procurement. When in doubt, over-provision power capacity by 30-40% for headroom and future expansion.*

The post UniFi Access Point Power Requirements: PoE, PoE+, and Beyond appeared first on Cablify.

Point to Point Wireless Setup Guide: Distance, LoS, Frequency & Hardware

HP — Wed, 14 Jan 2026 02:00:04 +0000

Introduction to Point-to-Point (PtP) Wireless

A Point-to-Point (PtP) wireless bridge is a high-performance networking solution designed to connect two locations wirelessly, acting as an “invisible Ethernet cable.” Whether you are extending internet to a guest house, connecting remote warehouses, or deploying IP security cameras across a large property, a PtP link eliminates the need for expensive trenching and fiber optic cabling.

In this guide, we will explore the four pillars of a successful wireless bridge: Distance, Line of Sight (LoS), Frequency Selection, and Hardware Choices.

1. Distance Planning and Link Budget

The distance between your two points determines the “Link Budget”—the accounting of all gains and losses in the system.

Understanding Path Loss

As radio waves travel through space, they naturally lose strength. This is known as Free Space Path Loss (FSPL). To compensate for this, longer links require higher-gain antennas (measured in dBi) and higher transmit power (dBm).

Distance Categories

Short Range (< 1 km): Ideal for residential or small business campus links. High-frequency 60GHz equipment is often best here for gigabit speeds.
Medium Range (1–5 km): The “sweet spot” for 5GHz AC technology. Requires clear elevation.
Long Range (5–15 km): Requires high-gain dish antennas and precise alignment.
Ultra-Long Range (15+ km): Professional-grade backhaul territory, often requiring licensed frequencies to avoid interference.

2. Line of Sight (LoS) and the Fresnel Zone

The most common cause of PtP failure is a lack of “Radio Line of Sight.” Even if you can see the other antenna with your eyes, the signal may still be blocked.

The Fresnel Zone

Radio signals do not travel in a laser-thin line; they travel in an elliptical shape called the Fresnel Zone. If objects like trees, buildings, or the ground itself enter this zone, the signal will reflect and cancel itself out (destructive interference).

The 60% Rule: At least 60% of the first Fresnel Zone must be completely clear of obstructions for a stable link.
Earth Curvature: For links over 2 km, the curvature of the Earth acts as a physical barrier. You must mount antennas higher as the distance increases to keep the Fresnel Zone clear of the “bulge” of the Earth.

Pro Tip: Use online tools like Ubiquiti ISP Design Center or LinkCalc to simulate your terrain and ensure your mounting height is sufficient.

3. Frequency Selection: 2.4GHz vs. 5GHz vs. 60GHz

Choosing the right frequency is a trade-off between speed, range, and interference.

Frequency	Max Speed	Range	Interference	Best Use Case
2.4 GHz	~150 Mbps	Long	Very High	High-interference rural areas with light foliage.
5 GHz	~500+ Mbps	Medium	Moderate	The industry standard for most PtP links.
60 GHz	1 Gbps+	Short	Near Zero	High-speed building-to-building (under 1.5km).
900 MHz	~20 Mbps	Short	High	Non-Line-of-Sight (NLOS) through dense trees.

The 60GHz Revolution

Licensed Bands (e.g., 6–42 GHz):

Require government spectrum licenses (e.g., FCC in the U.S.)
Offer interference-free operation
Used by WISPs and telecoms for carrier-grade backhaul
Higher equipment cost but superior reliability

Best Practice: For most enterprise or SMB deployments, 5 GHz PtP links offer the best balance of performance, availability, and cost.

In 2026, 60GHz (mmWave) has become the preferred choice for short-range links. It offers fiber-like speeds with zero interference because the signal does not penetrate walls and is absorbed by oxygen, preventing it from traveling too far and interfering with other networks.

Hardware Choices: Top Recommendations

Selecting the right hardware depends on your technical expertise and performance needs.

Ubiquiti (Best for Ease of Use)

NanoBeam 5AC: The gold standard for short-to-medium range 5GHz links.
GigaBeam / airFiber 60: Best for high-speed gigabit links under 1km.
LiteBeam 5AC: Budget-friendly option for long-range rural links.

MikroTik (Best for Advanced Users & Budget)

Wireless Wire Dish: A pre-configured 60GHz pair that provides a 1Gbps “wire” up to 1.5km.
Cube 60G: Compact, high-speed 60GHz bridge with a 5GHz failover.

Cambium Networks (Best for Enterprise/High Interference)

ePMP Force 300-25: Exceptional performance in “noisy” environments where other 5GHz radios fail.

Key Hardware Specs to Compare:

Transmit Power: Measured in dBm (e.g., 27 dBm = 500 mW)
Receive Sensitivity: Lower = better (e.g., -92 dBm @ 100 Mbps)
Antenna Gain: Higher gain = narrower beamwidth = longer range but harder alignment
Throughput: Look for full-duplex or MIMO support for higher capacity
Weatherproofing: IP66 or IP67 rating for outdoor use
Management: SNMP, cloud controller (e.g., UNMS, cnMaestro), or CLI

5. Advanced Setup & Troubleshooting

To ensure your link stays up 99.9% of the time, follow these professional standards:

Alignment is Everything: Use the built-in alignment tools. A 2-degree error on a 5km link can result in a total loss of signal.
Fade Margin: Always design your link with at least a 20dB Fade Margin. This ensures that when it rains or snows, your link doesn’t drop.
Shielded Everything: Use Shielded Twisted Pair (STP) Cat6 cables and grounded connectors to protect against ESD (Electrostatic Discharge) during storms.
Spectrum Analysis: Before picking a channel, run a spectrum analysis (like airView) to see which frequencies are being used by neighbors.

Common Pitfalls & Troubleshooting

Issue	Likely Cause	Solution
Low throughput	Misaligned antennas	Re-align using RSSI meter
Intermittent dropouts	Obstruction in Fresnel zone (e.g., growing trees)	Raise antenna height or trim foliage
High latency	Interference on channel	Switch to cleaner channel (use spectrum analyzer)
Link won’t establish	Incorrect IP/subnet or firewall rules	Verify Layer 2 connectivity; disable firewalls temporarily
Signal degrades in rain	Operating at high frequency (>10 GHz)	Add fade margin or switch to lower band

A successful Point-to-Point wireless setup requires careful planning of distance, a clear Fresnel Zone, and the right frequency for your environment. By following this guide and choosing quality hardware from Ubiquiti or MikroTik, you can achieve a stable, high-speed connection that rivals traditional fiber optics.

Frequently Asked Questions (FAQ)

Q: Can I use PtP wireless through windows or walls?
A: No. Glass, concrete, and metal severely attenuate signals. PtP requires outdoor-to-outdoor installation with clear LoS.

Q: What’s the difference between PtP and PtMP?
A: PtP connects two points. PtMP (Point-to-Multipoint) connects one base station to multiple clients (e.g., WISP networks).

Q: Do I need a license for 5 GHz PtP?
A: In most countries, no license is required for unlicensed bands (like 5.8 GHz), but DFS/TPC rules may apply in the 5.25–5.725 GHz range.

Q: How much bandwidth can I expect?
A: Real-world throughput is typically 50–70% of advertised PHY rate due to overhead. A 1 Gbps radio may deliver 500–700 Mbps usable.

The post Point to Point Wireless Setup Guide: Distance, LoS, Frequency & Hardware appeared first on Cablify.

Omni-Directional vs. Directional Antennas: Guide for Wireless Access Points and P2P Links

HP — Sun, 16 Feb 2025 16:42:13 +0000

When building a wireless network, selecting the right antenna can dramatically affect performance, range, and reliability. Two main types of antennas dominate wireless networking: Omni-Directional and Directional antennas. Each has unique advantages and is suited for different applications. Understanding when to use each type is crucial for maximizing network efficiency.

In this guide, we’ll explore how these antennas work, their technical characteristics, and the best use cases for wireless access points (APs) and point-to-point (P2P) links.

How Wireless Antennas Work

Wireless antennas convert electrical signals into radio waves and radiate them in specific patterns. The radiation pattern determines how the signal propagates and influences the coverage area.

Omni-Directional antennas radiate equally in all horizontal directions, providing 360° coverage.
Directional antennas focus the signal in a specific direction, allowing for longer distances with minimal interference.

The choice between these antennas depends on the network’s range, coverage area, and interference levels.

Omni-Directional Antennas: Broad Coverage

Omni-directional antennas are the default choice for most wireless access points and mobile devices. They ensure that users in multiple directions can connect without any manual adjustments to the antenna.

Technical Specifications

Frequency Bands: 2.4 GHz, 5 GHz, dual-band
Range: Short to moderate (up to 150 meters indoors, 500+ meters outdoors)
Radiation Pattern: 360° horizontal, limited vertical coverage

Use Cases

Indoor Wi-Fi Networks: Offices, homes, cafes
Outdoor Hotspots: Public Wi-Fi in parks or stadiums
Mobile Communication: Cell towers

Example:
In an office with multiple rooms, an omni-directional antenna on a central access point can provide even coverage for all devices.

Directional Antennas: Targeted Long-Distance Coverage

Directional antennas focus the signal in a narrow beam, increasing the signal’s strength and range. This makes them ideal for point-to-point (P2P) and point-to-multipoint (P2MP) applications.

Technical Specifications

Frequency Bands: 2.4 GHz, 5 GHz, 900 MHz (long-range applications)
Range: Long (up to several kilometers)
Beamwidth: Typically between 15° and 120°

Use Cases

Point-to-Point Links: Connecting two buildings on a campus
Rural Internet Connectivity: Bridging internet to remote areas
Outdoor Surveillance: Providing high-speed connectivity to security cameras

Example:
A business campus with two office buildings 1 km apart can use directional antennas to create a wireless bridge, eliminating the need for costly fiber installation.

Table: Comparing Omni-Directional and Directional Antennas

Feature	Omni-Directional Antenna	Directional Antenna
Coverage Pattern	360° horizontal	Focused, narrow beam (15°–120°)
Range	Short to moderate	Long-distance, up to several kilometers
Signal Strength	Moderate	Strong in the focused direction
Interference Susceptibility	Higher due to broad coverage	Lower due to targeted coverage
Best Use	Indoor/outdoor access points	Point-to-point and long-range communication

Detailed Use Cases and Real-World Applications

1. Wireless Access Points (APs)

For Wi-Fi access points, omni-directional antennas are often the best choice. They provide even coverage and allow multiple devices to connect simultaneously. In environments prone to interference, switching to a dual-band antenna (2.4 GHz and 5 GHz) can improve performance. Contact us Wifi Surveys.

2. Point-to-Point (P2P) Wireless Bridges

Directional antennas are essential for establishing P2P links. These links can replace physical cables and are often used in the following scenarios:

Connecting two office buildings
Providing internet to remote locations
Extending surveillance camera coverage

Example: A warehouse can set up a point-to-point link to monitor an outdoor storage facility located 2 km away. A pair of 5 GHz directional antennas will offer high-speed, low-latency connectivity.

3. Rural and Industrial Applications

In rural areas, directional antennas are commonly used to provide internet access over long distances. These antennas can deliver high-speed broadband where fiber or DSL services are unavailable.

Example: A farm can use a 900 MHz directional antenna to connect remote sensors and control systems across a large area.

Interference and Frequency Considerations

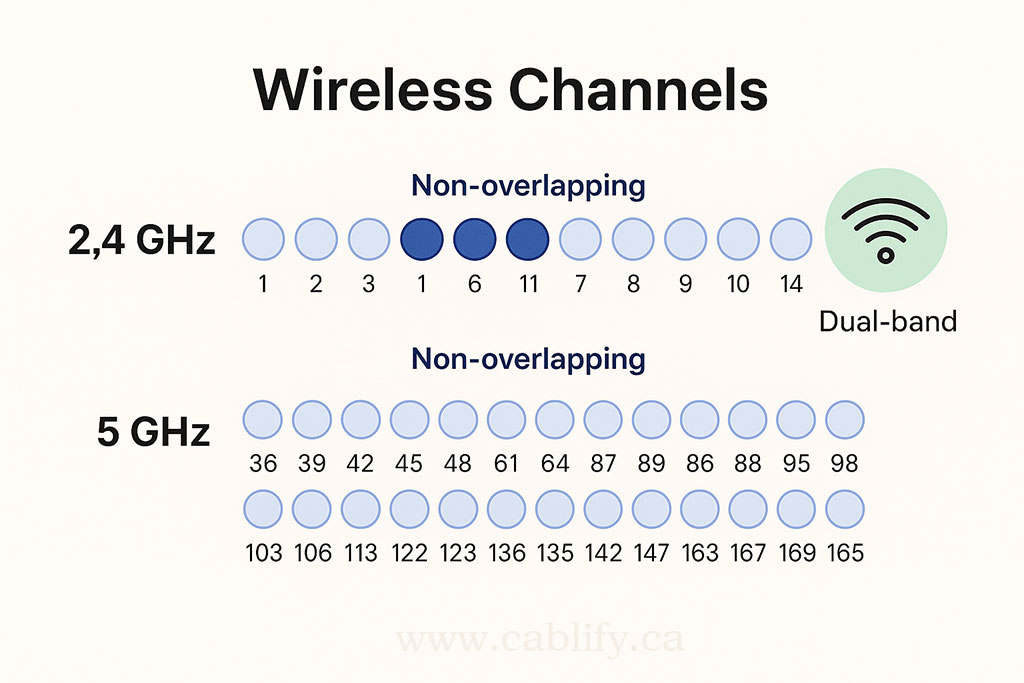

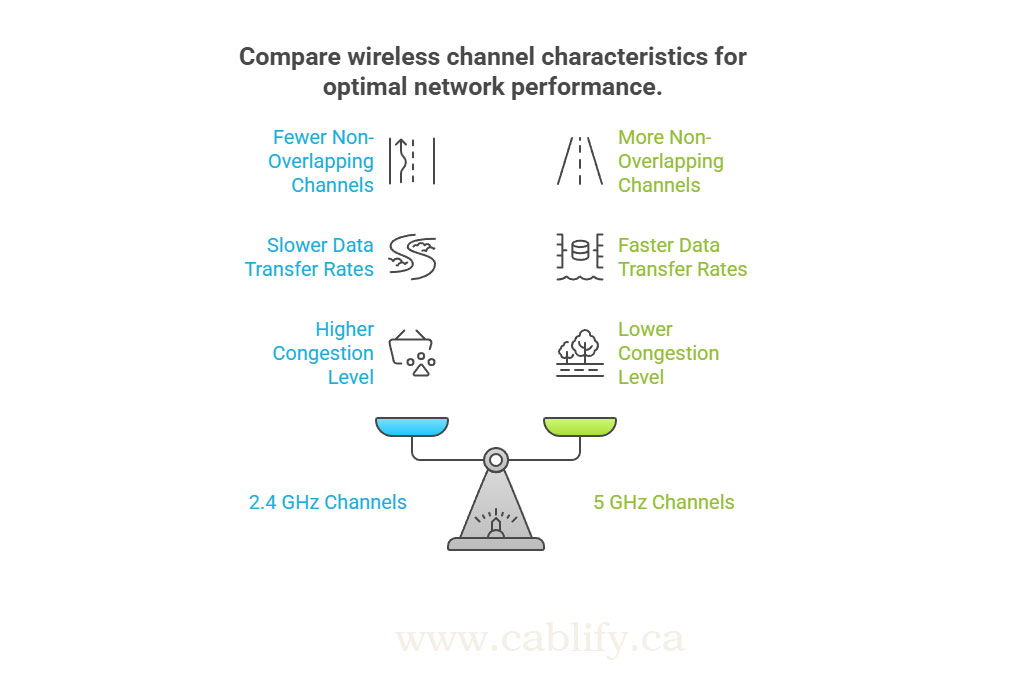

2.4 GHz vs. 5 GHz

2.4 GHz: Greater range but more prone to interference from other devices like Bluetooth and microwaves. Suitable for basic applications.
5 GHz: Shorter range but faster speeds and less congestion. Ideal for high-bandwidth applications.

Dynamic Frequency Selection (DFS)

DFS channels are used in the 5 GHz band to avoid interference with radar systems. Devices scan for radar signals before transmitting on these channels, making them suitable for outdoor and commercial use.

Choosing the Right Antenna: Key Considerations

Coverage Area and Range
- For short-range, broad coverage, go with an omni-directional antenna.
- For long-distance, targeted communication, choose a directional antenna.
Interference Levels
- In high-interference environments, directional antennas reduce noise by focusing the signal.
Bandwidth Requirements
- For high-bandwidth applications (like video streaming), use wideband directional antennas.
Environment
- Indoor access points benefit from omni-directional antennas.
- Outdoor and rural setups perform better with directional antennas.

Understanding the differences between Omni-Directional and Directional antennas is critical for building a reliable wireless network. Omni-directional antennas offer broad, multi-directional coverage, making them perfect for access points and mobile communication. Meanwhile, directional antennas are your best bet for long-distance links and focused, high-strength signals.

By evaluating your network’s specific requirements—coverage area, range, and interference levels—you can choose the right antenna for optimal performance.

The post Omni-Directional vs. Directional Antennas: Guide for Wireless Access Points and P2P Links appeared first on Cablify.

Cisco Industrial Wireless Solutions

HP — Wed, 09 Oct 2024 13:08:41 +0000

In today’s increasingly connected world, having a reliable, secure, and adaptable wireless network is essential for industries ranging from manufacturing to mining. Cisco’s Industrial Wireless solutions are designed to tackle these challenges, delivering fast, reliable, and secure wireless networks that can function in even the most demanding environments. This article explores Cisco’s cutting-edge industrial wireless products, highlights the latest in Wi-Fi technology, and examines best practices for industrial wireless deployment.

Why Cisco Industrial Wireless?

Cisco’s Industrial Wireless solutions are designed to overcome the toughest challenges posed by harsh industrial environments. Whether your assets are exposed to dust, water, vibration, or extreme temperatures, Cisco’s products ensure uninterrupted connectivity. Here’s why Cisco stands out:

Wireless Anywhere: From confined spaces to wide open areas, Cisco’s wireless solutions are built to connect everything—sensors, cameras, robots, and more—no matter the location.
Wireless for Any Need: From low-power sensors in large open areas to high-performance applications in manufacturing plants, Cisco’s range of wireless technologies ensures that you can build an end-to-end IoT network.
Reliability and Security: With Cisco, businesses get unparalleled reliability and built-in security, leveraging patented technology that’s future-ready for Wi-Fi 6, Wi-Fi 6E, and Wi-Fi 7.

Cisco Industrial Wireless Products at a Glance

Cisco’s portfolio of industrial wireless products is vast, ensuring that you can build a custom solution tailored to your specific needs. The following table provides an overview of key products, showcasing their key features and best use cases:

Product Name	Technology	Best Use Case	Key Features
Cisco Catalyst IW9165E	Wi-Fi 6/6E	Rugged environments	DIN-rail compact form factor, wireless client
Cisco Catalyst IW9165D	Wi-Fi 6/6E	Heavy-duty applications	Built-in directional antennas, external antenna option
Cisco Catalyst IW9167E	Wi-Fi 6/6E	Critical applications	Handles extreme temperatures, dust, and water
Cisco Catalyst IW9167I	Wi-Fi 6/6E	Outdoor deployment	Omnidirectional antenna, easy installation
Cisco Catalyst IW9167E-HZ	Wi-Fi 6/6E	Hazardous locations	ATEX, IECEx certified, Zone 2/22 applications
Cisco Ultra-Reliable Wireless Backhaul	Proprietary	Long-distance, high-reliability	Designed for outdoor, mobile, or industrial spaces
Cisco Resilient Mesh	Mesh networking	Complex industrial sites	Reliable, self-healing mesh networks
Cisco LoRaWAN Solutions	LoRaWAN	Low-power, wide-area networks	Long-range communication, low energy consumption
Cellular 4G LTE/5G	LTE/5G	High-speed mobile connectivity	Cellular connectivity for remote, mobile assets

The Power of Wi-Fi 6 and Wi-Fi 6E in Industrial Wireless

As the world embraces Wi-Fi 6 and Wi-Fi 6E, industries are seeing a revolution in wireless performance. These next-generation technologies offer increased capacity, reduced latency, and more efficient power usage, making them ideal for mission-critical industrial applications.

Wi-Fi 6 and 6E: What’s the Difference?

Wi-Fi 6 operates in the 2.4 GHz and 5 GHz bands, providing faster speeds and better performance in dense environments.
Wi-Fi 6E extends this technology into the 6 GHz band, offering even more channels and less interference, making it perfect for environments where reliability and performance are essential.

Benefits of Wi-Fi 6/6E in Industrial Settings:

Increased Device Capacity: Wi-Fi 6 allows more devices to connect simultaneously without degrading performance, a vital feature in environments filled with sensors and IoT devices.
Improved Efficiency: With features like OFDMA (Orthogonal Frequency-Division Multiple Access), Wi-Fi 6 makes better use of available bandwidth, reducing network congestion.
Lower Latency: Real-time applications, such as robotics and teleremote control, benefit from the reduced latency that Wi-Fi 6 offers.
Enhanced Security: WPA3, the latest Wi-Fi security standard, is supported by Wi-Fi 6, adding an extra layer of protection in industrial environments.

Preparing for Wi-Fi 7: The Future of Industrial Wireless

Wi-Fi 7 is poised to transform industrial connectivity further. Expected to launch in 2024, it will offer even higher speeds, greater reliability, and ultra-low latency, making it ideal for bandwidth-heavy applications like augmented reality (AR), virtual reality (VR), and automation.

What Wi-Fi 7 Will Bring:

Faster Speeds: Wi-Fi 7 will offer up to 46 Gbps, making it perfect for real-time control of robots, autonomous vehicles, and large-scale industrial automation.
More Efficient Spectrum Use: With 320 MHz channels and multi-link operation, Wi-Fi 7 will provide unparalleled performance in environments that require heavy bandwidth.
Extreme Low Latency: Latency-sensitive applications such as robotic surgery or real-time machine control will benefit greatly from Wi-Fi 7’s near-zero delay.

Cisco’s Best Practices for Industrial Wireless Deployment

When deploying industrial wireless networks, there are several best practices that businesses should follow to ensure reliability, security, and scalability:

Conduct a Comprehensive Site Survey: Understand the layout of your facility, identifying potential obstacles like metal structures, walls, and machinery that may interfere with signal propagation.
Use Appropriate Hardware for Harsh Environments: Deploy hardware like Cisco’s Catalyst IW9165E or IW9167E-HZ, which are designed to withstand extreme temperatures, dust, water, and vibration.
Implement Redundant Systems: Ensure continuous connectivity by leveraging Cisco Resilient Mesh technology, which provides self-healing networks that can reroute traffic in case of an outage.
Security First: With increased connectivity comes increased security risks. Utilize WPA3 encryption and Cisco’s built-in security features to protect your data from potential threats.
Plan for Future Growth: As IoT devices proliferate and applications demand more bandwidth, make sure your wireless network is scalable. Choose hardware and software solutions that support the latest technologies like Wi-Fi 6/6E and prepare for Wi-Fi 7.

Key Technologies for Industrial Wireless Networks

Cisco’s Industrial Wireless Solutions provide an integrated, end-to-end solution for building powerful IoT networks. Here are some of the key technologies that businesses can implement:

Cisco LoRaWAN: For wide-area, low-power applications, Cisco’s LoRaWAN solutions provide long-range connectivity with minimal energy consumption. These are ideal for connecting sensors across large industrial areas like mines or manufacturing plants.
Ultra-Reliable Wireless Backhaul: This technology offers high-reliability wireless communication for industrial applications that require consistent, long-range connectivity, such as ports or remote manufacturing sites.
4G LTE/5G: For high-speed connectivity in remote locations or moving assets, Cisco’s 4G LTE and 5G solutions ensure fast and reliable mobile communication.
Resilient Mesh: Cisco’s Resilient Mesh technology creates self-healing networks that maintain reliable connectivity even in challenging environments.

Future-Proof Your Industrial IoT Network with Cisco

Cisco’s Industrial Wireless Solutions provide the reliability, security, and future-readiness that industries need to stay connected and competitive. With a full range of Wi-Fi 6/6E access points, wireless backhaul solutions, mesh networking, and LoRaWAN technologies, Cisco is your partner in building an IoT network that can handle today’s challenges and scale for tomorrow’s demands.

Ready to Choose the Right Solution?

Cablify is a an authorized reseller for Cisco products and can help you determine the best industrial wireless products for your specific needs.

The post Cisco Industrial Wireless Solutions appeared first on Cablify.

WiFi Heatmapping for Toronto Warehouses and Manufacturing

HP — Wed, 08 May 2024 12:53:34 +0000

In the bustling industrial landscape of Toronto, where warehouses and manufacturing plants are pivotal to the economy, reliable WiFi connectivity is no longer a luxury—it’s a critical necessity. As these facilities rely heavily on advanced technology for logistics and production management, consistent and robust WiFi coverage ensures that operations run smoothly without interruption. WiFi heatmapping is an essential tool in achieving this reliability, providing a detailed visual analysis of wireless signal coverage and strength throughout a facility. This blog post explores the importance of WiFi heatmapping, its benefits, and how it can be effectively implemented in Toronto’s warehouses and manufacturing environments.

The Importance of WiFi Heatmapping

In the context of large industrial spaces, such as warehouses and manufacturing facilities, WiFi heatmapping serves as a strategic approach to manage and optimize wireless network coverage. Here’s why it’s crucial:

Critical Operations Dependence: Modern logistics and manufacturing workflows are increasingly dependent on real-time data from RFID scanners, IoT devices, and automated machinery, all of which require a stable network connection.
Complex Environments: The vast metal structures, machinery, and inventory items can create complex signal interference and dead zones that only a detailed heat map can accurately identify and help mitigate.

Key Benefits of WiFi Heatmapping in Warehouses

Identifies Dead Zones: Heatmaps clearly show where signal strengths are weak and where enhancements are needed.
Optimizes Access Point Placement: Strategic placement of WiFi access points based on real data can significantly improve coverage and performance.
Supports Scalability: As business needs evolve and facility layouts change, WiFi heatmapping provides the data needed to adjust the network infrastructure accordingly.
Reduces Costs: By pinpointing the exact needs for additional hardware, companies can avoid unnecessary expenditures on excess equipment.

How WiFi Heatmapping Works

Step 1: Survey

Conduct a physical walkthrough of the facility to identify potential sources of interference and areas with critical connectivity needs.

Step 2: Data Collection

Use heatmapping software and tools to measure WiFi signal strength throughout various points in the facility.

Step 3: Analysis

Analyze the data to create a heatmap that visually represents the WiFi signal coverage across the facility.

Step 4: Implementation

Adjust the WiFi setup according to the heatmap’s insights, repositioning or adding access points as needed.

Step 5: Continuous Monitoring

Regularly update the heatmap to adapt to changes in the facility’s layout or usage patterns.

Implementing WiFi Heatmapping: A Step-by-Step Guide

1. Preparation

Equipment: Ensure all necessary tools and software for heatmapping are available.
Scheduling: Plan the survey during typical operational hours to get a realistic sense of WiFi usage and interference.

2. Execution

Coverage Testing: Systematically test WiFi strength in various locations.

Interference Identification: Note potential interference from machinery and structural elements.

3. Optimization

Access Point Adjustment: Relocate or adjust WiFi access points based on data.
Hardware Upgrades: Install additional access points where necessary.

4. Validation

Performance Review: Conduct a follow-up survey to validate the effectiveness of adjustments.
Feedback Collection: Gather user feedback to assess improvements in connectivity and performance.

Example Case Study: A Toronto Manufacturing Plant

Problem: Inconsistent WiFi leading to disruptions in automated production lines.

Solution: Conducted a comprehensive WiFi heatmapping survey, resulting in the repositioning of several WiFi access points and the installation of additional hardware in identified dead zones.

Outcome: Enhanced signal strength across the plant, leading to a 30% increase in production efficiency and reduced downtime.

WiFi heatmapping is more than just a troubleshooting exercise—it’s a strategic tool that supports the efficiency and scalability of operations in Toronto’s warehouse and manufacturing sectors. By ensuring reliable and optimized wireless coverage, businesses can enhance operational efficiency, reduce costs, and improve overall productivity. Investing in professional WiFi heatmapping services is a wise decision for any facility looking to leverage technology for operational success.

For more insights and professional assistance with WiFi heatmapping in Toronto, consider Cablify as we specialize in industrial network solutions.

The post WiFi Heatmapping for Toronto Warehouses and Manufacturing appeared first on Cablify.

Cisco Meraki MR46 vs MR46E

HP — Tue, 16 Jan 2024 20:10:53 +0000

In today’s fast-paced industrial environments, reliable wireless connectivity is crucial. Cisco Meraki’s MR46 and MR46E are two advanced wireless access points that cater to different needs in warehouses and production areas. Let’s delve into their features, compare them, and also look at other popular Meraki access points suitable for similar environments.

Meraki MR46

The Cisco Meraki MR46 is designed for high-density environments requiring robust performance. It features integrated omni-directional antennas and is equipped with 802.11ax (Wi-Fi 6) capabilities, making it ideal for environments with a large number of devices.

Meraki MR46E

The MR46E, on the other hand, offers the flexibility of external antennas. This is particularly advantageous in challenging RF environments, such as large warehouses with complex layouts or outdoor areas.

Comparison Table

Feature	Meraki MR46	Meraki MR46E
Antenna Type	Integrated Omni-directional	External (Flexible)
Radio Configuration	Triple-radio (2.4 GHz, 5 GHz, and dual-band WIDS/WIPS)	Same as MR46
Throughput	High (802.11ax)	High (802.11ax)
Ideal Use Case	High-density indoor environments	Challenging RF environments
Mounting	Ceiling/Wall	Customizable based on antenna type
Flexibility	Standard	High (customizable coverage)

Use in Warehouses and Production Areas

In warehouses and production areas, the choice between these two models depends largely on the specific layout and wireless coverage needs.

MR46 is typically more suitable for standard indoor environments with clear line-of-sight and fewer physical obstructions.
MR46E is advantageous in larger or more complex spaces where custom antenna solutions are necessary to navigate around obstructions and provide targeted coverage.

Other Popular Meraki Access Points for Similar Environments

Meraki MR36: A reliable option for environments needing basic Wi-Fi 6 capabilities without the complexity of the MR46 series.
Meraki MR76: Designed for outdoor or industrial environments, offering ruggedized and weather-resistant features.
Meraki MR55: Ideal for very high-density environments, like large warehouses, offering the highest performance in the Meraki range.

Both the MR46 and MR46E are excellent choices for different scenarios in industrial environments, and their selection should be based on specific site requirements. For larger or more complex spaces, the MR46E’s flexibility with external antennas might be more beneficial. In contrast, for more standardized environments, the MR46’s integrated antennas offer a simpler and equally effective solution. Additionally, other Meraki models like the MR36, MR76, and MR55 can be considered based on specific needs and environmental conditions.

When deploying Access Points (APs) in a warehouse or office, conducting a wireless site survey is an essential step that should not be overlooked. This survey serves as a comprehensive assessment of the environment to ensure optimal placement and configuration of APs, guaranteeing efficient wireless network performance. Moreover, a survey can reveal existing network interferences and propose solutions to mitigate them. It also assists in selecting the right type of APs (like the Meraki MR46 or MR46E) and their features based on the specific environmental needs.

We are an authorized Reseller of Cisco products in Canada and are your go-to source for all the major Cisco Meraki products. We offer a wide range of Wireless Access Points and Licenses, including the Meraki Wireless Access Points licenses. Our inventory features the MR Enterprise series, available in various durations: 1-year (LIC-ENT-1YR), 3-year (LIC-ENT-3YR), 5-year (LIC-ENT-5YR), 7-year (LIC-ENT-7YR), and 10-year (LIC-ENT-10YR) licenses. Additionally, we provide options for the MR Upgrade series, which includes: 1-day (LIC-MR-UPGR-1D) 1-year (LIC-MR-UPGR-1Y) 3-year (LIC-MR-UPGR-3Y) 5-year (LIC-MR-UPGR-5Y) For those seeking more advanced options, we also offer the MR Advanced series, with licenses for: 1-day (LIC-MR-ADV-1D) 1-year (LIC-MR-ADV-1Y) 3-year (LIC-MR-ADV-3Y) 5-year (LIC-MR-ADV-5Y) Contact us for the most competitive prices in Canada and elevate your Cisco Meraki experience with our comprehensive range of products.

The post Cisco Meraki MR46 vs MR46E appeared first on Cablify.

Aruba Virtual Controller and Aruba Access points

HP — Wed, 05 Jul 2023 22:39:15 +0000

Aruba Virtual Controller:

Aruba Virtual Controller technology, part of the Aruba Instant software, allows a single Access Point (AP) to serve as the network’s master controller. This eliminates the need for a separate controller hardware, reducing costs and simplifying deployment. The Virtual Controller can manage up to 128 APs and provides advanced features such as adaptive radio management, spectrum analysis, and wireless intrusion protection. The latest models of Aruba APs that support Virtual Controller technology include Aruba AP-315, AP-325, and AP-535.

Aruba Instant On Switch:

Aruba Instant On Switches are designed for small businesses, providing secure and high-speed connectivity. They are easy to set up and manage via the Aruba Instant On mobile app. The switches come with features like Quality of Service (QoS), VLANs, and rate limiting. The latest models in the Instant On Switch series include the Aruba Instant On 1930 switches, which come in 8, 24, and 48-port models with or without PoE and with optional SFP uplinks for fiber connectivity.

Aruba Access Points:

Aruba Access Points (APs) provide secure and high-speed wireless connectivity. They are designed for a variety of environments, from small businesses to large enterprises. Aruba’s Instant On APs are particularly popular for their easy setup and management, strong coverage, and built-in security. Some of the latest and popular models include:

Aruba Instant On AP25: Designed for high-density environments with superior performance, coverage, and speed. Ideal for tech start-ups, gaming, boutique hotels, and professional offices.
Aruba Instant On AP11: Supports up to 50 active devices and is perfect for light usage like email, file-sharing apps, and internet browsing.
Aruba Instant On AP12: Supports up to 75 active devices and is ideal for moderate usage like voice, video, and music streaming, and file-sharing apps.
Aruba Instant On AP15: Supports up to 100 active devices and is built for high Wi-Fi usage such as video conferences, multimedia, critical apps, gaming, and content creation.
Aruba Instant On AP22: Supports up to 75 active devices and is designed to handle a high volume of connected devices. This Wi-Fi CERTIFIED 6 (Wi-Fi 6) access point is perfect for reimagined offices, schools, and retail/hospitality businesses.

Latest and Popular Aruba Models of Wireless Access points:

Aruba Indoor Access Points

Here’s an expanded summary of Aruba’s Wi-Fi 6, Wi-Fi 6E, and Wi-Fi 5 campus access points:

Wi-Fi 6E Access Points:

650 Series: Aruba’s most powerful Wi-Fi 6E indoor access point, offering up to 7.8 Gbps combined peak data rate. It features high availability with configurable 5 Gbps dual Ethernet ports.

630 Series: This high-capacity Wi-Fi 6E access point provides up to 3.9 Gbps combined peak data rate and supports up to seven 160 MHz channels in the 6 GHz band.

610 Series: A compact, affordable Wi-Fi 6E access point with a dual radio, tri-band architecture. It offers up to 3.6 Gbps combined peak data rate when operating in the 5 GHz and 6 GHz bands.

Wi-Fi 6 Access Points:

550 Series: Aruba’s flagship Wi-Fi 6 campus access point, ideal for extreme-density mobile and IoT environments. It supports either 8×8 or dual 4×4 5GHz radios.

530 Series: A high-performance Wi-Fi 6 campus access point, ideal for high-density mobile and IoT deployments. It supports bi-directional MU-MIMO.

510 Series: A mid-range Wi-Fi 6 campus access point equipped with a 2.5 Gbps Smart Rate port, making it ideal for campus deployments.

500 Series: An entry-level Wi-Fi 6 campus access point that offers full-feature support with 802.3af PoE. It’s ideal for medium-density deployments.

503 Series: The most cost-effective Wi-Fi 6 indoor access point in Aruba’s lineup. It offers full feature support with 802.3af PoE and has the option to add IoT support with an expansion radio.

Wi-Fi 5 Access Points:

340 Series: A high-performance Wi-Fi 5 campus access point that supports dual 4×4 5GHz Wi-Fi and scales up to multi-gig Ethernet.

303 Series: A low-cost Wi-Fi 5 campus access point, ideal for medium-density enterprise environments.

Aruba Outdoor Access Points

Thank you for the additional information. Here’s a summary of Aruba’s outdoor and ruggedized access points:

Wi-Fi 6 Outdoor Access Points:

580 Series: This offers ultimate outdoor Wi-Fi 6 performance and speed. It features Bluetooth and 802.15.4/Zigbee radios with high power, dual redundant power/port failover, and support for AC.

580EX Series: This access point offers ultimate Wi-Fi 6 performance for hazardous locations. It features Bluetooth and 802.15.4/Zigbee radios with high power, dual redundant power/port failover, and support for AC.

570 Series: This is a high-performance Wi-Fi 6 outdoor access point with built-in BLE and Zigbee support. It’s ideal for high-density outdoor environments.

570EX Series: This high-performance Wi-Fi 6 access point is designed for hazardous locations. It has built-in BLE and Zigbee support and is ideal for high-density outdoor environments.

560 Series: This is a low-cost Wi-Fi 6 outdoor access point with a small form factor for maximum flexibility. It’s ideal for outdoor and warehouse environments.

560EX Series: This Wi-Fi 6 access point is designed for hazardous locations with support for extreme temperatures. It has a small form factor for maximum flexibility and has Class 1 Division 2 and ATEX Zone 2 certification.

518 Series: This is a high-performance Wi-Fi 6 ruggedized access point that supports both indoor and outdoor mounting brackets for maximum flexibility. It’s ideal for harsh weather-protected and extreme-temperature environments.

Wi-Fi 5 Outdoor Access Points:

387 Series: This high-performance outdoor Point-to-Point access point supports 60Ghz and 5Ghz out to 400m. It’s easy to deploy with a self-aligning 60Ghz array.

370 Series: This high-performance Wi-Fi 5 outdoor access point offers maximum outdoor coverage. It’s ideal for outdoor environments where a fiber uplink is required.

370EX Series: This high-performance Wi-Fi 5 outdoor access point is ideal for hazardous locations and outdoor environments where a fiber uplink is required.

360 Series: This low-cost 802.11ac Wave 2 access point is ideal for outdoor enterprise environments.

318 Series: This high-performance Wi-Fi 5 ruggedized access point supports both indoor and outdoor mounting brackets for maximum flexibility. It’s ideal for harsh, weather-protected environments.

Licensing Requirements

Aruba Access Points can operate in different modes, and the licensing requirements can vary depending on the mode of operation.

Aruba Instant Mode: In this mode, one of the APs dynamically takes the role of a Virtual Controller (VC) and the APs form an Instant WLAN (I-WLAN). In Instant mode, there is no need for licensing.
Controller-Based Mode: In this mode, the APs are managed by a Mobility Controller. For this setup, licenses are required on the Mobility Controller. There are different types of licenses, such as AP licenses (for the number of APs), PEFNG (Policy Enforcement Firewall Next Generation), RF Protect, etc.
Remote AP (RAP) Mode: This mode is for APs deployed in remote or home offices and connect back to a Mobility Controller in the corporate office. These also require licenses on the Mobility Controller.
Spectrum Monitor Mode: This mode is for dedicated air monitoring and requires licenses on the Mobility Controller.

Please note that licensing requirements can change, and it’s always a good idea to check with Aruba website for most accurate and up-to-date information. Cablify is an Authorized Reseller and leading Wireless Access Point Installation company in Toronto Area.

The post Aruba Virtual Controller and Aruba Access points appeared first on Cablify.

What is OFDMA and how does it affects Wi-Fi 6

HP — Tue, 30 May 2023 14:56:23 +0000

One of the “hidden” keys to the success of Wi-Fi 6 and Wi-Fi 6E technologies is the concept of OFDMA (Orthogonal Frequency-Division Multiple Access).

Orthogonal Frequency-Division Multiple Access (OFDMA) is a key technology that was first widely used in 4G LTE cellular networks. In contrast to previous Wi-Fi versions, Wi-Fi 6 (802.11ax) and Wi-Fi 6E adopted this technology to better handle multiple devices and improve overall network performance.

While much attention is given to the raw speed increase of Wi-Fi 6 and Wi-Fi 6E, the importance of OFDMA should not be overlooked. It’s the key enhancement that allows these technologies to support our increasingly connected world, filled with a multitude of devices requiring simultaneous, efficient, and reliable internet access.

Here is how OFDMA enhances Wi-Fi 6 Performance:

Multi-User Capability: OFDMA enables a single wireless channel to be divided into multiple sub-channels, known as Resource Units (RUs). This ability to divide a channel is crucial because it allows an Access Point (AP) to serve multiple users concurrently. Each user gets a different RU, meaning that multiple devices can communicate with the AP at the same time without having to wait for their turn. This feature significantly reduces latency and improves the overall efficiency of the network.
Handling of Small Packets: A considerable amount of network traffic consists of small data packets – like those used in Voice over Wi-Fi (VoWiFi), online gaming, and Internet of Things (IoT) applications. Previous generations of Wi-Fi were not very efficient at handling these types of small-packet transmissions, but OFDMA changes that. It allows an AP to aggregate these small packets and send them out simultaneously, leading to a better use of the available spectrum and improved network performance.
Reduced Interference: OFDMA also reduces interference. Because each user is assigned a specific sub-channel or RU, there is less chance of co-channel interference from other devices. This is particularly beneficial in congested environments where numerous devices are vying for network access.
Energy Efficiency: Coupled with a feature known as Target Wake Time (TWT), OFDMA can also help to extend battery life. TWT allows devices to “sleep” and “wake” at scheduled intervals, reducing the time they need to have their antennas powered and communicating. This is particularly beneficial for IoT devices that need to preserve battery life.

In essence, OFDMA, as implemented in Wi-Fi 6 and Wi-Fi 6E, enables better management of network traffic, improving efficiency, reducing latency, and allowing for the successful coexistence of multiple devices on the same network. It’s a game-changer for Wi-Fi technology, capable of handling the demands of today’s heavily connected world. Contact us for Free estimates on WIFI Installation Services .

The post What is OFDMA and how does it affects Wi-Fi 6 appeared first on Cablify.

A Guide to Wireless Modes and Channels

HP — Thu, 02 Mar 2023 01:35:51 +0000

Wireless communication is a method of transmitting data between devices without the use of physical cables or wires. Wireless modes and channels refer to the different methods of transmitting and receiving data wirelessly. In this article, we will discuss the various types of wireless modes and channels. Understanding the different types of wireless modes and channels is important for optimizing wireless communication and ensuring reliable and efficient data transfer. By selecting the appropriate mode and channel for your specific wireless application, you can improve performance, reduce interference, and ensure a stable and secure wireless connection.

Wireless Modes:

1. 1. Infrastructure mode: In this mode, wireless devices communicate with each other through a wireless access point (WAP) or router. The WAP or router acts as a central hub for all wireless devices and provides a connection to the internet or other wired networks.
1. 1. Ad-hoc mode: In this mode, wireless devices communicate directly with each other without the use of a WAP or router. Ad-hoc networks are typically used for peer-to-peer communication or for creating temporary networks where a WAP or router is not available.
1. Mesh mode: In this mode, wireless devices communicate with each other through a network of interconnected devices. Each device in the mesh network acts as a router, forwarding data to other devices in the network. Mesh networks are typically used in large areas where a single WAP or router cannot provide adequate coverage.

Wireless Channels:

1. 1. 2.4 GHz channels: The 2.4 GHz frequency band is the most common frequency used for wireless communication. This frequency band has 14 channels, but only three of these channels (channels 1, 6, and 11) are non-overlapping, which means they can be used simultaneously without interfering with each other.
1. 1. 5 GHz channels: The 5 GHz frequency band is less congested than the 2.4 GHz band and provides faster data transfer rates. This frequency band has more channels than the 2.4 GHz band, with a total of 24 non-overlapping channels.
1. 1. Dual-band channels: Dual-band routers and access points can operate on both 2.4 GHz and 5 GHz frequency bands, providing more flexibility and better performance in areas with high levels of wireless interference.
1. 1. Dynamic frequency selection (DFS) channels: DFS channels are used in the 5 GHz frequency band and are typically reserved for outdoor or commercial use. These channels are designed to avoid interference with weather radar systems and require devices to scan for radar signals before transmitting on the channel.
1. Narrowband and wideband channels: Narrowband channels are used for low-bandwidth applications, such as voice communication or remote control systems. Wideband channels are used for high-bandwidth applications, such as video streaming or file transfers.

Wireless Channel Range

The range of a wireless channel refers to the distance over which a wireless signal can travel before it starts to weaken and degrade in quality. The range of a wireless channel can vary depending on a variety of factors, including the frequency band used, the power output of the transmitter, the type of antennas used, and the physical environment in which the wireless signal is being transmitted.

In general, higher frequency bands such as the 5 GHz band have a shorter range than lower frequency bands such as the 2.4 GHz band. This is because higher frequency signals are more easily absorbed and attenuated by obstacles such as walls, furniture, and other structures, while lower frequency signals can travel further and penetrate obstacles more easily.

- - 2.4 GHz — 75 to 100ft
- 5 GHz — 25 to 35ft (at full speed)

The power output of the transmitter also plays a role in the range of a wireless channel. A higher power output can result in a stronger signal that can travel further, while a lower power output will result in a weaker signal that is more easily attenuated by obstacles.

The type of antenna used can also affect the range of a wireless channel. Directional antennas, which focus the wireless signal in a specific direction, can increase the range of a wireless channel in that direction. Omnidirectional antennas, which radiate the wireless signal in all directions, have a shorter range but provide coverage in all directions.

Omni-Directional vs. Directional Antennas: Guide for Wireless Access Points and P2P Links

Finally, the physical environment in which the wireless signal is being transmitted can have a significant impact on the range of a wireless channel. Obstacles such as walls, floors, and ceilings can attenuate the wireless signal, while interference from other wireless devices or sources of electromagnetic radiation can also degrade the quality of the wireless signal.

In general, the range of a wireless channel can vary from a few meters for low-power devices such as Bluetooth, to several kilometers for high-power, long-range wireless networks such as WiMAX or cellular networks. The actual range will depend on a variety of factors as discussed above and can be affected by other variables such as weather conditions, atmospheric interference, and the presence of other electronic devices in the vicinity.

The post A Guide to Wireless Modes and Channels appeared first on Cablify.
